Begin by locating the condenser unit outside–most models use a metal grille securing refrigerant lines, typically marked with manufacturer labels like “Liquid Line” (thicker) and “Suction Line” (insulated). Identify the indoor air handler, often installed in attics, basements, or closets, where the evaporator coil sits adjacent to the blower motor. The refrigerant lines connect these two components, forming a closed loop. Check for a dedicated electrical disconnect box near the outdoor unit–it houses the capacitor and contactor, critical for startup and power distribution.
Trace the ductwork from the air handler to ensure proper airflow. Supply ducts (larger, insulated) push conditioned air into rooms, while return ducts (uninsulated) pull stale air back. Obstructions or disconnected joints starve the system, reducing efficiency by up to 30%. Examine the thermostat wiring–most modern units use a 4-wire setup (R, G, Y, W) where “Y” connects to the compressor, “G” controls the fan, and “W” activates heating. Label each wire before detaching to simplify reassembly.
Inspect filters monthly. A clogged filter restricts airflow, forcing the blower motor to overwork and increasing energy consumption by 15%. Replace disposable filters every 30–60 days; reusable types require washing with mild detergent and air-drying. Examine the condensate drain line–algae buildup causes blockages, leading to water damage. Flush the line with distilled vinegar every six months to prevent mold growth.
Lubricate the blower motor annually if it has oil ports. Use a few drops of non-detergent SAE 10 oil, avoiding excess to prevent buildup. Test the capacitor with a multimeter–readings should match the microfarad (µF) rating printed on the component. Deviations indicate failure; replace with an identical model to avoid compressor damage. For split systems, verify the refrigerant charge matches the manufacturer’s specifications. Undercharging reduces cooling capacity, while overcharging strains the compressor.
Schedule professional maintenance biannually. Technicians check system pressure, clean coils with fin combs to restore airflow, and calibrate thermostats. Neglecting these steps voids warranties and shortens equipment lifespan–typically 10–15 years with proper care. Keep emergency repair numbers handy; a failed compressor costs $1,500–$2,500 to replace, while routine maintenance averages $80–$150 per visit.
Understanding Your Cooling System Schematic

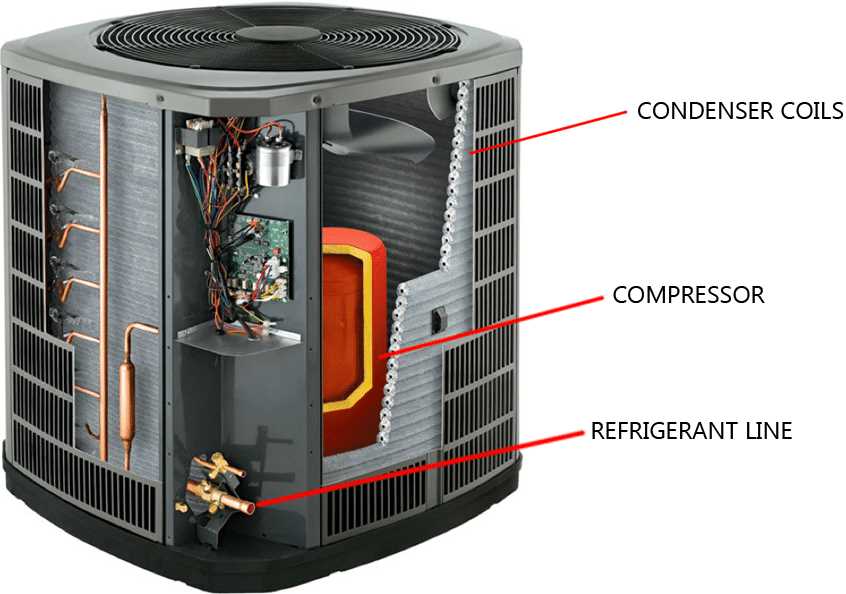

Locate the condenser coil on the outdoor unit first–it’s typically a finned metal grid wrapped around the compressor. Dust accumulation here reduces efficiency by up to 30%, so clean it every 3 months using a soft brush or low-pressure hose, targeting the fins at a 45-degree angle to avoid bending. Check the specification plate for refrigerant type (e.g., R-410A or R-32) before attempting any repairs, as mixing types voids warranties and damages components.
Inside the air handler, prioritize the evaporator coil–often hidden behind a panel. A 1/4-inch layer of frost signals a refrigerant leak or dirty filter. Replace disposable filters monthly if they’re 1-inch thick or every 3 months for 4- to 5-inch pleated models. Thicker filters trap finer particles but restrict airflow if clogged; monitor pressure drop across them with a differential pressure gauge (ideal: 0.1–0.3 inches of water column).
Inspect the blower motor’s capacitor for bulges or leaks–swollen cases indicate imminent failure. Test with a multimeter: set to capacitance mode, probe the terminals, and compare readings to the label (e.g., 5–7.5 µF for standard units). Lubricate sleeve bearings annually with SAE 10W non-detergent oil; sealed bearings require no maintenance but last only 8–10 years before replacement. Route condensate drain lines to a floor drain or outdoor location, sloping at 1/4 inch per foot to prevent algae buildup, which causes overflow.
The expansion valve–usually a thermal or electronic metering device–controls refrigerant flow based on evaporator temperature. Adjustment requires a refrigeration manifold gauge set: attach low-side hose to the evaporator’s service port and high-side to the condenser’s, then check pressures against the manufacturer’s target subcooling (typically 10–15°F). Misalignment here causes short cycling or inadequate cooling; recalibrate or replace if pressures deviate by more than 5 psi from specs.
How to Pinpoint Critical Elements in Your Residential Cooling System
Locate the condenser coil immediately–it sits behind the outdoor unit’s protective grille. Clean it biannually with a soft brush or low-pressure hose to prevent airflow blockages; accumulated debris reduces efficiency by up to 30%. Inspect fins for bending; straighten them with a fin comb to avoid disrupted heat exchange. Verify refrigerant lines for frost or leaks–wet spots or oily residue signal refrigerant loss, demanding professional recharging.
- Indoor air handler: Check the evaporator coil for mold or dust buildup; a damp cloth with mild detergent removes surface contaminants without damaging aluminum fins.
- Thermostat calibration: Test accuracy by placing a separate thermometer near the return vent; discrepancies over 2°F require battery replacement or recalibration.
- Fan motor: Listen for grinding noises during operation–a sign of bearing failure. Lubricate ports annually with SAE 10 oil if accessible; sealed motors need full replacement.
Examine the electrical panel for tripped breakers or burned wires–charred insulation indicates overheating, often caused by loose connections. Tighten terminal screws to 15-20 in-lbs torque; overtightening strips threads. Label wires before disassembly if attempting repairs; mismatched connections risk compressor burnouts. Replace capacitors every 5 years even if functional–aged units bulge or leak dielectric fluid, reducing starting torque by 40% and overworking the motor.
Step-by-Step Guide to Locating the Condenser and Evaporator Coils
Begin by unplugging the cooling unit from the power source. For outdoor units, remove the protective grille or access panel on the side or top using a screwdriver–most models use Phillips-head screws. The condenser coil wraps around the perimeter behind the blower fan, with thin metal fins visible. If fins appear bent, straighten them carefully with a fin comb to ensure airflow.
Indoor evaporator coils sit near the air handler, typically behind a removable panel. Slide out the air filter first–this is often the most accessible entry point. The evaporator resembles a series of aluminum tubes arranged in a serpentine pattern, often coated in condensation. Check for frost buildup, which signals restricted airflow or low refrigerant.
Outdoor unit tips: Clear debris like leaves or grass clippings from the base before inspecting. Use a flashlight to trace refrigerant lines–they connect the compressor to the coils. The larger line (suction) carries cold gas; the smaller (liquid) line should be warm to the touch. If both feel room temperature, the system may lack refrigerant.
Tools you’ll need: screwdriver, fin comb, flashlight, multimeter (for voltage checks). Avoid using sharp objects to clean coils–opt for a soft brush or coil cleaner spray. For tight spaces, a flexible extendable mirror helps confirm coil conditions without disassembly.
Troubleshooting Hidden Coils
Some split systems hide the evaporator inside ductwork. Look for access doors near the furnace or air handler–manufacturer stickers often label these panels. If ducts are sealed, check for temp differences: hold a thermometer near vents. A 15–20°F drop indicates the evaporator is functioning; lesser drops point to inefficiency.
Condensate drain lines can hint at coil location–follow the PVC pipe from the indoor unit to where it exits the building. The evaporator sits directly above this drain point. If water pools around the unit, clogs in the drain or frozen coils may be the cause. Use a wet/dry vacuum to clear blockages in the ½-inch drain tube.
Decoding Electrical Schematics for Climate Control Units
Locate the power source symbol–typically a battery icon labeled “L” or “LINE” for hot wires and “N” or “NEUTRAL” for return paths. Tracing these lines reveals the compressor, condenser fan, and evaporator blower connections. Use a multimeter set to 20V AC to verify voltage between these points: 220-240V for split systems, 110-120V for window units. Mark each wire’s gauge on the schematic–14 AWG for control circuits, 10 or 12 AWG for high-current components–to prevent overheating.
| Symbol | Component | Typical Voltage | Troubleshooting Check |
|---|---|---|---|
| ⏚ | Ground | 0V | Measure continuity to chassis |
| ⚡ | Thermal overload protector | 24V control / 230V power | Test for open circuit when tripped |
| ⊞ | Capacitor (run/start) | 370-440V AC | Check microfarads with capacitor tester |
| Contactor relay | 24V coil / 230V contacts | Listen for audible click at activation |
Identify color-coding conventions: black/red for hot, white for neutral, green/bare for ground. Blue or yellow wires often denote low-voltage thermostat signals. Cross-reference the legend–usually in a bottom corner–to confirm functions. For dual-voltage systems, label the transformer’s secondary winding with “24V” to distinguish it from primary lines.
Identifying AC System Failures with Schematic Layouts
Locate the compressor relay on the wiring blueprint–typically marked near the condenser unit’s electrical panel. If the climate control fails to engage but the indoor blower operates, check for a melted relay, corroded terminals, or a tripped 3-amp fuse upstream. Replace the relay only after verifying the correct voltage (220-240V) at the supply line; discrepancies point to a faulty capacitor or damaged contactor coil, not the relay itself. For systems showing weak airflow, trace the evaporator coil drain line on the diagram to confirm it isn’t clogged with algae or debris, which restricts dehumidification and triggers ice buildup on coils.
Pinpointing Thermal Expansion Valve Malfunctions
On refrigerant flow schematics, the thermal expansion valve (TXV) is usually depicted between the condenser’s outlet and the evaporator’s inlet. If the AC cycles irregularly–blowing cold air then shutting off–inspect the TXV’s sensing bulb, secured to the suction line near the evaporator exit. A loose bulb or ruptured diaphragm will cause erratic refrigerant metering, identifiable by hissing at the valve or frost accumulation on the suction line. Test the bulb’s responsiveness by warming it with a heat gun; if pressure doesn’t rise (check via manifold gauge), replace the TXV. For split systems, cross-reference the diagram to ensure the bulb isn’t installed downstream of another TXV, a common installation error causing double throttling.
