Begin by locating the motor housing–the cylindrical casing at the unit’s center. This component houses the rotor and stator, critical for converting electrical energy into rotational force. Ensure the housing is free of dust or corrosion, as accumulation here can reduce efficiency by up to 15%. Use a multimeter to verify resistance values: typical readings range between 20–50 ohms for functional windings; deviations signal potential faults.
The blade irons (or brackets) secure the rotating paddles to the hub. Check for loosened screws–vibration over time can cause a 3–5% drop in airflow if not tightened. Apply thread-locking adhesive to bolts during reassembly to prevent slippage. For optimal balance, weigh each paddle set: a difference exceeding 10 grams requires rebalancing with adhesive weights on the blade underside.
Examine the downrod or mounting shaft. Shorter rods (12–18 inches) work for standard heights, while longer ones (36+ inches) suit vaulted spaces–calculate clearance: the unit’s lowest point should be at least 7 feet from the floor. Inspect the swivel of the hanging hook (ceiling bracket) for wear; a loose fit risks wobble. Replace if sway exceeds 1/8 inch during operation.
The capacitor regulates motor speed. A faulty capacitor (typically 4–10 microfarads) causes sluggish startup or erratic speeds. Test with a capacitance meter: readings below 80% of the rated value indicate replacement need. Opt for dual capacitors in models with integrated lighting–this simplifies wiring and reduces heat buildup by 20%.
Position the toggle switch (wall control or pull chain) within 6 feet of the unit’s base for safety. Hardwired controls offer better durability than pull chains, which fail after ~1,500 cycles. For remote models, ensure the receiver’s frequency (usually 303–315 MHz) matches the transmitter to avoid interference. Replace receiver batteries annually–weak signals cause delayed response.
Understanding the Key Components of Rotary Air Circulators
Begin assembly by identifying the mounting bracket–this sturdy anchor secures the entire unit to the junction box. Ensure compatibility with your electrical setup; mismatched brackets risk instability or electrical hazards. Heavy-duty models often include a reinforced strap for added support, critical in high-ceiling or commercial installations.
Examine the motor housing next. High-quality units feature sealed bearings to minimize friction and noise, while budget versions may use inferior materials leading to premature wear. Look for thermal protection; built-in overload switches prevent overheating during extended use, a detail often overlooked in generic instruction manuals.
The downrod serves dual purposes: adjusting blade height for optimal airflow and concealing wiring. Lengths vary from 3 inches to over 72 inches; shorter rods suit low ceilings, while longer versions accommodate vaulted spaces. Verify the diameter matches the motor’s specifications–thread mismatches cause wobbling.
Blades determine air movement efficiency. Materials range from lightweight plastic to solid wood, each affecting weight and performance. Paddle-shaped designs push more air than flat styles, though modern turbines often use tapered edges for quieter operation. Ensure blades are balanced; even minor weight discrepancies create annoying vibrations.
Swivel-mounted light kits (if included) require careful handling. LED assemblies last longer than incandescent but may need a separate circuit if dimmable. Verify the wattage rating–overloading causes bulb failure or tripped breakers. Some variants integrate reverse-polarity switches for summer/winter modes, enhancing climate control versatility.
Remote-controlled units rely on receiver modules hidden within the motor canopy. Check for FCC compliance to avoid interference with other devices. Replaceable batteries (typically CR2032) last 1-2 years but degrade faster in humid environments. Universal remotes exist but may lack brand-specific features like speed presets.
The pull-chain mechanism provides manual control but wears out faster than electronic options. Replace frayed cords immediately–exposed wires risk short circuits. Some systems combine chains with wall switches for redundancy. Verify compatibility if upgrading older wiring; smart controllers often require neutral wires absent in pre-1980s installations.
Preventative maintenance hinges on blade cleaning and bearing lubrication. Dust accumulation disrupts airflow, reducing efficiency by up to 20%. Use dry microfiber cloths; liquid cleaners corrode motor housings. Annually tighten all screws–loose connections cause humming or abrupt stops. Store removed components in labeled bags during servicing to avoid misplacement.
Key Elements of a Rotating Air Circulator: A Breakdown
Begin by locating the motor housing–the central metal casing at the base of the blades. This component houses the stator and rotor, responsible for converting electrical energy into rotational force. Look for manufacturer marks (e.g., “1/2 HP” or “120V”) on its surface, which indicate power ratings. Verify the model number here before troubleshooting or ordering replacements.
Inspect the blade irons (also called blade brackets or supports). These metal arms extend from the motor housing to hold the paddles. Check for bending, rust, or loose screws–each should be symmetrical to prevent wobbling. Use a level during installation; a 1-degree tilt can reduce efficiency by 15%.

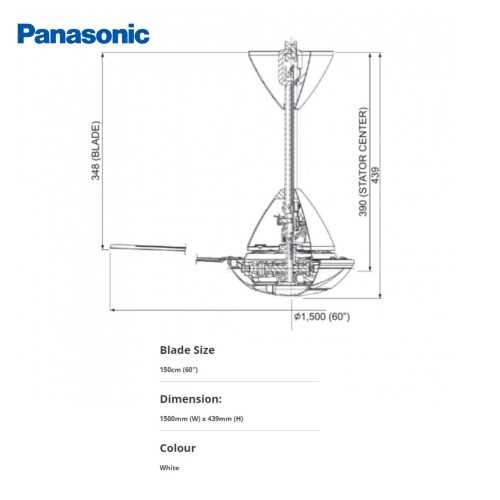

The downrod or mounting tube connects the assembly to the ceiling junction box. Measure its length: standard sizes range from 3″ to 72″, with 12″–24″ optimal for 8–9 ft ceilings. Ensure the threaded coupling aligns perfectly with the ceiling bracket–cross-threading voids warranty coverage. For sloped ceilings, use a angled adapter (sold separately) rated for the unit’s weight.
Examine the light kit, if present. Common configurations include:
- Integrated LED modules (non-replaceable; check lumen output–minimum 800lm for usable brightness).
- Medium-base sockets (E26/E27) compatible with incandescent or CFL bulbs (max 60W unless specified).
- Dual-filament bulbs for variable brightness–verify wiring colors (blue/red = high/low settings).
Replace any cracked diffusers immediately–shards pose a safety hazard during rotation.
The receiver and remote module sits atop the motor housing in smart models. Identify its frequency (typically 303 MHz or 2.4 GHz) via the FCC ID on the label. Replace batteries annually; alkaline types outlast lithium in high-humidity environments. For interference issues, relocate competing devices (e.g., routers) at least 10 ft away.
Assess the capacitor–a cylindrical or box-shaped component near the windings. Look for:
- Swollen casing (indicates failure).
- Voltage ratings (e.g., 3.5 µF–5.0 µF for single-speed, 2x 3.5 µF for dual-speed).
- Terminal labels (“COM,” “RUN,” “START”).
Use a multimeter to test capacitance; deviations > ±10% require replacement. Note: Some motors use a PTC thermistor instead–these require specialized tools for testing.

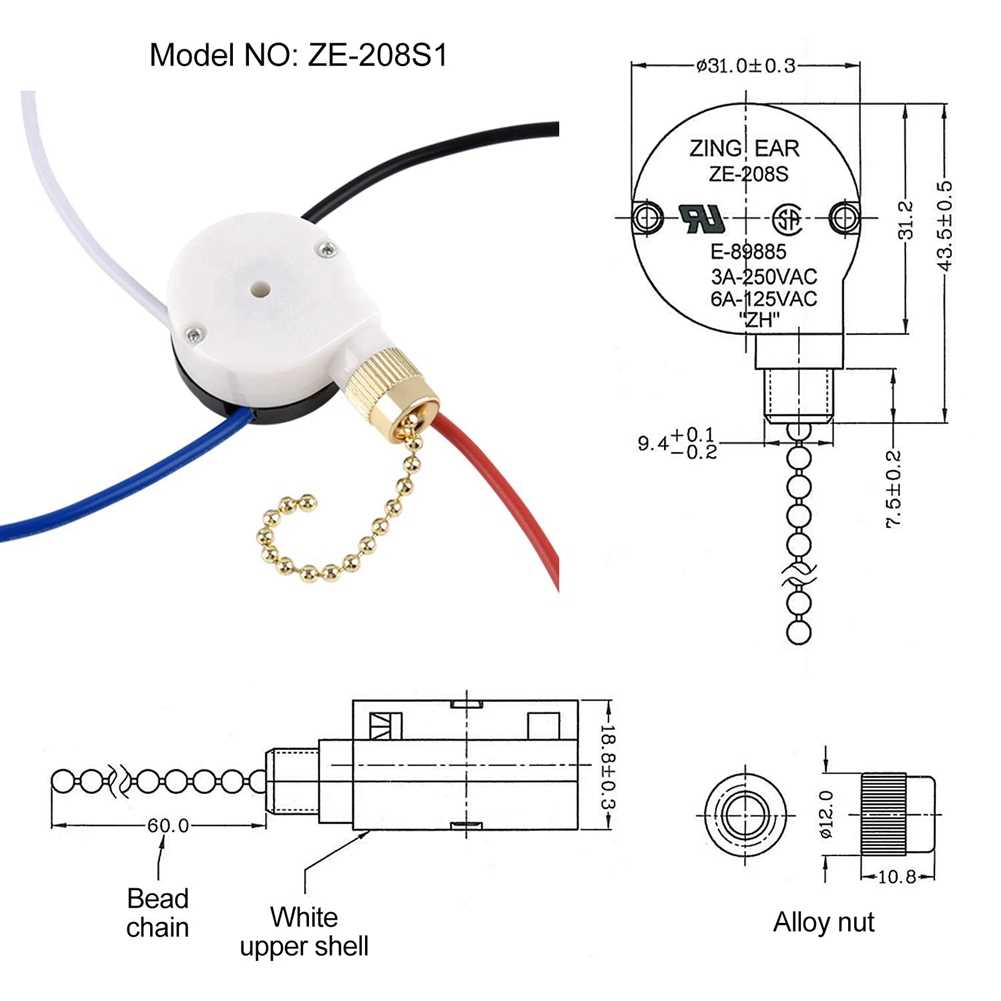

Check the pull-chain switch or wall control. Three-speed units use a 4-wire setup (neutral + 3 speeds); loose wires here cause intermittent operation. For wall-mounted dimmers, ensure compatibility–electronic controls mandate “fan-rated” dimmers (e.g., Lutron MA-LFQM) to prevent overheating. Replace any switches with melted plastic housing.
Verify the safety cable or anti-drop clip–a critical but often overlooked part. This metal wire hooks into the ceiling bracket to prevent detachment during earthquakes or improper installation. Pull-test it to confirm it holds at least 200 lbs; replace frayed or corroded cables immediately. For flush-mount models, inspect the J-hook or ball-and-socket joint for cracks–these fail silently under stress.
Step-by-Step Guide to Locating the Drive Unit Enclosure and Core Assembly
Before disassembling the rotary fixture, disconnect power at the circuit breaker. Place the unit on a stable work surface, rotor side down. The exterior casing–typically a cylindrical metal or plastic shell–will need partial removal to expose internal components. Locate the retaining screws or clips along the underside lip; these may be hidden beneath a decorative cover or rubber gasket. Use a screwdriver matching the screw head type (Phillips or flathead) to avoid stripping.
With the fasteners removed, gently pry the lower housing section free. Apply even pressure around the circumference to prevent cracking, especially if the material is brittle. The drive unit enclosure will now be visible, encasing the core assembly and windings. Note the orientation of wiring connections at this stage–take a photograph or sketch connections if color-coding is unclear. The core assembly (stator) is a fixed circular component with copper coils, bolted or press-fit into the housing base.
Identifying the Core Assembly within the Enclosure
| Feature | Stator Characteristics | Housing Characteristics |
|---|---|---|
| Material | Silicon steel laminations with copper wire windings | Cast aluminum, steel, or molded polymer |
| Attachment Method | Bolted or interference fit (no rotational parts) | Screws, rivets, or molded retaining clips |
| Diagnostic Mark | Electromagnetic hum when powered; no physical movement | May show scorch marks or grease leaks if faulty |
Examine the stator for wear. The copper windings should appear uniform, with no frayed insulation or burn discoloration. Check for debris accumulation–dust or pet hair can impede performance. If the core assembly is secured by bolts, remove them sequentially in a star pattern to maintain balance. For press-fit designs, slide a plastic wedge between the stator and housing to loosen without damaging the laminations. Handle the core assembly with care; oils from skin can degrade insulation over time.
Reassembly requires aligning the stator’s mounting holes with those on the enclosure. Confirm rotational clearance between the stator and rotor (the moving blades’ hub) before tightening screws–misalignment can cause excessive noise or motor failure. Reattach wires exactly as noted earlier, matching connectors by gauge and color. Replace the lower housing, ensuring gaskets or seals sit flush to prevent dust ingress. Test functionality at low speed before restoring full power.
Troubleshooting Common Issues
If the unit emits a high-pitched whine, the stator laminations may be vibrating against the housing–add a thin rubber washer for cushioning. Buzzing or slow startup often indicates worn bearings; lubricate with silicone-based grease if accessible. For total failure, measure winding resistance with a multimeter (typically 20-200 Ω between phases). Resistance outside this range suggests a short or open circuit, requiring stator replacement. Always source parts by exact model number; generic replacements may not match voltage or torque ratings.
