Begin by identifying the serial number on your unit–typically found on a metal plate near the base or side panel. Manufacturers like this U.S.-based brand encode batch details in the first four digits: the first two indicate the year, the next two the week of production. Cross-reference this data with official service manuals or authorized distributor catalogs–many third-party schematics omit proprietary safety updates released post-2020.
For combustion chambers and flue assemblies, match part numbers exactly. Universal kits marketed as “compatible” often lack critical thermal coatings, risking premature failure. Genuine components carry distinct etchings on metal surfaces–eight-character alphanumeric IDs with a hyphen after position four (e.g., RG45-67BX). Validate these against OEM databases; aftermarket listings frequently mislabel alternates with identical visual features.
Electrical modules require voltage-specific replacements. Check harness connectors for keyed slots–some iterations after 2018 introduced reverse-polarity protection that generic units omit. When swapping an ignition control, compare microcontroller firmware versions; mismatched pairs can cause lockout errors. Use a multimeter to verify resistance on serviced thermistors–deviation beyond ±2% signals degraded performance.
For anode rods and dip tubes, account for regional water chemistry. Magnesium alloys corrode faster in soft-water areas, while aluminum types suit high-mineral zones. Specialized vendors sell segmented options with segmented cores, allowing partial replacements without full tank drain. Install with Teflon tape on threaded connections, torquing to 20-25 ft-lbs to prevent leaks.
Pressure relief valves demand exact PSI ratings–residential units typically require 150 PSI, commercial 200+ PSI. Note the expansion direction; vertical discharge models differ structurally from horizontal configurations. Always test post-installation with a step-down gauge to confirm activation thresholds before regular use.

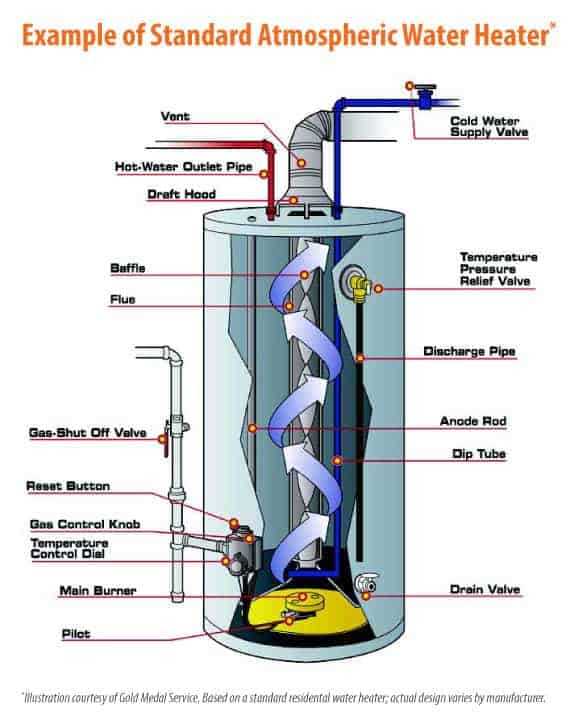

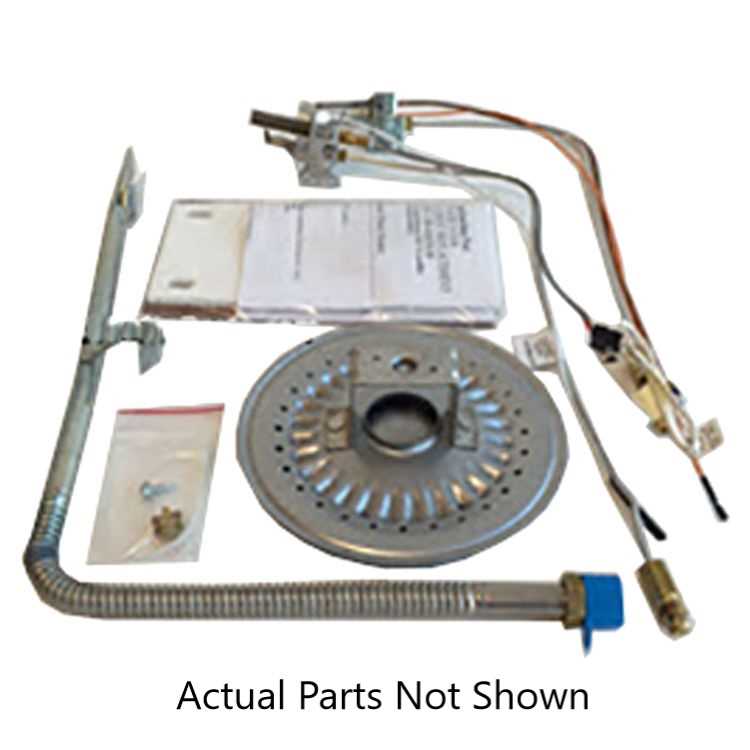

Complete Schematic Reference for Water Heater Components
Locate the anode rod assembly in section B-7 of the manufacturer’s breakdown–it’s typically positioned near the tank’s upper flange, threaded into the dip tube collar. Replace this component every 3–5 years if magnesium is used, or opt for aluminum-zinc alloys for extended corrosion resistance in hard water zones.
Gas burner orifice sizes vary by model series: RG240T requires a #42 drill bit orifice, while RG250T uses a #44. Verify the correct orifice with a micrometer before installation–mismatches cause incomplete combustion, triggering error code 11 on the control panel. Keep a set of numbered orifice gauges in your toolkit for quick field adjustments.
Thermocouple positioning demands precise alignment: the tip must sit 1/8″ above the pilot flame without touching the burner head. If the unit fails to ignite despite a new thermocouple, check for excess soot on the tip–clean with 400-grit sandpaper, then retest voltage output (ideal range: 25–30 millivolts).
The temperature-pressure relief valve (commonly labeled T&P) should release at 150 psi or 210°F. Test annually by lifting the lever slightly–water should discharge freely then stop when released. If it drips continuously, replace the valve immediately; persistent leaks indicate internal scaling, requiring full tank flush.
For electric models, heating elements (upper and lower) are secured with a 1-1/2″ hex socket. Use a multimeter to confirm resistance: 10–16 ohms for 240V, 20–25 ohms for 120V. If resistance is infinite, the element has failed–remove tank sediment before installing the new one to prevent premature burnout.
Circulation pumps in indirect units (series ICX) require periodic bearing lubrication with high-temperature silicone grease (rated to 350°F). Access the pump assembly by removing the front panel; listen for grinding noises–this signals worn bearings, typically resolving with a rebuild kit rather than full replacement.
Vent connectors must maintain a 1/4″ slope per linear foot to prevent condensation buildup. Use galvanized steel for vertical runs, transitioning to stainless steel flex pipe at the termination point. Check for blockages with a borescope–debris like bird nests or rust flakes are common in older systems, causing vent lockout errors (code 26).
Control modules in newer units (post-2018) store fault codes in non-volatile memory. Clear codes by holding the reset button for 10 seconds, but recurring errors (e.g., “E05″ for flame failure) necessitate inspecting the igniter spark gap–adjust to 1/8” for optimal ignition. For older mechanical controls, refer to the wiring legend on the inner door panel; swapped wires on the main gas valve (red/black leads) will prevent ignition entirely.
Troubleshooting Without Schematics
Identify the blower motor by its 3-wire connector (two speed leads, one ground). If the motor runs but produces no airflow, check the impeller’s set screw–it often loosens, causing the housing to spin without moving air. Tighten with Loctite 242 to prevent recurrence.
Locating Manufacturer-Approved Component Schematics for Water Heaters
Begin with the official corporate portal at bradfordwhite.com. Navigate to “Support” then “Technical Resources” where exploded views for all models are organized by serial codes. Each schematic includes OEM identification numbers that third-party vendors must cross-reference.
For immediate access to legacy unit outlines, visit repairclinic.com. Enter the model prefix followed by an asterisk in the search field–this pulls every matching technical drawing stored in their database, including discontinued series. Verify measurements against the original equipment layout before ordering replacements.
partstown.com maintains a parallel repository requiring only the first six alphanumeric characters of the product label. Their interface overlays real-time stock levels directly on the assembly illustrations, expediting procurement. Ensure compatibility by confirming voltage and vent specifications shown in the upper-left corner of the document.
Local distributor sites like ferguson.com offer downloadable PDFs segmented by year of manufacture. Filter by capacity (gallons) and ignition method (electric, atmospheric, power vent) to isolate the correct revision. Retain the filename suffix indicating revision date–earlier versions often contain subtle dimensional variations.
How to Trace Component Details via Serial Number Markings
Locate the product identification tag on the unit–typically a sticker or engraved plate near the service panel, base, or side panel. Record the full sequence of alphanumeric characters, noting capitalization, spacers, and symbols. Ignore branding logos or regulatory stamps; focus solely on the coded string. This sequence often embeds manufacturing date, model variant, and internal component batch identifiers.
Cross-reference the serial digits with the manufacturer’s technical documentation. Most brands encode standard formats: the first three to six positions usually denote model lineage, while subsequent segments reveal production week (e.g., “2312” for week 12, 2023) and factory designation (e.g., “A” for assembly plant A). Tools like online decoder utilities or service manuals can translate these patterns into precise part categories.
Isolating Sub-Assemblies
Break down the serial into segments where delimiters appear. Hyphens, spaces, or slashes often separate distinct metadata blocks. For instance, a format like “AX-4R22G-7K” might split as follows: “AX” = primary chassis class, “4R22G” = sub-component revision, “7K” = calibration batch. Use this parsing to narrow searches to specific subsystems instead of generic replacement lists.
Verify consistency by comparing multiple units. Serials from identical models manufactured in the same period should align in format, though minor variations can denote later revisions or regional variations. Document discrepancies–these often correlate with updated internal configurations requiring different components.
Utilizing Service Codes
Check for secondary codes printed adjacent to the primary serial–these may include error codes, firmware versions, or compatibility notes for optional add-ons. A suffix like “-E” might indicate an upgraded thermal module, while “-P” could denote a pressurized variant. Service bulletins or dealer portals frequently correlate these codes with detailed bills of materials.
Match decoded segments to supplier databases or third-party catalogs. Distributors and OEMs maintain cross-reference tables linking serial fragments to SKU numbers, warranty records, and part obsolescence flags. Direct suppliers often provide CSV exports or APIs for automated lookups, reducing manual interpretation errors.
Validate findings through physical inspection. Confirm serial-derived assumptions by accessing the corresponding internal assembly–label discrepancies often reveal post-production modifications or customer-specific builds. Record non-standard variations for future reference, ensuring subsequent repairs or upgrades align with actual hardware rather than assumed schematics.
Step-by-Step Assembly Breakdown for Gas Water Heater Components
Shut off the gas supply valve and disconnect the unit from its power source before handling any internal elements. Place the heater on a stable, flat surface with adequate clearance–at least 18 inches from combustible materials–to prevent ignition hazards during reassembly.
Begin with the combustion chamber assembly. Locate the burner orifices (typically brass or stainless steel) and verify their alignment with the manifold ports. Misalignment of more than 0.5 mm can disrupt flame distribution. Secure the orifices using a torque wrench set to 12–15 ft-lbs to prevent gas leaks. Inspect the gasket sealing the chamber; replace if torn or compressed beyond 30% of its original thickness.
Heat Exchanger and Flue Tube Installation
Slide the flue tube into the heat exchanger, ensuring the flared end seats fully against the exchanger’s collar. Rotate the tube clockwise until resistance is felt–this locks it into the keyed slot. Apply high-temperature silicone (rated for 500°C+) to the mating surface before tightening the retaining ring with an adjustable wrench, alternating between bolts in a cross pattern to prevent warping. Check for gaps wider than 1 mm; if present, disassemble and realign.
- Thermocouple/flame sensor: Position the probe tip 3–5 mm above the burner plate, angled 10–15° toward the pilot flame. Over-insertion reduces responsiveness; under-insertion risks inaccurate readings.
- Pilot assembly: Attach the gas line fitting with thread sealant (PTFE tape or anaerobic adhesive). Test for leaks using soapy water–bubbles indicate a faulty seal. Replace the pilot orifice if clogged with debris finer than 0.3 mm; clean with pressurized air at 40 PSI.
- Venting components: Install the draft diverter (if equipped) with the arrow marking aligned to upward airflow. Verify the clearance from the draft hood to the vent terminal meets local code–typically 6–12 inches from vertical walls.
Attach the anode rod by threading it into the designated port until hand-tight, then apply an additional 18 ft-lbs of torque. Use Teflon tape on the threads to prevent galvanic corrosion between dissimilar metals. For magnesium rods, replace every 2–3 years; aluminum rods may last 4–5 but require annual inspection for pitting deeper than 0.8 mm.
- Reconnect the gas line: Use a new black iron pipe or flexible connector approved for gas service. Apply pipe dope to male threads only, avoiding female threads to prevent clogs. Tighten to 25 ft-lbs.
- Reattach electrical connections: Match wire colors (red to red, white to white) on the thermostat and limit switch. Crimp terminals with pliers to secure–loose connections cause intermittent heating cycles.
- Fill the tank: Open the cold water inlet valve and a hot water faucet to release trapped air. Once a steady stream flows, close the faucet and inspect for leaks at all fittings within 30 minutes. Watermarks wider than 2 mm require resealing.
Purge the air from the gas line by pressing the pilot button for 60 seconds with the gas control knob in the “PILOT” position. Ignite the pilot and hold the button for another 30–45 seconds to heat the thermocouple. Release–if the flame extinguishes, repeat; persistent failure indicates a faulty thermocouple or gas valve. Set the thermostat to 120°F (49°C) and monitor the burner ignition sequence for uniform flame distribution. Yellow flames or soot deposition signal incomplete combustion–adjust air intake or clean the burner ports with a non-metallic brush.
