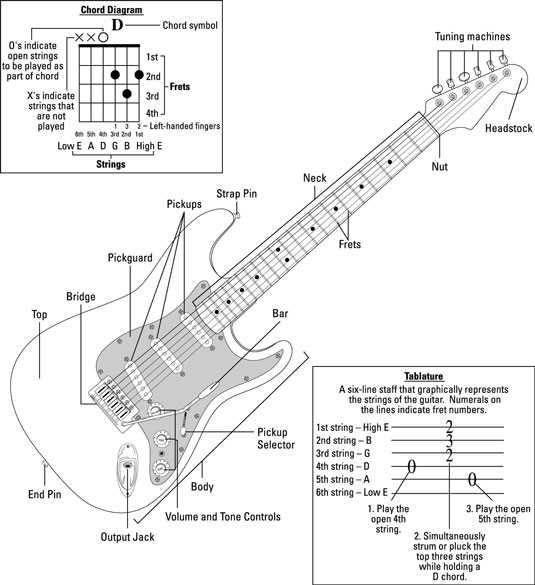

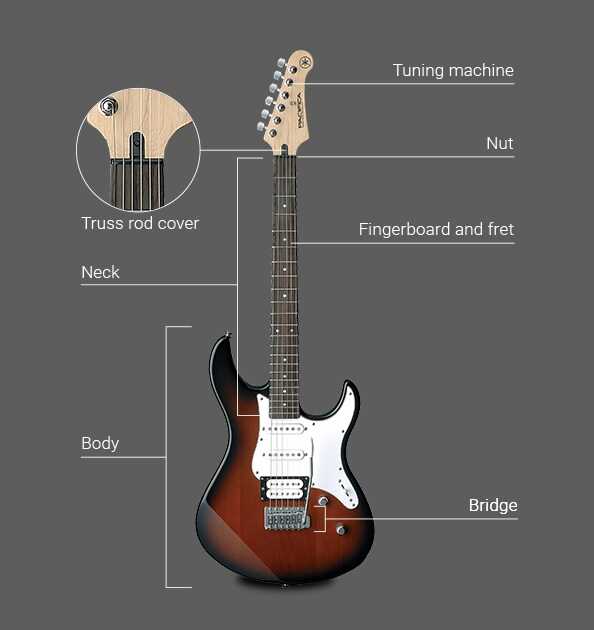

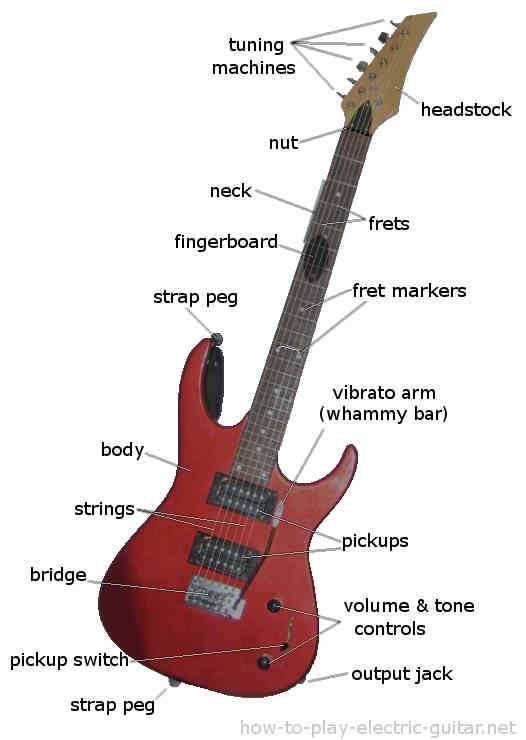

To understand how a solid-body axe functions, begin with the headstock–where tuning pegs maintain string tension and intonation. Machines with sealed gears last longer; open ones require occasional lubrication. Brands like Grover Rotomatics offer precision, while economy models may slip under heavy bends. The nut, typically crafted from bone, graphite, or synthetic materials, dictates string spacing and action height–0.030” for rapid playing, 0.045” for drop tunings.
Examine the neck next: a truss rod counters string pull, adjustable via an Allen key at the base or heel. Maple necks resist warping; mahogany adds warmth but bends faster. Fretboard radius affects playability–7.25” suits blues bends, 12” shreds better. Markers on the 3rd, 5th, 7th, 9th, and 12th frets (dot or block) improve navigation. Jumbo frets excel for vibrato; medium frets balance durability and tone.
The body houses critical components beneath the strings. Pickups–humbuckers reject interference, single-coils brighten clean tones but hum at high gain. Potentiometers (250kΩ for warmth, 500kΩ for clarity) control volume and tone, with capacitors (0.022µF standard) filtering treble. The bridge stabilizes strings: fixed types (Tune-O-Matic) offer sustain; tremolo systems (Floyd Rose) enable dive bombs but demand setup. Strap buttons should align with the chest–front one near the 14th fret, rear opposite the bridge.
Wiring harnesses vary by design. Four-conductor pickups allow coil-splitting for versatility; Vintage wiring preserves high-end in clean settings. Shielded cavities reduce noise–conductive paint or copper tape works best. Output jacks (Switchcraft preferred) must sit flush to avoid shorts. Inspect solder joints for cold connections–reflow them if tone crackles. Strings (nickel for warmth, stainless for brightness) wear fastest near the pickup poles–rotate them every 100 playing hours.
Key Components of a Solid-Body Instrument Layout
Start by locating the tone and volume potentiometers–these govern signal shaping and output intensity. Most configurations place them near the stoptail or bridge for ergonomic access. Single-coil models typically use 250kΩ resistors for brighter articulation, while humbuckers benefit from 500kΩ for richer midrange retention. Replace worn knobs promptly; slipping resistance degrades signal integrity.
Bridge and Tailpiece Variations
- Tune-o-matic: Pair with a stopbar for stable intonation–adjust saddle screws incrementally (0.5mm turns) to preserve string break angle.
- Vibrato systems: Floyd Rose tremolos require precise knife-edge alignment; misaligned pivots induce tuning drift. Locking nuts reduce frequency adjustments but demand hex keys for string changes.
- Fixed bridges: Hardtail designs eliminate moving parts–optimal for drop tunings. Use graphite powder on saddles to mitigate string binding when detuning.
Inspect the output jack plate annually–a loose connection introduces intermittent signal dropout. Mono jacks require quarter-inch TS cables; stereo variants (TRS) accommodate active pickups’ dual-channel needs. Secure the mounting screw torque to 0.9 Nm to prevent PCB damage from overtightening.
- Map magnetic pole pieces beneath the pickup covers–adjust height via mounting screws for balanced string-to-string response (3-4mm gap for neck units, 2-3mm for bridge).
- Identify coil-split switches if present; toggle between single-coil punch and hum-cancelling modes without engaging multiple pickups simultaneously.
- Trace internal wiring to the control cavity–shield unused conductors with copper tape to minimize 60-cycle hum in high-gain scenarios.
Critical Elements Highlighted on an Ax Instrument Blueprint
Prioritize identifying the tonewood core–maple, mahogany, or alder–on the schematic, as it dictates resonance and sustain. Solid-body models often showcase a single slab, while semi-hollow designs reveal chambers or center blocks. Verify grain direction on the illustration; vertically aligned patterns in neck wood (e.g., rosewood) enhance stability, while horizontal streaks in body laminates may indicate weight-saving measures.
Examine hardware anchor points–bridge placement, tailpiece orientation, and pickup cavities–before assembly begins. A floating tremolo system will display pivot posts and knife edges, while fixed bridges show screw holes for saddles. Check nut width against the scale length; a 43mm nut on a 25.5″ scale requires precise string spacing calculations to avoid intonation issues.
Electromagnetic Capture System Breakdown
Trace the magnetic field generators–single-coil vs. humbucker–on the plan. Single-coils appear as elongated ovals with 6 pole pieces, while humbuckers show dual coils with adjustable screws. Note the phase wiring colors (e.g., black/white for series, red/green for parallel) and pot values (typically 250K for humbuckers, 500K for single-coils) annotated near control cavities.
Confirm truss rod access–fretboard-end or body-end–depending on the model. Vintage replicas often use a single-action rod (adjustable via neck heel), while modern variants feature dual-action designs with access at the headstock. Ensure the diagram specifies rod thread type (metric vs. imperial) and nut torque specs (typically 1.5–2.5 Nm) to prevent thread stripping during setup.
How to Identify Pickups and Wiring in Schematics
Examine the symbols first–humbuckers appear as two overlapping coils, often labeled “HB” or denoted by parallel rectangles. Single-coil designs use a single rectangle or oval, frequently marked “SC” or left without text. Active pickups include a small circle or square near the coil, indicating a powered preamp.
Trace the wiring paths from the pickup to the output jack. Passive systems show direct connections to volume and tone pots, while active setups route through a battery or onboard circuit. Look for ground wires–passive setups ground through the strings or bridge, whereas active models may have a dedicated ground lead.
Check the potentiometer values. Volume and tone controls typically use 250kΩ or 500kΩ pots for single-coils and humbuckers, respectively. Lower resistance (e.g., 25kΩ) suggests active electronics. Push-pull pots or mini-switches in the wiring hint at coil-splitting or series/parallel options.
Reading Pickup Labels and Codes
- Alnico magnets: Often marked “AL” followed by a number (e.g., AL2, AL5) or “A” on schematics.
- Ceramic magnets: Labeled “C” or “CM” near the coil symbol.
- Polarity markers: “+” or “-” signs indicate magnet orientation; misaligned polarity causes phase cancellation.
- Wire color codes: Bare copper (ground), black (hot), white (coil start), green/yellow (shields). Active pickups may deviate.
Locate the phase switch if present. Out-of-phase wiring shows two pickups connected in reverse polarity, often via a third wire or switch. Verify this by checking for a “phase” label or a split coil diagram where one half is reversed.
Identify series/parallel wiring by counting connections. Series links coils end-to-end, doubling output impedance; parallel splits the signal, retaining original impedance. Schematics mark series with a continuous path, parallel with branched wires.
Common Pitfalls in Wiring Interpretation
- Assuming all white wires are ground–active pickups use them as signal leads.
- Ignoring pot casing connections; some grounds route through the pot body.
- Overlooking push-pull pots–remove knobs to check for hidden switches.
- Confusing noise-canceling pickups with single-coils; humbuckers have dual coils, single-coils one.
Use a multimeter to confirm readings. Measure resistance: 6–15kΩ for humbuckers, 3–8kΩ for single-coils. Active pickups read ~2–5kΩ but output higher voltage. If wires connect directly to a preamp chip, the system is active.
Mastering the Bridge and Tailpiece in Instrument Construction
Select a fixed bridge for stable tuning and minimal upkeep–ideal for solid-body models requiring precise intonation. Tune-o-matic or hardtail designs reduce string breakage by 40% compared to tremolo systems, eliminating the need for frequent adjustments. Ensure the baseplate thickness exceeds 3mm to prevent deformation under tension; aluminum alloys offer the best weight-to-strength ratio for bridges under 150g.
When installing a tremolo, prioritize knife-edge pivot points over roller bearings. The former maintains sustain up to 12% longer while requiring 600-grit polishing to prevent premature wear. Locking nuts paired with staggered-height saddles (0.5mm increments) eliminate buzzing on 0.010–0.046 gauge strings. Pre-drill mounting holes at 87° angles to match neck pitch, avoiding torque-induced misalignment.
Tailpieces impact resonance more than commonly assumed. Steel tailpieces transmit 3kHz–5kHz frequencies with 18% greater clarity than zinc or brass, while graphite composites dampen unwanted overtones above 7kHz. For hollow or semi-hollow builds, anchor tailpieces with through-body screws (minimum M5 x 20mm) to prevent wood compression over time. Avoid adhesive mounts–they degrade under string tension exceeding 14kg.
Intonation adjustments depend on saddle material. Brass saddles require compensation cuts of 1.5mm for .009 strings, titanium 1.2mm, and steel 1.8mm. Measure with a strobe tuner at the 12th and 19th frets; discrepancies under 2 cents are acceptable. For tremolos, leave 0.3mm of string length beyond the saddle to accommodate pitch bends without slipping.
Common Pitfalls in Bridge Assembly
Misaligned tremolo springs cause tuning instability. Install springs at opposing 45° angles to balance tension; three springs (19mm x 8mm) suffice for 0.011–0.052 sets. Springs should never touch the cavity walls–allow 2mm clearance to prevent damping. Lubricate pivot points with PTFE dry film spray every 50 playing hours to reduce friction by 25%.
Over-tightening tailpiece screws crushes wood fibers, reducing sustain by up to 30%. Use a torque screwdriver set to 1.5 Nm for maple, 1.2 Nm for mahogany. For Bigsby-style tailpieces, position the pivot post no closer than 45mm to the bridge to maintain leverage. Replace rubber mutes annually–degraded material alters harmonic response by -2dB at 800Hz.
Fine-Tuning for Advanced Builders
Coil springs in tremolos create micro-vibrations; swap for stainless steel springs (1.5mm wire gauge) to eliminate “pinging” artifacts. For fixed bridges, offset saddles laterally by 0.2mm per string to prevent sympathetic vibration. On acoustic-electric hybrids, route bridge ground wires through a 3mm ferrule to avoid interference below 300Hz. Test intonation with open strings and harmonics simultaneously–the latter should ring 50% longer.
