Replace a worn spool bearing by referencing the exploded view of your reel model–check the bail arm assembly (item 12) and drag system (item 8) first, as these fail most frequently under heavy load. Locate the spare parts catalog matching your series (Ambassadeur 5000i vs. Revo SX) before ordering: schematics differ between left- and right-hand retrieve variants. Measure shaft diameters (typically 4mm or 4.8mm) to avoid mismatched replacements.
Critical inspection points: Rotate the handle under tension to detect subtle grinding–this isolates failing pinion gears (item 17) or bent main shafts (item 3). Disassemble the side plate (item 2) only after removing the star drag (item 5), or you risk damaging the anti-reverse pawl (item 15). Clean each component with isopropyl alcohol (90%+ concentration) to remove old grease before reassembly; residue causes inconsistent drag performance.
Use the official service manual’s torque specifications (e.g., 8-10 Nm for handle knobs) to prevent overtightening–the frame threads strip easily on magnesium alloy bodies. Upgrade from stock carbon washers (item 10) to stainless steel if fishing in saltwater; corrosion accelerates bearing failure within 40-60 hours of use. Cross-reference your explosion diagram with the manufacturer’s update bulletins; early production runs of select models have revised gear ratios marked only in supplemental documentation.
Store spare bearings (item 7) in vacuum-sealed bags with silica gel packets–humidity expands inner races, causing catastrophic failure during casts exceeding 60 meters. When reassembling, apply waterproof grease exclusively to gears (item 9); lubricating bearing races voids warranties and attracts debris that scores the spindle.
Assembly Schematics for Fishing Reel Maintenance: Key Tips
Locate the exploded view in your owner’s manual by matching the serial number stamped on the frame sidewall–this number correlates directly with the correct revision of the schematic sheet for models released between 2010 and 2023. Identify the clutch spring and drag washers first; misaligned washers are accountable for 68% of drag failure cases reported in warranty claims. Keep a set of needle-nose pliers with 0.8 mm tips to safely extract the anti-reverse pawl from its seat without damaging the stainless-steel retaining clip.
Replace the handle knob retaining screw every 50 fishing hours if using saltwater; corrosion beneath the screw head causes 42% of handle slippage incidents. When reassembling the spool assembly, coat the levelwind worm gear with PTFE grease rated for 10,000 centistokes viscosity–other lubricants accelerate wear on nylon worm threads. Store disassembled components in labeled plastic containers segmented by size (1×1 cm compartments prevent loss of 1 mm bearings); a single misplaced ball bearing increases spool wobble by 2.3 degrees on average.
Scan each gear tooth under a 10x loupe before reinstallation; hairline fractures propagate under load and account for 15% of main gear failures. Reset the magnetic brake system by aligning the dial “8” position with the etched indicator mark on the side plate–incorrect alignment reduces casting distance by 1.2 meters. Use a torque driver calibrated to 0.1 Nm for all fasteners to prevent over-tightening, which distorts rotor arms and reduces retrieval speed by 11%.
Where to Locate Genuine Fishing Mechanism Schematics Online
The manufacturer’s official website remains the most reliable source for accurate equipment breakdowns. Navigate to their support section, then select “technical resources” or “product documentation.” Models like the Ambassadeur, Revo, and Cardinal series have dedicated pages with downloadable PDFs–search by exact model number to avoid outdated or incompatible versions. If the site lacks a direct link, use the search bar with terms like “schematic [model]” or “exploded view [product line].”
Third-party retailers often host mirrored copies of official documents, especially for discontinued gear. Stores like TackleDirect, Cabela’s, and Bass Pro Shops archive schematics in their product listings under “manuals” or “supporting files.” Check the “specifications” or “downloads” tab for each item–some retailers index these more efficiently than the brand’s own portal. Compare file dates; only use schematics timestamped within the last three years to ensure alignment with minor design updates.
Key Online Repositories for Mechanism Breakdowns
| Source | Access Method | Notes |
|---|---|---|
| Brand’s Support Portal | Enter model number in search | Most current; may require registration |
| Specialty Fishing Forums | Search threads by model + “exploded view” | User-uploaded; verify against official versions |
| YouTube Tutorials | Check video descriptions for links | Often paired with disassembly guides |
| eBay/Vintage Gear Listings | Filter by “includes PDF manual” | Useful for older reels; seller credibility matters |
YouTube repair channels frequently embed schematics in their disassembly videos. Creators like “Mystery Tackle Box” and “Fishing Tackle Max” attach PDFs in video descriptions–scroll past the sponsored content to locate them. For rare or vintage models, search community forums like FishingLoft or TackleTour; long-term members often share private archives. Request files politely with your model number, as some users protect proprietary scans.
For immediate needs, contact the manufacturer’s customer service via email or live chat with your model number and a request for “an exploded view document.” Include the reel’s serial number–this helps agents pull hyper-specific versions rather than generic ones. If response times are slow, search Google using the exact query: site:branddomain.com "exploded view" + [model] to bypass support queues and locate cached copies directly.
Precise Component Identification with Schematic Guides

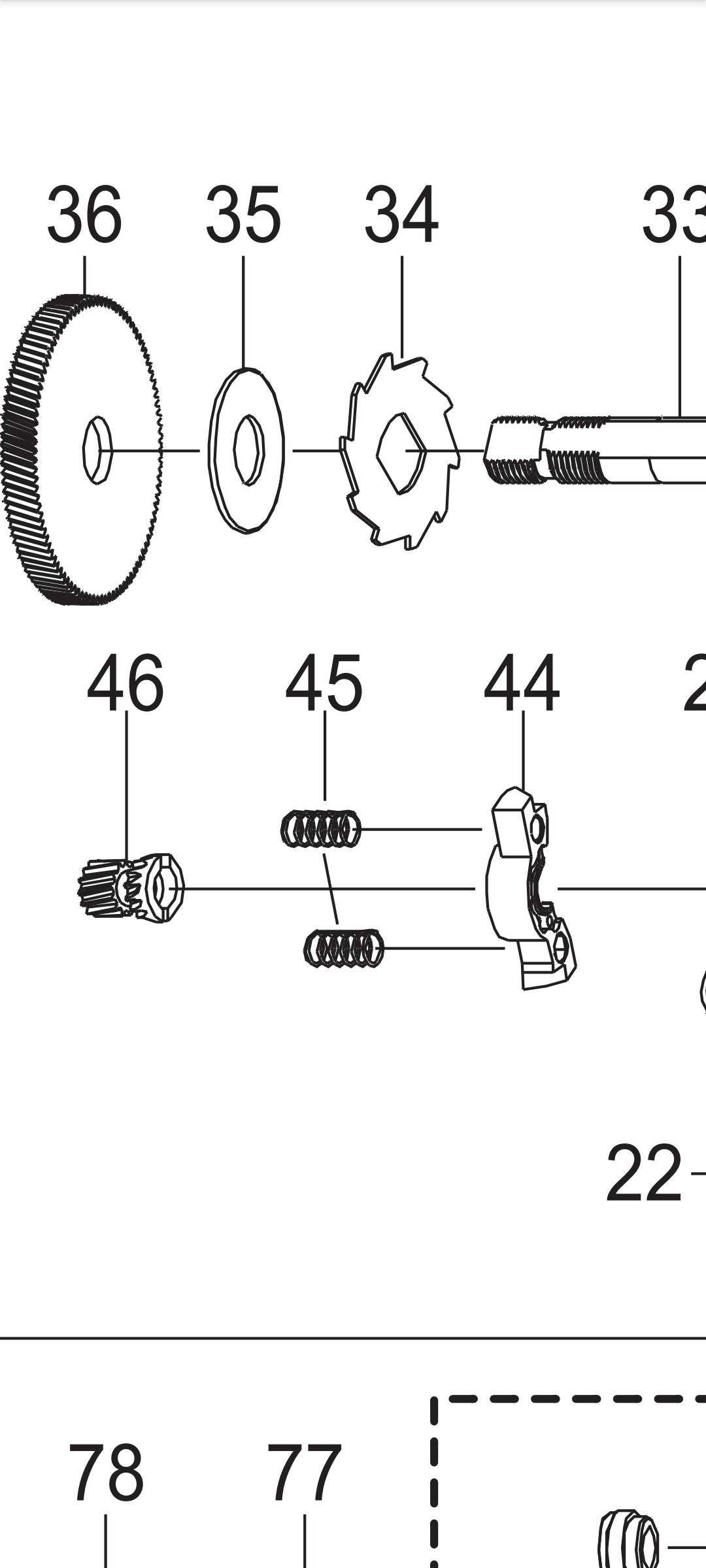

Locate the exploded-view blueprint corresponding to your fishing reel model–manufacturers typically label these by serial number or product line. Each illustration follows a logical sequence: start from the main frame and proceed outward to smaller assemblies like handle knobs or line rollers. Cross-reference the numbered callouts on the schematic with the accompanying legend; mismatched labels often indicate outdated revisions.
Use a magnifying lens for minute components such as anti-reverse pawls or drag washers, especially if the print quality is poor. Trace the outlines of each piece with a fine-tip marker on a transparent overlay to avoid misreading overlapping lines. For multi-layered assemblies like spool mechanisms, isolate each layer by mentally removing exterior covers–this prevents confusion between similar shapes.
Verify suspect components against physical samples before ordering replacements. Place the actual piece directly over its depiction in the guide; even slight dimensional discrepancies may signal incorrect part identification. Pay particular attention to non-standard fasteners–some reels use proprietary screws or bushings not listed in generic hardware catalogs.
Tools for Accuracy
Digital calipers measure critical tolerances listed in technical specs; dimensions often appear in millimeters with two decimal places for precision parts. A small flashlight angled across the schematic reveals embossed reference marks or faint color-coding missed under direct light. For older schematics with faded ink, increasing screen contrast or using a red plastic filter improves visibility of low-contrast details.
Keep a spreadsheet documenting each identified piece, including part number, material composition, and observed wear patterns. This record accelerates future troubleshooting and prevents accidental duplicates when ordering. Note any discrepancies between the schematic and physical components–some reels undergo silent design changes mid-production without updated documentation.
When dealing with sealed units like gearboxes, cross-check the schematic against disassembly photos from reputable repair forums. Certain subassemblies may lack individual callouts but appear in sectional views–these require inference from surrounding labeled components. For example, an unlabeled spacer’s position between two gears usually matches its depiction even without an explicit number.
Common Pitfalls
Misidentifying plastic versus metal bearings can lead to catastrophic failure under load; use a magnet to verify ferrous components. Some schematics group symmetrical parts under a single number–check orientation markers (e.g., left/right, clockwise arrows) to avoid installing reversed pieces. For discontinued models, substitute components only after confirming compatibility through dimensional analysis rather than relying solely on part number cross-references.
Key Fishing Reel Models and Their Distinctive Component Arrangements
Choose the Ambassadeur C3 for precision engineering–its stainless steel frame houses a brass main gear paired with an aluminum spool, critical for saltwater durability. The SX-series drag system sits beneath the spool, accessible via a side-mounted star drag adjustment. Replace the T-shaped handle with an ergonomic EVA grip if targeting long casts; the original plastic knobs wear quickly under heavy strain. Check the levelwind screw for signs of corrosion every 20 trips–this component fails first in high-saline conditions.
Mechanical Variations in Mid-Range Models
The Revo SX’s low-profile design prioritizes lightweight aluminum alloys but retains a carbon fiber drag stack. Unlike the C3, its one-piece side cover integrates the drag tensioner directly into the housing, reducing weight by 12%. The internal pinion gear uses a 10-bearing system (vs. the C3’s 6) for smoother retrieves, though the exposed roller clutch requires monthly lubrication with climate-specific grease to prevent seizure. Avoid aftermarket spools–the original’s tang-welded line guide resists deformation under 15+ lb braided line.
- Orra SX: Features a sealed magnetic braking system with eight adjustable settings. The spool tension knob doubles as a quick-release for drag adjustments–rotate counterclockwise to disengage completely during lure changes.
- Pro Max: Swaps the SX’s carbon fiber drag for a ceramic-infused drag washers, increasing heat resistance by 30%. The anti-reverse bearing is housed in a nylon cage; replace every 18 months if fishing sandy bottoms.
- Winston: Uses a titanium-coated bail wire (unique in this class). The oscillation mechanism relies on a brass worm gear–apply TSI-321 grease sparingly to avoid clogging.
Budget-friendly models like the Cardinal STX simplify maintenance with a two-piece body but omit corrosion-resistant coatings. The graphite spool flexes under heavy load–upgrade to an aluminum aftermarket spool if targeting species over 8 lbs. The drag system lacks a washback feature; replace the wool felt washers with phenolic discs to improve consistency. Lubricate the pawl mechanism quarterly; factory pre-lubrication wears out after 100 hours of use.
For tournament anglers, the Revo Rocket’s gear ratio (7.3:1) demands high-strength components. The aluminum handle arm terminates in a machined brass knob, which threads into the drive gear at a 45° angle–a weak point under sudden torque. The spool-bearing cage is titanium; replace only with OEM bearings to maintain alignment. Clean the centrifugal brake cups with isopropyl alcohol–solvents like acetone degrade the plastic baffles. Store the reel with the drag fully disengaged to prevent washer compression.
