Focus on the carburetor linkage first–misalignment here disrupts fuel-air ratios, causing erratic idling or power loss. The adjustment screws (pilot and main jet) should be set to factory specs: 1.5 turns for the pilot and 2.25 turns for the main, verified with a tachometer at 3,600 RPM. Skipping this step risks incomplete combustion, visible as black exhaust deposits on the muffler.
Inspect the cylinder head gasket prior to disassembly. Warping as little as 0.05mm can create compression leaks, reducing torque by up to 12%. Use a precision straightedge and feeler gauges; replace the gasket if distortion exceeds 0.03mm. The head bolts torque sequence matters–follow a spiral pattern (center-out) at 18 Nm, then retighten after the engine cools.
The ignition coil-to-flywheel gap must be 0.3–0.4mm. A micrometer ensures accuracy; wider gaps produce weak sparks, while narrower ones risk flywheel rub. The flywheel keyway is another failure point–replace it if wear exceeds 0.1mm, as even minor slippage advances timing unpredictably. Label wires during removal: the white ground wire connects to the frame via a 4mm ring terminal–corrosion here mimics coil failure.
Reassembly requires lubricating the crankcase seals with fluorinated grease to prevent dry starts. The piston ring end gaps should be staggered (120° apart) to avoid blow-by; measure gaps with a bore gauge or risk losing 80–100 cc of displacement pressure. The connecting rod cap uses 6mm bolts torqued to 10 Nm–strip one, and the rod will float, destroying the crankshaft journals.

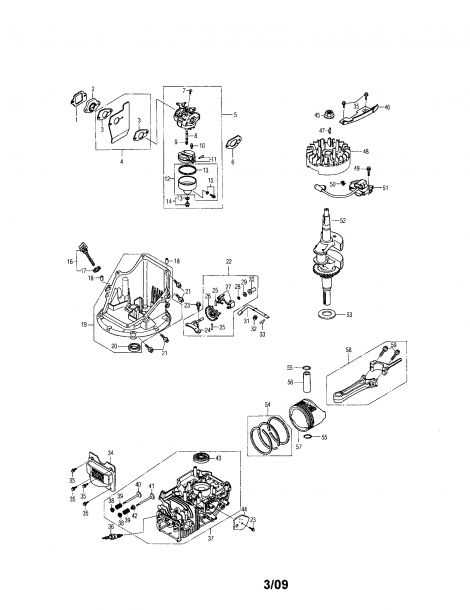

Engine Model 35: Component Layout Explained
Start disassembly by removing the recoil starter housing. Locate the three bolts attaching it to the crankcase–two on the front, one beneath the spark plug. Use a 10mm socket with a breaker bar for leverage; heat cycling often fuses threads. Keep bolts organized by position (mark with tape or arrange on a magnetic tray). Inside, the flywheel sits pressed against the crankshaft taper–verify alignment marks before prying loose to avoid damaging the Woodruff key slot.
Carburetor linkages require precise adjustment. Detach the governor arm first, noting the exact position of the clip-on tang relative to the throttle plate; improper reassembly causes erratic idle. The fuel pump diaphragm, often overlooked, sits behind the carb body–inspect for micro-cracks under magnification before reinstalling. Replace the paper gasket only with the OEM-specified thickness (0.3mm); thicker aftermarket versions disrupt air-fuel ratios. Reattach the intake manifold with a torque sequence starting at the center bolt, alternating outward to 7 Nm to prevent warping.
Check the piston ring gap with a feeler gauge before reassembly–end gaps must align at 120° intervals, offset from ports. The connecting rod cap uses phosphated bolts requiring 12 Nm torque in two stages; stretch exceeding 32mm indicates fatigue. Lubricate the cylinder wall with 2-stroke oil mixed 50:1, rotating the crankshaft by hand before final assembly to distribute oil evenly and verify piston movement. Ignore “universal” gasket sets; OEM kits include critical crush washers for the crankcase halves calibrated to 0.05mm tolerance.
Locating the Manufacturer’s Engine Breakdown Schematic for Compact Power Units
The primary source for the official exploded view is the engine maker’s regional support portal. Access the corporate technical documents section by navigating to the product support page, selecting the 35cc class model, and filtering for “service manuals” or “replacement guides.” These files are typically available in PDF format and include labeled illustrations of every component, torque specifications, and part numbers.
Dealerships authorized to service small engines maintain physical and digital archives of these schematics. Contact a local service center accredited by the manufacturer, provide the engine model code stamped on the crankcase, and request the exploded view diagram. Many dealers will email the document directly if you describe the machine’s application, such as a string trimmer or mini tiller.
Online parts catalogs run by official distributors often embed interactive schematics within their listings. Search the catalog using the engine’s serial number; the system frequently displays a clickable breakdown diagram where each piece is hyperlinked to its corresponding item number and pricing, ensuring accuracy for ordering.
Third-party repair forums sometimes host scanned copies of original manuals, but these should be cross-referenced with the manufacturer’s portal for authenticity. Look for threads discussing the 35cc variant where users have attached PDFs; however, verify the file’s version against the latest revision date on the corporate site.
Many libraries within trade schools or vocational programs stock printed service literature for small engines. Ask the reference desk for the “compact engine repair” section–some institutions permit on-site photocopying of the exploded view pages if you present the model code.
Social media groups dedicated to small engine maintenance occasionally share direct links to download the schematic. Join communities that focus on the brand’s power equipment, post the engine’s distinct specifications, and request the breakdown diagram–active members often respond with verified uploads.
Critical Components for the 35cc Mini-4 Stroke and Identification Codes
The PN 13211-ZE1-000 piston is a failure-prone element in this compact powerplant, especially under sustained high-RPM loads. Replace it alongside the PN 13104-ZE1-000 piston ring set to restore compression and prevent scoring on the cylinder bore. Pair these with the PN 13101-ZE1-000 cylinder kit–included in most overhaul kits–to ensure surface integrity and avoid costly rebores.
High-Wear Filtration and Fuel System Spares
| Component | Part Number | Inspection Interval (Hours) |
|---|---|---|
| Air filter element | 17211-ZV0-601 | 50 |
| Fuel filter screen | 16075-ZE1-601 | 100 |
| Spark plug (NGK CR5HSA) | 98079-55816 | 25 |
Clogged air filters accelerate wear on the 14711-ZE1-000 carburetor, leading to enriched mixtures and carbon fouling on valves. Replace the 14721-ZE1-000 carburetor diaphragm if hesitation or surging occurs under partial throttle–this component deteriorates rapidly in ethanol-blended fuels.
For valve train restoration, procure the 14451-ZE1-971 intake valve and 14461-ZE1-971 exhaust valve; both require lapping to the 12251-ZE1-000 cylinder head. Include the 14710-ZE1-000 valve spring set and 14741-ZE1-000 rocker arms–these fatigue after 400 hours, causing valve float. Torque the 90006-ZE1-000 head bolts in a crisscross pattern to 9.8 Nm to prevent gasket failure.
Step-by-Step Disassembly Guide Using the Illustrated Engine Breakdown
Lay the engine on a flat, stable surface with the recoil starter facing upward. Remove the spark plug to eliminate compression resistance and prevent accidental starts. Use a 10mm socket to loosen the four bolts securing the muffler–rotate them counterclockwise in a diagonal pattern to avoid warping the mounting flange. Detach the muffler carefully, noting the orientation of the gasket to prevent alignment issues during reassembly.
Next, disconnect the carburetor by releasing the fuel line clamp with needle-nose pliers. Pinch the line gently to prevent residual fuel spillage. Two 8mm bolts hold the carburetor bracket; remove them and set aside with vibration dampeners intact. Tilt the carburetor slightly to disengage the throttle linkage–mark its position with a paint pen if adjustments were previously made for optimal performance.
- Drain the fuel tank if the engine will be stored for more than 48 hours.
- Inspect the air filter for debris; replace if saturated with oil or dirt.
- Label all electrical connections with masking tape to avoid confusion later.
Rotate the engine to expose the crankcase cover. Eight 5mm screws hold the cover–remove them in a spiral sequence from the outside inward. Gently tap the cover with a rubber mallet to break the sealant bond; do not pry as it may damage the mating surfaces. Once removed, drain the trapped oil into a catch pan and wipe the internal cavity with lint-free rags to remove metallic debris.
For internal components, reference the exploded view for exact placement of washers, seals, and bearings. Use snap-ring pliers to remove the governor spring and flywheel key before accessing the piston. A torque wrench calibrated to 8 ft-lbs is required for reassembly of the crankcase bolts–follow the star pattern indicated in the manual to ensure even clamping pressure. Keep all fasteners organized by size in labeled containers to streamline the rebuild process.
Critical Wear Components in Compact 4-Stroke Engines: Replacement Intervals
Replace the spark plug every 100 operating hours or after 6 months, whichever arrives first. Use NGK BPR6ES or equivalent–gap set at 0.6–0.7 mm. Oil breakdown accelerates after 50 hours; switch to 10W-30 synthetic blend if ambient temperatures exceed 35°C. Air filter media degrades after 25 hours in dusty conditions or 100 hours in clean environments–inspect weekly and tap out debris before replacement. Carburetor diaphragms lose elasticity at 200–300 hours; replace preemptively if surging occurs at idle.
Fuel System and Ignition Timing Checks
Fuel lines crack at 300 hours–swap with ethanol-resistant SAE J30R9 hose. Ignition coils weaken after 500 hours, causing misfires–test resistance (80–150 Ω primary, 5–15 kΩ secondary) every 200 hours. Piston rings lose tension at 800 hours; compression below 90 psi signals rebuild. Recoil starter springs fatigue at 400 pulls–lubricate pawl mechanism with molybdenum grease bi-monthly.
