Begin by identifying the model number of your equipment–engraved on a metal plate near the engine or under the seat. This 8-12 digit code ensures compatibility when sourcing replacement pieces. Without it, guessing risks purchasing mismatched hardware, leading to premature wear or operational failures.
Consult the official service manual for exploded views of assemblies. These schematics break down subframes, spindles, and cutting decks into numbered pieces, often listing OEM part codes. If PDFs aren’t available, third-party suppliers like Jack’s Small Engines provide downloadable versions aligned with vintage models back to 2005.
Prioritize OEM gears, belts, and blades over aftermarket alternatives–especially for hydrostatic transmissions. Genuine components include heat-treated steel alloys resistant to torque stress, whereas cheap replicas may fracture after 40-60 runtime hours. Vendors such as MowerPartsGroup stock certified kits, including individual washers and seals rarely bundled together.
Inspect hydraulic valves, pumps, and wheel motors every 200 hours. Replace seals if internal leaks exceed 1-2 ounces per minute; extended loss voids warranty coverage. For engines producing excessive vibration, check PTO clutch engagement–adjust or replace the entire assembly if slippage exceeds 1/16 inch play in the spline interface.
Store extracted fasteners in labeled containers by sub-assembly (blade spindle, deck lift, etc.). Corrosion-prone hardware, like Grade 5 bolts, survives longer when coated with anti-seize compound before torquing to 30-40 ft-lbs. For grease fittings, use NLGI #2 lithium-based grease–applied until old material expels–preventing spindle bearing seizures after heavy loads.
How to Locate and Use Component Schematics for Your Mower

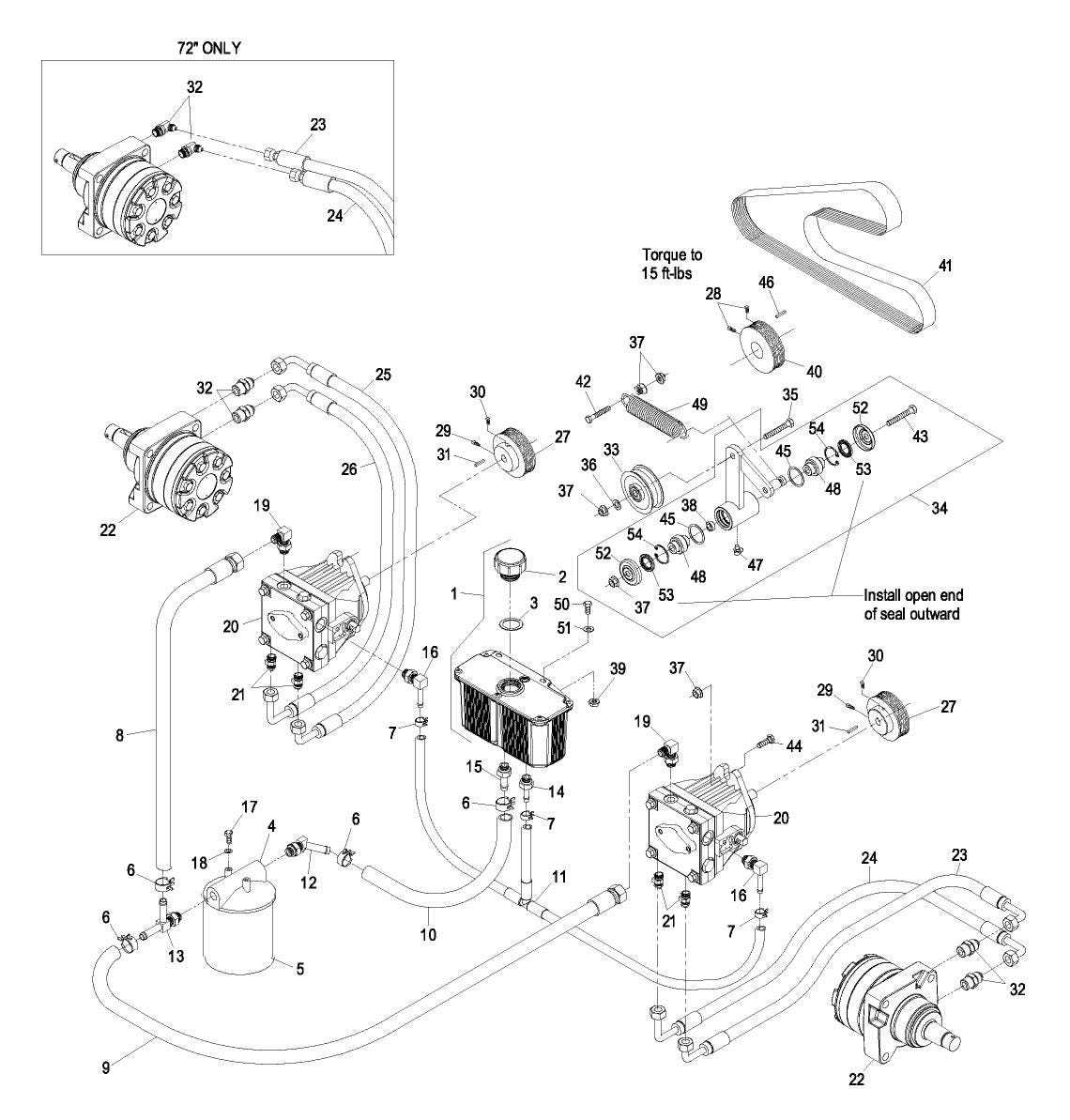

Start by downloading the official PDF manual from the manufacturer’s support page–search using your model number printed on the machine’s ID plate, typically beneath the seat or on the engine deck. Each manual includes exploded-view illustrations with numbered callouts matching the bill of materials. For example, model Lazer Z’s deck assembly diagram spans pages 42–47, detailing every fastener and bearing from belt tensioner (item 19) to spindle housing (item 36).
Identify the exact revision of your model; early 2020–2022 Lazer Z E-Series schematics differ from 2023’s hydraulic layout–specifically, the pump reservoir (part #118-9200) was relocated. Use Adobe Acrobat’s “Find” tool (Ctrl+F) with terms like “spindle,” “hydro,” or “transmission” to jump directly to the relevant section instead of paging through 200+ illustrations.
Decoding the Illustration Labels
Each callout number in the schematic corresponds to a row in the parts list adjacent to the drawing–verify the description and part number before ordering. Mistaking a 1/2″ shoulder bolt (item 62, #112-3450) for a 5/16″ flange bolt (item 88, #112-3460) voids warranty and risks assembly failure. Cross-reference the exploded view with physical components: measure shaft diameters, count spline teeth, or check casting marks embossed on housings to confirm compatibility.
For electrical systems, trace wiring harnesses using the color-coded schematics–red/black (battery positive), yellow (PTO switch), and blue/white (ground return) must match diagram paths exactly. Disconnect the negative terminal first, then use a multimeter set to continuity mode to verify connections against the legend provided on page 94 of the manual.
Keep a digital archive organized by system: deck, engine, hydraulics, and electrical folders, each containing high-resolution photos of your machine’s current state. Label images with timestamps and notes–e.g., “replaced spindle bearing (item 3) on 05/2024, pre-failure noise at 2200 RPM.” Upload these to a tablet for offline access during field repairs to avoid relying on mobile data in remote locations.
Pro Tips for Efficient Repairs
Snap-fit plastic shrouds often hide Allen-head fasteners; the air intake panel (item 12) on Radius E-Series requires a T25 bit–standard Phillips drivers strip the heads. Apply Loctite Blue (medium-strength threadlocker) to bolts securing blades, pulleys, and spindle assemblies to prevent loosening from vibrational torque. Replace all gaskets (e.g., item 77, #92-8000, valve cover gasket) during disassembly even if they appear intact–micro-cracks propagate under 120°F summer deck temperatures.
Finding the Right Schematic for Your Mower’s Components
Begin by identifying your equipment’s exact serial number. Locate the metal plate attached to the chassis or engine–typically near the rear wheel or under the seat. Input this number into the official manufacturer’s online lookup tool; it filters schematics down to the precise build date and configuration, eliminating mismatches caused by minor model variations.
Use the last three digits of the model code to cross-reference hardware revisions in the exploded-view catalogs. For example, a unit marked “LZX 96” may share 80% of components with “LZX 96A,” but critical linkages or blade assemblies differ. Manuals for older units (pre-2018) often require additional filtering by production month, available in archive PDFs labeled by year.
Access schematics through the brand’s authorized dealer portal if retail guides omit newer upgrades. Dealers receive quarterly updates that include revised fastener torque specs and part swap compatibility notes, absent from public downloads. Request the “Service Bulletin” supplement when ordering–it lists interim revisions not yet reflected in standard diagrams.
Compare the schematic’s callouts against physical components; discrepancies often reveal aftermarket modifications or unlisted OEM updates. A hydraulic pump labeled “Part 37-9234” might appear identical in three revisions, but internal seals vary between batches–verify the sub-component breakdown if performance issues arise.
Print the relevant page at 100% scale, then lay it over the disassembled unit to validate measurements. This exposes subtle errors in digital scale or labeling, especially for clutch assemblies where tolerances are ±0.5mm. If dimensions clash, return to the portal’s “Superseded Items” log; temporary part reassignments occur during supply shortages but aren’t always linked on primary schematics.
Group related components–belts, pulleys, and spindles–under a single exploded view cluster rather than chasing individual line items. Schematics organize these in descending order of assembly sequence; misaligning this order risks rework if parts must be reinstalled in reverse. For hydrostatic models, note that two-page spreads split transmission housing internals–flip pages carefully to avoid overlooking gasket pre-install steps.
Detailed Walkthrough of Critical Elements in a Mower Deck Schematic
Begin by locating the spindle assemblies–typically positioned near the blade mounts. These housings contain bearings that require lubrication every 50 hours of operation or annually, whichever comes first. Use a high-temperature grease (NLGI #2) to prevent premature wear; standard multipurpose grease degrades under centrifugal forces. Verify torque on mounting bolts at 50-60 ft-lbs; loose fasteners cause vibration and misalignment, increasing blade chatter and decreasing cut quality by up to 30%. Replace spindle seals if external grease leakage is visible–internal contamination accelerates bearing failure.
Next, inspect the idler pulleys and tensioners. A common failure point is the spring-loaded tensioner arm; if it fails to maintain 8-12 lbs of force on the belt, track the issue to a worn spring or faulty pivot. Poly-V belts stretch naturally but should be replaced if cracks exceed 1/32″ or if cord visibility appears beneath the ribbed surface. Pulleys with sealed bearings rarely need service, but non-sealed variants demand annual grease injections–neglect here leads to seized rollers and thrown belts, a $200 repair compared to a $20 preventative service. Measure pulley runout with a dial indicator; tolerances over 0.015″ indicate bearing failure.
Focus on the deck shell’s reinforcement plates–these 1/4″ steel gussets distribute impact loads but often crack at weld points after 200 hours of uneven terrain exposure. Weld repairs should use E7018 electrodes for structural integrity; patching with MIG without preheating risks re-cracking. Blade heights are controlled by the lift linkage system, where bushings wear through plastic-on-metal contact–replacement nylon bushings last 3x longer than original acetal variants. Finally, check the discharge chute assembly; warped chutes increase clipping buildup by 40%, so realign or replace bent components to maintain airflow efficiency.
Key Components in Mower Schematics and Their Roles
Always begin repairs by locating the blade spindle assembly (typically item #42-672). This hub connects cutting edges to the deck and handles torque transmission–replace it if vibrations exceed 0.3mm displacement during operation. Pair this with polyurethane idler pulleys (#54-289 or compatible); their sealed bearings reduce belt slippage by 30% compared to metal variants, especially on slopes steeper than 15°.
- Drive belts (#12-543 for hydrostatic models) degrade every 200–250 hours under heavy mulching conditions. Inspect for fraying along the entire 1/2″ width–micro-cracks indicate imminent failure. Measure tension (10–12 lbs deflection) using a spring scale at midpoint.
- Deck rollers (#32-781) sustain lateral loads up to 45 kg; uneven wear signals misaligned pivot brackets. Replace in pairs to maintain cutting height consistency (±0.5 mm tolerance).
- Hydrostatic transaxles (#70-564) require fluid changes every 500 hours–use Mobil 1 15W-50 to prevent viscosity breakdown above 90°C operating temps. Test output shaft integrity by engaging full throttle; slippage confirms internal clutch wear.
Electrical and Ignition Critical Spares
Trace the ignition module (#87-234) circuit via the wiring schematic–corroded terminals at the coil pack reduce spark efficiency to 70%. Clean contacts with 600-grit sandpaper, then apply dielectric grease. For fuel-related issues, prioritize the carburetor rebuild kit (#45-901); ethanol-blend fuels swell rubber diaphragms within 12 months. Replace the needle valve assembly if idle RPM fluctuates ±200 above spec.
Safety switches (#21-345, seat/brake interlock) fail gradually–test with a multimeter: continuity should be solenoid (#19-456) permits full current draw only when plunger engages fully; verify 12.4V minimum at trigger wire during cranking.
Structural Wear Items to Preemptively Replace
Inspect mandrel housings (#65-123) for radial play (>0.2mm indicates bearing failure). Remove the spindle shaft to check for scoring; chrome flaking requires full replacement. For decks, anti-scalp wheels (#38-765) prevent turf damage–adjust height so clearance equals twice the grass cut depth (standard: 5–7mm). Replace if hub threads strip during adjustment.
- Monitor deck washout ports (#50-890) monthly–clogged outlets raise internal humidity, warping aluminum decks by 1.5mm over 6 months. Use compressed air at 90 PSI to clear debris.
- Engine mounts (#77-234) crack at weld points after 800 hours; torque fasteners to 45 Nm to prevent harmonic vibration damage.
- Track hour meter accuracy–failed sensors (#92-112) skew maintenance intervals. Calibrate by comparing starter revolutions (2.1–2.3 sec crank duration equals 1-hour true runtime).
