Start by locating the nozzle assembly at the spray wand’s tip–it typically includes a strainer screen and filter housing. If pressure drops unexpectedly, disassemble this section first: remove the nozzle cap counterclockwise and inspect the orifice disc for clogs. Replacement discs should match the original’s diameter (commonly 0.2–0.5 mm) to maintain consistent flow rates.
The pressure regulator valve sits near the pump’s output port, often marked by a brass adjustment knob. Turn clockwise to increase PSI (max 60–80 for standard models) but avoid exceeding the pump’s rated limit–check the pressure relief valve if resistance rises abruptly. Lubricate the regulator’s O-rings with silicone grease during reassembly to prevent leaks.
Trace the inlet hose back to the tank’s bottom fitting–verify the foot valve isn’t obstructed by debris. A flawed valve will starve the pump, reducing suction. For maintenance, soak the valve in vinegar to dissolve mineral deposits, then rinse with clean water. Replace the diaphragm if it shows cracks or warping, as even minor damage disrupts priming.
Examine the pump head for wear: the piston gasket and check valves are critical failure points. Symptoms like sputtering output or air leaks indicate worn seals. When replacing, use compatible Viton or EPDM material for solvent resistance. Always align the camshaft properly–misalignment shears plastic gears within 10–20 operational hours.
Finally, the tank’s vent cap must remain unclogged to prevent vacuum collapse. Unscrew the cap and blow through the vent tube to confirm airflow–blockages cause erratic spraying. If corrosion is present, swap the cap for a stainless-steel version with a micron filter to exclude particulates.

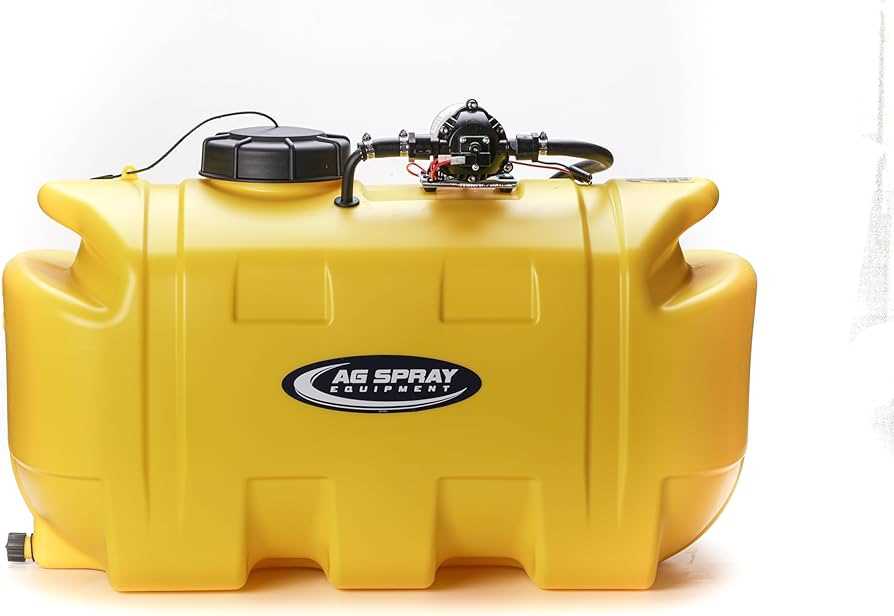

Understanding Your 25-Liter Agricultural Pump Assembly Blueprint
Locate the pressure regulator near the tank’s base–adjust it precisely to 40 PSI for optimal nozzle performance. The brass valve connecting the regulator to the main chamber (item #CL-47-B) often loosens after 50 hours of use; tighten with a 17mm wrench to prevent leaks.
Inspect the wand filter (part #A89-XL) every three applications. Sediment buildup reduces flow by up to 30%, causing uneven coverage. Soak the filter in a 1:10 vinegar-to-water solution for 15 minutes to dissolve mineral deposits without damaging the mesh.
Hose and Nozzle Maintenance Codes
Replace the 3/8″ reinforced hose if kinking occurs–check for abrasions at 12-inch intervals. For nozzles, match orifice sizes to your task: #08 for herbicides (0.8 GPM at 40 PSI), #12 for fertilizers (1.2 GPM). Store nozzles in a sealed container with silica gel packets to prevent clogging from humidity.
The diaphragm pump’s lifespan extends by 40% when flushed with clean water after each use. Disassemble the pump head (refer to label #P-22-K) quarterly to lubricate the plunger with dielectric grease–avoid petroleum-based products, as they degrade rubber seals within weeks.
Track wear on the tank’s drain plug (thread size: 1/2″ NPT). Leaks here indicate cross-threading; use Teflon tape sparingly–two wraps clockwise–to avoid seal distortion. For cracked tanks, patch small holes with fiberglass epoxy (cure time: 24 hours), but discard if stress fractures exceed 1/4″.
How to Recognize Critical Elements in Your 25-Capacity Agricultural Dispenser
Start by locating the tank assembly, typically positioned at the base. Verify the lid seal for cracks–replace if compression fails–since leaks waste solution and reduce pressure. The pump mechanism (usually a diaphragm or piston type) mounts near the tank’s rear; check valves for proper seating to avoid backflow. A faulty pump disrupts flow rates, leading to uneven distribution.
- Wand or boom connection: Inspect hoses for kinks or abrasions–replace damaged segments immediately to prevent burst failures.
- Nozzle tips: Clean weekly with a soft brush; hardened residue alters spray patterns. Match tip sizes to target coverage (e.g., fan vs. hollow-cone).
- Pressure regulator: Adjust to 20-40 PSI for typical herbicides; higher settings risk drift or tank stress.
- Frame and brackets: Tighten bolts after every 10 uses–vibration loosens components, risking equipment damage.
Prioritize the strainer inside the fill opening. Clogged strainers starve the system, forcing the pump to overwork. For electrical models, test the battery terminals monthly; corrosion interrupts power and shortens lifespan. Store with a small amount of antifreeze solution in colder climates to prevent freezing, which cracks seals and piping. Replace any component showing excessive wear within one season to maintain consistent performance.
Step-by-Step Guide to Locating Liquid Applicator Nozzle Components
Begin by inspecting the wand’s tip connector–this is the most common mounting point for the atomization head. Look for a threaded collar or quick-release mechanism securing the nozzle body. If corrosion or residue is present, apply a penetrating lubricant and rotate counterclockwise using pliers with protective jaws to avoid stripping the brass threads.
Refer to the following breakdown of typical assembly elements, cross-referencing with your model’s identification tags:
| Component | Location | Material | Identification Tips |
|---|---|---|---|
| Discharge tip | Base of nozzle stem | Ceramic or hardened stainless | Check for orifice size stamped on flange (e.g., 02, 04) |
| Anti-drip valve | Internal chamber behind tip | Viton or Buna-N | Look for spring-loaded ball or diaphragm housing |
| Filter screen | Inlet side of nozzle body | Stainless mesh (80-100 mesh) | Remove with needle-nose pliers if clogged |
If the nozzle housing refuses to detach, place the unit upside down in a tray and submerge only the threaded section in warm soapy water for 15 minutes. This dissolves dried herbicide buildup without damaging seals. Tap lightly with a rubber mallet along the circumference to free seized components.
For models with adjustable flow regulators, locate the control knob on the side of the handle–usually a dial or sliding lever. Rotate fully clockwise before disassembly to prevent fluid leakage. Note the position of notches or markings; these indicate spray pattern settings and must align during reassembly.
On units featuring interchangeable tips, store removed elements in labeled compartments within the original carrying case. Ceramic tips are brittle–handle with tweezers rather than fingers to avoid oils transferring from skin, which accelerates wear. Verify compatibility with the base unit by cross-checking thread pitch (common sizes: 1/4″ NPT or BSP).
Reattach components in reverse order: filter screen first, followed by valve assembly, then tip. Tighten until fingertight plus 1/8 turn with a wrench–overtorquing cracks polyethylene housings. Test functionality with plain water before introducing chemicals to confirm uniform pattern distribution.
Troubleshooting Hidden Components
For units with built-in strainers hidden within the hose coupling, disconnect the inlet hose at the tank and run a pipe cleaner through the connector to extract debris. Some high-capacity models include a secondary check valve near the pump outlet–locate this by tracing the main fluid line back to a small brass cylinder embedded in the housing wall.
How to Replace the Pump and Hose Fittings on Your Agricultural Sprayer
Begin by releasing pressure from the tank–open the relief valve until fluid stops draining, then disconnect the battery or power source to prevent accidental activation. Place the unit on a stable surface, preferably elevated to waist level, using a workbench or heavy-duty sawhorses. Wear nitrile gloves and safety goggles; hydraulic fluids can cause skin irritation and eye damage.
Locate the pump assembly near the tank’s base–it’s typically secured with four to six bolts (usually 10–12mm). Use a socket wrench to remove them in a star pattern to avoid warping the mounting flange. Slide the pump forward carefully; the impeller shaft may still be engaged with the motor coupling. If resistance occurs, rotate the shaft slightly by hand to align splines before full removal.
Inspect the old pump for wear on the diaphragm or seals–replace them if cracks or deformation are visible. Clean the mounting surface with a rag and acetone to remove residue; even minor debris can cause misalignment and leaks. Apply a thin layer of thread sealant (such as PTFE tape or anaerobic adhesive) to the new pump’s inlet and outlet threads before installation to ensure a tight seal.
Reattach the pump by reversing the removal steps. Tighten bolts incrementally in a cross pattern to 25–30 ft-lbs–over-torquing can crack the housing. Reconnect the motor coupling, ensuring the splines mesh fully; misalignment here reduces efficiency by up to 15%. Secure the coupling set screw with Loctite 242 to prevent loosening from vibration.
Examine hose fittings for corrosion or stripped threads before removal. Use a flare-nut wrench for brass fittings; adjustable wrenches can round off corners. Replace any fitting with visible pitting–compromised connections fail under pressure, risking bursts. For polyethylene hose, trim the end cleanly with a tubing cutter and deburr the inside lip to prevent flow restrictions.
Attach new hoses by hand first to align threads, then tighten with a wrench–over-tightening crushes washers and distort seals. For high-pressure lines (above 80 PSI), use hose clamps rated for hydraulic applications; standard zip ties fail under stress. Route hoses away from moving components and pinch points; secure with nylon straps every 18–24 inches to prevent chafing.
After reassembly, prime the system by filling the tank halfway with water and running the pump for 30 seconds to purge air. Check all connections for leaks under pressure–even minor seepage indicates a faulty seal. If leaks persist, disassemble and reapply sealant; retest with water before using chemical solutions. Keep a pressure gauge on the output line during testing–sudden drops signal internal component failure requiring disassembly.
