Begin by examining the central shaft–its diameter determines load capacity. A minimum of 12 cm for small-scale units (under 5 kW) prevents excessive flex under torsional stress. Larger installations (10 kW+) require reinforced steel with a 20–25 cm core to withstand lateral wind forces up to 150 km/h. Attach the shaft directly to the nacelle frame using high-grade bearing assemblies; avoid welded joints at stress points to prevent fatigue cracks.
For the blades, prioritize laminated wood composites or fiberglass over aluminum. Wood’s self-damping properties reduce resonance vibrations by 30% compared to metal, while fiberglass offers corrosion resistance critical in coastal environments. Optimal blade length-to-width ratios range from 8:1 to 10:1; shorter ratios increase torque for grinding applications, while longer ratios maximize aerodynamic efficiency for power generation. Reinforce blade roots with stainless steel collars to prevent splitting under cyclical loading.
Examine the gear train layout next. Spur gears with 20° pressure angles distribute forces more evenly than helical designs, though the latter run quieter. Use bronze bushings for gear shafts in high-moisture areas–they outlast steel bearings by 40% in damp conditions. For millstones, ensure the runner stone’s grain orientation runs perpendicular to its mate to increase cutting efficiency. Adjust the stone gap using a tapered wedge system rather than springs; wedges maintain precise spacing (±0.5 mm) regardless of temperature fluctuations.
Inspect the tail vane pivot annually. A corroded hinge causes misalignment, reducing output by 15%. Replace flimsy sheet metal vanes with 5 mm galvanized steel–they withstand gusts up to 200 km/h without buckling. Place the fantail at least 1.5 meters above ground level to avoid turbulence from nearby structures, which can drop performance by 22%. Secure all moving assemblies with lock nuts rather than standard bolts; vibration loosens fasteners every 800 operating hours, requiring retightening to prevent catastrophic failure.

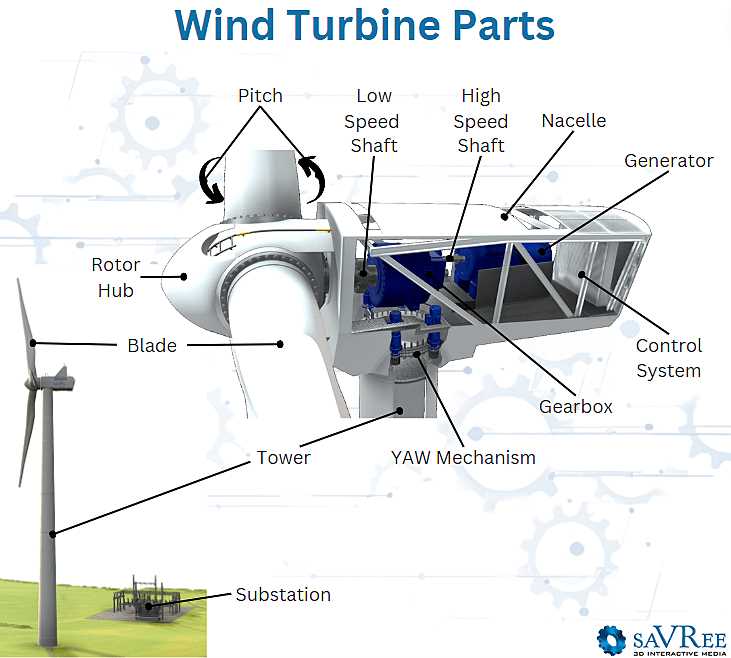

Harnessing Rotary Energy: Core Elements of Turbine Illustrations

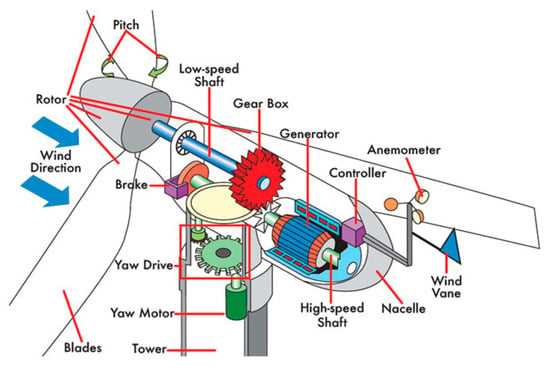

Begin by isolating the rotor blades in any schematic–these are the aerodynamic foils capturing airflow. A typical modern design uses three blades, each extending 30–50 meters from hub to tip, optimized for torque at wind speeds of 12–25 km/h. Verify the blade pitch mechanism: it should allow 0° (full power) to 90° (feathered) adjustments within 3–5 seconds to prevent overspeed in gusts.

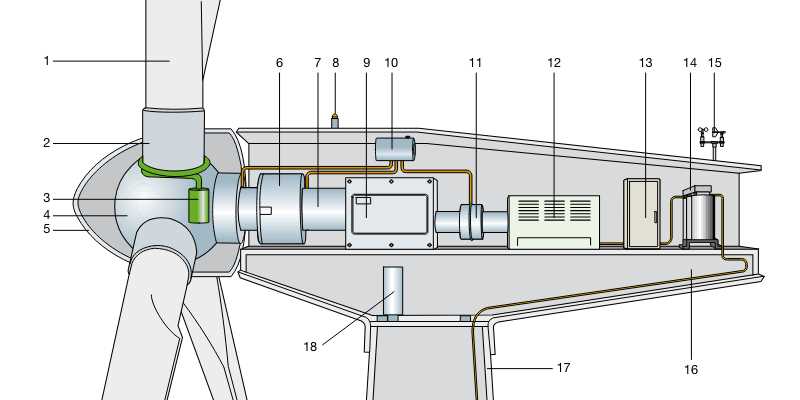

Locate the nacelle–the enclosed housing atop the tower. Its aluminum or fiberglass shell protects the drivetrain, which includes a low-speed shaft connected directly to the hub. Expect a gearbox ratio of 1:100 for most 2–3 MW units, though direct-drive models eliminate this component entirely, reducing maintenance by 20%. Check the generator type: doubly-fed induction machines dominate, but permanent magnet designs are gaining traction for offshore installations.
The yaw system sits between the nacelle and tower. A ring gear with 60–80 teeth engages motor-driven pinions, allowing 360° rotation to face prevailing winds. Ensure the yaw brake holds position during normal operation, releasing only during alignment–frequent activation indicates sensor or software issues. Sensors like ultrasonic anemometers and wind vanes should feed data to the controller every 20–50 milliseconds for precise orientation.
Examine the tower’s structural specs. Tubular steel towers for 3 MW turbines reach 80–100 meters, with wall thickness tapering from 30 mm at the base to 10 mm at the top. Lattice towers may reduce material costs by 15% but require more frequent inspections for fatigue cracks. Concrete towers hybridized with steel segments are emerging for 5 MW+ units, offering superior damping against vibrations. Check the access ladder and safety system–OSHA-compliant designs include fall arrest anchors at 3-meter intervals.
Identify the transformer, usually housed at the tower’s base. It steps up voltage from 690V to 10–66 kV for grid connection, depending on local infrastructure. For offshore units, the transformer moves into the nacelle or transition piece. Inspect cooling systems: oil-immersed radiators are standard, but liquid-cooled designs improve efficiency by 1–2% in hot climates. High-voltage cables descend through the tower in conduits; ensure they’re rated for 150% of nominal current to handle transient spikes.
Look for auxiliary systems often omitted in basic schematics. Lightning protection uses copper or aluminum receptors at blade tips, connected to grounding plates with ≤10Ω resistance. Ice detection sensors trigger automatic shutdowns at 0.5 kg/m² accretion. Condition monitoring includes vibration analysis (velocity
Validate foundation details–especially for onshore units. A gravity base for 3 MW turbines weighs 1,200–1,500 tons, while monopile foundations for offshore sites extend 30 meters into the seabed, requiring pile driving hammers with 4,000 kJ energy. Anode systems for corrosion protection must cover 100% of submerged steel surfaces. Include these in annotations if the illustration serves as a reference for installation crews.
Key Structural Traits of Rotor Blades in Turbine Assemblies
Inspect blade roots first–they must exhibit a seamless transition into the hub, free of micro-cracks or delamination. Composite materials like fiberglass or carbon fiber should show uniform resin distribution under UV light; inconsistencies here predict premature fatigue. Verify the bond line thickness: 0.5–0.8mm for epoxy adhesives is optimal–thicker layers risk shear failure.
Aerodynamic profiles dictate efficiency: tip speed ratios above 7:1 demand tapered leading edges (radius
Spanwise stiffness gradients must increase toward the root by 30–40% to counteract bending moments. Use a laser alignment tool to confirm twist angles: 10–15° from root to tip balances load distribution. Excessive twist (>18°) induces stall flutter, while insufficient twist (
Lightning protection relies on embedded receptors–typically copper or aluminum strips–positioned at intervals
Load sensors (if present) sit in the spar cap, calibrated to detect strains above 3,500 με under normal conditions. False positives often stem from improper epoxy infusion; re-examine vacuum pressures during manufacturing (target: 0.5–0.7 bar). Sensor drift compromises pitch control response time by up to 200ms.
Noise reduction serrations–triangular or sawtooth–attach to the trailing edge, reducing broadband noise by 2–4 dB. Their effectiveness drops if damaged; replace serrations with gaps >3mm. Misaligned serrations increase tonal noise, violating IEC 61400-11 standards in Class II sites.
Blade health monitoring requires thermographic scans annually: delamination appears as hotspots (ΔT >5°C). Ultrasound testing at 5 MHz detects internal voids; signal attenuation >30% suggests water ingress. Ignore superficial scratches–focus on structural anomalies within 1mm of the surface.
Step-by-Step Assembly of the Wind Turbine Rotor Hub
Ensure the workspace is level and free of debris. Position the hub shell horizontally on a sturdy support frame, aligning the bolt holes with the manufacturer’s specified torque pattern. Use a calibrated torque wrench set to 450–500 Nm for M30 bolts to prevent uneven preload. Apply thread-locking compound (Loctite 243 recommended) to 70% of the bolt threads before insertion to mitigate vibrational loosening during operation. Rotate the hub 120° after initial tightening to verify uniform stress distribution across all fasteners.
Attach the pitch bearing assembly by sliding it onto the hub flanges until the inner race seats flush against the hub’s machined surface. Secure the bearing with 48×M16 bolts, tightening in a star pattern to 220 Nm in three incremental steps: 50% (110 Nm), 75% (165 Nm), then final torque. Inspect the bearing’s axial runout using a dial indicator; deviations exceeding 0.05 mm require disassembly and realignment. Lubricate the bearing raceways with 200–250 grams of molybdenum disulfide grease (e.g., SKF LGWM 2) to reduce fretting wear under cyclic loads.
Mount the blade adaptor plates onto the pitch bearing’s outer ring, ensuring the dowel pins align with the precision-drilled holes (±0.02 mm tolerance). Fasten each adaptor with 6×M24 bolts, alternating between adjacent bolts to maintain concentricity. Torque values for these bolts range from 600–650 Nm; use an impact wrench with a torque multiplier for efficiency, followed by manual verification. Verify the adaptor plates’ perpendicularity to the hub’s rotational axis using a laser alignment tool–misalignment beyond 0.1° will induce uneven blade loading and premature fatigue.
Install the hub’s electrical slip ring and encoder assembly last. Route the power and signal cables through the central bore, securing them with abrasion-resistant sleeves (e.g., Teflon-coated conduits). Connect the slip ring’s stator to the nacelle-side wiring harness, ensuring pin 1 (power) and pin 4 (ground) are correctly paired to avoid reversed polarity–this will destroy sensitive pitch control electronics. Test continuity with a multimeter before sealing the hub; resistance between any two adjacent slip ring channels should not exceed 0.5 ohms. Close the hub cover with a new gasket (part #ACME-789H), applying compression evenly with 18×M12 bolts torqued to 95 Nm.
