Begin by locating the bead–the inner edge of the rubber casing that seals against the wheel rim. This reinforced section must remain intact to maintain proper inflation; even minor damage here can lead to slow leaks or sudden failures under load. Use a flashlight to inspect for cuts, cracks, or deformation, particularly along the contact area with the rim flange.
Examine the sidewall next. Unlike the tread, this thinner layer absorbs lateral stresses during cornering and impacts. Bulges or bubbles indicate internal ply separation, a condition that weakens structural integrity. If detected, replace the assembly immediately–driving with compromised sidewalls increases the risk of blowouts, especially at highway speeds.
The tread pattern serves distinct purposes: circumferential grooves eject water to prevent hydroplaning, while lateral sipes enhance grip on loose surfaces. For all-terrain use, look for patterns with 3-4 mm depth; highway models typically require 1.6 mm minimum. Measure remaining rubber with a tread depth gauge at multiple points–uneven wear signals alignment issues or improper inflation pressures.
Don’t overlook the valve stem–a small but critical component. A cracked or brittle stem can cause gradual air loss. Pressurize the assembly and apply soapy water to check for bubbles; if present, replace the stem core or the entire stem assembly. Replace metal-capped stems every two years to prevent corrosion buildup that could jam the valve mechanism.
For vehicles equipped with run-flat technology, inspect the reinforced internal support. This rigid framework allows continued mobility after loss of pressure but adds significant weight. Confirm the manufacturer’s recommended speed and distance limits–typically 80 km/h for 80 km–are adhered to; exceeding these parameters can damage the wheel rim and compromise braking.
When diagnosing vibration issues, start with the wheel balance weights. Missing or shifted weights create harmonic imbalances, detectable as pulsation in the steering column. Static imbalance causes vertical bounce, while dynamic imbalance produces lateral wobble. Use a precision balancer to apply new weights–lead-free options are available for stricter environmental compliance.
Finally, verify rim compatibility. Steel wheels handle impacts better but weigh more than alloy alternatives. Measure offset precisely–positive offset moves the mounting surface inward, negative outward–incorrect measurements alter scrub radius and toe settings, leading to unpredictable handling characteristics.
Understanding Vehicle Wheel Component Visualization
Begin by identifying the sidewall markings–these reveal critical specifications like load capacity, speed rating, and construction type. A P215/65R15 label, for example, indicates a passenger-grade radial with 215-millimeter width, 65% aspect ratio, and 15-inch rim diameter. Overlooking these details risks mismatched replacements and premature wear.
Examine the tread pattern next. Symmetrical designs (e.g., continuous ribs) excel in wet-weather handling but sacrifice off-road traction. Asymmetrical variants–common in high-performance models–combine inner water-channeling grooves with outer stiffness-enhancing blocks. Rotate wheels every 8,000–10,000 kilometers to offset uneven erosion caused by turning forces.

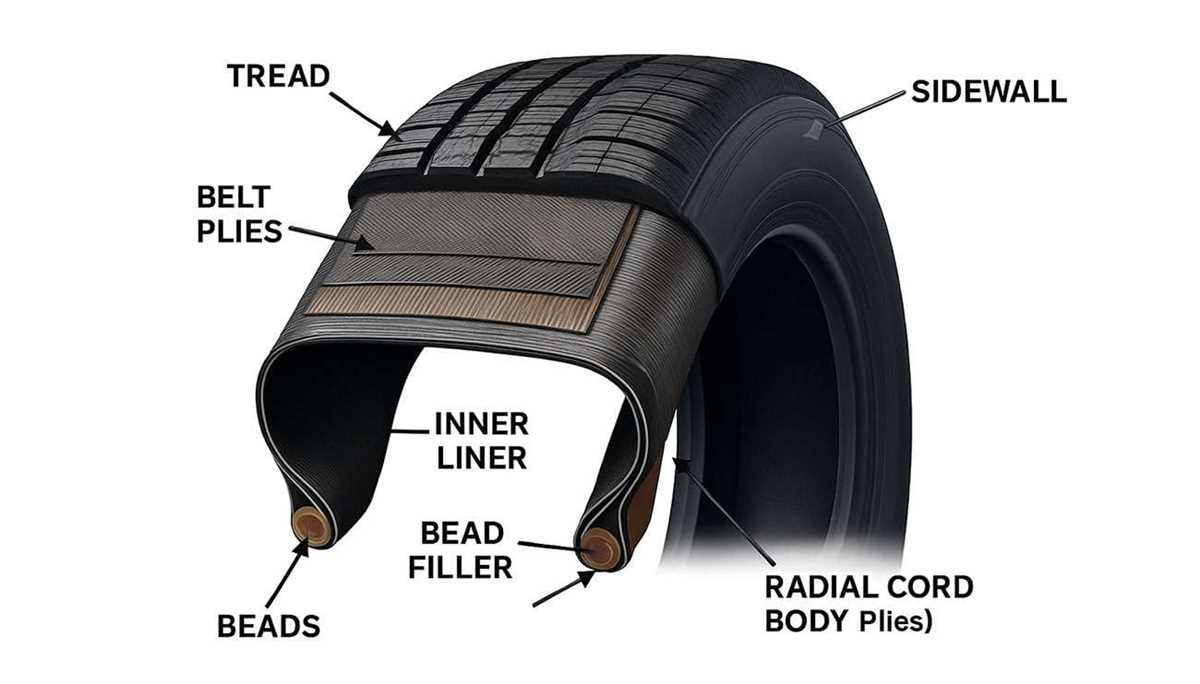

Locate the bead–a reinforced rubber ring locking the assembly to the wheel rim. Steel or kevlar cords embedded within resist deformation under extreme cornering or sudden inflation loss. Damaged beads (visible as cracks or bulges) mandate immediate replacement–compromised integrity can trigger catastrophic blowouts at highway speeds.
The inner liner, a thin butyl rubber layer, maintains optimal pressure by minimizing air diffusion. Aftermarket liners may reduce leakage by up to 30% compared to OEM defaults, extending inflation retention by months. Pair this with nitrogen filling to further stabilize pressure fluctuations across temperature extremes (-40°C to +60°C).
Belt layers–typically steel or polyester–provide structural rigidity beneath the tread. Cross-ply constructions (alternating cord angles) offer superior puncture resistance but add rotational weight, impacting fuel efficiency. Radial belts (parallel to the direction of travel) enhance grip while reducing rolling resistance by 10–15%, though they’re more vulnerable to sidewall splits.
Flange protectors, often overlooked, shield wheel edges from curb damage during parking. Premium manufacturers integrate thermoplastic or aluminum rings that deflect impacts up to 200 joules. Without these, repeated scrapes compromise bead seating, leading to chronic slow leaks.
Distinguish between wear indicators and design elements. Tread depth bars (typically 1.6mm) embedded below the surface signal legal replacement thresholds. Some advanced models include colored wear lines–blue for winter compounds, red for ultra-high-performance summer blends–that visually confirm material integrity as mileage accumulates.
Always cross-reference visual inspections with a torque wrench. Lug nuts must be tightened to 90–110 ft-lbs (varies by vehicle) in a star pattern to prevent warping. A single loose fastener can induce vibration, uneven wear, or catastrophic wheel detachment under dynamic loads.
Recognizing External Elements of a Vehicle Wheel Assembly
Begin by inspecting the outer sidewall–the area between the rim flange and the tread edge. Look for raised lettering indicating size specifications (e.g., 225/45R17), load index (e.g., 94), and speed rating (e.g., V). These markings are mandatory and provide critical data for compatibility checks. Non-compliant or worn markings suggest a counterfeit or improperly maintained unit.
The tread surface contains distinct groove patterns engineered for specific performance needs. Symmetrical ribs excel in fuel efficiency on paved routes, while asymmetrical blocks enhance wet grip. Directional arrow markings (“ROTATION →”) must align with the vehicle’s forward motion; reversing this causes hydroplaning at speeds above 50 km/h. Measure tread depth using a gauge–replace at 1.6 mm, though 3 mm is safer for winter conditions.
Sidewall Protection and Structural Indicators
Examine the lower sidewall near the bead for a thin ridge known as the shoulder rib. This component prevents rim damage during curb contact and adds rigidity. Scuffs here indicate improper parking angles; deep gouges warrant repair or replacement to prevent air loss. Some models include a nylon cap ply beneath the outer rubber–visible bulges signal internal delamination, a critical failure risk.
Locate the TWI (Tread Wear Indicator), small rubber bars at 1.6 mm depth across the main grooves. When these align with the tread surface, immediate replacement is required. Ignoring this reduces braking performance by 25% on wet asphalt. For performance variants, check for a silica compound strip (appears translucent) near the tread edge–this improves cold-weather flexibility but wears faster on rough terrain.
Identify the valve stem at the rim’s base–a brass or aluminum protrusion with a cap. Press the pin to release air; if resistance is high or hissing occurs, internal damage is likely. Metal stems corrode faster but last longer; rubber versions crack under UV exposure. Always cap when not in use to prevent debris clogging the core.
Visual Defects and Performance Clues
Spot sidewall bubbles through discoloration or soft spots–these form when the inner liner fails, trapping air between layers. Driving on these damages the rim and risks sudden deflation. Contrastingly, shallow sidewall cracks (“weathering”) emerge from ozone and UV exposure after 5 years but don’t compromise safety unless deeper than 2 mm.
The bead area, where the wheel meets the rim, must sit flush without gaps. Run your finger along the interface; unevenness suggests improper mounting or bead damage. Steel rims require specific bead sealants, while aluminum uses a smoother taper. Improper seating causes slow leaks detectable with soapy water–bubbles pinpoint the leak source.
For run-flat designs, look for thicker sidewall reinforcements often labeled RFT or DSST. These support the wheel at zero pressure for up to 80 km at 80 km/h. Standard units lack this robustness–confusing them risks catastrophic failure during sudden pressure loss. Always match the vehicle manufacturer’s specifications; aftermarket mismatches void warranties and degrade handling.
Decoding Sidewall Codes for Real-World Use
Locate the size designation first–it appears as three numbers with a slash, like 205/55R16. The first figure (205) equals the width in millimeters measured on a flat surface, not the tread. The second (55) shows the aspect ratio: sidewall height as a percentage of width–lower values signal sportier profiles, above 60 usually denotes touring or comfort-oriented models. The letter R confirms radial construction; ignore it unless purchasing vintage bias-ply units. The final number (16) matches the rim diameter in inches–swap only if wheels remain the same size.
Scan beyond size: 91V indicates load index (615 kg max) and speed rating (240 km/h). Manufacture date sits near the end in an oval–read four digits: 2522 means week 25 of 2022. Winter symbols (❄️ or M+S) appear only on rubber approved for cold conditions; all-season variants often omit them. Treadwear (400–600), traction (AA–C), and temperature (A–C) ratings follow UTQG standards–choose AA traction for wet braking, 200+ treadwear for longevity. Skip decorative logos–they add no practical data.
