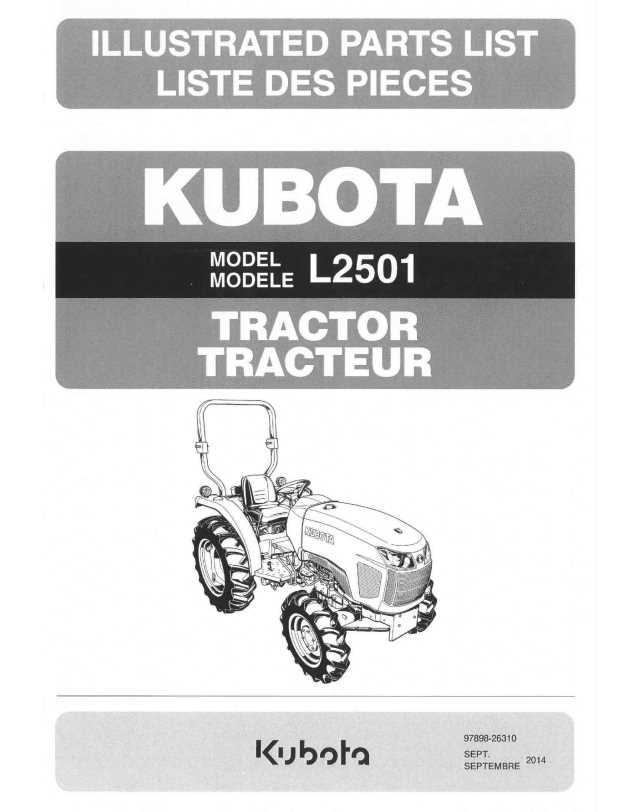

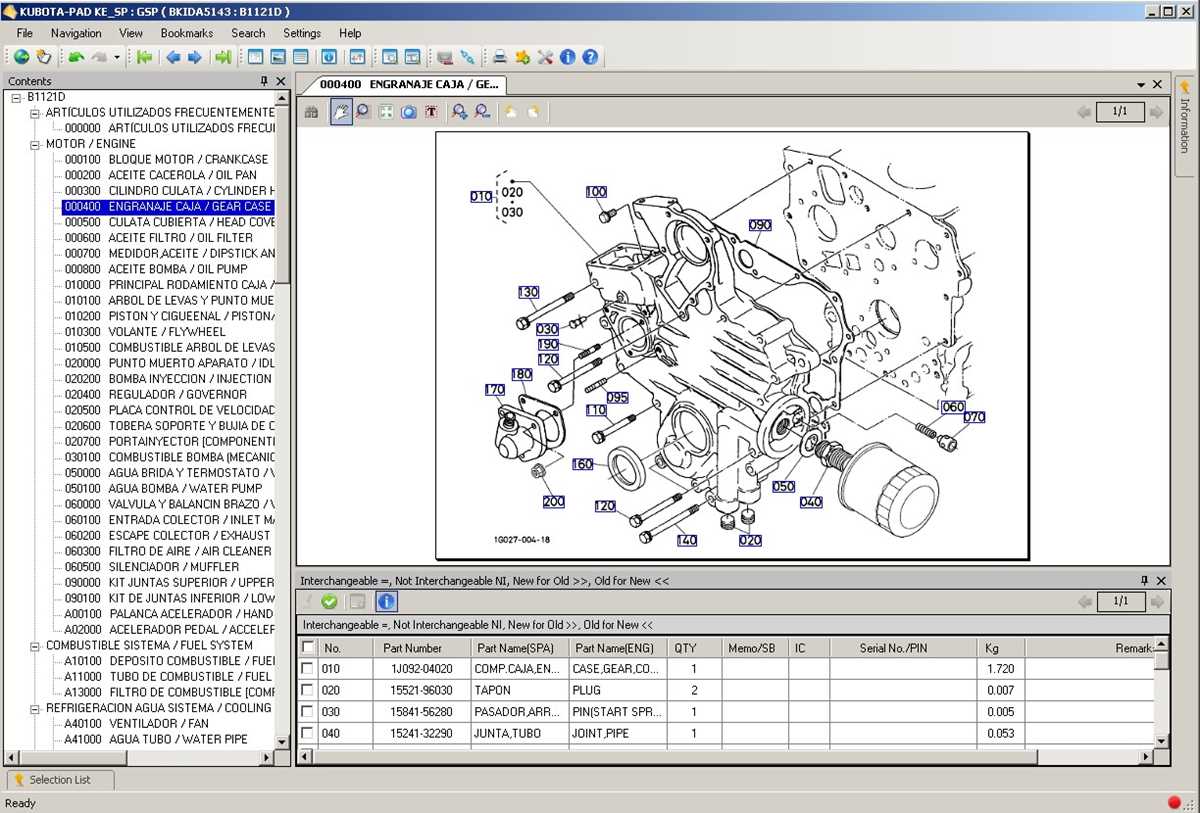

Start with the official service manual for the L series models–this is the most reliable source for precise schematics. Look for section identifiers like “Engine,” “Hydraulic System,” or “Transmission” to quickly locate exploded views. Key assemblies, such as the diesel engine’s fuel injection pump or the 3-point hitch linkage, have dedicated illustrations with numbered references. Cross-reference these numbers with the parts list to confirm compatibility; some components differ between the LH, GL, and HD sub-models despite similar outward appearances.
Third-party suppliers often mislabel components due to overlapping part numbers. For instance, filters for the air intake and hydraulic oil share similar diameters but require different sealing materials. Verify thread pitch, shaft length, and mounting flange dimensions before ordering–specifications for the L2501’s PTO shaft (1.375″ diameter, 21 splines) won’t match those of earlier KX or later M series units. Use calipers to measure critical tolerances if unsure.
Salvage yards and online marketplaces may offer cheaper alternatives, but risk mismatches. The front axle assembly, for example, includes bushings and seals that wear unevenly; replacing only the visible outer components without inspecting internal spacers leads to rapid failure. Check for service bulletins–some models had recalls for weaker brake master cylinders or updated steering gearboxes, and dealers may provide replacements at reduced cost even outside warranty periods.
For hydraulic repairs, trace the system from the pump output through the control valve to the loader or backhoe connections. Pressure specs vary: the main relief valve on the L2501 operates at 2,500 PSI, while the auxiliary circuit tolerates only 2,000 PSI. Incorrect seals or hoses can rupture under load, so match the burst rating to these thresholds. If modifying attachments, confirm compatibility with the loader’s quick-attach bracket–some aftermarket designs interfere with the pre-tension locking mechanism.
How to Locate and Interpret Your Compact Tractor Schematic
Download the official engine breakdown PDF from the manufacturer’s support portal using your model’s serial number–found on the right-side engine block–and filter by “engine assembly” first. Skip the generic index pages; direct attention to section 3, page 47, where crankshaft pulleys and belts are cross-referenced with torque specs (N·m) in adjacent columns. Print this page on A3 paper, then highlight bolt patterns in yellow and routing paths in blue for visual clarity before disassembly begins.
| Component Group | Section Number | Critical Metrics | Replacement Interval |
|---|---|---|---|
| Hydraulic pump linkage | 5-B | Pin diameter: 8 mm | 750 hours / 2 years |
| PTO clutch disc | 7-A | Friction material thickness: ≥ 3.2 mm | 1200 hours / 3 years |
| Radiator core | 6-D | Fin count: 17 fins per inch | Annual flush |
Use a handheld OBD-II adapter compatible with Tier 4 engines to extract trouble codes before referencing the schematic–code P0402 often maps to the EGR cooler in figure 4-11, not the DPF as novices presume. Compare readings with baseline values in table 2.2; a 15% deviation signals intake manifold gasket failure, typically resolved by following steps 8 through 14.
Trace the wiring harness in the rear fender cavity using a multimeter set to diode test mode–expect 12.4 V across red/black terminals. If voltage drops below 11.8 V, inspect fuse F17A (10A) in the central junction box, outlined in dotted lines on sheet 9-3. Resist temptation to bypass damaged cables with generic connectors; solder splices to OEM specs (UL1441) instead.
Order consumables by part number prefix: “K” denotes Japan-sourced, “M” USA-sourced–mismatches void emissions compliance. Cross-check the three-digit suffix against the parts catalog update issued March 2023–versions prior exclude critical revisions for diesel injection nozzles (component 15771-64630) that address cold-start hesitation.
Store spindle bearing preload spacers (set of 4) in individual ziploc bags labeled with micron thickness–0.12 mm (red), 0.15 mm (blue), 0.18 mm (green)–to prevent mix-ups during reassembly. Apply anti-seize compound to threads but omit it from tapered surfaces; follow torque sequence laid out in the exploded view’s step 5 to avoid stress fractures.
Scan QR codes embedded in the upper-left corners of newer schematics; they link to 60-second torque animation clips demonstrating proper cross-pattern tightening of flywheel bolts. Mirror these motions precisely–deviating even 5° can induce harmonic imbalance detected at 2200 RPM via diagnostic apps.
Identifying Engine and Drivetrain Elements in Schematic Representations
Begin by locating the engine block in the upper-left quadrant of most service illustrations. The diesel motor for this model is typically rendered with a distinctive rectangular outline and includes a clustered grouping of components: injectors, glow plugs, and the fuel filter assembly–all positioned along the left side. Verify the filter’s position relative to the intake manifold; it should sit directly beneath the air cleaner housing.
Trace the drivetrain’s primary path starting from the flywheel, identifiable by its circular gear teeth pattern. Follow the torque converter or clutch assembly (depending on transmission type) onward to the transmission casing. The hydrostatic variant will show fluid lines converging at a central hydraulic pump, while mechanical setups display linkage rods connecting to the shift lever.
The cooling system can be mapped by locating the radiator at the front of the schematic, connected via hoses to the engine’s water pump. Look for bypass routes near the thermostat housing–these auxiliary lines often loop back to the block near the exhaust manifold. Heater core connections, if present, branch off from the same circuit but lead toward the operator’s cabin area.
Interpreting Fuel and Exhaust Pathways
Identify the fuel pump positioned between the tank and injectors, usually drawn adjacent to the engine block’s rear face. Follow the supply line upward to the common rail, then downward through injectors into the cylinder head ports. Exhaust components start at the manifold, move through the turbocharger (if equipped), then continue via piping to the muffler, which is typically depicted at the equipment’s rear.
Drivetrain linkages require careful study of control arms and pivot points. Front-wheel drive models feature axle shafts extending from differential gears, ending in constant-velocity joints near the wheel hubs. Rear differentials are larger, often centrally located under the chassis, with universal joints leading to final drive assemblies. Bell cranks and tie rods should align symmetrically on either side of the steering column.
Electrical components cluster near the engine bay, with the alternator and starter motor clearly labeled adjacent to their respective pulleys. Wiring harnesses spider outward from a central fuse block, terminating at sensors (oil pressure, temperature) and actuators (solenoid valves). The battery is usually positioned separately, connected via thick cables to the starter and ground points on the chassis frame.
Hydraulic Circuit Analysis
Hydraulic diagrams separate into sections based on function. The loader circuit starts at the control valve block, with lines leading to lift cylinders (dual vertical lines) and tilt cylinders (angled near the bucket). The 3-point hitch circuit branches below, showing draft links, top link, and stabilizing arms–each with distinct connection points at the rear axle housing.
Examine pressure relief valves and flow dividers, usually represented as small rectangles along main hydraulic lines. Check valve symbols (arrows within circles) appear at cylinder ports to prevent backflow. Auxiliary circuits for attachments may show quick-connect couplers branching from the main supply, positioned near the operator’s station for easy access.
Locating Hydraulic Components via Compact Tractor Schematics
Begin by isolating the hydraulic pump section on the technical blueprint. Look for labeled ports marked “P” (pressure), “T” (tank), and “A/B” (work lines). The L-series utility machines typically position the pump near the rear axle housing, identifiable by its circular or oval outline in the schematic and bolt flange pattern in reality.
Trace the pressure line from the pump to the control valve block–usually a rectangular assembly with multiple spool bores. Each spool controls a circuit: loader, backhoe, or auxiliary functions. Verify port connections match the numbered callouts on the drawing; mismatches often cause slow or erratic actuator movement.
Check the implement relief valves next. These spring-loaded cartridges sit adjacent to the control valve block and regulate maximum system pressure. On the diagram, they appear as small hex-shaped symbols with internal springs. Physical units measure roughly 2.5 inches long and have a threaded base; corrosion here reduces lifting capacity noticeably.
Follow the return line back to the reservoir–commonly the transmission case on these models. The schematic shows a filter screen before the tank inlet; bypassing it voids warranty and risks particle damage to pumps within 200 operating hours. Replace screens every 500 hours regardless of visual cleanliness.
Inspect auxiliary circuits if present. Quick-connect couplers and diverter valves appear as dashed circles on the drawing. Color-coding helps: red denotes supply, blue return. Incorrect hose routing here causes sinkage during simultaneous loader and backhoe operation.
Compare solenoid-operated valves against the legend. Look for rectangular blocks with electrical symbols–missing engagement often stems from blown fuses rather than hydraulic failure. Use a multimeter to verify 12V signal at plug terminals before condemning units.
Record every identified component’s location and function directly on a printed copy of the schematic. Cross-reference with maintenance logs to predict failures; rear couplers typically leak first due to vibration exposure, while loader valve spools last 1,200–1,500 hours under normal load conditions.
