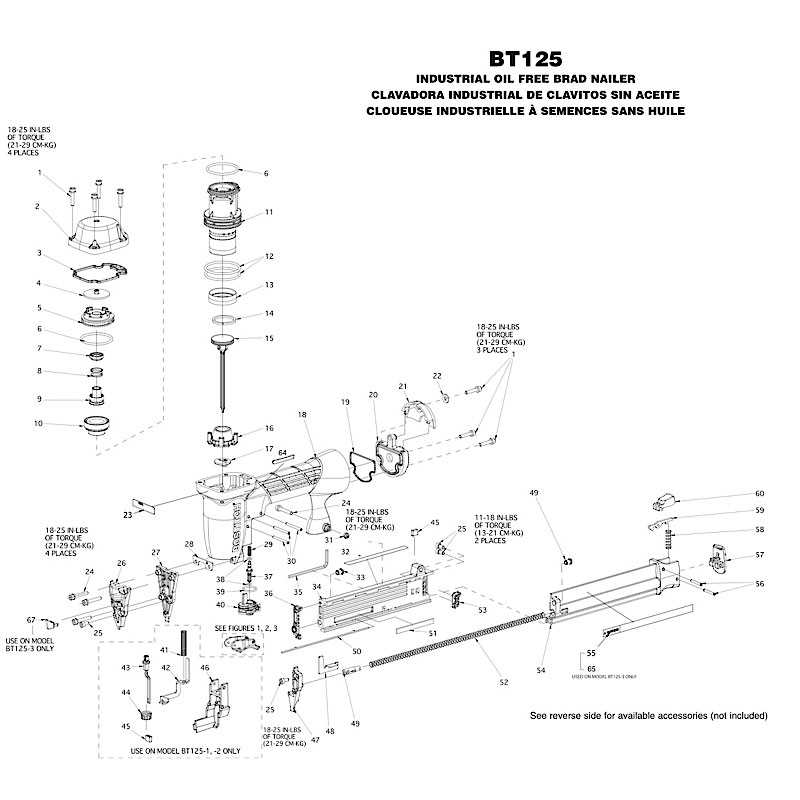

To troubleshoot or maintain your pneumatic fastening device, begin by locating the trigger assembly–typically positioned near the grip. This mechanism controls the firing sequence and often includes a safety lock, which must be engaged before disassembly. Refer to the manufacturer’s exploded view for precise placements, as models vary in housing design and internal layout.
Inspect the magazine feed first. This component holds the fasteners in alignment and relies on a spring-loaded pusher to advance them sequentially. If jams occur, the pusher may require lubrication or replacement–consult the technical schematics for exact spring tension specifications. Adjacent to this, the driver blade, usually machined from hardened steel, transfers force from the piston to the fastener. Check for signs of wear or deformation, as improper contact here leads to inconsistent driving depth.
The air cylinder and piston form the power delivery system. Most designs use a sealed chamber with O-rings to prevent air leaks, which compromise performance. During reassembly, ensure the piston moves freely within the cylinder; any resistance suggests debris buildup or misalignment. The exhaust valve, often overlooked, regulates airflow and should be cleaned regularly–clogged ports cause erratic firing or failure to reset.
For specialized models, pay attention to the depth adjustment dial. This threaded mechanism fine-tunes how far the fastener penetrates the material. Calibration errors result in over-driving or under-driving–use the reference chart in the service manual to verify settings. If the device includes a no-mar tip, confirm its attachment; damage here risks surface scratches. Always disconnect the air supply before inspecting internal components to prevent accidental activation.
Understanding Your Pneumatic Fastening Tool Component Layout
Locate the magazine assembly first–it’s typically positioned along the underside of the tool’s body and holds the fasteners in place before driving. Most models feature a transparent strip or numbered markers to indicate remaining capacity; check these before loading to avoid jams. If yours lacks visual cues, reference the manufacturer’s schematic for exact placement of tension springs and follower mechanisms.
Examine the nosepiece carefully–this is the hardest-working segment, with tolerances as tight as 0.003 inches for seamless operation. A common failure point is the driver blade misalignment; use calipers to measure clearance if misfires occur. Replace worn bumpers immediately; they absorb recoil and prevent metal fatigue in the surrounding housing.
The trigger valve and air passage network demand regular lubrication–every 1,000 cycles or monthly, whichever arrives first. Apply pneumatic oil through the designated port, not the exhaust vent, to avoid contaminating the airflow. Clogged passageways are silent saboteurs; disassemble and flush with compressed air if inconsistent power output is detected.
Inspect the depth adjustment collar next–it’s often overlooked but critical for precision work. Rotate it while counting audible clicks; each interval corresponds to an incremental setting usually ranging from 1/16″ to 1/4″. Mismatched settings can strip threads or leave fasteners proud; match settings to material density as noted in the technical blueprint.
Safety mechanisms like the contact trip and trigger interlock require zero tolerance for wear. Test the sequential firing mode by pressing the nose against a surface–it should only activate when both components engage simultaneously. Replace corroded springs or cracked switch housings immediately; bypassing these risks catastrophic double-firing.
Consult the exploded view for O-ring specifications–typically marked by diameter and durometer (e.g., 70 Shore A). Standard repair kits include five sizes; cross-reference part numbers with the assembly chart to avoid incorrect installations that accelerate leaks. Store spare seals in vacuum-sealed bags away from UV exposure; silicone-based compounds degrade faster than Buna-N alternatives.
Decoding the Critical Elements in a Framing Tool’s Exploded Schematic
Locate the drive assembly first–it’s the elongated metal strip running parallel to the magazine. Check its position relative to the firing chamber; misalignment here causes jams or weak strikes. Compare the spring tension against the manufacturer’s specs (typically 18–22 lbs for coiled models). If the spring appears stretched or corroded, replace it before testing.
Examine the feeder mechanism next, usually a black plastic or steel tray beneath the magazine. Slide it forward and backward to ensure smooth movement; grit or bent edges disrupt loading. Look for worn rollers or a cracked follower–both require exact part numbers for replacements, often listed in the service manual under “magazine sub-assemblies.”
Evaluating Safety and Trigger Components
The contact safety, a small lever near the nose, must depress fully before the unit fires. Test it by pressing the tip against a scrap board; the trigger should only engage when the safety is depressed. If the trigger feels loose or fails to reset, inspect the trip lever–a brittle plastic piece prone to breaking. Obtain the OEM kit (e.g., PN ST-874-1) rather than generic substitutes.
Inspect the bumper pad–a rubber or polyurethane buffer at the nose’s base. Cracks or thinning here reduce strike force and cause double fires. Measure its thickness; if below 3mm, order the exact replacement (common PN: ST-721). Avoid aftermarket pads with incorrect durometer ratings, as they alter performance.
Airflow and Lubrication Verification
Trace the exhaust ports–small vents along the body. Blockages from dirt or dried oil restrict airflow, leading to sluggish cycling. Use compressed air at 60 PSI to clear debris, then apply two drops of pneumatic tool oil (ISO 32 grade) into the air inlet. Rotate the tool upright to distribute oil evenly; over-lubrication attracts debris and accelerates wear.
Step-by-Step Guide to Locating the Driver Blade and Piston Assembly
Disconnect the power source before attempting any disassembly. For cordless models, remove the battery; for pneumatic tools, release all air pressure via the safety valve.
Locate the housing screws–typically six to eight Phillips-head fasteners–securing the main casing. Position the tool upside down on a stable surface to prevent small components from shifting. Use a magnetic screwdriver to avoid misplacing screws.
Accessing Internal Components
- Remove the magazine (if attached) by sliding the release latch and detaching the retainer pins.
- Set aside the magazine and any linked brackets to expose the rear housing section.
- Identify the trigger mechanism; disengage its linkage rod by pressing the retaining clip inward and pulling upward.
Separate the two halves of the casing by gently prying along the seam with a plastic wedge. Avoid metal tools–they may damage sealing ridges. The piston assembly sits in the rear half, recognizable by its cylindrical body and attached return spring.
Identifying Key Elements
- Driver blade: A flat, elongated metal piece positioned at the front of the piston. It extends forward during activation to strike fasteners.
- Piston assembly: Includes the piston head, shaft, and return spring. The head has a rubber seal that maintains airtight compression.
- Check for debris: Clear any sawdust or residue obstructing the piston’s path with compressed air before reassembly.
To detach the driver blade, unscrew the retaining bolt at its base using a 5/32″ hex key. Slide the blade out carefully–its edges are sharp. The piston can be lifted out by hand once the blade is removed, exposing the chamber for inspection.
Reassemble in reverse order. Lubricate the piston seal with lightweight silicone grease to prevent premature wear. Ensure the return spring is properly seated before securing the housing. Test the mechanism without power to confirm smooth operation of both the blade and piston before reconnecting the tool for use.
Locating Components for Your Fastening Tool Using Manufacturer Blueprints
Begin by accessing the official product documentation portal of the brand. For most pneumatic and cordless models produced after 2018, exploded views are available via the manufacturer’s support page under “Technical Resources.” Enter your tool’s exact model number–found on a metal plate or sticker on the device’s housing–to pull up the precise schematic. Download the PDF for offline reference; printed copies help during disassembly to cross-check each component’s placement.
Key Retailers for OEM and Aftermarket Components
| Supplier | Website | Notes |
|---|---|---|
| Factory Direct Store | www.factorydirecttools.com | Verified OEM parts, same-day shipping on in-stock items |
| Tool Parts Direct | www.toolpartsdirect.com | Compatible components for models FN1664, N62, T6 and F21 |
| eReplacementParts | www.ereplacementparts.com | Step-by-step repair guides alongside parts sales |
| Amazon Business | www.amazon.com | Filter by “Sold by Brand” to avoid counterfeit listings |
For discontinued series like the Coil7 or RN45M, independent repair centers such as Electro-Technic in Illinois and FixFast in Texas maintain inventories of hard-to-find mechanisms. Call ahead with the part number from the exploded view–these shops often source from salvage units when factory supply lines dry up. Provide measurements if uncertain, especially for springs or seals, to ensure compatibility.
When dealing with delicate internal assemblies–firing pins, buffers, or driver blades–avoid generic “one-size-fits-all” alternatives listed on auction sites. Stick to suppliers offering minimum 90-day warranties on moving components; reputable third-party manufacturers like Arrow Fastener and Prime Source guarantee dimensional accuracy matching original specifications even for fifty-year-old models like the BS42.
