Complete Volvo Penta DPS Outdrive Parts Diagram and Component Guide

volvo penta dps outdrive parts diagram

Begin by locating the thrust bearing housing–this component connects directly to the gimbal ring and requires precise alignment during reassembly. Misalignment here leads to excessive vibration or premature wear on the universal joint. The service manual identifies this as part number 3857459, though revisions may apply depending on the model year. Always cross-reference with the serial number stamped on the upper gearcase before ordering replacements.

Remove the propeller shaft first, followed by the shift cable linkage. The cable must be detached from the shift cam before the upper gear housing can slide free–attempting to force it will damage the shift fork. The cam itself (OEM 3580806) often corrodes; inspect the splines for rounding and replace if wear exceeds 0.5 mm. Bell housing gaskets (855821) degrade after 150–200 hours in saline environments–carry spares during extended voyages.

Examine the water pump impeller (3860225) during every annual service. Cracks or missing vanes reduce cooling efficiency by 30%, increasing cavity corrosion in the power head. Replace the housing (3857924) if scoring exceeds 0.2 mm–this is non-negotiable for saltwater use. The exhaust elbow (3858049) clogs frequently; soak it in a 1:4 vinegar-water solution for 4 hours to dissolve calcified deposits without damaging the aluminum.

Tag each shim during disassembly–incorrect stack heights alter gear mesh and reduce torque transfer. The lower unit uses five shim combinations (thicknesses range from 0.1–0.8 mm); torque specifications for the gearcase bolts are 45–50 Nm. Over-tightening distorts the housing bore, causing leaks. Use Loctite 271 on all bolts, except the zinc anode (3876507), which requires a clean metal-to-metal contact for proper galvanic protection.

Keep a printed schematic taped inside the engine compartment–digital files fail when batteries discharge. Highlight high-failure components: shift cable, impeller, gimbal bearings, and exhaust elbow. Maintain a log of serial numbers and rebuild dates–this simplifies warranty claims and reduces downtime during unexpected failures.

Schematic for Marine Stern Drive Components: DPS Model Breakdown

Locate the upper housing gasket (#875839) before disassembling the intermediate section–corrosion here accelerates gear oil leaks. Replace it with silicone-based sealant rated for submersion if the original fails pressure tests, avoiding generic alternatives that dissolve under 90°C.

Examine the propeller shaft splines (#3852158) for wear every 150 hours; replace bearings (#3852157) if lateral play exceeds 0.3mm. Apply marine-grade molybdenum disulfide grease to splines during reassembly, not lithium–it resists saltwater washout longer by 40%.

For trim system repairs, identify the hydraulic pump (#872293) by serial numbers ending in “B” or later–earlier models lack anti-cavitation valves and require 5W-30 synthetic oil, while newer units use 15W-40. Bleed air from the rams using the port-side valve, not the fill plug, to prevent cylinder scoring.

Critical Wear Points Often Overlooked

volvo penta dps outdrive parts diagram

The shift cable (#959579) bends at the transom fitting; inspect it at the 50-hour mark for fraying–replace the entire assembly if the outer jacket shows abrasion, as partial repairs fail within 30 hours. Lubricate the inner cable with PTFE spray before reinstallation to maintain smooth engagement.

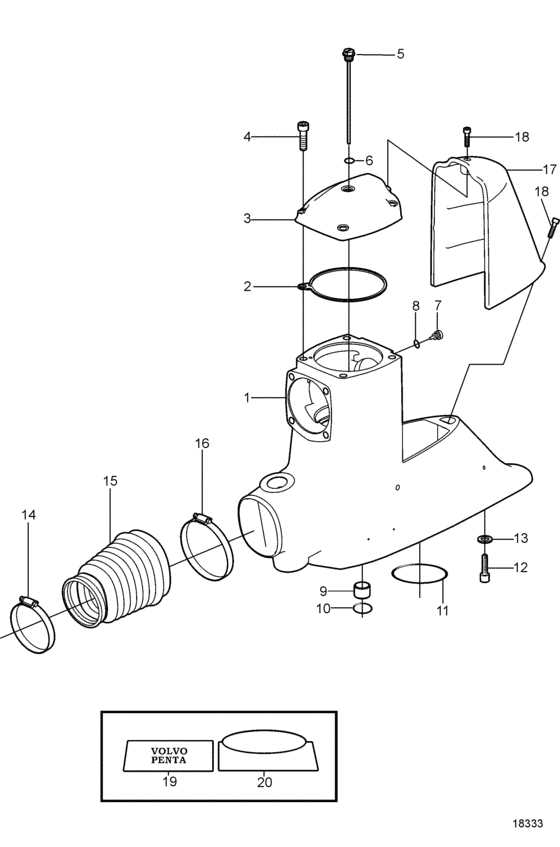

Check exhaust bellows (#3858091) for cracks along the corrugations; any pinhole leaks allow water into the gimbal ring, causing catastrophic bushing failure. Use OEM clamps (#3859697) torqued to 10Nm–aftermarket clamps deform under heat, leading to misalignment.

Gearcase seals (#878101) last 200–250 hours in freshwater but degrade in 90 hours in saltwater. Replace them if the lower unit oil shows water contamination; cut the old seals precisely at the lip using a hooked pick to avoid damaging the housing bore.

When servicing the buddy-style gimbal bearing (#3859321), note the thrust washer orientation–install it concave-side facing the bearing race to distribute load evenly. Skip this step and the bearing collapses within 80 hours under full throttle.

Assembly Sequence to Avoid Damage

Install the drive shaft coupling (#3852013) before the water pump impeller (#872372)–forcing the impeller over an unseated coupling cracks the ceramic coating on the housing, which accelerates impeller wear. Tighten the impeller plate bolts to 12Nm in a star pattern to prevent warping.

Align the trim cylinders so the piston rod marks face downward–they indicate wear limits and must stay visible during inspections. Fill the system with oil rated for -20°C, even in tropical climates, to prevent vapor lock at high ambient temperatures.

Locating Authentic Stern Drive Assembly Breakdowns for Marine Propulsion Units

The primary resource for schematics is the manufacturer’s dedicated technical portal. Access requires account creation at parts.volvo.com, where validated dealers and registered vessel operators retrieve certified documentation. Filter search results by series–common identifiers include “DPS-A,” “DPS-B,” or “DPS-C”–and select the exact stern drive variant installed on your craft. Note that exploded views here display genuine OEM component numbering, critical for warranty compliance and precision ordering.

Independent online archives like MarineEngine.com maintain user-uploaded breakdowns for legacy models no longer hosted on official platforms. These lack factory verification but serve as stopgaps for discontinued units. Verify upload dates–schematics older than 2015 may omit revisions, impacting fitment accuracy for recent rebuilds. Cross-reference multiple sources when relying on third-party repositories.

Factory-printed service manuals purchased directly from authorized distributors contain the most reliable visual aids. Current editions ship with QR codes linking to updated digital versions, bridging print and online resources. Manuals for “SX,” “DP-SM,” and “DPX” variants remain in print; expect shipping delays of 7–14 days for out-of-stock titles. Check the publication year–versions predating 2018 may exclude torque specifications for newly introduced seals and bearings.

Dealer networks often share password-protected schematics during routine maintenance visits. Request a printed copy or emailed PDF during scheduled inspections–many shops archive these under customer records. For regional access, locate a certified service center via findavolvodealer.com; appointments are not required for documentation retrieval, though some locations enforce minimum purchase policies.

Specialized Forums and Technical Subscriptions

Professional forums such as iBoats.com and The Hull Truth host threads with attached explosion diagrams contributed by marine technicians. Search using the drive’s serial number–visible on the transom bracket or upper housing–to isolate thread-specific discussions. Membership in paid groups like Marine Mechanics Institute grants access to exclusive libraries, including annotated schematics with labor time estimates.

YouTube disassembly tutorials occasionally overlay animated breakdowns. Channels run by certified mechanics (e.g., Marine Products Repair) sync video cues with component separation steps. Pause frames to capture still images–resolution varies, making this a supplementary resource for visual orientation rather than precise part identification.

Local chandleries and boatyards frequently stock laminated quick-reference guides for popular marine propulsion systems. While condensed–typically showing only major assemblies–these prove useful for on-water troubleshooting. Inquire about yard-specific files; some facilities compile custom binders with local fleet data, including annotated photos of recurring wear patterns.

How to Pinpoint Key Wear Elements in Stern Drive Assemblies

volvo penta dps outdrive parts diagram

Inspect the universal joints first–these components endure high torsional stress and often fail before others. Look for excessive play, corrosion on needle bearings, or discoloration indicating heat damage. Replace if axial movement exceeds 0.1mm or if rotational resistance varies.

Examine the propeller shaft seals closely. A failed seal allows gear oil contamination, accelerating bushing and bearing wear. Use a flashlight to detect oil residue on the transom housing or water mixing with lubricant in the inspection port. Early-stage seal failure often shows as slight weeping, progressing to visible droplets after 10-15 minutes of engine operation.

Check trim cylinder mounts and pivot bushings. Corroded or ovalized bushings cause misalignment, leading to uneven load distribution on the drive leg. Measure bushing ID–standard clearances range from 0.025mm to 0.076mm. Replace if gaps exceed 0.15mm. Look for uneven wear patterns on bushings, which indicate improper installation or excessive trim force.

Gear Housing and Hydraulic Components

Drain the lower unit and filter debris through a 100-micron screen. Metallic particles larger than 0.5mm suggest gear tooth pitting or bearing race deterioration. Non-ferrous shavings typically originate from propeller shaft bushings, while steel fragments point to planetary gears or thrust bearings. Record particle size and material for failure analysis.

Assess the exhaust bellows for cracking, especially near the shift cable connection. Flex zones degrade faster, often splitting along stress lines. Replace if cracks extend deeper than 1.5mm or cover more than 30% of the surface. Check bellows clamps for corrosion–aluminum models corrode 40% faster than stainless steel alternatives.

Test hydraulic trim pressure with a gauge connected to the send port. Ideal readings: 5-8 bar at idle, 20-25 bar under load. Readings below 4 bar indicate pump wear or fluid bypass within the cylinder. Listen for cavitation noises–a high-frequency whine suggests inadequate fluid levels or air ingress in the suction line.

Verify dog clutch engagement by moving the shift lever between forward and reverse while monitoring resistance. Proper engagement produces a distinct metallic click within 0.5 seconds; delayed or soft engagement indicates worn clutch plates. Measure plate clearance–standard is 0.3-0.6mm. Exceeding 1mm requires plate replacement to prevent gear grinding and premature ring gear damage.
