To analyze the performance of a radial flow mechanism, begin by identifying the impeller–the rotating component that accelerates fluid outward using vanes or blades. Select an impeller type based on the application: closed for high-efficiency clean fluids, semi-open for slightly viscous or particle-laden liquids, or open for abrasive or high-solids content. Verify the material compatibility; cast iron suits water, while stainless steel or specialized alloys (e.g., Hastelloy) resist corrosion in chemical or high-temperature environments.
The volute casing converts velocity into pressure by gradually expanding the flow path. For optimal efficiency, match the casing’s cross-sectional area to the impeller’s discharge rate. A poorly designed volute increases turbulence, leading to cavitation or energy loss. Inspect the casing’s gasket surfaces; misalignment here causes leakage, reducing output by up to 15% in industrial systems.
Examine the shaft and bearings for alignment and load distribution. A rigid shaft minimizes vibration, but flexible shafts tolerate minor misalignments common in heavy-duty operations. Use angular contact bearings for high radial/axial loads, and ensure lubrication intervals comply with the manufacturer’s specifications–grease-lubricated bearings typically require servicing every 3,000–5,000 hours, while oil-bath systems demand 5,000–8,000-hour cycles.
Check the wear rings if handling erosive fluids. These sacrificial components maintain tight clearances (ideally 0.1–0.3 mm) between the impeller and casing. Replace wear rings when clearance doubles to prevent a 10–20% drop in hydraulic efficiency. For slurry applications, opt for hardened materials like stellite or tungsten carbide to extend service life by 3–5 times compared to standard metals.
Inspect the mechanical seal or packing gland for leakage. Cartridge seals simplify replacement but require precise installation–misalignment causes hot spots that degrade elastomers within weeks. For dry-running tolerance, use dual-seal arrangements with barrier fluid, especially in volatile or toxic processes. Packing glands demand periodic tightening but handle abrasive fluids better than seals; adjust compression every 50–100 operating hours to maintain minimal leakage (target 1–2 drips per minute).

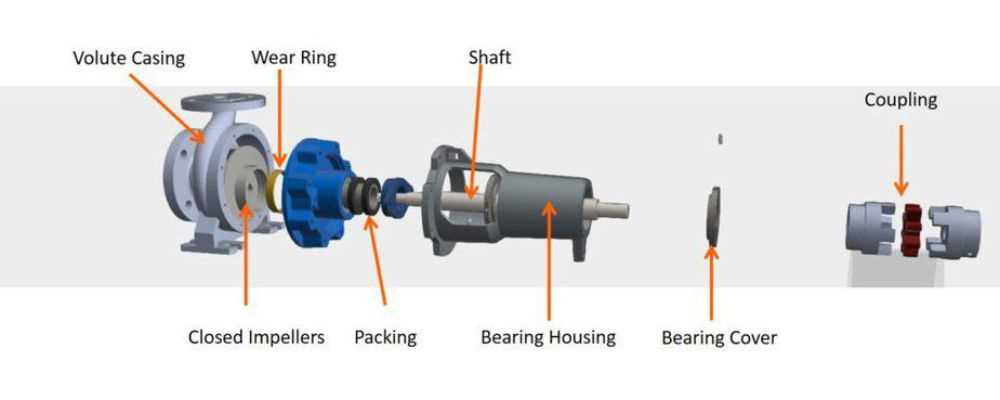

Key Components of a Rotodynamic Machine Schematic
Begin by identifying the impeller–it’s the core rotating element that accelerates fluid outward using kinetic energy. Select closed-vane designs for low-viscosity liquids to minimize internal recirculation; semi-open impellers handle slurries better by reducing clogging risks. Always verify blade curvature: backward-curved blades (45–60° exit angle) balance efficiency and head, while forward-curved types (>90°) suit high-flow, low-pressure scenarios.

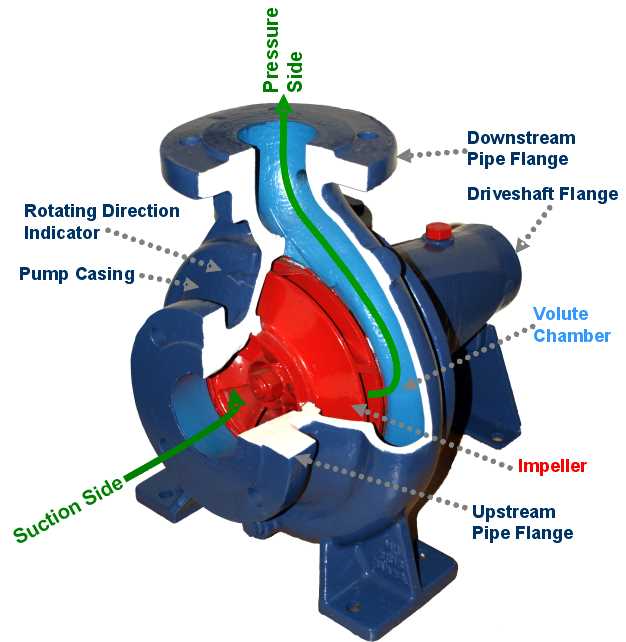

Inspect the volute casing–the spiral-shaped chamber converting velocity into pressure. For optimal performance, ensure the volute cross-section expands gradually at a 7–10° angle to prevent turbulence. Cast iron suits general applications, but corrosion-resistant alloys like 316 stainless steel are mandatory for acidic or chloride-rich fluids. Match the casing inlet diameter to the discharge pipe size within ±5% to avoid throttling losses.
The shaft seal is critical for preventing leaks–choose mechanical seals for high-speed applications (>1,800 RPM) and packing glands for abrasive fluids. Single mechanical seals leak
Mount bearings at the shaft ends to support radial/axial loads–grease-lubricated deep-groove ball bearings handle 3,600 RPM. Preload bearings during installation to eliminate play (0.01–0.05 mm for precision assemblies). For vertical installations, use thrust bearings to counteract impeller weight–consult bearing life (L10) calculations using ISO 281 before selection.
The suction nozzle must maintain net positive suction head (NPSH) to avoid cavitation. Calculate required NPSH using fluid vapor pressure + 0.5 bar safety margin; venturi-shaped inlets improve flow uniformity by reducing pre-rotation. Avoid sharp bends upstream–keep straight pipe runs ≥5× diameter to prevent asymmetrical flow distribution that degrades efficiency by 8–12%.
Discharge diffusers or guide vanes straighten fluid flow before exit, recovering 15–25% of kinetic energy. Stationary vanes should align within ±2° of impeller blade angle to minimize shock losses. For variable-speed operations, variable geometry diffusers (adjustable vanes) maintain ≥70% efficiency across a 40–100% flow range.
Monitor heat dissipation in the motor coupling–flexible disc couplings tolerate ≤0.3° misalignment but generate heat at >0.1 kW per 100 Nm torque. Rigid couplings require precise alignment (≤0.05 mm parallel offset) to avoid vibration frequencies matching shaft natural frequencies (typically 1× or 2× rotational speed). Replace worn keys/gaskets immediately–tolerances >0.1 mm lead to fretting corrosion and eventual failure.
Critical Elements in a Rotodynamic Machine Blueprint
Prioritize identifying the impeller during initial schematic analysis–its vane design dictates hydraulic performance. Closed vanes handle high-pressure fluids efficiently; open or semi-open variants suit viscous or slurry-laden media. Verify blade angles and curvature against operational requirements; deviations beyond 5% from specified tolerances risk cavitation or reduced head capacity.
The volute casing merits close examination, particularly at the cutwater region where fluid velocity peaks. Ensure the casing’s cross-sectional area expands progressively–ideal ratios range from 1.1:1 to 1.3:1 relative to the impeller diameter. Additional inspection points include:
- Surface roughness: Ra ≤ 3.2 µm for corrosion-resistant alloys
- Gasket seating depth: minimum 3 mm to prevent bypass leakage
- Drain plug placement: must align with the lowest operational fluid level
Shaft bearings demand rigorous specification matching. Angular contact bearings accommodate axial loads in single-stage units, while spherical roller variants suit high-thrust applications. Lubrication methods (grease vs. oil mist) and bearing clearances (±0.01 mm) directly impact service intervals–factor in temperature rise data from the manufacturer’s curves.
Mechanical seals require tailored material selection based on fluid properties. Carbon vs. silicon carbide faces trade off wear resistance against thermal conductivity. Seal flush plans (API 682 standards) must be pre-configured; Plan 11 (internal recirculation) suits clean fluids, while Plan 23 (external cooling) serves high-temperature applications.
Inspect the motor coupling interface for misalignment risks–flexible disc couplings tolerate ≤0.1 mm parallel offset but require torque verification against nameplate values. Bolt patterns should conform to ISO or AGMA standards; alternative hole designs risk premature fatigue failure.
The suction and discharge nozzles incorporate critical dimensions influencing NPSHA. Suction pipe diameter should exceed the impeller inlet by 10–15% to minimize pre-rotation risks. Discharge nozzle flange ratings must match pipeline pressure classifications (e.g., PN16/Class 150 alignment). Verify:
- Entry pipe minimum length: 5×diameter upstream of pump inlet
- Reducer type: concentric for horizontal units, eccentric for vertical installations
- Temperature sensor placement: ≥2×pipe diameter downstream of the discharge flange
Auxiliary components like wear rings and balancing drums often escape scrutiny but dictate longevity. Wear ring clearance (typically 0.3–0.5% of impeller diameter) requires re-measurement after 2,000 operating hours; excessive clearance precipitates internal recirculation. Single-stage machines may omit balancing drums, but multistage variants demand Δp verification across stages–target ≤5% pressure drop between adjacent stages.
Instrumentation clusters should be pre-wired during design review. Vibration probes (API 670 compliant) must capture radial and axial displacements at ±0.05 mm accuracy. Pressure gauges (glycerin-filled for pulsation damping) require siphon loops for saturated steam applications. Ensure control system wiring separates analog sensor lines from power cables to avoid noise-induced errors.
How to Locate and Interpret the Rotating Blade Assembly on Technical Schematics

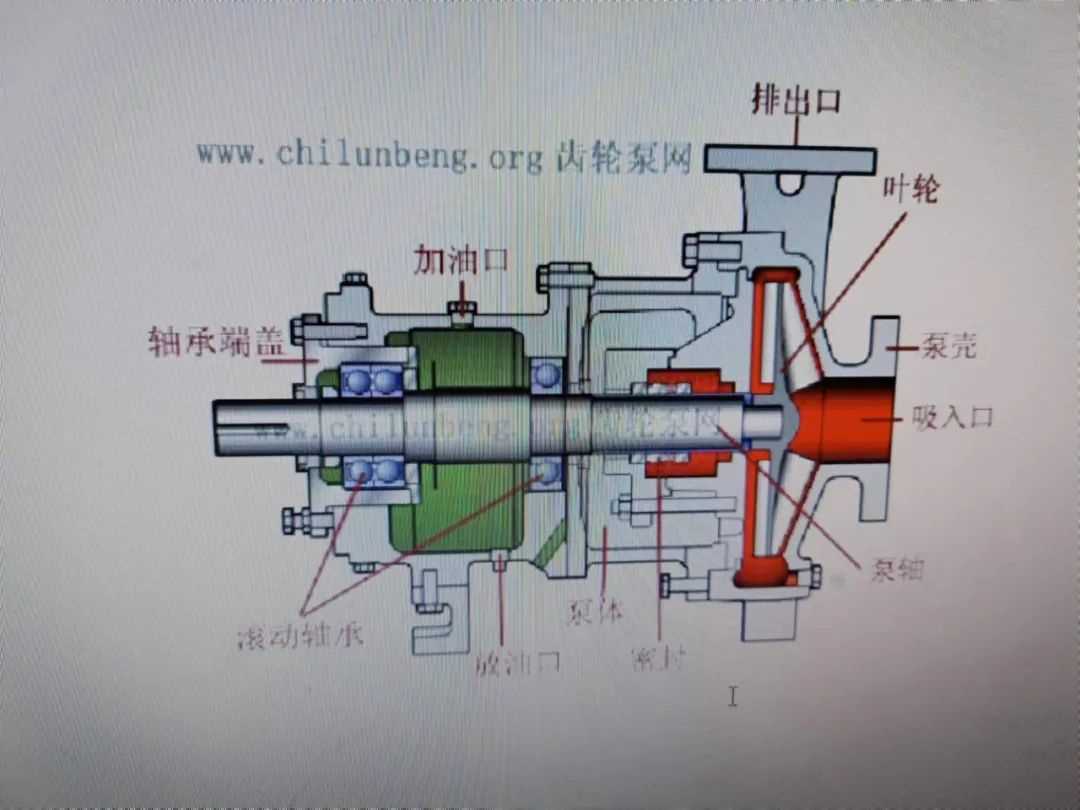

Identify the impeller by tracing the primary flow path on the schematic. It sits immediately downstream of the inlet nozzle, typically depicted as a circular component with curved vanes. Look for labels like “rotor,” “bladed wheel,” or “core assembly” in exploded or cross-sectional views. Modern blueprints often highlight it in bold outlines or contrasting colors, while legacy drawings may use arrowheads pointing to its outer edges or hub bore.
- Check for a central mounting hole–this confirms the hub, where the shaft secures the assembly.
- Examine vane curvature: backward-curved blades indicate high-efficiency designs; straight blades suggest high-pressure variants.
- Note adjacent components: the volute casing hugs its perimeter, while wear rings appear as narrow gaps between fixed and moving surfaces.
Decoding Symbols and Annotations
Schematics use distinct symbols:
- A circle with radial lines denotes a single-stage rotor; concentric circles signal multi-stage configurations.
- Dimension arrows crossing vane edges indicate key specs–measurements often note impeller diameter (e.g., “Ø250”) and outlet width (“W=20”).
- Material codes (e.g., “CF8M” for stainless castings) hint at corrosion resistance–critical for fluid compatibility.
Verify alignment with drive shafts–misalignment flags in diagrams often target coupling faces referenced to the rotor’s rear shroud. If axial thrust bearings appear nearby, expect closed-face designs; open vanes typically lack shrouds, relying on casing clearances instead.
