Start by locating the official service manual for your model year, as factory diagrams offer precise labeling and routing paths for hoses, electrical connectors, and mechanical linkages. Third-party guides often omit critical details like torque specifications or sequence-dependent installations–both essential when replacing turbocharger plumbing or ABS sensor harnesses. Avoid generic schematics; instead, reference OEM-sourced PDFs, which include exploded views of the intake manifold assembly, showing exact placements for injectors, MAP sensors, and vacuum lines.

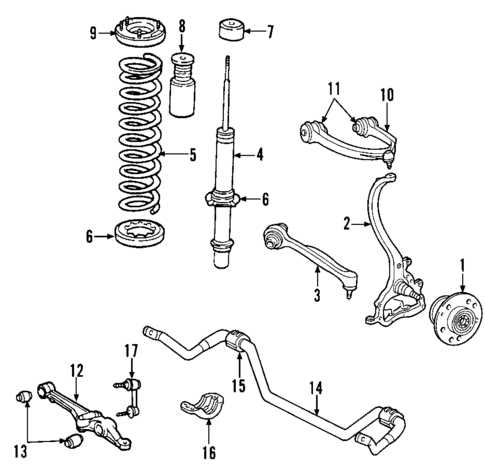

For suspension work, focus on front-end diagrams highlighting control arms, sway bar attachments, and strut tower reinforcements. Subframe routing of brake lines and power steering hoses varies by model series–verify against a chassis-specific chart to prevent kinking or interference with wheel speed sensors. Rear axle component layouts often separate differential carrier assemblies from driveshaft coupling configurations; cross-check these with torque-to-yield bolt specifications if upgrading to aftermarket limited-slip units.
Electrical system diagnostics require pinpoint accuracy. Engine bay diagrams must distinguish between ECU connectors, ignition coil locations, and alternator wiring harnesses, especially in dual-battery setups. Interior fuse box layouts differ between trim levels; always confirm relay positions for modules controlling traction control or launch mode if modifying performance settings. Under-dash wiring harnesses, particularly for paddle shifter connections, demand insulation testing before reflowing solder joins.
Cooling system complexity escalates with forced-induction setups. Radiator support diagrams should clarify upper/lower hose diameters, thermostat housing orientations, and auxiliary cooler mounting points. Intercooler plumbing schematics must detail charge pipe diameters, silicone coupler lengths, and wastegate actuator linkage geometry. Failure to align these components can introduce pressure spikes or air leaks, directly impacting boost response curves.
Exhaust routing requires attention to flex pipe placements and catalytic converter flange alignments. OEM diagrams often include muffler weight specifications and mounting bracket locations–critical when swapping to lighter titanium or Inconel systems. Header flange torque sequences prevent gasket failure; always follow a crisscross tightening pattern to 22-25 Nm, then finalize to 30 Nm after heat cycling.
Understanding Your Muscle Car’s Blueprint: A Hands-On Approach
Locate your vehicle’s official service manual–typically labeled by model year–to access precise schematics. For a 2015-2020 variant, focus on sections 7-12, which detail powertrain layouts, suspension assemblies, and electrical wiring. Older releases (2006-2014) group these under separate chapters, so cross-reference the index with your VIN’s 8th digit to avoid mismatches. Avoid aftermarket “universal” blueprints; they omit critical torque specs and alignment angles unique to HEMI configurations.
Print or save the relevant pages in landscape orientation–engine bay diagrams lose clarity when reduced. Use red and blue markers to trace fluid paths (coolant, brake, fuel) and high-voltage wiring (orange) respectively; this prevents confusion during repairs. For ECU-related work, note the pinout tables (often in Appendix B); miswiring ignition coils or MAP sensors can trigger chronic misfires or limp mode, costing $300+ in diagnostic fees.
Label bolts during disassembly with painter’s tape–record thread pitch (e.g., 10mm x 1.5) and original torque values (65-85 ft-lbs for cylinder head bolts) to avoid thread stripping. Keep a digital caliper handy for measuring worn components; manufacturers rarely list diameters in manuals, leaving mechanics reliant on OEM part numbers alone.
Finding Factory Component Codes on Sedans’ Illustrated Guides
Begin by scanning the exploded-view schematics for alpha-numeric labels adjacent to each illustrated element. Factory identifiers typically appear in bold, monospace fonts–often prefixed with letters like “P,” “E,” or “C,” followed by six to eight digits. For model years 2006–2011, prioritize labels near the bottom-right of each sub-assembly; later variants (2012+) position codes centrally beneath components.
Cross-reference the schematic’s legend–usually a small table in the corner–where abbreviations clarify prefix meanings. “P” denotes powertrain elements, “E” electrical, and “C” chassis-related. Lens filters in PDF viewers can isolate these codes if layered ink obscures them on printed manuals.
Deciphering Conflicting References
Manufacturers occasionally reuse base numbers across trim variations, appending suffixes (e.g., -AA, -AB) to denote revisions. Compare the label’s suffix with the vehicle’s build sheet–found in the glovebox–to confirm compatibility. Discrepancies often indicate refreshed designs or regional suppliers.
For obscure assemblies (e.g., HVAC ducts, wiring harness branches), check inset callouts rather than the primary exploded view. These magnified details include codes omitted from the main illustration. If absent, consult the “Numerical Index” at the document’s end, which lists all identifiers alphabetically alongside their descriptions.
Verifying with Service Bulletins
Dealership service portals host bulletins mapping schematic codes to updated part revisions. Search by the vehicle’s VIN range–first eight digits–then filter for “Illustration Updates.” Superseded codes appear here, often marked with asterisks or colored highlights. Ignore codes flagged “NR” (not restocked) unless sourcing used replacements.
When codes clash between manual versions, prioritize the most recent publication date or the one matching the VIN’s assembly plant code (11th digit). For example, Belvidere-produced units use different suppliers than Brampton-built variants, altering suffixes for identical constructs.
Printed manual addenda–often included as fold-out sheets–contain late-stage revisions. Scan these first if the primary schematic seems outdated. Codes here override conflicting entries in the main document.
For components shared across model lines (e.g., brake calipers, alternators), note that the same numeric label may appear in multiple guides under differing contexts. Always confirm by locating the RPO (Regular Production Option) code tied to the specific vehicle configuration–these appear in footer margins or on the back cover of manuals.
Key Engine Bay Elements in High-Performance Sedan Exploded Views
Start by locating the air intake assembly in the upper-left quadrant of most schematics–typically featuring a reusable filter, mass airflow sensor, and sealed housing. Verify compatibility between OEM and aftermarket housings; some models require relocating the sensor bracket by 2-3 mm to prevent airflow turbulence. Replace the filter element every 12,000 miles or immediately if debris accumulates beyond the visible pleat gap.
- Check the throttle body for carbon buildup; clean with a dedicated non-residue cleaner and a microfiber swab. Avoid scrubbing the butterfly valve seat–apply cleaner directly and let it dissolve deposits for 10 minutes.
- Inspect the intake manifold gaskets for micro-cracks; replace with multi-layer steel gaskets if coolant traces appear near ports 3 or 5.
- Ensure the positive crankcase ventilation (PCV) valve is free of sludge–test by shaking; a functional unit emits a distinct metallic rattle.
Critical Cooling and Lubrication Systems

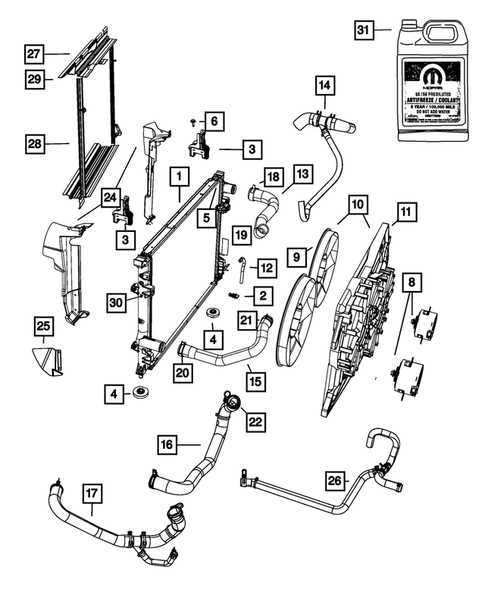

Radiator placement varies by trim, but exploded views consistently show the upper mount near the latch striker. Remove the drain plug first, then the lower hose clamp to prevent coolant spillage–collect fluid in a basin with a 5-micron filter to reuse. Replace thermostat housings in pairs with the coolant outlet pipe; warping often occurs simultaneously.
- Examine the oil cooler lines for weep holes–replace if frayed or if oil pressure drops below 18 psi at 2,000 RPM.
- Turbocharged variants include an auxiliary water pump; trace the flow path from the pump to the intercooler bypass valve using dye if leaks are suspected.
- Avoid overtightening the oil pan bolts–torque to 18 ft-lbs in a star pattern to prevent stripping the aluminum threads.
Ignition coils sit atop valve covers; pull them vertically to prevent snapping the silicone boots. Replace coils in sets of four if misfires occur in consecutive cylinders. Spark plugs should reach a gap of 0.044” for forced-induction models–use iridium electrodes for consistent combustion.
Electrical and Fuel Delivery Components
Fuel rail diagrams highlight the fuel pressure sensor on the driver’s side–calibrate it after replacing the fuel pump module to maintain 58 psi at idle. Disconnect the battery first; ground the fuel lines with a jumper wire before servicing to avoid static discharge. High-pressure fuel injectors require ultrasonic cleaning every 30,000 miles–avoid abrasive tools that damage the spray pattern.
- Test the alternator output at 13.8–14.5 volts; replace the voltage regulator if readings fluctuate.
- Traction control modules often share wiring harnesses with the engine control unit–label connections before disconnecting to prevent error codes.
- Power steering reservoirs show fluid levels with the cap removed–top off with synthetic fluid if levels drop below the “MIN” mark.
Complete Front Axle Removal Using Official Schematics
Secure the vehicle on a hydraulic lift with wheel chocks placed behind the rear tires before lowering the front end. Disconnect the negative battery terminal to prevent accidental activation of electronic stabilizers. Mark each tie rod end and ball joint with paint to ensure precise reassembly–misalignment during installation will cause premature tire wear.
Remove the brake caliper retaining bolts (typically 18mm) and suspend the caliper with a bungee cord to avoid stressing the hydraulic hose. Detach the rotor by tapping the hub mounting surface with a brass hammer–persistent corrosion may require penetrating oil applied 24 hours prior. Inspect the ABS sensor wiring harness for fraying before unclipping it from the knuckle bracket.
Component-Specific Torque Values
| Fastener | Size | Torque (ft-lb) | Notes |
|---|---|---|---|
| Upper control arm nut | 21mm | 120 | Apply thread locker |
| Lower ball joint stud | 19mm | 85 | Replace cotter pin |
| Strut-to-knuckle bolts | 15mm | 70 | Mark alignment |
Support the lower control arm with a floor jack to relieve tension on the coil spring before removing the sway bar end link. The lower ball joint stud requires a pickle fork for separation–avoid excessive force on the knuckle arm to prevent damage. Extract the CV axle from the hub using a slide hammer; stubborn joints may need heat from a propane torch applied to the outer splines.
Unbolt the steering knuckle from the strut assembly (two 15mm fasteners) and remove the entire hub unit as one piece. Label each shim and washer during disassembly–incorrect stack-up will affect wheel camber. Clean mating surfaces with a wire brush and apply molybdenum grease to the hub bearing prior to reinstallation.
Replace all suspension bushings if crack depth exceeds 2mm or if hardness exceeds 80 durometer–A-grade polyurethane replacements outlast OEM rubber by 30%. During final torque, tighten fasteners in a crisscross pattern starting with the upper control arm pivot bolts to ensure even load distribution. Recheck all connections with a torque wrench after 50 miles of driving.
