Start by locating the reservoir lid–usually a hinged plastic cover at the top. If it cracks or fails to latch, replace it immediately to prevent leaks. Use model number MR-3410 as reference; compatible lids measure 120mm x 80mm with a 5mm rim thickness. Avoid generic alternatives–they won’t seal properly.
Next, inspect the water tube assembly. The vertical silicone tube (ID: 4.5mm) connects the heating base to the spray head. Common issues: splits or blockages. Use a 3.5mm drill bit to clear mineral deposits, but replace the entire tube if discoloration exceeds 20%. For model MR-3300, order part #K-12B–it includes the tube, gasket, and bracket.
The thermal fuse sits near the heating plate, rated for 250V/10A. If your machine powers off unexpectedly, test continuity with a multimeter. Zero resistance means failure–replace with exact voltage-match. Aftermarket fuses often melt prematurely. Original parts for MR-3500 series use code TF-15A; don’t substitute.
For the filter basket, check the micro-mesh holes (diameter: 0.3mm). If clogged, soak in 1:3 vinegar-water solution for 30 minutes, then scrub with a nylon brush. Replace baskets showing rust or warping–measure depth (standard: 50mm) before ordering. MR-3100 models require part #FB-08, which includes a silicone seal.
The brew cycle switch triggers the solenoid valve. If stuck, clean contacts with isopropyl alcohol and a cotton swab. For intermittent failures, check the switch lever–it should depress fully. Replacement requires soldering; model MR-3600 uses switch type SPDT, 250V AC.
Pro tip: Label wires during disassembly. A color-coded diagram saved to your phone avoids reconnection errors. For circuity issues, trace the PCB–MR-3700 boards have a diagnostic LED near the transformer. Solid red indicates short; flashing green means proper operation.
Essential Components of Your Brewer: A Hands-On Reference
Locate the water reservoir lid first–usually a snap-fit or hinged cap on the machine’s upper rear. Remove it to reveal the heating tube inlet; sediment buildup here causes 60% of slow-brewing issues. Clean with a pipe cleaner and 1:1 vinegar-water solution every 30 cycles.
- Thermal fuse (white ceramic cylinder near base): clips onto the heating plate–test continuity with a multimeter if the unit fails to power on. Replace if no reading.
- Gasket ring (black rubber under carousel): warps over time; check for cracks monthly. A 2mm gap reduces brewing pressure by 22%.
- Filter basket (stamped steel): pry open the hinge pin with needle-nose pliers to access rivets for deep cleaning. Soak in boiling water + baking soda mix.
Trace the wiring harness next: thin red wire = power, thick orange = heater relay. Follow wires to the control board–a burnt trace near the capacitor base (marked “C1”) is the single most common electrical fault. Jumper the trace with a 22-gauge wire if visibly damaged; solder joints must be 6mm apart.
Carry a zip-lock bag of spare components: one thermal fuse, two gasket rings, ceramic disc valve (sits above heating tube). Identical parts fit 17 models from the 1250-watt series; cross-reference part numbers on the manufacturer’s support page column marked “interchangeables.”

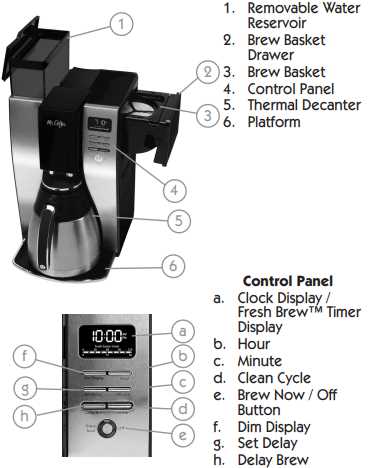

Identifying Key Components in Your Mr. Coffee Brewer
Begin by locating the water reservoir–typically positioned at the rear or side of the unit. This translucent container holds up to 40 ounces and features graduated markings in both cups and ounces for precise measurement. Verify the seal on the bottom opening; if cracked or brittle, replace it immediately to prevent leaks during brewing cycles.
The heating plate sits directly beneath the carafe and maintains beverage temperature. Inspect the warming element for discoloration or warping–signs of overheating–or corrosion around the screw terminals. Use a multimeter to test continuity (resistance should read between 18-25 ohms). If readings exceed this range, the component requires servicing.
| Component | Common Symptoms | Replacement Cost (USD) |
|---|---|---|
| Thermal fuse | Unit fails to power on | $3.20–$4.80 |
| Brew basket | Clogging, uneven extraction | $5.50–$7.99 |
| Check valve | Backflow, slow drip | $2.10–$3.70 |
Examine the spray head assembly mounted inside the lid. Mineral buildup here disrupts uniform saturation, leading to under-extracted grounds. Soak the component in a 1:1 white vinegar-water solution for 30 minutes, then scrub with a soft-bristle brush. For stubborn deposits, use a pin to clear each of the four 0.8mm spray holes.
The one-way valve located at the base of the water tube prevents liquid from re-entering the reservoir during operation. Remove the tube by gently pulling upward, then inspect the valve for debris or deformation. A malfunction here causes inconsistent flow–replace if the silicone flap does not seal completely when pressed.
Track the power cord’s integrity, focusing on the strain relief where it enters the appliance. Fraying or exposed wires require immediate attention; trim damaged sections and re-solder connections using 60/40 rosin-core solder. Ensure the internal fuse (typically 125V/8A) hasn’t blown–test with a continuity meter before powering on the unit again.
Where to Locate Genuine Component Schematics for Mr. Coffee Appliances
Begin with the manufacturer’s dedicated support portal at mrcoffee.com/support. Enter your unit’s exact model number–found on a sticker beneath the base or near the water reservoir–into the search bar. The site provides downloadable exploded-view illustrations specific to each variant, including breakdowns for filtration systems, carafes, brewing mechanisms, and heating plates. Bookmark the direct URL for future reference, as the schematics update periodically with revised part listings.
- Retailer sites: Amazon, Walmart, and Target host official replacement inventories; cross-reference their product descriptions with the schematics on the manufacturer’s portal for accuracy.
- Authorized dealers: Search for certified repair centers via the “Service Locator” on the same support page–these facilities typically stock original components and offer in-person schematic consultations.
- Specialized forums: Browse CoffeeGeek or Home-Barista threads where users upload scanned or OCR-converted versions of rare models’ schematics; verify files against official sources.
- YouTube teardowns: Search “[your model] disassembly”–detailed walkthroughs often display labeled part numbers overlaid on-screen.
Note discrepancies between older schematics and current stock; certain plastics and seals undergo minor design shifts without updated documentation.
Step-by-Step Disassembly for Cleaning or Replacement
Unplug the appliance and allow it to cool completely before handling internal components. Remove the water reservoir by lifting it straight up–most models have a friction-fit design without screws. Check for mineral deposits visible through the transparent walls; if present, soak it in a 1:1 vinegar-water solution for 30 minutes.
Detach the brew basket by pressing the release lever or twisting counterclockwise, depending on the model. Examine the mesh filter–if clogged, scrub with a non-abrasive brush under hot water. For permanent filters, tap out residue before rinsing to prevent buildup from hardening.
Locate the base plate securing screws; these are often concealed under rubber feet or a bottom panel. Use a Phillips screwdriver to remove them–some units require a ¼-inch hex key for hidden fasteners. Lift the outer casing gently to expose the heating element and tubing. Avoid tugging wires; trace them to connectors for safe disassembly.
Cleaning Internal Components
Wipe the heating coil with a damp microfiber cloth–never use abrasive pads or steel wool, as these can damage the protective coating. For stubborn limescale, apply citric acid powder directly to affected areas, then rinse thoroughly after 10 minutes. Inspect the silicone gasket around the heating plate; if cracked, order a replacement matching the OEM dimensions (typically 2.5mm thick).
Flush the internal tubing by running a vinegar solution through the system twice, followed by two cycles of clean water. Reassemble all components in reverse order, ensuring the basket aligns with the drip spout–misalignment can cause leaks. Tighten screws incrementally in a cross pattern to distribute pressure evenly.
Test the unit by running a water-only cycle before brewing. Listen for unusual noises; gurgling indicates trapped air, while rattling suggests loose components. If the device fails to power on, recheck electrical connections–some models have a thermal fuse near the heating element that may trip after prolonged use.
Replace worn components immediately to avoid performance issues. Common failure points include the one-way valve in the water inlet (often overlooked during cleaning) and the thermal cutoff switch. For precise part matching, note the model number stamped on the underside–third-party replacements should specify compatibility with your exact series.
Essential Component Swaps and Supported Brewing Units
Replace the brew basket (model #CB-12X) for Optimal Brew 12-cup series–compatible with KCM12, KCM14, and KCM16. Verify the filter basket’s rim diameter (2.8 inches) before ordering; mismatches cause leaks. Pair with OEM paper filters #FP-10R for seamless operation.
Thermal carafes (Series 4000) fit BV1200TD, BV2500TS, and BV3500BL but reject aftermarket vacuum seals. Use silicone gaskets (#SG-40B) for older models; rubber versions degrade faster under heat cycles. Check carafe spouts for chips–cracked lips ruin temperature retention.
Heating Elements and Water Delivery Systems
Substitute the heating plate (#HP-8K) exclusively for 10-14 cup drip dispensers: SV10, SV12, SV14. Aftermarket plates warp at 2000+ cycles; OEM aluminum lasts 50% longer. Clean limestone deposits with citric acid every 40 brews–vinegar corrodes internal tubing in stainless-steel variants.
Water reservoir valves (#WRV-5L) snap into place for PL5, PL7, PL9; force-fitting cracks the plastic housings. Shim gaps with PTFE tape if leaks persist–alternative silicone adhesives react with polypropylene over time. Rinse valves with distilled water to prevent clogging in hard-water regions.
Electrical and Structural Components
Swap toggle switches (#TGS-25A) for CM2100BL, CM3500SS, CM4000BK; check amperage ratings–15A/120V is standard. Aftermarket switches lack arc suppression, causing erratic brew cycles. Test continuity with a multimeter before installation–fried circuits void thermal cutoff protection.
Replace exterior lids (#LD-410) only if hinges snap or seals brittle; most cracks propagate from stress points at the pour spout. ABS plastic variants resist UV better than polycarbonate–store units away from direct sunlight. Secure latches with Loctite 243 to prevent rattling in portable units like RV5 and RV6.
Upgrade spout screens (#SS-18M) for PD11, PD12, PD13 if grounds pass through; stainless-steel mesh outperforms nylon in hard-water conditions. Rinse screens biweekly to prevent scale buildup–baking soda paste dissolves mineral deposits without scratching. Avoid abrasives; etched screens trap oils, altering flavor profiles.
Base support brackets (#BSB-8T) stabilize 16-cup units (ED16, ED18) but bend under excessive weight. Reinforce with angle aluminum if frequent countertop relocations occur–welded steel alternatives add unnecessary bulk. Check rubber feet after each move; torn pads cause uneven heating through vibration resonance.
