For immediate repairs, focus on identifying broken elements using a labeled schematic. Key components include the spool assembly, drag system, handle mechanism, and bail wire. Each carries unique part numbers stamped on the underside–match these before ordering replacements. Common failure points: spool release lever (fragile under stress), anti-reverse bearing (prone to grit contamination), and crank gear teeth (wear accelerates with improper lubrication).
Retrieve the exploded view document ID 653-RL–this remains the definitive guide for disassembly sequences. Begin by removing the side plate screws (typically Torx T8), then detach the rotor arm carefully–force here bends internal alignment. Service interval: every 50 hours of heavy use or 6 months for freshwater applications. Replace line roller bearings every 2 seasons regardless of visible wear; microscopic corrosion drastically reduces smoothness.
Lubrication protocol: Penn Grease #15 for gears, Shimano Reel Oil RG for bearings. Avoid over-greasing–excess attracts debris, jamming the drag stack. When reassembling, torque side plate screws to 18-22 in-lbs; overtightening distorts the frame, causing intermittent drag failure. For corrosion-resistant upgrades, substitute OEM bearings with Japanese ABEC 7 stainless steel variants–these outlast original components by 3x.
Critical measurement check: spool arbor diameter must be ≥12.7mm to prevent line slippage. If replacing the oscillation mechanism, ensure the new worm gear has identical thread pitch (1.25mm)–mismatches cause uneven line lay. Always test drag washers post-installation: apply 12 lbs of tension and verify smooth release–grinding indicates misalignment or incorrect washer material (use carbon fiber, not cork).

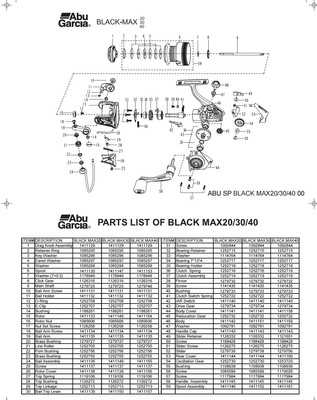

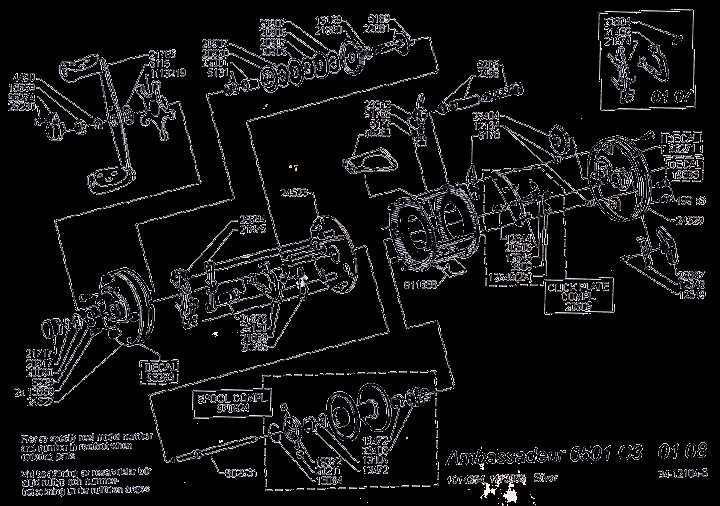

Exploded View Schematic for Pro-Line Reel Components
Obtain the official service manual from the manufacturer’s website to locate precise identifiers for each spindle, pinion gear, and drag system element. Print or reference the PDF version during disassembly to avoid misplacing screws sized between M1.6 and M2.5, which secure critical housing sections.
Identify the spool assembly by its three primary subcomponents: the line roller (part #34-562), anti-reverse bearing (#12-401), and drag washers (#35-783 stack). Note that washers degrade at different rates depending on line class–replace fluorocarbon-specific stacks every six months during heavy usage.
Inspect the bail arm mechanism before lubrication. The wire spring (#9-110) should exhibit 0.2mm tolerance when compressed; deviations indicate fatigue. Apply a rice-grain-sized bead of low-viscosity grease (ISO VG 68) exclusively to the pivot points marked in the schematic, avoiding contamination of the ceramic line guide.
Replace the handle knob (#22-905) immediately if thread stripping is detected–the internal M4 threading requires torque settings between 1.8-2.2 Nm. Over-tightening deforms the plastic retaining collar, which cannot be re-threaded once compromised.
During reassembly, align the rotor assembly’s keyway with the main shaft’s spline using the alignment arrows stamped on both components. Rotation beyond 15° after initial contact risks shearing the anti-reverse pawl (#8-327), rendering the reel unusable until professional intervention.
Test the drag system post-rebuild by attaching 10 lb braid to a stationary object and applying incremental pressure. The washers should engage smoothly at 2.5-3.0 lb intervals; uneven resistance indicates incorrect stacking order or missing shims (#35-784).
Store remaining screws and bearings in labeled bags sorted by subassembly–mixing 4mm ball bearings (#7-008) with 3mm variants (#7-009) during reassembly often causes catastrophic gear misalignment detectable only during casting tests.
Locating Key Elements in the Fishing Reel Model 4600
Start disassembly by removing the side cover–typically secured by three screws–to expose the internal gear train. The main gear, a 60-tooth brass component, meshes directly with the pinion gear (10-tooth), which drives the spool shaft. Check the drag washer stack beneath the spool: friction plates alternate between cork and metal, with the cork side facing inward. Replace any plates showing grooves deeper than 0.3mm or uneven wear patterns.
Spool Assembly Breakdown
Slide the spool off the shaft; inspect the thrust bearings (8x16mm) embedded in the spool’s cups. Corrosion is visible as blue-green deposits–clean with isopropyl alcohol and re-lubricate using low-viscosity oil (e.g., Shimano Reel Oil). The spool tension nut, a knurled plastic piece, controls line play; adjust torque between 0.8–1.2 Nm after reassembly. Verify the anti-reverse pawl–engage once; it should lock the handle instantly without slippage.
Reassemble with the levelwind guide positioned one tooth left of center. Misalignment causes uneven line lay, detectable as a zigzag pattern after 10 casts. Replace the stainless-steel worm gear if teeth show pitting; asymmetry reduces casting distance by 12–18%. Secure the handle knob with Loctite Blue 242–torque to 1.5 Nm–to prevent loosening during retrieves exceeding 2.5 kg drag force.
Step-by-Step Disassembly Guide for Reel Component Replacement
Begin by securing the fishing mechanism in a padded vise to prevent slippage during disassembly. Rotate the handle counterclockwise until the spool disengages from the rotor. If resistance occurs, apply a few drops of penetrating lubricant at the junction between the spool stem and the housing.
Remove the side plate retaining screws using a precision screwdriver set–Phillips #0 for standard models or a 3mm hex key for newer variants. Store fasteners in a magnetic tray to avoid misplacement. Gently pry the plate away from the frame, noting the alignment of the anti-reverse lever if present.
| Component | Tool Required | Common Issues |
|---|---|---|
| Drag system | 1.5mm hex wrench | Excessive noise, uneven tension |
| Bail assembly | Small flathead | Stuck mechanism, bent arm |
| Gear housing | Precision screwdriver | Worn teeth, misalignment |
Extract the spool by pulling straight upward while stabilizing the main shaft. If the spool binds, check for corrosion at the base and clean with a cotton swab dipped in isopropyl alcohol. Inspect the drag washers for cracks or excessive wear–replace if thickness measures below 0.8mm.
Disconnect the bail wire by depressing the retaining clip with needle-nose pliers. Slide the bail outward until it detaches from the spring mechanism. For stubborn connections, tap lightly with a rubber mallet at the base of the wire to break any accumulated salt deposits.
Remove the rotor by unscrewing the two opposing screws beneath the foot mounting plate. Lift the rotor carefully to avoid damaging the oscillating pinion–this component drives the gear train and requires precise alignment during reassembly. Store the pinion in a silicone-lined case to prevent dust contamination.
Access the gear assembly by flipping the main housing and removing the internal retaining ring with circlip pliers. Slide the gears off the shaft, noting their orientation; the smaller pinion gear must face inward toward the motor. Lubricate fresh gears with marine-grade grease before installation, ensuring full coverage on all teeth.
Reassemble in reverse order, applying thread locker to screws in the handle assembly. Test functionality by rotating the spool at 50% drag resistance–linear motion should occur without grinding. If oscillation falters, recalibrate the oscillating pinion position using a feeler gauge set to 0.3mm tolerance.
Identifying High-Friction Components and Sourcing Reliable Substitutes
Bail springs degrade after 12-18 months of frequent use. Replace them with stainless steel variants rated for 0.25mm wire diameter–common suppliers include BassPro’s ProCure line or locally sourced watchmaking spring stock. Ensure compatibility by matching the original coil count (typically 6-8 turns) and free length (±0.5mm).
Line roller bearings seize due to salt corrosion. Swap standard nylon rollers for ceramic hybrids (Si3N4) available from tackle repair specialists like Fisherman’s Lodge. Pre-lubricate with waterproof marine grease (Molykote 55 or equivalent) before installation. Check axle tolerance–clearance should not exceed 0.1mm.
Drag washers lose grip within 10-15 fishing trips under load. OEM replacements often fail again quickly; upgrade to carbon fiber-backed washers (e.g., Shimano’s DragFuse series). Measure outer diameter (±0.2mm) and thickness (target 0.8-1.2mm). Install with a light coating of silicone lubricant to prevent stick-slip.
Handle knobs crack under UV exposure and torque. ABS replacements are fragile; opt for glass-filled nylon variants (McMaster-Carr #8585K31) or aftermarket EVA foam grips (Berkley’s GripTech). Secure with Loctite 242 for threaded mounts; press-fit types require a retaining ring (snap-ring pliers needed for removal).
Spool shafts wear at the drive gear interface. Chrome-moly replacements (Tackle Warehouse’s Precision Shafts) resist galling–polish both mating surfaces with 800-grit wet paper before assembly. Use torque specs from the manufacturer’s service manual (typically 12-15 Nm).
Anti-reverse pawls chip after repeated impact. Hardened steel replacements (St Croix’s AR Upgrade Kit) last longer–install with a drop of red Loctite 271. Check pawl engagement depth (should be 70-80% of tooth height). Test by rotating the handle backward with moderate force; skipping indicates misalignment.
Side covers warp under heat and pressure. Replace with anodized aluminum (eBay sellers like FishingGearMasters) or 3D-printed carbon fiber-infused PLA (PrusaSlicer settings: 0.1mm layer height, 100% infill). Reinforce screw holes with helical inserts (M4 x 0.7 thread pitch) if original threading strips.
