Start with the official service manual for the 2019-2023 model series–section 7 outlines hydraulic circuits, section 12 covers electrical layouts, and section 15 details undercarriage wear points. Third-party replicas often omit critical torque specifications for pivot joints or inject incorrect voltage ratings for sensors. Cross-reference fuse block positions with the manufacturer’s revised PDF released in Q2 2023 to avoid misdiagnosing intermittent faults.
When sourcing replacement wear plates for the track frame, specify Thickness Class III (6.5 mm) for high-abrasion environments. Counterfeit aftermarket bearings typically lack the hardened outer race required for pivot pin durability; verify radial clearance tolerances of 0.03–0.06 mm before installation. Use the hydraulic pump breakdown diagram–item 17 on sheet 3–which distinguishes between the charge pump (7.5 cc/rev) and main pump (45 cc/rev) to isolate flow-related performance drops.
For wiring harness repairs, target connectors C12 (instrument cluster) and C27 (joystick module) first; corrosion-resistant terminals rated for 20A at 12V prevent intermittent disengagement. Track tension adjustments should follow the three-step verification method: spin idle roller at full hydraulic pressure, measure sag (30–35 mm), then confirm sprocket alignment with the alignment rod template from the undercarriage rebuild kit.
Electronic throttle calibration requires sequential keyswitch cycles: five ignition toggles within ten seconds resets the ECU to factory baselines documented in software version 3.4.2. When replacing the cooling fan motor, retain the original pulse-width modulator; substitute units often exceed the 2500 RPM threshold, triggering overheating codes. Keep a snapshot of the VIN-specific schematic to reconcile discrepancies in part numbers across regional suppliers.
Key Schematics for Compact Track Loader Maintenance
Locate the hydraulic pump assembly by referencing the machine’s manual section 4-2, where the exploded view shows component positions relative to the drivetrain housing. Use the color-coded lines–red for pressure circuits, blue for return, and green for case drain–to trace hose connections before disassembly. Keep a torque wrench set to the values listed in table 7-3: 45 Nm for gearbox bolts, 60 Nm for swing arm mounts, and 75 Nm for final drive covers to prevent leaks or misalignment.
- Sort fasteners by size during removal; metrics for this model include M8x1.25, M10x1.5, and M12x1.75 threads.
- Check the rubber track tension at the idler wheel using a 0-100 mm depth gauge–target specification is 35-40 mm sag measured mid-span.
- Replace the cab air filter every 250 operational hours; the element’s part number is 7107350, located behind the right-side access panel.
- Inspect the lift cylinder seals for scoring; any wear beyond 0.005 inches requires replacement of the entire ram assembly (OEM number 7210982).
Finding and Recognizing Critical Elements in Your Compact Loader Schematic
Start with the hydraulic control valve block–marked adjacent to the operator’s seat on most left-side layouts. Trace the primary circuit lines: the supply (thick red) and return (thin blue) hoses should intersect here. Each port is stamped with a alphanumeric code; cross-reference with the legend labeled “FLUID ROUTING” to confirm SAE fittings versus metric threads.
Locate the pivot bushings on the undercarriage assembly. The arm lift linkage connects via spherical bearings; these appear as circular cutouts with grease zerks. Measure their diameter–35 mm standard on older units, 40 mm on revised builds. Misalignment here causes premature track wear, visible in uneven surface patterns.
Check the swing bearing teeth beneath the cab module. Rotate the turret manually to expose the gear teeth; count twelve evenly spaced notches. Corrosion or pitting signals excessive load stress, often traced to improper counterweight attachment. A direct light source reveals micro-cracks before failure.
Examine the fuel primer bulb beneath the right-hand access panel. The suction hose must terminate at the primary filter, avoiding sharp bends that restrict flow. A clogged mesh screen inside the bulb causes hard starting–replace if sediment exceeds 2 mm depth.

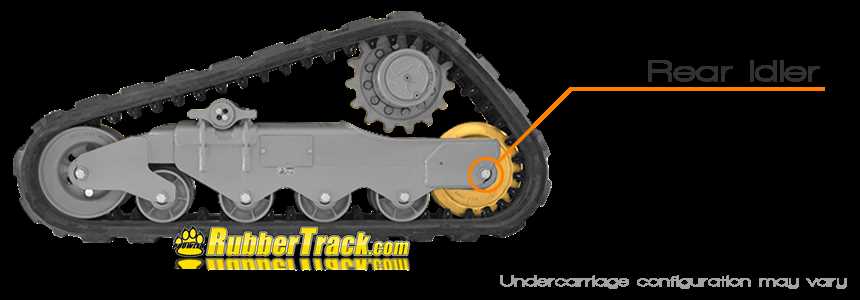

Track tensioner sprockets require precise adjustment: loosen the jam nut behind the rear idler wheel, then turn the hex adjuster clockwise until slight ground clearance remains. Over-tightening heats the rollers; verify with an infrared thermometer–normal operating range stays below 65°C.
Electrical Harness Mapping
Identify the main harness connector behind the instrument cluster. A twelve-pin round plug feeds CAN bus signals; terminals 3 and 7 carry throttle sensor voltage, typically 0.5–4.5 VDC. Any deviation beyond ±0.2 V indicates frayed shielding–inspect terminal crimps under magnification.
Quick-Verify Hydraulic Pump
Remove the front belly plate to reach the tandem pump assembly. The charge pump relief valve sits atop the main drive gear; torque to 45 Nm. Loose settings reduce loader lift speed noticeable at idle–test with a handheld flow meter showing
Step-by-Step Guide to Interpreting Exploded View Schematics for Compact Track Loader Maintenance
Locate the reference number adjacent to each component–these correlate directly to the manufacturer’s itemized list. Verify the sequence matches the assembly order by tracing lines connecting parts; dashed lines often indicate fasteners or mounting hardware, while solid lines show primary structural connections.
Identify subgroups by noting shaded areas or boxes enclosing related elements. For example, hydraulic pump assemblies are typically clustered, with subcomponents like seals, housings, and brackets grouped together. Cross-reference these with torque specifications or lubrication points included in the legend.
Check for color-coded annotations–red usually highlights wear items requiring regular inspection, while blue may denote permanent fixtures. Use the scale bar (if present) to estimate component size; discrepancies between the schematic and physical part suggest either a misalignment or incorrect replacement.
- Align the view orientation with the actual machine by matching the schematic’s perspective (e.g., top-down, side profile).
- Count fasteners per hole to avoid over- or under-tightening; exploded views often include counts in parentheses.
- Look for hidden details behind visible surfaces, indicated by faint dotted lines or layered sections.
Compare the schematic’s callouts with the service manual’s procedural steps. If Step 3 references “Input Shaft (Item 42),” ensure the part number and description (e.g., 6504123 – Splined Shaft, 50mm) match before disassembly. Discrepancies may signal model revisions or regional variants.
Use the legend’s symbols to decode material types–cross-hatching often signifies metal, while solid fills may represent plastic or composite. For critical systems like the drivetrain, confirm sealing surfaces (O-rings, gaskets) are annotated and included in the kit.
- Print or display the schematic at full resolution to avoid misreading small text.
- Highlight orphaned fasteners–items without clear attachment points may belong to adjacent assemblies.
- Validate electrical connectors by matching pin layouts to the wiring harness diagram.
Locating Genuine Hydraulic Component Codes for Compact Track Loaders
Begin with the official manufacturer’s online parts catalog. The exact URL varies by region, but the North American portal–the most comprehensive–offers a search function that filters by machine series, assembly, and even individual fitting. Enter the model variant (e.g., “T650 Tier 4”) and navigate to the “Hydraulic System” section; each hose, valve, pump, and cylinder is listed with a seven-digit code followed by a revision letter. These codes match the ones stamped on physical pieces, eliminating guesswork when ordering replacements.
Local dealer portals often host identical catalogs with additional dealer-only notes. Log in using a customer account or request temporary access from a service advisor. Dealers receive quarterly updates on superseded components–critical when tracking lower-control valves or pilot-operated check assemblies–so the portal may display newer codes than printed manuals. Ask for the “Hydraulic Quick Reference” PDF, which groups common wear items (filters, seals, gaskets) by function rather than assembly.
Physical service manuals shipped with machines include exploded-view plates for hydraulic circuits. The plate numbering (e.g., “4–12” for pump assemblies) corresponds directly to the OEM catalog. If manuals are missing, request the “Hydraulic Supplement” PDF from customer support; it isolates the pump, motor, and valve stack diagrams on single pages, simplifying cross-referencing.
Track loader rental fleets maintain internal spreadsheets that map OEM codes to aftermarket equivalents. Operators update these sheets after component failures, noting which universal brands (e.g., Eaton, Parker) fit without modification. Request a redacted copy from a fleet manager–focus on rows where “Direct Fit” is flagged, bypassing adapters or custom hoses.
Hydraulic component tags riveted to hoses and cylinders carry the OEM code in raised characters. Clean tags with brake cleaner; codes appear in 4-point font. For valves still mounted, remove the cover plate and check the interior face–electro-etched codes survive paint and dirt better than stickers.
Third-party suppliers like HydraulicWarehouse or Northern Hydraulics maintain cross-reference databases. Input the existing hoses’ dash numbers (e.g., “-08”) or port thread sizes; their systems return OEM codes for filters, couplers, and pressure relief valves. Verify against the compact loader’s service bulletins–manufacturers phase out codes quietly, rendering old charts obsolete.
Mobile inspection apps (e.g., PartsFinder) scan barcodes on packaging or components. Launch the app, select “Hydraulic Components,” and scan the barcode; it queries the OEM database and returns the exact code plus compatibility notes for similar machines (e.g., T640, S650). Free versions may limit scans to three daily, so archive results in a spreadsheet.
Archive Strategy
Create a password-protected spreadsheet with columns: OEM code, description, installation date, superseded code (if any), and dealer contact. Update after each service visit–track loader hydraulic failures often repeat across the same fleet, making past codes predictive for future repairs.
