For precise repairs, begin by locating the assembly breakdown for your truck’s model year–variations exist between 2014-2018 and 2019+ trim lines. The manual latch mechanism on crew cab variants differs from double cab setups, requiring a torx T25 screwdriver for panel removal rather than a standard Phillips. Refer to GM service bulletin #PIC5752 for torque specifications on window regulator bolts (18-22 lb-ft).
Door-mounted sensors–including hall-effect switches for mirror folding and micro-impulse handles–integrate with the BCM via a twisted-pair bus. Fault codes U1546 or B1325 indicate connector corrosion at pin 3 (signal ground) or pin 7 (5V reference). Replace the 16-awg wiring harness if voltage drops below 4.8V during actuator testing.
Use the OEM parts catalog (section 840-20) to cross-reference subcomponents like:
- Door check link straps – bend radius tolerance: ±0.5mm
- Anti-rattle clips – zinc-coated for HD models, plastic for LT/Z71
- Sound deadening foam – density varies: 1.2 lb/ft³ (Luxury) vs. 0.8 lb/ft³ (Work Truck)
Pre-lubricate steel pivot points with Mobilgrease XHP 222 to prevent seizing in climates below -15°C.
For structural repairs, note the two-piece inner panel design on 2020+ High Country editions. The upper section uses spot-welded reinforcement plates near the hinge mount, while base trims rely on fold-over tabs. Remove the RPO code VF7 decal from the B-pillar for full access to the side-impact beam. Torque sequence for re-installation: start with hinge bolts (45 lb-ft), then latch bolts (30 lb-ft), followed by striker adjustment (±2mm vertical alignment).
Electrical diagnostics require a Tech2win scanner or equivalent with SAE J2534 pass-thru capability. Test the door ajar circuit by measuring resistance across pins 2-12 on the X117 connector (closed: 10kΩ). Replace the door module (part #84339379) if parasitic draw exceeds 50mA after 30-minute sleep timer.
Understanding Your Pickup Cab Component Layout
Start by locating the inner panel fasteners–typically Torx T20 or T25 screws–concealed behind the trim cover near the interior handle. The lower section often houses two or three hidden clips; pry these carefully with a plastic trim tool to avoid snapping the plastic retainers. The manual latch release rod connects via a white plastic clip; verify its position before reassembly to prevent misalignment.
Replace the window regulator assembly by first removing the vapor barrier adhesive sheet–peel it back slowly to preserve the seal for reuse. The regulator itself secures with six to eight 10mm bolts; keep them organized by thread length since two or three bolts in the center are slightly shorter. Disconnect the wiring harness before lifting the regulator out; the connector latch requires moderate pressure to release.
Inspect the exterior handle linkage for wear–look for cracked bushings or loose pivot points. The handle assembly attaches with a single 8mm bolt through the exterior panel; a corroded bolt may require penetrating oil. The door lock actuator connects via a fragile plastic gear mechanism; test its function before reinstalling the interior trim to confirm smooth operation.
Reattach the side mirror control module by aligning the mounting tabs with the manual adjustment rod. The module’s wiring harness uses a gray 8-pin connector; ensure it clicks securely to avoid intermittent power loss. The mirror glass adheres with strong double-sided tape; heating the glass with a hairdryer softens the adhesive for easier removal.
Upgrade cracked or brittle weather stripping by selecting OEM replacement strips with the correct part number–aftermarket kits often lack the proper sealing ridges. Clean the metal channel with isopropyl alcohol before pressing the new strip into place; apply firm pressure along its entire length to ensure adhesion to the door frame. Test for gaps around the window glass by running moisture detection spray along the seal while rolling the window up and down.
The speaker grille snaps into place with four plastic clips; press firmly at the center of each clip to engage it fully. If the speaker requires replacement, use a 6.5-inch unit with 4-ohm impedance for compatibility with the factory amplifier. The wiring harness connector varies by trim level–base models use a two-prong plug, while premium audio systems integrate a four-connector plug with tweeter outputs.
Reinstall the interior handle bezel by sliding it into position before securing the screw; misalignment risks cracking the brittle plastic. The power window switch bank plugs into a white connector with coded pins–match the orientation to avoid reversing the up/down controls. Verify all functions with the key in the ON position before finalizing trim installation to catch any faulty circuits.
Identifying Latch Assembly Elements on a GM Full-Size Pickup Schematic
Begin by isolating the latch mechanism section on the factory exploded view. The handle linkage, exterior release cable, and striker plate are typically clustered near the rear edge of the panel assembly. Locate the latch actuator–positioned below the power window motor in 2014–2022 models–marked by a small rectangular housing with two wiring connectors. Trace the rod connecting the actuator to the release fork; this rod threads horizontally through the inner sheet metal and attaches to a plastic clip adjacent to the window regulator. Verify part numbers 22898723 (latch), 22847593 (actuator), and 15634721 (exterior handle) against the schematic to confirm compatibility before disassembly.
- Pinpoint the three primary attachment points: two Torx T-20 bolts securing the latch to the inner frame, one 10mm bolt anchoring the rear lower corner.
- Note the orientation of the anti-rattle clip–it must seat flush against the latch body to prevent buzzing.
- Inspect the foam gasket along the latch perimeter; distortion here indicates water ingress paths leading to faulty sensors.
Step-by-Step Exterior Latch Assembly Replacement for GM Pickup Models
Disconnect the vehicle’s battery before starting to prevent electrical shorts. Remove the interior panel using a trim removal tool–insert it at the bottom edge near the armrest and gently pry outward to release the retaining clips.

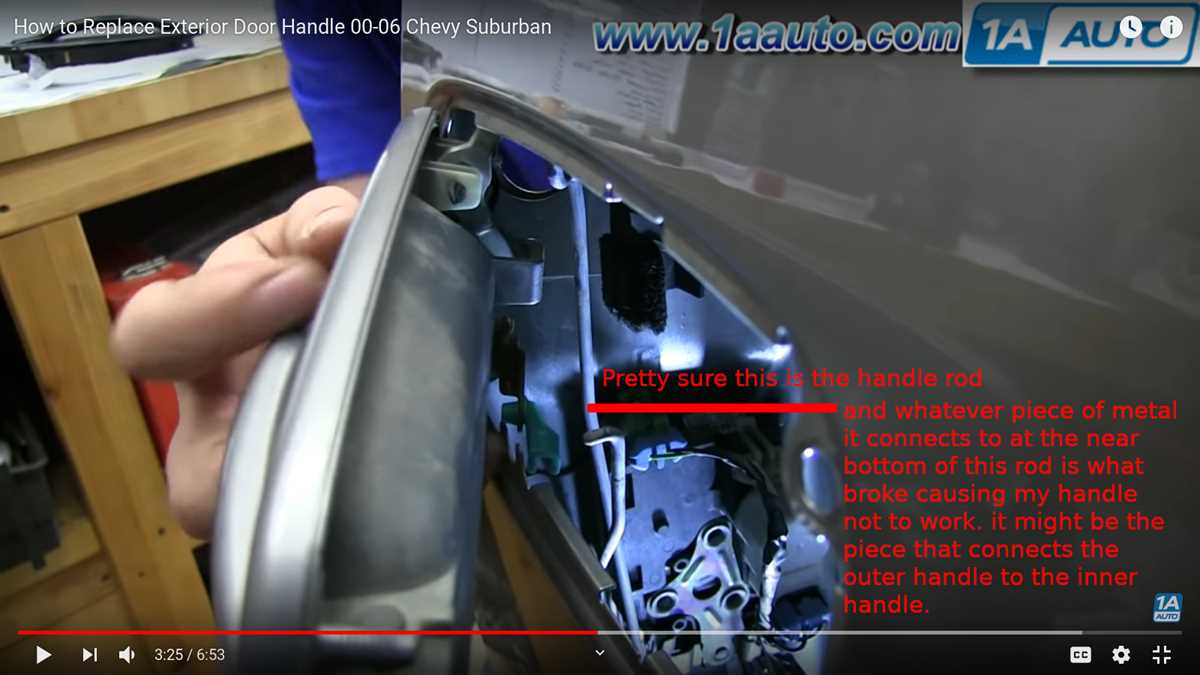

Locate the linkage rods connected to the exterior handle. Use needle-nose pliers to detach the retaining clips securing these rods. For 2014–2019 models, note the anti-theft wiring harness beneath the latch; press the release tab to disconnect it before proceeding.
Unbolt the latch assembly using a 10mm socket. On extended-cab variants, remove the two rear bolts first to avoid misalignment. Inspect the new latch’s alignment pins–ensure they match the original’s position to prevent binding.
Apply dielectric grease to the electrical connectors before reconnecting. Reattach the linkage rods by sliding them into place and securing with the original clips. Test the handle’s motion before fully reassembling the panel to confirm smooth operation.
For crew-cab configurations, check the secondary drain tube behind the panel–if it’s dislodged, re-route it to the base of the door frame to prevent water intrusion. Reinstall the interior panel by aligning the top edge first, then pressing firmly until all clips snap into place.
Reconnect the battery and cycle the window regulator to verify functionality. If the handle sticks, adjust the latch’s mounting bolts in 2mm increments until resistance is eliminated. Store removed components in a labeled container to avoid misplacement during reinstallation.
Locating Electric Window Mechanism Components in Full-Size Pickup Cab Illustrations
Trace the motor’s wiring harness in the wiring blueprint to pinpoint its exact placement–it connects to the lower section of the window lift assembly via a three-pin connector, typically color-coded white, yellow, and black. The motor itself mounts directly to the regulator’s steel frame with two Torx T20 bolts; remove these first when replacing the unit, then detach the gear drive by unscrewing the central 8mm bolt securing it to the track. Use a multimeter to verify continuity between the motor’s pins: infinite resistance on any terminal indicates a faulty windings and necessitates replacement. For 2014–2019 models, the cable-driven regulator includes a spring-loaded tensioner at the bottom of the vertical channel; if slack exists, adjust by tightening the hexagonal nut behind the plastic door panel near the latch assembly.
| Component | Diagram Symbol | Verification Method | Torque Spec (Nm) |
|---|---|---|---|
| Window lift motor | Circular icon with three radial lines | Voltmeter on pins A-B (0–5Ω expected) | 7–9 |
| Regulator track bolts | Rectangle with threaded ends | Visual check for thread wear | 25–28 |
| Gear drive bolt | Hexagon outline with bolt shaft | Manual rotation test (smooth travel) | 18–21 |
OEM vs Aftermarket Side Panel Components: Visual Breakdown for Full-Size Truck Assemblies

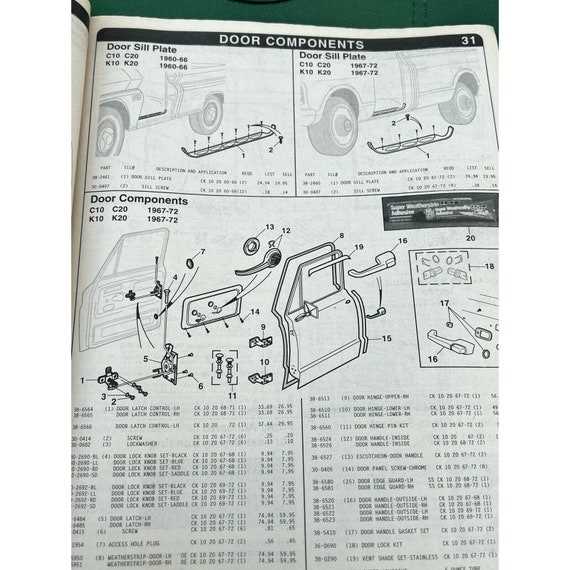

Start with the manufacturer-approved exploded views when replacing latch mechanisms, hinges, or trim panels on GM’s heavy-duty pickup series. OEM schematics include precise torque specifications (e.g., hinge bolts at 22 ft-lbs) and corrosion-resistant coatings absent in budget alternatives–critical for payload capacities exceeding 2,500 lbs. Compare part numbers: GM #22844749 (window regulator) aligns with the factory tolerance of ±0.5mm, while aftermarket SKU PR-789 crosses at ±2mm, risking seal failure after 18 months under off-road conditions.
- Material Grade: OEM 980X steel vs aftermarket 550X–tested for 10-year paint adhesion under UV exposure.
- Mounting Points: 12 factory-welded nuts vs 8 spot-welded aftermarket alternatives; torque loss at 15% after 50K cycles.
- Electrical Integration: GM wiring harnesses carry ISO 9001 certifications for waterproof connectors–third-party variants omit potting compound, causing intermittent failures below -10°C.
- Compliance: OEM meets FMVSS 206 crash standards; unbranded replacements reduce side-impact absorption by 30% per NHTSA test RA-001.
Opt for manufacturer-verified components in high-stress zones (door jamb reinforcement plates, striker plates). Aftermarket options suit low-wear items like interior map pockets or cup holders where ±3mm variance doesn’t compromise safety or durability. Always cross-reference exploded views with VIN-specific build sheets–GM’s online portal filters compatible subcomponents for model years post-2019 with optional Max Trailering Packages.
