Identify the engine mounting points first–typically four bolts securing the power unit to the frame. Reference models produced between 2018 and 2022 use M8x25 hex bolts with 13mm heads; earlier variants may require 12mm. Replace worn bolts with grade 8.8 steel fasteners to prevent shear under torque loads exceeding 30 ft-lbs. Always inspect the stamped steel bracket for cracks–hairline fractures propagate rapidly under vibration, leading to catastrophic engine misalignment.

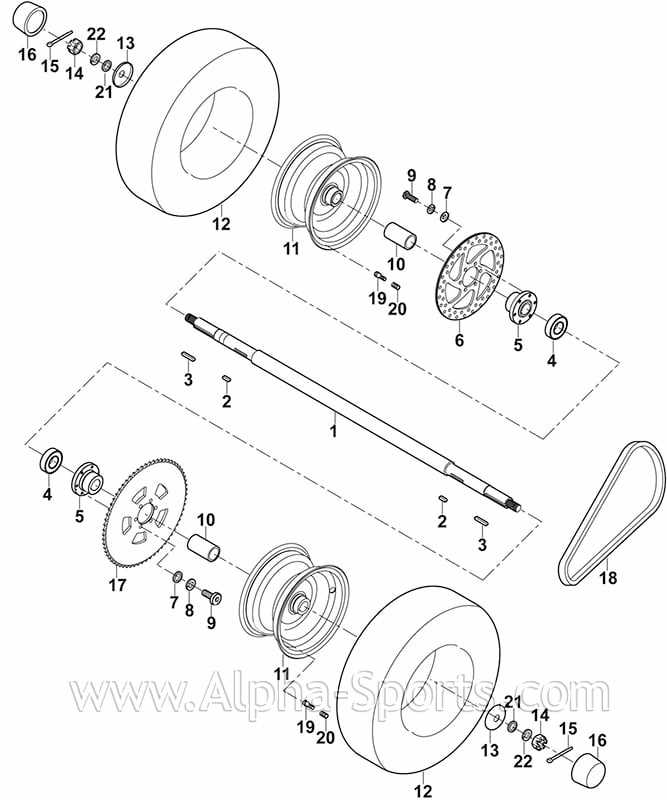

Examine the rear sprocket assembly next. The driven gear interfaces with a 420 chain, requiring a 15-tooth engagement surface. Verify tooth profiles for uneven wear; a deviation exceeding 0.5mm necessitates replacement. Lubricate the countershaft bearings with NLGI #2 lithium complex grease before reassembly–factory seals rarely withstand prolonged exposure to abrasive dust. Omit this step, and premature bearing failure occurs within 80 hours of operation.
Inspect carburetor linkages early–loose or bent pivot arms disrupt precise fuel metering. The idle adjustment screw (3mm flathead) should sit flush against the throttle stop; deviations greater than one-half turn degrade cold-start performance. Clean jets with compressed air (minimum 90 psi) directed through the emulsion tube inlet–solvents dissolve internal rubber components, rendering the unit irreparable.
Focus on the exhaust port flange last. Remove carbon buildup using a wire brush rated for stainless steel, then apply a high-temperature nickel-based anti-seize compound to the mating surfaces. Factory gaskets compress over time; reuse risks exhaust leaks that elevate cylinder temperatures beyond the 450°F threshold, causing piston seizure. Always torque fasteners in a cross pattern at 22 ft-lbs–over-tightening warps the cylinder head.
Engine Assembly Guide for Compact Motorized Bicycles
Begin by locating the crankcase cover on the right side of the powerplant. Remove the bolts in a diagonal pattern to prevent warping; use a 10mm socket with a torque wrench set to 18 ft-lbs. The gasket beneath must be replaced if compressed–inspect for cracks under direct light before reassembly. Dowel pins align the cover; misalignment causes oil leaks detectable by seepage near the seam within 50 miles of operation.
Examine the piston and cylinder bore for scoring marks exceeding 0.002 inches. Cross-hatch patterns on the cylinder wall indicate normal wear; glossy patches signal excessive heat requiring honing. The piston rings should sit flush with a gap between 0.002 and 0.004 inches–measure with a feeler gauge at three points along the circumference. Replace rings if gap exceeds factory specifications by more than 15%.
Ignition System Troubleshooting
Inspect the spark plug for electrode erosion–gap should measure 0.028 inches. A tan or gray insulator indicates proper combustion; black sooty deposits suggest excessive fuel mixture. The ignition coil secondary resistance must read between 6,000 and 10,000 ohms at 20°C. If resistance falls outside this range, disconnect the stator leads and test again; persistent deviation confirms coil failure. CDI units rarely fail–diagnose by swapping with a known-good module before condemning.
Adjust the carburetor idle mixture screw clockwise until lightly seated, then rotate counterclockwise 1.5 turns. Turn the throttle stop screw until the engine idles at 1,500 RPM–verify with a digital tachometer, not by ear. Vacuum leaks often mimic carburetor issues; spray carb cleaner around intake connections–RPM fluctuations exceeding 100 RPM indicate a breach. Replace intake gaskets if surfaces show pitting deeper than 0.010 inches.
Chain tension must allow 0.5 inches of vertical play at midpoint between sprockets. Over-tensioning accelerates bearing wear–check drive hub bearings by rocking the wheel; lateral movement beyond 0.020 inches necessitates replacement. Lubricate chains with SAE 90 gear oil every 50 hours of operation–avoid aerosol products as they attract grit. Sprocket teeth should display gradual wear; hook-shaped teeth mandate replacement to prevent premature chain failure.

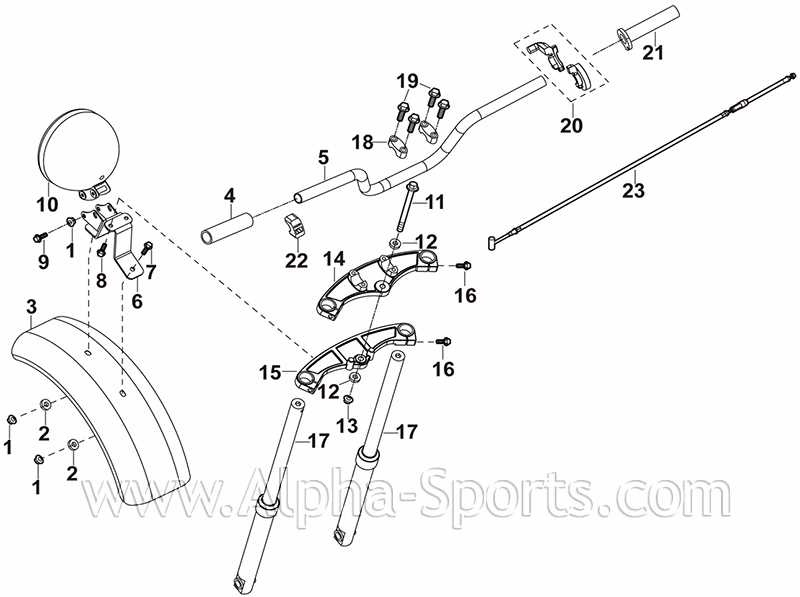

Front suspension forks require 5W synthetic oil; fill to 4.7 inches from top with dust seal installed. Bleed air by compressing legs fully three times before final fill. Check fork seals for leaks–wipe stanchions with a lint-free cloth; oil residue after 50 miles signals seal failure. Rear shocks should offer 1.3 inches of static sag; adjust preload with a spanner wrench to achieve this measurement within ±0.1 inches.
How to Decode an Exploded Engine Schematic for Compact Motorcycles
Locate the crankcase assembly in the upper-left quadrant of the schematic–this houses the piston, crankshaft, and connecting rod. Match the numbered callouts to the legend: #3 typically denotes the cylinder head gasket, #8 the flywheel magneto, and #12 the carburetor float needle. Verify component placement by cross-referencing the exploded view with a physical inspection; misalignment here often causes compression leaks or ignition failures.
- Examine the drive system next–identify the clutch plates (usually marked #18-22) and sprocket (#25). Confirm sprocket teeth count matches the engine’s gear ratio; mismatches lead to premature chain wear or slippage.
- Inspect the frame sub-assembly (#40-45) for weld integrity; hairline fractures near the swingarm pivot point (#42) are common failure points under load.
- Prioritize electrical components: the CDI module (#6) plugs directly into the stator (#7); corrosion on these connectors is the leading cause of no-start conditions.
Trace fuel delivery pathways by following the carburetor (#12) to the fuel tank (#30). Note the fuel filter (#31) placement–its clogging restricts flow, mimicking carburetor issues. For air-cooled models, ensure the cooling fins on the cylinder (#4) remain unobstructed; dirt accumulation here raises operating temperatures by 15-20°F, accelerating wear on the piston rings.

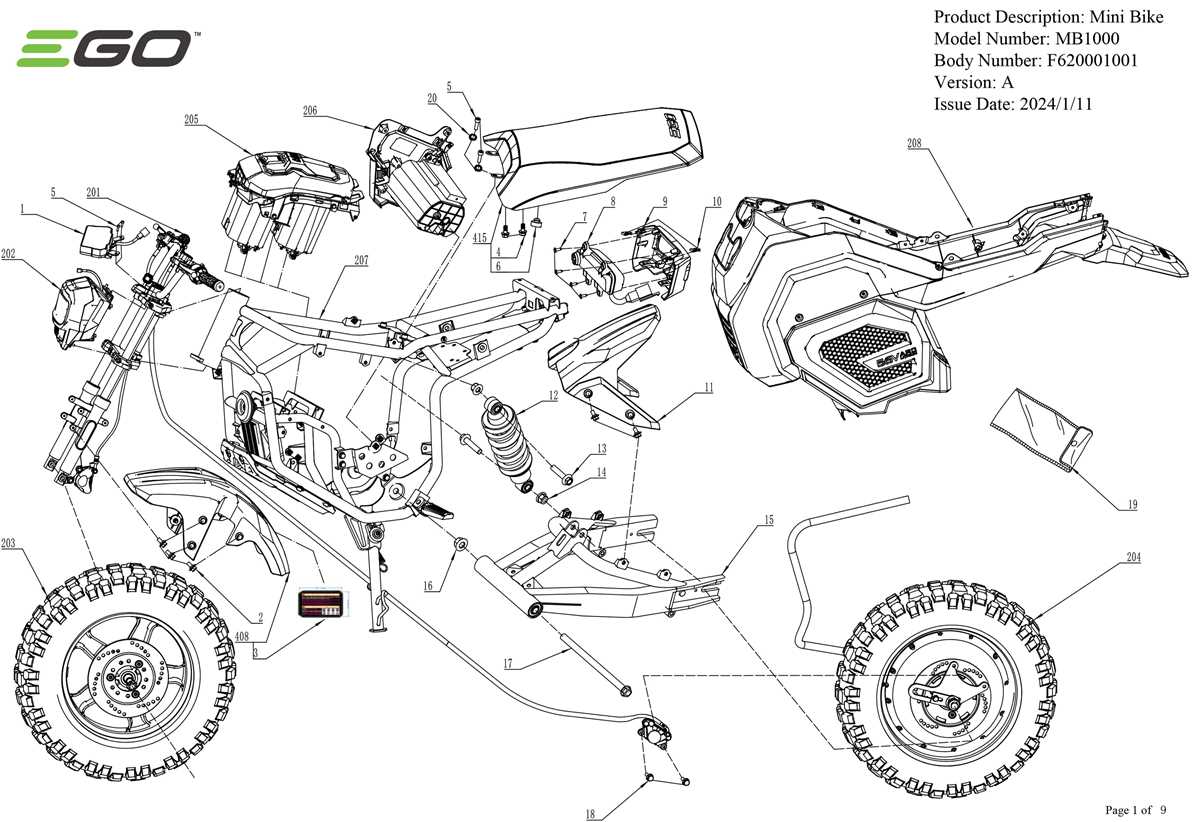

Step-by-Step Guide to Interpreting Compact Motorized Vehicle Schematics
Begin by identifying the numbered callouts on the schematic–each corresponds to a component listed in the legend. Cross-reference the item’s label with its location on the assembly: for example, a “clutch assembly” (item 12) will typically appear near the engine’s output shaft, while “throttle cables” (item 27) thread through the handlebar controls. Use a magnifying tool for small prints, as manufacturers often group multiple sub-parts under a single callout (e.g., bolts, washers, and gaskets). Verify measurements against the included scale–most schematics use inches or millimeters, but some older models mix units without warning.
Key Decoding Tips
| Symbol/Line Type | Meaning | How to Apply |
|---|---|---|
| Solid thick lines | Primary structural components (frame, engine casing) | Prioritize these for disassembly–examine welds or casting marks for hidden stress points. |
| Dashed lines | Internal or hidden features (fluid pathways, wiring harnesses) | Trace these first to avoid damaging tubes or wires during removal. |
| Cross-hatching | Sections where cutting-plane views apply | Check for arrows indicating the viewing direction–misalignment can reverse part orientation. |
| Color coding | Assembly groupings (fasteners, seals, brackets) | Match colors to the bill of materials for bulk ordering–red often denotes critical torque specs. |
For ambiguous illustrations, compare identical components across multiple views. A carburetor depicted in exploded form may omit minor seals unless shown in a cutaway–check the “alternate views” section if available. Note assembly sequence markers (e.g., arrows, numbers) to avoid reverse-order mistakes, particularly with engine internals where orientation affects compression ratios or lubrication paths.
Key Components for Repair and Their Schematic Positions

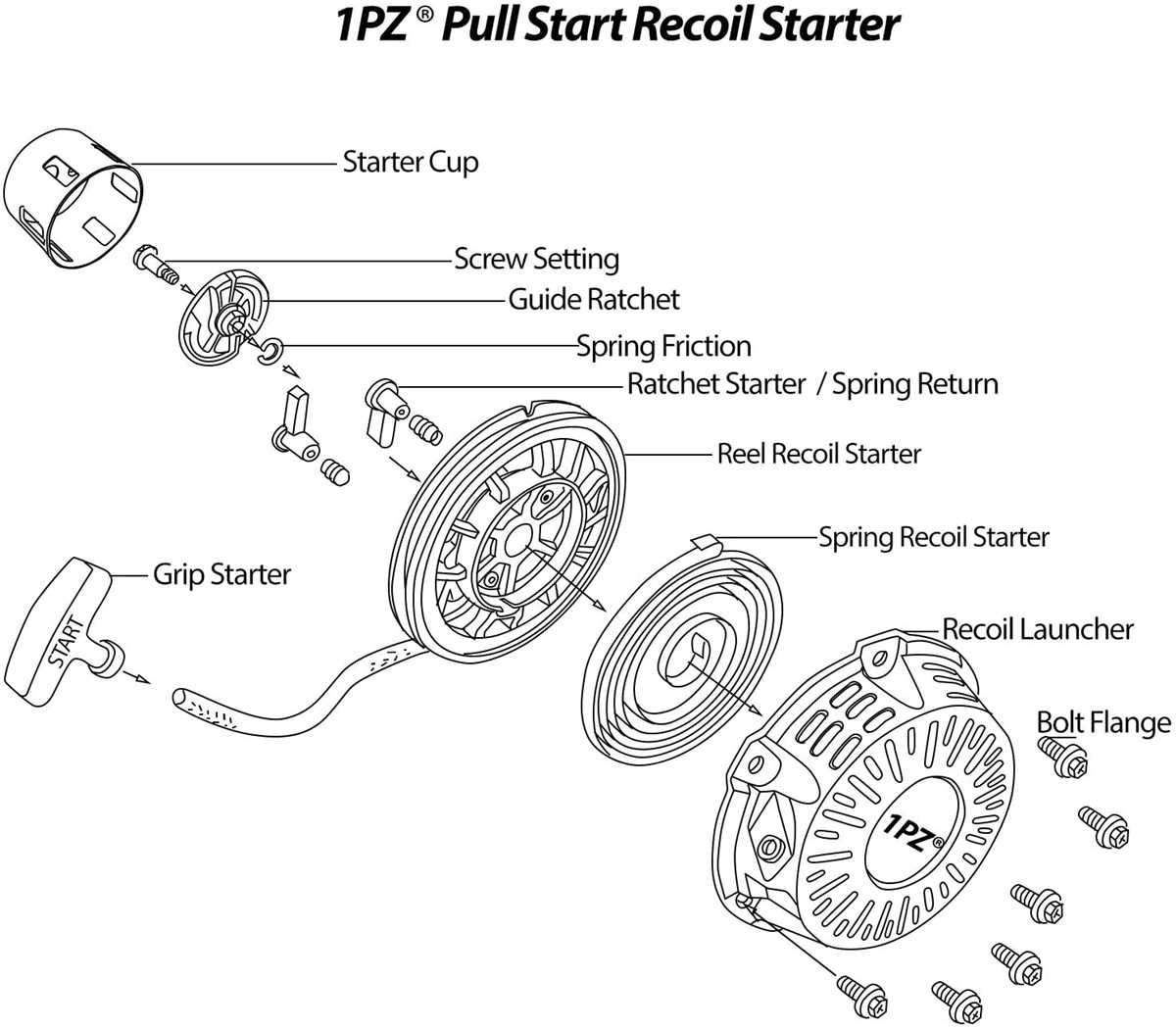

Start with the drive belt – locate it along the engine’s left flank, just below the centrifugal clutch assembly. Replace it if fraying appears near the 8mm-width grooves or if tension drops below 20lbs when pressing mid-span. The air filter sits atop the carburetor housing, identifiable by a black plastic cage secured with a single 6mm bolt. Wash in 1:10 degreaser-to-water solution every 10 operating hours, replacing if filter paper shows tears or a grayish hue. The recoil starter occupies the engine’s rear; remove the two 8mm screws on its cover to access the pulley. Check the rope for fraying within the first 3 inches from the handle knot, and ensure the spring retains at least 70% of its original tension.
Engine Internals and Critical Wear Points
The piston and cylinder require alignment checks via micrometer readings at three heights: top, middle, and skirt. Scratches deeper than 0.002″ on the cylinder wall necessitate honing; if grooves exceed 0.005″, replace the entire sleeve. The head gasket seals between the cylinder and head block; discard if compressed thickness falls below 0.012″. For ignition, inspect the flywheel magneto at the crankshaft’s front – gap tolerances must stay between 0.010″–0.014″. Spark plugs (NGK BR-8H) thread into the head’s right side; replace if electrode wear surpasses 0.025″ or if the porcelain shows fissures.
Identifying Correct Component Codes for Your Compact Motorcycle
Locate the model designation on the frame’s left side, near the engine mount. Most lightweight motorcycles imprint this stenciled beneath the seat rail or adjacent to the footrest bracket. Cross-reference this alphanumeric sequence against the exploded views in the official service literature–each illustration includes a corresponding part code that maps directly to your specific build variant. Ignore generic component listings; even minor revisions (e.g., CT100 vs. CT100A) demand distinct gaskets, carburetor jets, or exhaust seals.
Interpreting Engine-Specific Variations
Engine blocks carry unique casting numbers, often etched on the left crankcase half above the oil drain plug. Compare these markings to the table in section 3.2 of the workshop manual–every digit denotes engineering changes: a trailing “B” indicates the inclusion of a counterbalancer shaft, altering crankshaft bearings and piston ring specs. Use a magnifying glass; aged casting may require gentle degreasing with mineral spirits to reveal the full code accurately.
Wire harness connectors also encode model distinctions–check the color bands and terminal configuration against diagram sheet 4B. A 6-pin green connector with staggered terminals belongs exclusively to the 2018+ fuel-injected variant, while a 5-pin red connector identifies the carbureted predecessor. Swap connectors mismatched to your powertrain will trigger ECU faults or prevent ignition spark delivery.
Brake caliper brackets vary by wheel diameter–measure the mounting ear spacing with digital calipers: 47 mm centers denote a 10-inch wheel setup, whereas 52 mm centers fit 12-inch assemblies. Attempting to install the incorrect bracket will misalign brake pads, causing uneven wear and reduced stopping force. Verify caliper piston size (18 mm vs. 22 mm) using the same exploded view as the wheel hub bearings to prevent hydraulic incompatibility.
Validating Aftermarket Substitutes
Aftermarket filters, spark plugs, and drive belts frequently omit OEM prefixes (e.g., NGK’s “BR6HS” replaces “U22FSR-U”). Confirm compatibility by matching thread pitch, reach, and electrode gap to the specifications listed in the technical bulletins–an incorrect gap (.028 vs. .032 inches) will disrupt timing curves. For belts, compare tooth count and width; a single tooth mismatch alters gear ratios, accelerating clutch wear or stalling under load.
