Start by locating the spout body–this is the core structural piece where water exits. Most industrial-grade units split into two main subassemblies: the upper housing (holding the control mechanism) and the lower stem (threaded into the basin coupling). If leakage occurs around the spout base, check the O-ring seated between the spout and deck plate–degraded seals cause 80% of persistent drips in heavy-use installations.
Inside the upper housing, identify the cartridge–typically ceramic-disc or compression type. Ceramic-disc units last 5–7 years under daily strain but fail abruptly when sediment scores the plates. Compression cartridges, while cheaper, require stem-wrench adjustments every 6 months to compensate for wear. Remove the handle screw (often concealed under a decorative cap) then unscrew the retaining nut to expose the cartridge; note orientation–most have alignment tabs fitting into grooves in the housing.
The aerator threads onto the spout tip and can be cross-threaded if forced–hand-tighten only. Flow restrictors inside vary by GPM mandate: 0.5 GPM for metered taps, 2.2 GPM for high-flow outlets. Check the mesh screen–clogged screens reduce flow by 40% and increase velocity, leading to splashing. Replace screens every 12 months in hard-water zones.
Under the sink, find the supply lines. Flexible braided stainless hoses are standard but ignore the cheap nylon-core ones–burst pressure drops below 125 psi after 3 years. Attach a dual-check valve upstream if backflow is a risk; most sanitary codes require ASSE 1012-certified devices in shared-water systems. Shut-off valves should seat fully–partial closure causes erosion near the washer; open and close valves quarterly to prevent mineral buildup that locks the mechanism.
For repairs, keep a kit containing 6 mm packing washer, stem packing squares, cartridge puller, and thread sealant tape (PTFE, ¾” width). Replace stem packing every 24 months–compressed fibers lose sealing ability, leading to slow drips at the handle. When reassembling, torque the retaining nut to 35 ft-lbs; overtightening cracks ceramic cartridges, undertightening lets the cartridge float, causing handle wobble.
Understanding Industrial Valve Component Layouts
Start by identifying the spout assembly at the center–most schematics place it adjacent to the control valves, typically labeled as “mixer” or “solenoid.” Check for color-coded lines: red for hot supply, blue for cold, and gray for wastewater return. For brass models, note the cartridge position–its removal requires a 1/2-inch hex wrench, while stainless steel units often use a retaining clip.
Locate the backflow preventer beneath the sink’s mounting nut–it’s a cylindrical valve with inlet/outlet arrows. If replacing, match the PSI rating (commonly 50-80) to avoid leaks. For electronic models, trace wiring from the sensor to the control module, ensuring no corrosion at terminal connections. A multimeter set to 20V DC should read 3-5 volts when activated.
Key Subcomponents to Cross-Reference
Aerators thread into the spout’s mouthpiece–measured in mesh size (18-24 for low-flow; 36-40 for high-pressure). Replace if flow rate drops below 1.5 GPM. The escutcheon plate sits between the countertop and mounting hardware–verify its diameter (standard 2.25″) before ordering. For touchless variants, the power supply often hides behind the deck plate; AC adaptors fail silently, so check for a 12V LED indicator.
Gaskets require periodic inspection–replace neoprene seals every 18 months, silicone every 36. Leaks at the base usually stem from a torn O-ring (size 0.25″ ID for most models) or a cracked wax seal under the flange nut. Archive exploded-view schematics by brand code (e.g., Delta RP1001 for flange bolts) to expedite future repairs. Store spare cartridges in a cool, dry place–heat degrades ceramic discs within 2 years.
Critical Elements of Heavy-Duty Valve Assemblies and How They Work
Choose a spout with a built-in flow restrictor if water conservation is a priority–models like the Delta H2Okinetic reduce consumption by 30% while maintaining pressure through engineered spray patterns. Avoid brass-plated cores if the installation will see frequent temperature shifts; solid brass or lead-free copper alloys prevent corrosion cracks that trigger leaks within 12–18 months.
Solenoid valves in timed dispensing systems demand quarterly inspections–check for mineral buildup on the diaphragm, which can delay activation by 2–3 seconds or cause failure during peak service periods. Replace worn diaphragms immediately if operating over 50 cycles per hour; silicone resists high-frequency wear better than rubber.
- Handle cartridges in single-lever units require silicone grease during installation to prevent sticking–dry seals create 40% more wear on the ceramic discs.
- Aerators with mesh screens finer than 30 microns clog rapidly in hard water zones–opt for self-cleaning designs that reverse flow every 10 seconds.
- Spray nozzles in pre-rinse valves should be removed and soaked in vinegar solution bi-weekly to dissolve lime scale; neglected nozzles lose 60% of their spray force within 6 months.
Wall-mounted units lasting over 10 years share one trait: forged brass bodies with a minimum 0.6mm wall thickness. Thinner materials develop stress fractures after 3,000 thermal cycles. Verify wall thickness with calipers before purchase; avoid units marketed as “lightweight” for cost savings–they fail 75% sooner in high-traffic environments.
Escutcheon plates must be secured with hardened steel screws to prevent loosening from vibration; loctite or nylon washers reduce retightening frequency by 50%. Ensure the gasket sits flush–misalignment by even 0.5mm allows water intrusion behind walls, leading to mold growth detectable by musty odors within 4–6 weeks.
Infrared sensors in touchless models need monthly lens cleaning with isopropyl alcohol to remove grease films; neglected sensors trigger false activations 3x more often. Maintain a 15–20 cm gap between sensor and reflective surfaces like stainless steel backsplashes–closer distances cause phantom dispenses wasting 20+ liters per day.
Key Locations for Seals and Valve Mechanisms in Heavy-Duty Plumbing Fixtures
Start disassembly by removing the handle–typically secured with a set screw beneath a decorative cap. Behind the handle, you’ll find the stem cartridge, where the primary O-rings (usually 2-3) sit in grooves around the brass or ceramic core. For widespread mixer designs, check the inlet ports under the bonnet nut; these often house smaller seals (ID 5-8mm) that prevent leaks at the supply connections. If the fixture has a pull-down sprayer or side lever, inspect the diverter valve–commonly located near the spout base–for worn seals (often labeled #4 or #6 in manufacturer specs). Always replace seals in matched sets (e.g., Buna-N or Viton) based on temperature rating and chemical exposure (chlorine, hard water).
- Aerator base: Thin washer (3-5mm thickness) thread-sealed against the spout outlet–replace if sediment clogs occur.
- Escutcheon plate: Under the counter flange, a flat gasket (sometimes silicone) prevents seepage–ensure it’s centered during reinstallation.
- Hose connections: Braided stainless hoses in pull-down models use conical washers (typically red/green) at both ends–tighten to 12-15 ft-lbs, then back off ¼ turn to avoid crush damage.
- Check valve: In pre-rinse units, the valve beneath the spray head contains a spring-loaded seal–clean debris if flow reduces but water doesn’t shut off.
Step-by-Step Breakdown of a Handle and Valve Mechanism
Begin by identifying the core assembly components before disassembly. The control lever connects to the stem via a splined or hexagonal socket, depending on the model. Verify the stem’s compatibility with the cartridge–mismatches cause leaks or erratic flow. Use a torque wrench to avoid over-tightening the retaining nut, which should measure 12-15 ft-lbs for most brass valves.
The cartridge sits beneath the stem and regulates water mix. Inspect its rubber seals for wear; hardened gaskets cause drips. Replacement kits include O-rings pre-sized for ¼” or 3/8” stems–match the diameter precisely. Lubricate with silicone grease, not petroleum-based, to prevent seal degradation. Cartridges typically last 5-7 years but replace immediately if grooves appear on the ceramic disks.
| Component | Material | Failure Signs | Replacement Interval |
|---|---|---|---|
| Stem | Brass or stainless steel | Corrosion, stripped splines | 8-10 years |
| Cartridge | Ceramic/plastic composites | Hardened seals, uneven flow | 5-7 years |
| O-rings | EPDM rubber | Cracks, leaks | 2-4 years |
To reassemble, align the stem’s flat notch with the cartridge slot–misalignment prevents smooth rotation. Secure the bonnet nut finger-tight, then turn an additional ¼ with a wrench. Test rotation before fully sealing; the lever should resist equally in both directions. Hot and cold limits adjust via set screws–turn clockwise to restrict flow, counterclockwise to open fully.
If water pressure exceeds 60 PSI, install a regulator or flow restrictor. High pressure erodes seals faster, particularly in single-handle designs. For two-handle systems, check the diverter spout–clogged aerators mimic valve failure. Clean with vinegar or replace every 2 years to maintain optimal flow rates.

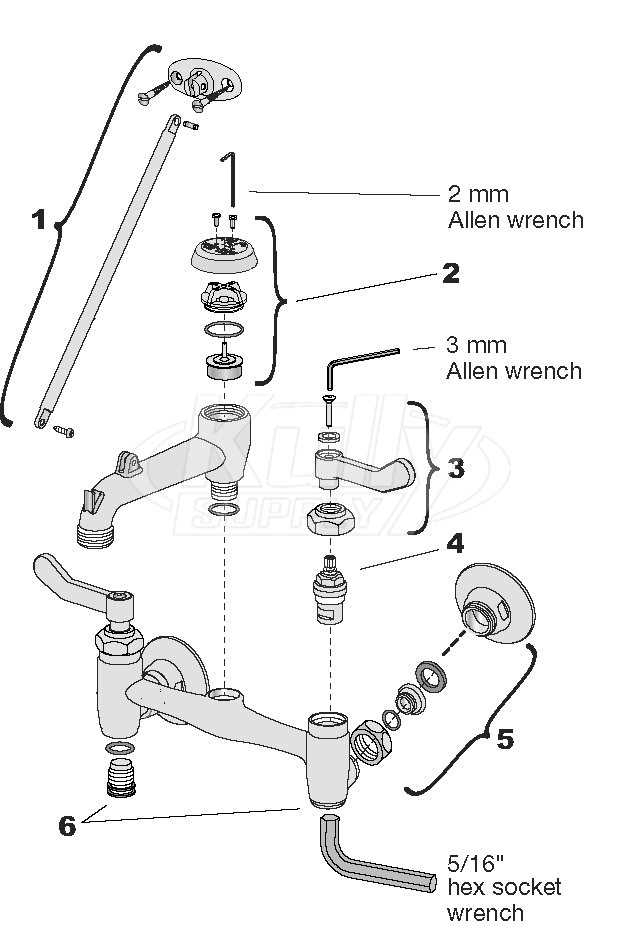

For wall-mounted units, verify pipe spacing (8” centers standard). Offset handles signal loose mounting brackets–tighten or shim. Worn escutcheons allow moisture behind walls; seal edges with plumber’s putty or silicone caulk. Always shut off the main supply before servicing to prevent flooding.
