Begin by locating the pressure switch–typically mounted near the motor housing. This component regulates tank output and must be inspected every 200 operational hours. Disconnect power before removal; corrosion on terminals often signifies failing contacts. Replace if resistance exceeds 0.5 ohms or visible pitting is present.
Examine the unloader valve–a small brass fitting adjacent to the pressure regulator. Its function is critical: releasing trapped pressure during shutdown to prevent motor strain. Clean with compressed nitrogen if sluggish; replace if leaks persist under 120 psi. Use PTFE tape on threads during reassembly to seal micro-fractures.
Inspect the piston assembly by removing the cylinder head–four hex bolts secured in a star pattern. Measure ring gap tolerance: new rings require 0.004–0.006 inches; replace if wear exceeds 0.012 inches. Lubricate compression rings with SAE 30 non-detergent oil before reinstallation. Check piston skirt for scoring; light surface marks can be honed, but deep grooves necessitate full replacement.
The check valve–positioned between the pump and reservoir–prevents backflow. Test by blowing through the outlet; airflow should move in one direction only. Clean with acetone to dissolve carbon buildup; soak soft-seated valves in hot vinegar for 30 minutes to remove calcium deposits. Replace hardened valves immediately–failure risks catastrophic pump damage.
For belt-driven models, tension adjustment is non-negotiable. Use a spring-scale to measure deflection: target 0.5–0.75 inches of play at 5 lbs force. Misalignment accelerates bearing wear; verify pulley grooves are co-planar within 0.015 inches using a straightedge. Replace V-belts showing cracks, fraying, or glazing–even minor slippage reduces efficiency by 18%.
After reassembly, test for leaks using soapy water on all fittings at 100 psi. Bubbles indicate compromised seals–torque to manufacturer specs (usually 12–15 ft-lbs) using a calibrated wrench. Document pressure drop over one hour: acceptable loss is ≤2 psi; higher readings point to faulty gaskets or cracked castings.
Visual Reference for Pneumatic Machine Components
Locate the pressure switch near the motor housing–it’s typically mounted on a brass or aluminum manifold with threaded ports. If replacing, match the PSI rating (e.g., 120–150 PSI for standard units) and electrical specs (240V/15A). Misalignment during reinstallation causes leaks; use thread sealant on fittings, not Teflon tape, to prevent debris clogging the check valve.
Inspect the pump head gasket annually. Signs of failure include oil seepage or audible hissing. Compatible replacements include Buna-N (for oil-lubricated models) or Viton (for high-temperature applications). When reassembling, torque bolts to 12–15 ft-lbs in a star pattern to avoid warping the cylinder head. Common bolt sizes: #10-32 for smaller pistons, ¼”-20 for larger assemblies.
For piston rings, verify clearance using a feeler gauge–0.002″ to 0.004″ gap is optimal. Excessive wear reduces efficiency by 30% at 90 PSI. Rebuild kits often include rings, bearings, and seals; cross-reference the part number with the original equipment manual (e.g., model #919.167781 uses kit #16778x). Bearings should rotate freely without axial play; lubricate with NLGI #2 grease before installation.
Critical Storage Tank Maintenance
| Component | Failure Signs | Replacement Interval | Tool Required |
|---|---|---|---|
| Safety valve | Constant venting or sticking | 5 years or at pressure failure | Adjustable wrench (7/16″) |
| Drain valve | Rust flakes or slow drainage | 3 years or after corrosion | Locking pliers |
| Pressure gauge | Needle fluctuation or dead zone | 7 years or if inaccurate ±5 PSI | Screwdriver (flat #2) |
Tank inspections require a hydrostatic test every 10 years–contact a certified pressure vessel inspector. Rust formation begins at 40% relative humidity; store units with a moisture trap (e.g., silica gel cartridges) to extend tank life by 40%. For welded repairs, use ER70S-6 filler wire and preheat the area to 200°F to prevent cracking.
Motor and Drive System Troubleshooting
Capacitor failure often mimics motor burnout–test with a multimeter (expected range: 5–15 μF for 1HP motors). Belt tension should deflect ½” under 10 lbs of force; tighten the adjustment bracket bolt incrementally to avoid pulley misalignment. Flywheel keys shear under sudden load; use hardened steel replacements (case depth: 0.030″). If the motor hums but doesn’t start, rotate the pulley by hand–seized bearings require disassembly and regreasing with polyurea-based lubricant.

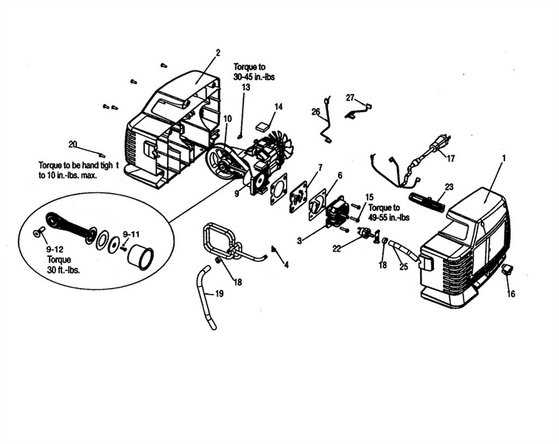

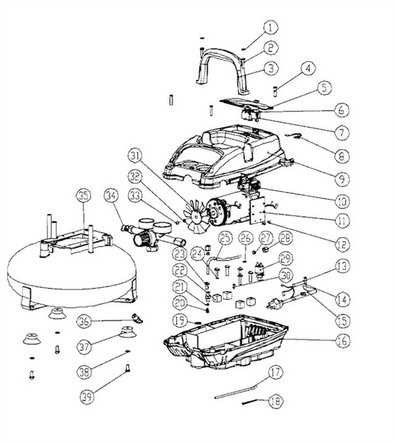

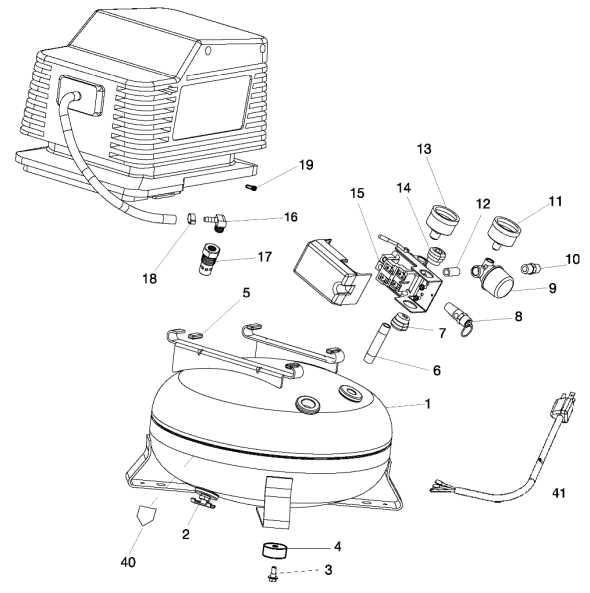

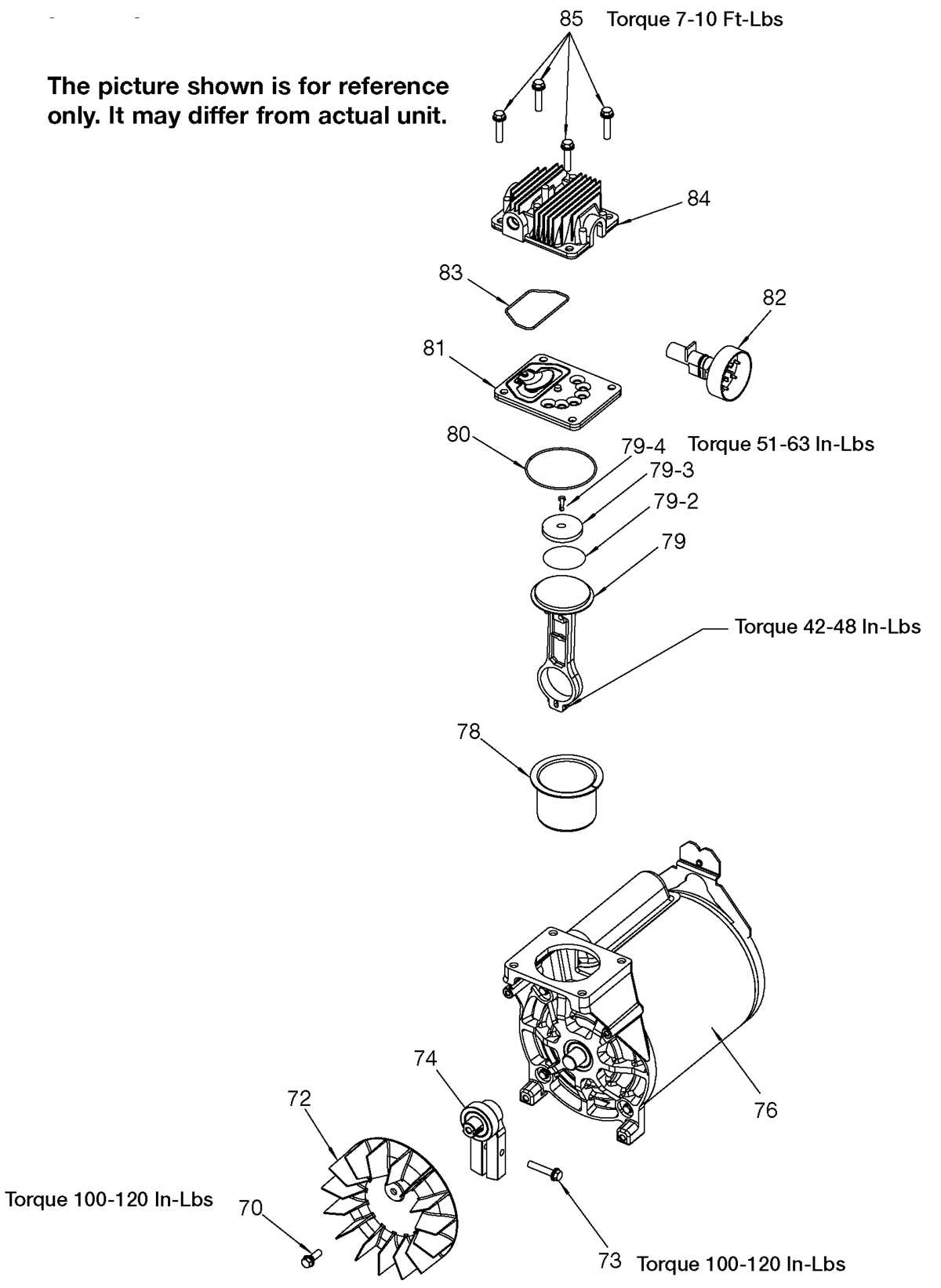

Locating Critical Elements in a Pneumatic Machine Breakdown Schematic
Begin by isolating the pressure vessel–typically a cylindrical tank–on the exploded view. Verify its placement relative to the motor and pump assembly, as misalignment here often indicates incorrect reassembly or damage. Check for annotated measurements, especially thickness markings, to confirm compatibility with OEM specifications. Tanks under 20 gallons usually feature welded seams; inspect these first for corrosion or cracks.
The prime mover–usually an electric or gas-powered unit–will appear adjacent to the fluid displacement mechanism. Note the shaft coupling: most models use a direct-drive system, while larger industrial variants may include a belt-and-pulley arrangement. Compare the pulley diameters if present; ratios outside the 1:1 to 1:3 range suggest either customization or wear-related slippage requiring adjustment.
Trace the intake filter and regulator valve on the schematic. The filter’s mesh density should match the manufacturer’s micron rating (often 5–20 microns for standard units). Locate the regulator’s adjustment knob–its thread pitch determines precision; metric M6×1.0 or imperial 1/4″-20 are common standards. Cross-reference these with the relief valve, which must open at 10–20% above the rated PSI to prevent over-pressurization.
Identify the seal and piston assembly within the displacement chamber. Single-stage models show one piston head, while dual-stage units split compression between two cylinders. Examine the rings: cast iron rings last 2,000–3,000 hours, whereas Teflon-coated variants extend lifespan by 50% but require specialized tools for replacement. Gaskets between housing sections must align with torque specs–typically 15–25 ft-lbs–to avoid leaks.
Find the check valve near the tank’s inlet. This one-way component prevents backflow and should exhibit minimal cracking on its rubber diaphragm. Replace immediately if deformation exceeds 0.5mm–measured with calipers–as compromised seals reduce efficiency by 12–18%. Ensure the valve’s spring tension matches the PSI rating; too loose, and it fails to seal; too tight, and it restricts flow.
The drain valve–usually positioned at the lowest point of the tank–must operate smoothly. Brass valves corrode faster than stainless steel; prioritize the latter for humid environments. Test the mechanism by turning it counterclockwise: resistance above 5 ft-lbs indicates buildup requiring cleaning with isopropyl alcohol and a nylon brush.
Finally, verify the electrical components: start capacitor, thermal overload protector, and control switch. Capacitors should match the µF rating (±10%) and voltage tolerance (typically 250–440V). Thermal protectors must activate within 3–5 seconds under overload conditions; test with a multimeter set to continuity mode. Switch wiring follows a color-coded system–red (live), black (neutral), green (ground)–but always confirm against the schematic, as aftermarket modifications may alter this.
Step-by-Step Guide to Identifying the Pressure Regulator in Equipment Schematics
Begin by securing a schematic for your pneumatic system–either a printed manual or a high-resolution digital copy. Locate the legend or key, typically positioned along the edges or bottom of the page. Scan for symbols resembling a small box with two or three protruding lines (terminals), often labeled as “PS,” “P/S,” or “SW.” This component governs operational thresholds and controls motor activation.
- Search near the motor assembly–regulators are frequently mounted adjacent to it.
- Check proximity to the tank’s outlet valve or relief valve.
- Look for arrows or directional lines indicating pressure flow leading to the symbol.
If the schematic lacks clear labeling, cross-reference the part number with an exploded view if available. The regulator is usually positioned between the storage reservoir and the intake mechanism, controlling cutoff and restart points. Trace electrical lines from the unit to the motor–these often terminate at the regulator’s terminals.
For obscure models, isolate all rectangular or square symbols first, then eliminate those connected to hoses or tanks. The remaining candidate–typically linked to both power and pressure lines–is the component you need. Verify by comparing its position with physical markings on the unit itself.
Decoding Equipment Wiring Schematics with Component Lists
Begin by matching wire colors on the schematic to the actual terminals–most manufacturers use a consistent color code: red for live inputs, black for ground, yellow for relay triggers, and blue for secondary circuits. If the diagram shows a dotted line around a group of elements, these components are typically mounted on the same sub-assembly, like a control panel or motor housing. Trace each connection point back to the power source to confirm continuity before testing.
Refer to the numbered callouts on the schematic and locate each corresponding entry in the bill of materials. For example, a relay marked “K1” on the drawing will list its specifications (voltage, amperage, pole count) in the parts catalog. Check for asterisks or footnotes–they often denote non-standard configurations, such as thermal overload protectors integrated into a starter coil or capacitors wired in parallel for phase correction.
Identify functionally grouped symbols: switches appear as breaks in lines, resistors as zigzag patterns, and motors as circles with three inward lines (for three-phase units). A small rectangle with diagonal lines inside represents a fuse, while dashed boundaries enclose mechanically linked parts, like valves or pressure switches. Cross-reference these with the component list to confirm whether the element is a single unit or requires additional subcomponents (e.g., a solenoid valve needing a separate diode).
Use a multimeter set to ohms to verify connections between terminal points, starting from the main inlet through each control device down to the pump assembly. Disconnect power first–schematics often highlight safety interlocks (e.g., unloader valves or thermal cutoffs) with dashed boxes or exclamation marks. If a wire label reads “TH1” or “P2,” consult the legend: “TH” usually indicates a thermostat or thermal cutoff, while “P” may refer to a pressure-sensitive switch.
Troubleshooting Discrepancies
If the schematic shows a dual-voltage motor but the nameplate specifies a single voltage, the winding diagram will split into two parallel paths–one for 120V (series-wired) and another for 240V (parallel-wired). Label each jumper wire according to the schematic’s lettered notes (e.g., “L1 to A,” “T3 to B”) to avoid miswiring. For missing or ambiguous callouts, measure resistance across suspected components: a thermal fuse should show near-zero ohms when intact, while a failed capacitor will read infinite resistance or fluctuate.
Observe polarity markings, especially on electrolytic capacitors or DC-rated components–reversed connections can cause immediate failure. If the diagram includes a ladder logic segment (common in automated systems), follow each rung sequentially, checking voltages at each node with the equipment powered and pressurized within operating range. Keep a notebook to record deviations between the schematic and physical layout, noting wire routes obscured by conduit or insulation. Replace generic wire labels (like “Wire #1”) with specific identifiers (e.g., “Motor Start Line”) to simplify future diagnostics.
