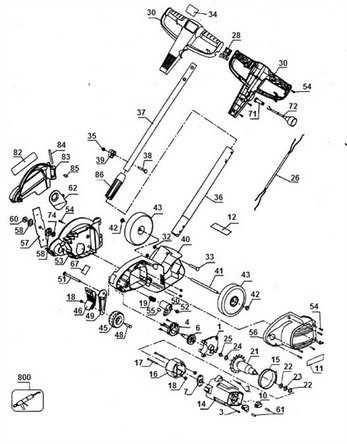

Identifying the right components for your precision cutting device starts with a clear schematic. Models vary by series–common ones include 29932, 32003, and 79591–but most share core elements: the blade housing assembly, drive mechanism, and guide wheel unit. Locate the engine shroud first; it typically anchors the air filter and fuel tank, offering the simplest access point for further disassembly.
For the 29932 variant, the rotary cutter attaches via two screws to a metal frame, while the idler pulley sits adjacent. Remove the housing cover to expose the belt–check for wear or misalignment, as this causes uneven cutting. The 32003 model uses a heavier flywheel; verify its securing bolts torque to 12-15 ft-lbs to prevent vibration issues.
Replacement elements like blade sharpening kits or bearings should match OEM specifications. Aftermarket bearings often lack proper seals, leading to premature failure. For guide wheels, opt for urethane-coated rims on uneven terrain–they reduce slippage compared to plastic. Always disconnect the spark plug before handling moving components.
Common failure points include cracked fuel lines on older units and worn gaskets at the carburetor junction. Replace these with Viton-based materials for ethanol resistance. If the cutting depth varies, inspect the adjustment rod–it bends under stress; straighten or replace for precise calibration.
Identifying Components for Your Lawn Tool Maintenance
Locate the model number on the engine housing–typically stamped near the air filter or carburetor. Cross-reference this with the manufacturer’s repair manual to pinpoint exact component placement. Ignition coils, blades, and wheels are often misidentified without proper schematics.
Replace worn drive belts by noting their width and tooth count; mismatched replacements cause slippage under load. Measure twice–most belts degrade at 50–70 operating hours, but heavy debris accelerates wear. Use OEM replacements for critical assemblies like gearboxes to avoid premature failure.
Common Failure Points in Power Trimmers
Air filters clogged with dust restrict airflow, forcing the engine to run rich. Clean foam filters monthly by rinsing in soapy water and air-drying; paper filters require immediate replacement. A fouled spark plug–indicated by dark deposits–demands a 0.030-inch gap adjustment before reinstallation.
Fuel lines crack after 18–24 months, especially near fittings. Inspect for brittleness or leaks; ethanol-blend fuels accelerate degradation. Replace with high-quality, alcohol-resistant tubing, labeled “SAE 30R7” for compatibility. Fuel stabilizers extend lifespan but cannot reverse existing damage.
Wheel bearings seize from lack of lubrication or grit buildup. Remove wheels annually, clean axles with brake cleaner, and repack bearings with marine-grade grease. Silent failures here stress the transmission, leading to costly gearbox replacements.
Blade alignment drifts over time due to vibration. Check pitch with a protractor–most should rest at 30° relative to the cutting surface. Misaligned blades scalp turf and increase fuel consumption by 12–18%. Sharpen edges every 8–10 mows using a dedicated file; never grind high-carbon steel blades below 45 HRC hardness.
Key Components to Replace on Your Lawn-Trimming Tool
Start with the blade assembly–one of the most frequently worn items. Most models use a curved or straight metal cutter secured by bolts or clips. Check for excessive dullness, chips, or bending. If sharpening fails to restore performance, swap it out. Keep a spare on hand; manufacturer-branded replacements last longer than generic alternatives.
Inspect the drive belt next. Signs of fraying, cracking, or stretching indicate imminent failure. Measure the belt’s length and width before ordering–some machines use a V-belt, others a toothed design. A loose or broken belt causes erratic cutting or complete power loss. Always lubricate pulleys when replacing to prevent premature wear.
The air filter and pre-cleaner block debris but degrade over time. Foam filters can be washed and re-oiled, while paper types require replacement every 25 hours of use. A clogged filter reduces engine efficiency, leading to overheating. Pair this with a new spark plug (NGK or Champion brands) during routine maintenance for optimal ignition.
Wheel assemblies often go unnoticed until they fail. Look for cracked hubs, worn bearings, or loose axles. Some units use plastic wheels with metal bushings; others have sealed ball bearings. Replace both wheels if one shows damage–uneven wear affects stability. Grease wheel shafts during installation to extend lifespan.

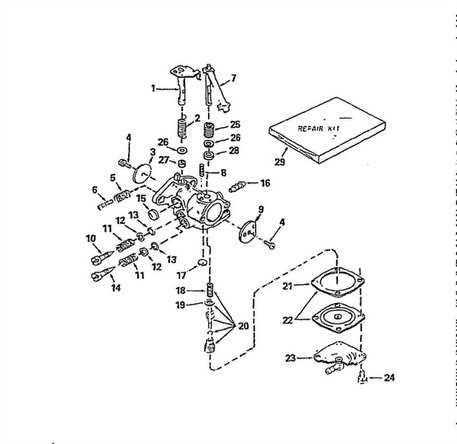

Fuel lines and carburetor components degrade from ethanol-blend gasoline. Cracks, leaks, or hard/soft spots in hoses signal replacement. Use vinyl or ethanol-resistant rubber tubing (3/16″ or 1/4″ ID) for exact fit. Simultaneously, clean or replace the fuel filter to prevent clogs. For carburetors, rebuild kits include gaskets, needles, and diaphragms–follow torque specs when reassembling.
Ignition coils and starter ropes demand attention if the engine cranks poorly or doesn’t start. Test coil resistance with a multimeter (typically 2–4 ohms for primary, 8–15k ohms for secondary). Replace if readings differ. For rope starters, inspect the ratchet pawls and springs–worn parts prevent proper engagement. Lubricate the recoil mechanism with silicone grease during reassembly.
- Adjustable skid shoes: Steel or nylon plates beneath the cutting deck. Worn shoes cause uneven depth. Position them 1/8″ above the blade for mulching, 1/2″ for bagging.
- Debris shields: Plastic guards near belts/wheels. Cracked shields allow trash into moving components. Replace if bent or missing.
- Exhaust guards: Prevents sparks/debris contact. Check for rust or holes–safety-critical for gasoline units.
Storage and handling affect longevity. Remove batteries from cordless models before winterizing–use Lithium-based chargers to avoid memory effects. For gas engines, add fuel stabilizer and run until empty. Drain oil before tilting the unit to avoid leaks. Keep all hardware (bolts, washers) organized; use thread locker on critical fasteners to prevent loosening.
How to Interpret Lawn Tool Component Schematics
Locate the identification number on the schematic first – it’s typically near the top or along the edge of the document. Match this to your equipment’s model sticker, usually found on the underside of the housing. A mismatch here means the breakdown won’t reflect actual replaceable pieces.
| Section Color | Component Type | Common Material |
|---|---|---|
| Red | Blade assembly | Hardened steel |
| Yellow | Fasteners | Zinc-plated |
| Blue | Drive mechanism | Aluminum alloy |
Trace outlines with a highlighter: solid lines denote visible elements, dashed lines conceal sub-assemblies. Thicker borders signal heavy-duty brackets; wavy edges indicate flexible seals. Ignore thin dotted circles – they mark lubrication points, not substitution targets.

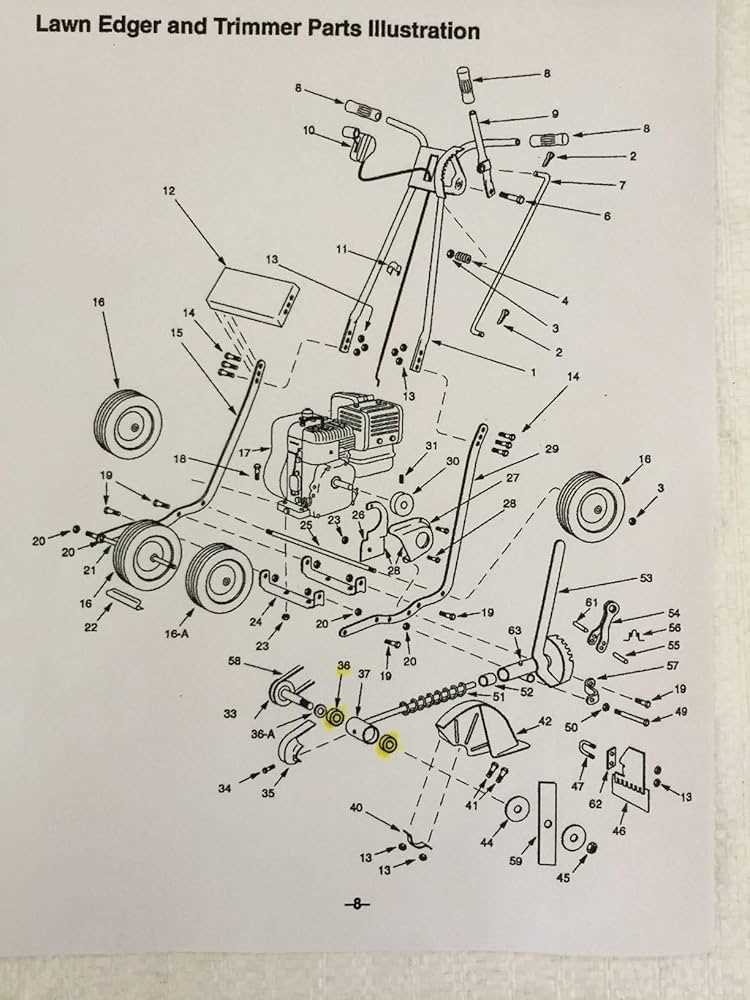

Cross-reference exploded views against callouts. Numbers beside each piece correspond to a legend at the bottom or side margin listing order codes and brief descriptors. Jot these onto a separate sheet grouped by assembly stage for faster procurement.
Measure twice before purchasing. Schematics include fractional inch or millimeter specs next to critical wear items like cutting edges and bushings. Use calipers on the existing piece; manufacturing tolerances shift between runs.
Store the schematic in a sealed plastic sleeve after marking it. Grease smudges obscure key details; laminate only if you’ll reuse it often. Digital scans help, but print a backup – paper doesn’t glitch during outdoor repairs.
How to Locate Original Manufacturer Schematics for Lawn Care Tools
Begin with the official Sears service portal at searspartsdirect.com. The site maintains a searchable database of illustrated breakdowns for outdoor equipment produced under the brand since the 1990s. Enter the model identifier–typically embossed on a metal tag near the engine housing–into the search bar to pull up the precise exploded view for your unit. Registration isn’t mandatory, but creating a free account saves previously viewed schematics for quicker access later.
The PartsTree platform (partstree.com) aggregates authorized engineering drawings alongside user-submitted photographs of individual components. Filter by brand and serial number through the dropdown menus, then scroll to the “Blade & Cutting Deck” section where trimmer attachments and their corresponding hardware are charted. Clicking any line item reveals vendor inventory levels across North American suppliers, helping confirm immediate availability before ordering.
- Jack’s Small Engines (jackssmallengines.com) offers a downloadable PDF archive organized by product line. Navigate to the “Walk-Behind Trimmers” category and select the matching series; each PDF contains a two-page spread showing every replaceable element labeled with manufacturer part codes.
- eReplacementParts (ereplacementparts.com) provides interactive diagrams that zoom down to 400% magnification. Hovering over a numbered item displays the original OEM description and cross-reference codes for aftermarket equivalents.
- Amazon and eBay sellers often attach high-resolution scans of original service manuals in the “Product details” section. Use the browser’s “Find in page” function (Ctrl+F or ⌘+F) and search for terms like “exploded,” “schematic,” or “blow-up” once the listing loads.
Local authorized service centers stock printed schematics specific to the region’s climate adaptations–dry vs. wet belts, corrosion-resistant fasteners. Visit the Sears store locator to find a nearby branch or independent dealer certified for warranty repairs. Call ahead to confirm diagram availability; some centers print duplicates only upon purchase of genuine components.
For discontinued models, the WayBack Machine (archive.org/web) occasionally preserves decommissioned product support pages. Archive the original URL from the manufacturer’s domain (e.g., sears.com), then explore snapshots dated within one year of the tool’s production run. If metadata is intact, the embedded image files of exploded views remain fully functional.
Dedicated gardening forums such as gardenweb.com and lawnsite.com host user-generated threads linking to direct downloads of proprietary blueprints. Query the exact model number in the search bar, filter by “Attachments,” and review pinned responses from veteran technicians who routinely preserve rare documentation.
