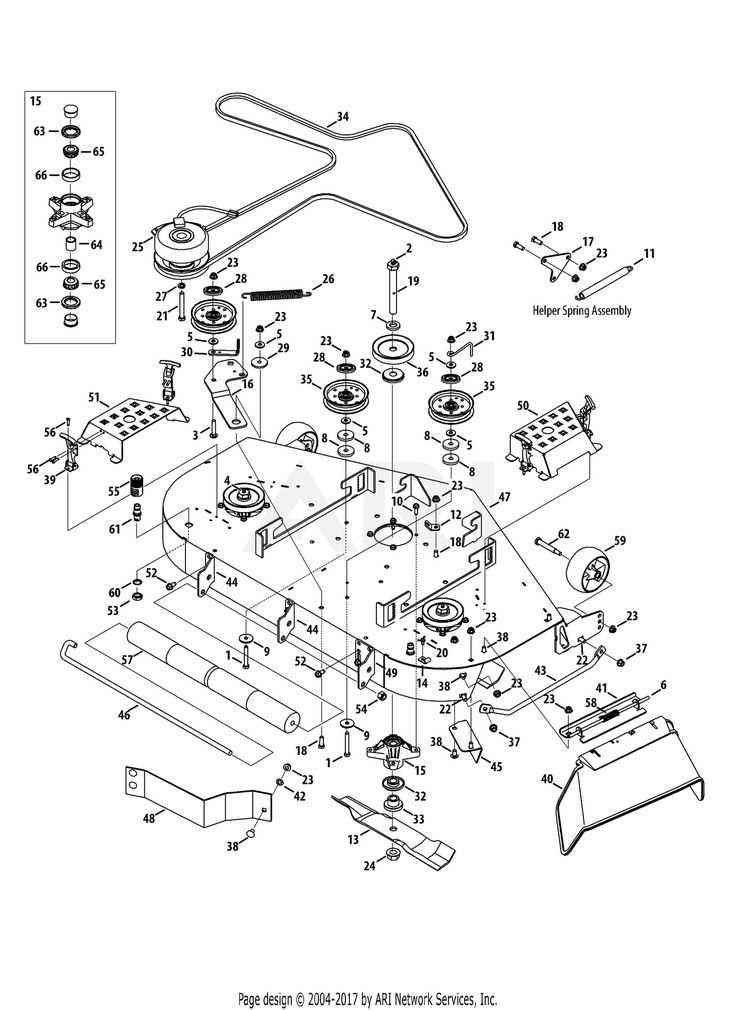

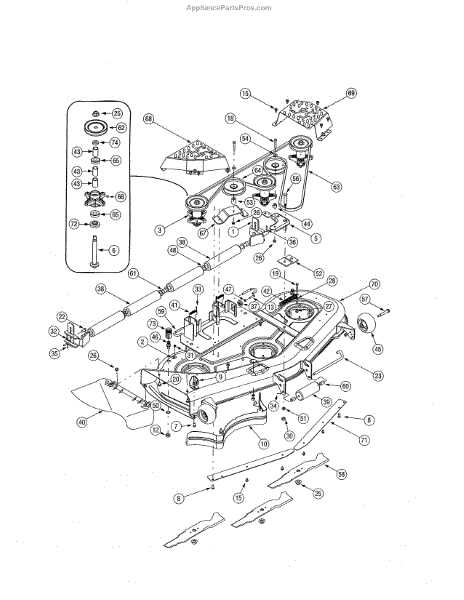

Start by downloading the official technical schematic from the manufacturer’s website using your model number–this is the fastest way to avoid errors. For most models released after 2015, the exploded view will show labeled brackets, pulleys, and blades with matching part codes. If the PDF is unavailable, search the serial plate under the seat or near the rear wheel for a seven-digit identifier beginning with “1” or “7.” Cross-reference this number with online databases like Partstree or Jack’s Small Engines to pull up exact blow-up diagrams.
Focus on the left and right spindles–these often wear first. The diagram will itemize bearings (usually sealed, 6203-2RS or 6305-2RS), spindle housings, and grease fittings. Check for a three-point lifting system if your unit has height adjustment; its linkage rods and springs are prone to bending and should be measured before ordering. Blade-carrier belts are another frequent failure point–compare the old belt’s width and length to the illustrated replacement, as aftermarket belts often vary by ±0.5 inches.
For older units (pre-2010), traces of white paint near the cutting chamber indicate a stamped-metal frame that may require welding rather than bolt-on replacements. Use a caliper to confirm the diameter of the PTO pulley–aftermarket kits sometimes omit spacers, leading to misalignment. Keep a flashlight handy; hydraulic lines and electrical connectors (especially on electric-clutch models) are often tucked behind the frame rails and easily overlooked in static drawings.
Understanding Your Garden Tractor Cutting Assembly Schematics
Before disassembling your equipment’s cutting housing, download the official OEM schematic from the manufacturer’s support portal–search by model number (e.g., LT42, XT1, CC30) rather than product line. Print or load it on a tablet; digital zooming often distorts small part numbers. Cross-reference the exploded view with your serial plate–modifications vary even within annual revisions.
| Component Category | Typical Replacement Interval (Hours) | Critical Signs of Failure |
|---|---|---|
| Blade spindles | 200–300 | Excessive vibration, grooves on spindle shaft |
| Belt tensioners | 100–150 | Squealing, belt slippage, frayed edges |
| Mandrel pulleys | 180–250 | Bearing whine, side-to-side wobble |
| Deflector shields | Seasonal | Cracks, grass buildup clogging discharge |
When ordering pieces, insist on OEM identifiers–P/N 618-0412 (LT series) or 754-3277 (XT2) evitare knock-offs. Measure spindle length and pulley bore diameter; aftermarket suggestions usually mismatch tolerances by fractions of a millimeter, causing premature wear. For storage, coat unpainted surfaces in lightweight grease; reapply before winter stowing to prevent surface rust on stamped sheet metal.
Key Elements of a Garden Tractor Cutting Assembly
Start by locating the blade spindle housings, typically mounted beneath the frame in sets of two or three. These cylindrical units secure the rotary cutters and often include sealed bearings–check for grease fittings if maintenance is required. Models with stamped pulleys may use retaining clips instead of bolts; pry these carefully with needle-nose pliers to avoid distortion.
The deck belt, usually a reinforced V-belt, transfers power from the engine pulley to the cutting blades. Inspect the belt path along tensioner arms; misalignment can create premature wear or reduced torque. Replace belts showing cracks deeper than 1/16 inch or fraying edges–aftermarket belts sometimes lack the Kevlar reinforcement found in OEM variants.
Identify the mandrel assemblies by their integrated sheaves and sharp edges. Larger units handle heavier grass loads; smaller ones optimize airflow for mulching. When disassembling, label spacers and washers–mixing them can disrupt blade balance, causing excessive vibration. Torque specifications for mounting bolts often range between 45–60 ft-lbs; consult service manuals for exact values.
Look for the anti-scalp rollers–adjustable wheels near the cutting perimeter. These prevent gouging on uneven terrain; low settings risk damaging turf, while high settings leave uncut strips. Lubricate wheel axles with dry graphite if rotation feels stiff; petroleum-based grease attracts debris. Some designs use plastic caps over bearings–these can degrade under UV exposure.
Trace the idler pulley system, including spring-loaded tensioners and fixed guide pulleys. Springs should stretch smoothly when engaged; weak springs reduce cutting efficiency. Clean pulley grooves with a wire brush to remove compacted debris, but avoid abrasives that might score aluminum surfaces. After reassembly, spin pulleys by hand to verify smooth rotation before reattaching drive components.
Inspect the chute assembly for deflector plates and discharge openings. High-lift blades require wider chutes to prevent clogging; mulching kits often replace these with baffles. Remove accumulated clippings from internal passages using compressed air–never force sharp objects through the chute to clear blockages. Verify that deflector position secures properly; loose covers create safety risks.
Check the drive engagement linkage–typically a lever-operated system connected to a clutch. Corrosion on pivot points can prevent full engagement; apply dielectric grease to electrical connectors if present. For manual engagement models, ensure the cable moves freely without binding; excessive resistance suggests internal fraying or misrouting. Replacing entire cable assemblies is often safer than attempting splices.
Step-by-Step Guide to Finding Components on Your Equipment Schematic
Start by identifying the model number stamped on the frame–common locations include the rear panel or underside near the cutting assembly. Cross-reference this with the manufacturer’s official exploded view PDF: navigate to the brand’s support portal, input the model code, and filter results by “blade housing” or “engine subassembly” to isolate relevant sections. Locate the largest pulley nearest the discharge chute; this often anchors the drive belt routing, with adjacent items like idlers or tensioners numbered sequentially in the diagram. For blade-spindle assemblies, scan the schematic for circular cutouts or hex-shaped outlines–these pinpoint spindle housings and their mounting bolts.
Tracing Belts and Linkages
Follow the serpentine path of the drive belt from the engine pulley outward, noting each turn around idler rollers or clutch mechanisms–each pivot point corresponds to a numbered entry in the schematic. If replacing a frayed belt, measure its total length and compare it to the part list specifications; standard sizes vary by 0.5 inches between models. For lift systems, search the diagram for rectangular solenoid blocks or cable anchors near the operator’s control panel–these connect to the engagement system. Verify linkage alignment by manually cycling the engagement lever while observing movement in the diagrammed components, ensuring no ambiguous gaps exist between the visual reference and physical layout.
Step-by-Step Guide to Swapping Out Worn Drive Belts Using Equipment Blueprints
Disconnect the spark plug wire before beginning–this eliminates accidental engine starts while working on the cutting unit. Locate the tensioner pulley on the schematic; it’s typically marked with a spring symbol or labeled “idler.” Use a 1/2-inch drive ratchet to pivot the tensioner clockwise, relieving pressure on the old belt. Slide the belt off the pulleys while referencing the layout to ensure correct routing for the replacement.
- Check pulley alignment before installation–misaligned pulleys accelerate wear. Use a straightedge to verify each pulley sits flush with its neighbor.
- Inspect the new belt for cracks or fraying. A defective belt voids warranties and risks snapping under load.
- Apply mild soap solution to ease the belt over pulleys–lubricants degrade rubber compounds.
Route the new belt following the printed guide exactly–incorrect paths reduce torque efficiency by up to 30%. Start with the engine pulley, then thread through the spindle housings, idlers, and back to the motor. Rotate each pulley by hand to confirm free movement; binding indicates improper seating or debris in the track.
Reattach the spark plug wire, lower the cutting unit, and run the equipment at half throttle for 60 seconds. Monitor for unusual noise or vibration–these signal misrouted belts or tension issues. Adjust tension if needed: the belt should deflect 1/2 inch under moderate thumb pressure. Store the old belt for emergency reference or size comparison.
Repairing Blade Housing Spindles: A Precision Guide
Begin by securing the cutting unit on a level surface with wheel chocks or jack stands to prevent rolling. Disconnect the spark plug wire to eliminate accidental starts. Rotate the pulley system by hand to identify the damaged spindle assembly–listen for grinding or observe resistance.
Remove the belt guards using a 10mm socket; store screws in a magnetic tray to avoid misplacement. Mark the belt routing with a grease pencil before removal–this ensures correct reassembly later. Slide the drive belt off the pulleys carefully to access the spindle housing.
Inspect the spindle shaft for wear or bending. A micrometer can detect deviations greater than 0.002 inches, indicating replacement necessity. Check the housing for cracks using a flashlight–hairline fractures may not be visible without oblique lighting.
- Upper bearing race often fails first due to dust ingress; replace if pitting is evident.
- Grasp the blade mount with locking pliers to prevent rotation while loosening the spindle nut (typically 15/16″ or 1-1/8″).
- Use a bearing puller if the spindle resists removal–avoid hammering, as this can distort the housing bore.
Lubricate the new spindle with high-temperature grease (NLGI #2 lithium complex preferred). Align the splines or keyway precisely during installation to prevent premature wear. Torque the spindle nut to 50-60 ft-lbs using a calibrated wrench–over-tightening risks bearing failure.
Reinstall the drive belt following the marked path. Ensure tension is sufficient: a properly tensioned belt should deflect no more than 1/2 inch under moderate finger pressure. Spin the pulleys by hand to confirm smooth rotation before reattaching guards.
Test the unit on a flat, debris-free surface. Engage the cutting mechanism gradually, monitoring for unusual vibrations or noises. If chattering occurs, recheck spindle alignment–even a minor misalignment can amplify over time.
- Measure blade tip height after replacement–variation greater than 1/8 inch between blades indicates uneven wear or assembly error.
- Recheck all fasteners after 1 hour of operation–vibration can loosen components.
- Store removed parts in labeled bags for future reference–mixed components can complicate subsequent repairs.
