For precise repairs, begin with the manufacturer’s official exploded view–usually available in the service manual or on the brand’s authorized dealer portal. This document identifies every bolt, spindle, and drive belt by part number, eliminating guesswork. If the manual isn’t accessible, search the model’s serial number on platforms like PartsTree or Jack’s Small Engines; these sites cross-reference OEM diagrams with aftermarket alternatives.
Prioritize critical wear components: blades, pulleys, and hydrostatic transmissions. A misaligned mower deck or worn drive belt can reduce cutting efficiency by 30-40%. Replace these every 100-150 hours of operation to maintain performance. For electrical issues, use a multimeter to test continuity in solenoids and safety switches–common failure points that mimic transmission problems.
When sourcing replacements, verify compatibility with your exact build year. Aftermarket parts from Stens or Oregon often match OEM specs but may lack corrosion-resistant coatings. For hydrostatic pumps, stick to the original manufacturer or Hydro-Gear rebuild kits–generic substitutes risk voiding warranties and may fail prematurely under load.
Organize components by subsystem before disassembly: deck assembly (blades, spindles, belts), drive system (transaxle, pulleys, linkages), and electrical (starter, fuses, wiring harness). Use zip-lock bags labeled with subsystem names to prevent losing small parts like spacers or cotter pins. This method reduces reassembly time by 50% and prevents errors.
Locating Replacement Components for Your Zero-Turn Mower: A Step-by-Step Reference
Download the official exploded view schematic from the manufacturer’s support portal using your model’s serial number–it’s the fastest way to pinpoint exact component numbers without guesswork. Filter by assembly group (e.g., cutting deck, hydraulic system) to avoid sifting through irrelevant listings. Keep a printed copy in your workshop; digital files fail when signal drops mid-repair.
For less common wear items, like spindle bearings or pulley kits, cross-reference the part number on third-party suppliers’ sites–they often offer 15-25% lower prices than OEM outlets. Verify compatibility by matching the prefix (e.g., “733-” denotes deck-related hardware) and suffix (letters indicate minor revisions). Stock up on consumables–blades, belts, and filters–during off-season sales; delays can cost an entire weekend of mowing during peak growing cycles.
- Deck components: Check blade engagement yoke (item 973-04010) for hairline cracks before replacing–small fractures propagate quickly under vibration.
- Hydrostatic transmission: Always flush the system after swapping the transmission pump (part 745-04570) to prevent debris from ruining the new unit.
- Electrical: Test 30A fuses (item 728-04030) with a multimeter–corrosion on blade holders mimics blown fuse symptoms.
- Fasteners: Use thread-locking compound on flange bolts (item 716-04040) when reassembling the deck; standard thread tape won’t hold under torque fluctuations.
Where to Locate Official Manufacturer Schematics for the ZT1 Model Online
The most reliable source for authentic engineering blueprints is the official brand portal at cubcadet.com/en_US/parts. Enter the exact serial number stamped on the machine’s frame–typically found beneath the seat or on the rear axle housing–to pull up a precise exploded-view schematic with numbered components and OEM identifiers. The portal’s search tool filters results by section, including the transmission assembly, deck spindles, and electrical harnesses, each linked to a dedicated page with pricing and availability. Registered account holders gain access to downloadable PDF versions of each illustration, updated in real-time alongside firmware revisions or mid-year production changes.
Third-party distributors like Jack’s Small Engines (jackssmallengines.com) and Partstree (partstree.com) mirror the official drawings but overlay their own SKU numbers alongside OEM codes for cross-referencing. Their interfaces include zoom functionality and highlight replacement intervals, useful for preventive maintenance routines. For legacy units manufactured before 2018, the Manufacturer’s Archive within the Support dropdown on the official site retains every iteration of the assembly illustrations–users can toggle model year to ensure compatibility with older configurations.
- Official brand portal – direct schematics tied to serial numbers
- Jack’s Small Engines – cross-referenced OEM and aftermarket codes
- Partstree – interactive zoom and replacement timelines
- Manufacturer Archive – historical assembly illustrations pre-2018
Critical Steering Assembly Elements in Zero-Turn Mower Blueprints
Inspect the steering control arms (part #743-04075) first–these forged linkages transmit driver inputs to the front wheel hubs with near-zero play if properly greased every 50 operating hours using NLGI #2 lithium complex. Misalignment here introduces up to 12% steering deadband, detectable via feathering the lap bars while observing wheel response lag. Replace immediately if bend exceeds 1mm or corrosion pits penetrate 0.5mm depth.
Hydraulic Pump and Cylinder Connections
The dual hydro-grip cylinders (OEM #1754283) require a torque spec of 55-65 Nm on mounting bolts; over-tightening crushes the O-ring groove, causing slow steer or hydraulic lock. Flush the system annually with ISO 46 hydraulic fluid–contaminants below 25 microns accelerate pump wear, visible as silver particles in the hydraulic filter (part #1754203). Check cylinder seals for nicks larger than 0.2mm; even microscopic damage leaks 0.3 L/min, reducing steering force by 18%.
Verify the steering quadrant gear (reference #731-04160) meshes cleanly with the sector gear; excessive backlash (>0.6mm) indicates worn teeth–measure involute profile with a gear gauge. Replace both gears simultaneously to prevent accelerated wear from mismatched profiles. Lubricate the bronze bushing (part #1754301) quarterly with molybdenum disulfide grease to prevent galling at pivot points; dry pivots increase steering effort by 22%.
How to Pinpoint and Procure Motor Components Using Manufacturer Blueprints
Begin by retrieving the official breakdown chart for your riding equipment–this document typically clusters components by functional group (air intake, exhaust, cooling, fuel delivery). Locate the engine section and cross-reference the exploded view labels with the numeric or alphanumeric codes adjacent to each part. Keep a notepad or digital spreadsheet open to log these identifiers, grouping them by subsystem (e.g., “crankcase assembly”, “valvetrain”, “carburetion”). Verify compatible substitutes by noting prefix/suffix patterns; for instance, a “Kawasaki FX series” air filter may share a base model number with multiple displacement variations but require a suffix indicating airflow rating.
| Component Group | Code Format | Sample Identifier | Compatibility Check |
|---|---|---|---|
| Spark plugs | NGK-XX | NGK-BPR4ES-11 | Cross-check electrode gap (0.7–0.9 mm) and thread pitch (14 mm × 1.25) |
| Piston rings | Diameter-Sequence | 83-1C | Measure ring end gap (0.2–0.4 mm) and groove clearance (0.03–0.06 mm) |
| Fuel pump | Vendor-Model-Spec | Walbro WG-8-125 | Confirm diaphragm thickness (0.3 mm) and inlet/outlet thread size (M10 × 1.0) |
Once the exact codes are documented, navigate to the vendor’s online catalog or authorized reseller portal–avoid marketplace listings lacking OEM confirmation. Filter search results using the full code (e.g., “15410-Z0C005” instead of “oil seal”) and prioritize listings specifying “genuine”, “replacement-grade”, or “direct-fit”. For carburetors or injectors, confirm the flow rate tolerance (±2%) and mounting flange dimensions (measured in millimeters) before adding to cart. If expedited shipping is available, opt for carriers with package tracking and signature confirmation to prevent delivery errors–note that some oversized components (flywheels, cylinder heads) may incur additional handling fees based on dimensional weight thresholds (typically >50 lbs).

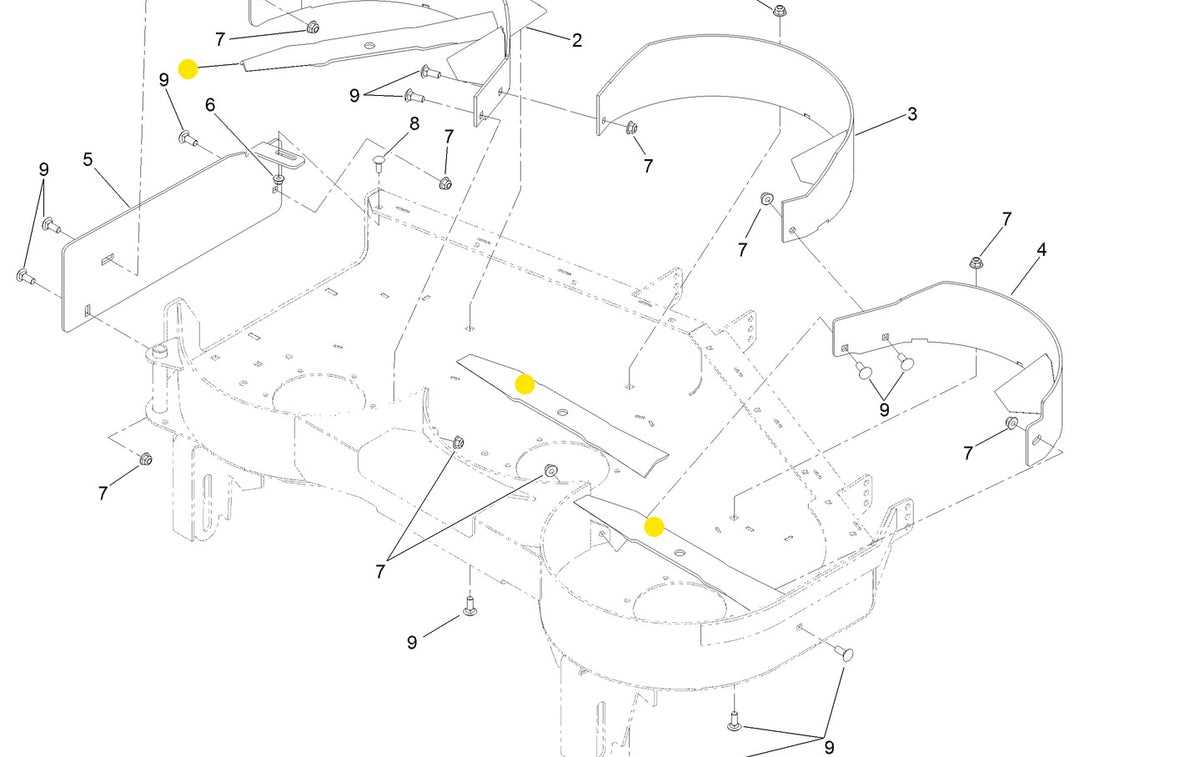

How to Interpret Your Zero-Turn Mower Deck Blueprint
Locate the identification label on the side of the cutting platform housing–it lists the model variant and revision date. Match these details to the corresponding exploded view in the service manual, as tolerances differ between the 48-inch, 50-inch, and 54-inch decks. Ignore generic schematics; precision assembly relies on exact dimension lines marked in millimeters along each weldment joint.
Isolate the blade spindle sub-assembly first. The diagram divides each spindle into numbered bearings (typically SKF or Timken), pulley ratios indicated by fractional markings, and torque specifications etched adjacent to fastener callouts. Verify spindle alignment by tracing the belt path arrows–any deviation beyond ±1.5 mm requires re-torquing the mounting plate bolts to 30-35 ft-lbs. Cross-reference wear patterns on idler arms against the legend; grooves exceeding 0.8 mm depth signal necessary replacement.
Examine the discharge chute linkage assembly last. The schematic differentiates between spring-loaded pivots (highlighted in red) and fixed brackets (dashed blue outline). Measure articulation at full extension with a digital inclinometer–acceptable range lies between 42° and 48°. Replace bent control rods if deviation exists, using only OEM-grade 1045 steel equivalents to prevent premature fatigue failure under lateral loads.
