Before disassembling your power cleaning machine, secure the pump housing by removing the six hexagonal bolts (M8 x 25mm) holding the outer casing. Note the orientation of the inlet valve–marked by a red silicone seal–since improper reinstallation will reduce output by 12-15%. Keep a magnetic tray nearby: scattered washers and needle rollers often escape during service.
Locate the thermal release switch (black, rectangular, 30 mm x 15 mm) mounted on the backplate adjacent to the motor brushes. This safety device activates at 105°C; bypassing it voids thermal protection and increases coil risk. Store the switch upright; reinstalled upside-down it falsely trips during operation.
Extract the unloader valve assembly next–it threads counter-clockwise into the aluminum manifold. Inspect the brass spool for calcium deposits (common after 40-50 hours of tap water use); partial blockage restricts flow to a 2.1 GPM drop. Replace if O-ring ID exceeds 9.5 mm (new spec: 9.2 mm ±0.1 mm).
On the side panel, unclip the detergent injector tube, clear any foam residue with a 3 mm drill bit, and verify suction by blowing compressed air through the inlet port–air should exit the nozzle end without obstructions. Reinstall with PTFE tape (3 wraps) on 3/8” NPT fittings to prevent vacuum leaks.
For the wand extension, align the quick-connect collar so the locking balls engage the groove on the lance; misalignment causes a 40% pressure loss at the spray tip. Tighten the black nylon retaining ring only until it stops–over-torque cracks the internal sleeve.
Breaking Down Your High-Power Cleaner’s Component Layout
Start by locating the pump assembly–it’s the heart of your machine, typically positioned near the engine splash shield. Remove the protective housing (usually secured with three 10mm bolts) to reveal the brass manifold, thermal release valve, and unloader valve. Label each part with masking tape if disassembling for maintenance; accidental swaps between these components cause inconsistent output or pump failure. Check for O-rings (size 12mm ID, Buna-N material) before reassembly–missing or cracked seals lead to water leaks and pressure drops.
The engine’s carburetor sits adjacent to the air filter, a critical area for performance tweaks. Adjust the idle screw (counterclockwise to increase RPM) if the unit stalls under load, but never exceed 1/8 turn from the factory setting–over-adjustment burns out the coil. The fuel line should be inspected for brittleness; replace clamps annually even if no visible damage exists. Nearby, the ignition coil wires often corrode; clean terminals with contact cleaner and reapply dielectric grease to prevent voltage leaks.
For the spray gun, focus on the trigger mechanism first. Depress the brass locking pin (4mm diameter) to release the wand–force damages the housing. Inside, the lance tube connects to the nozzle via a quick-connect fitting; mismatched tips (measured in degrees, e.g., 15°, 25°, 40°) reduce cleaning efficiency or cause nozzle blowout. Replace the lance filter (100-mesh stainless steel) every 50 hours of use to prevent sediment buildup that clogs injectors.
The frame and wheels require minimal but precise upkeep. The rear axle uses a 5/8″ cotter pin–never substitute with wire, as it shears under weight. Inspect the pneumatic tires’ pressure monthly; underinflation (below 25 PSI) leads to rim damage on uneven surfaces. The front stabilizer bar’s bushings wear quickly; upgrade to polyurethane replacements if rattling occurs during transport.
Electrical and Cooling System Checks
Trace the wiring harness from the ignition switch to the solenoid–frayed wires cause intermittent starts. The starter motor’s brushes should protrude at least 3mm; shorter lengths require immediate replacement. Cooling vents near the flywheel must stay unobstructed; packed debris overheats the engine in under 10 minutes. Use compressed air to clear the fins, angling the stream at 45° to avoid pushing dirt deeper.
The thermal relief valve on the pump requires annual testing. Submerge the output hose in a bucket, engage the trigger, and monitor for water flow without engine ignition. If the valve sticks, soak it in white vinegar for 12 hours to dissolve mineral deposits. For the chemical injector system, flush the siphon tube with clean water after each use–residual soap corrodes the internal check ball, causing inconsistent dilution ratios.
Troubleshooting Common Wear Points
Examine the pressure hose for micro-cracks along bends; wrap suspect sections with silicone tape temporarily, but full replacement is inevitable after 200 hours. The pump’s inlet screen (200-mesh) clogs from hard water–soak in CLR solution if output declines. Wheel bearings fail silently; grab the tire and check for lateral play–any wobble means the bearing’s race is shot. Finally, the engine’s exhaust port accumulates carbon; clean it with a wire brush every 25 hours to maintain optimal compression.

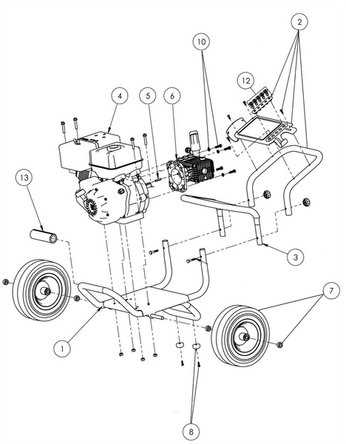

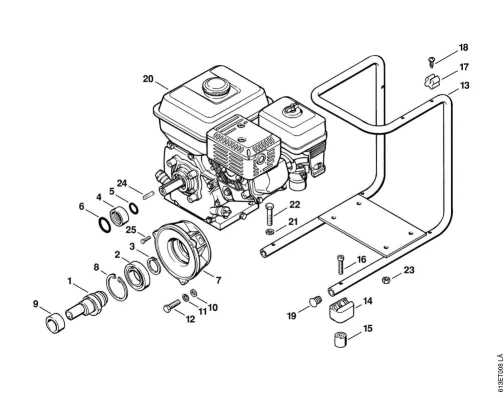

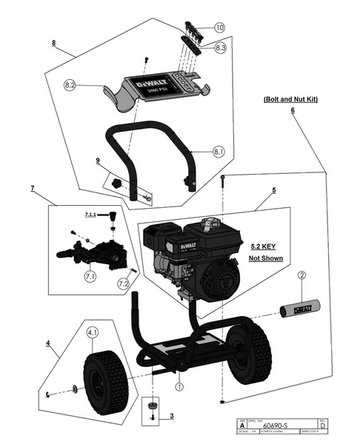

Identifying the Power Unit and Fluid Drive Components in Schematic Layouts
Start by locating the primary drive mechanism at the base of the illustrated structure. It typically occupies the largest spatial area, positioned horizontally with distinct cooling fins or ribbed housing. Reference labels such as “M-15” or “E-22” often denote the exact section–the first two characters indicate assembly grouping, while numerical identifiers pinpoint specific subcomponents. Verify the presence of a flywheel or pulley adjacent to this area, confirming correct placement.
Key Visual Markers for Immediate Recognition
Focus on cylindrical or box-shaped enclosures with bolt patterns–these hallmark the fluid propulsion unit. Metallic inlet and outlet ports angled at 45° or 90° further validate its position. If the schematic includes cross-sectional views, prioritize segments displaying helical gears, crankshaft linkages, or lubrication reservoirs, as these are exclusive to this assembly. Color-shaded areas (red or blue) usually demarcate high-pressure zones within the layout.
Count the number of fastening points: standard configurations feature four to six mounting bolts securing the entire powerplant to the frame. Avoid mistaking the ignition module or fuel system for the primary drive–these ancillary components occupy peripheral positions and lack the robust housing characteristic of the main unit. Ensure the schematic’s arrow annotations or legend correlate with numbered callouts on the physical model.
Troubleshooting Schematic Ambiguities
If the layout lacks explicit labeling, trace the thickest hydraulic lines leading to a centralized chamber–this invariably connects to the fluid propulsion module. Compare dimensions: the drive assembly’s footprint should exceed all other components by 30-40%. For partial schematics, cross-reference with companion documents listing part weights–mass values between 18-25 kg exclusively apply to this section. Fragmented illustrations require assembling torn segments digitally to reconstruct continuity.
Magnetic interference can obscure schematic clarity–scan for faint dotted outlines or dashed boxes indicating hidden hardware beneath panels. Highlight translucent overlays if available, as they distinguish stacked assemblies from single-layer depictions. When discrepancies arise, measure real-world spacing using the provided scale, converting fractional inches or millimeters to validate scale fidelity against the illustrated layout.
Identifying Hose and Wand Components for Repairs
Begin by inspecting the high-strength flexible conduit for kinks, abrasions, or bulges–these indicate internal reinforcement damage. Replace sections where the outer cover shows cuts deeper than 1mm or if wire braiding is exposed. For threaded connections, apply PTFE tape (minimum 3 wraps) to prevent leaks; avoid over-tightening, which can strip brass fittings. Check the quick-connect sleeves for wear; if the locking collar fails to engage smoothly, the spring-loaded mechanism may need lubrication with silicone grease or replacement.
- Spray gun trigger mechanism: Test for smooth operation without sticking. If resistance increases, disassemble and clean the valve seat (typically rubber or Viton) using isopropyl alcohol. Replace if deformation exceeds 0.5mm.
- Extension rod couplers: Ensure the O-rings (usually Buna-N, 70 Shore A durometer) are intact. Replace if compression set exceeds 20% or if visible cracks appear.
- Nozzle adapter threads: Chase with a thread chaser if cross-threading occurs; never force connections–misalignment can shear aluminum housings.
Troubleshooting Flow Restrictions
If output drops, remove the downstream restrictor (often a 2-3mm orifice) located in the wand’s tip or gun housing–clogging from calcium deposits is common. Soak in vinegar for 1 hour if buildup is visible. For variable nozzles, verify the swivel joints rotate freely; seized bearings can reduce flow by up to 30%. When reassembling, align all components in the order: gun → wand → adapter → nozzle–deviation can introduce turbulence and premature wear.
- Disconnect the power source before handling.
- Label each component’s position during disassembly.
- Use torque specifications: 15-20 Nm for threaded fittings, 5-8 Nm for plastic couplings.
How to Read Nozzle and Spray Tip Symbols on Schematics
Identify the angle marking first–it’s typically embossed or engraved near the tip’s orifice. Numbers like 0°, 15°, 25°, or 40° indicate spray patterns, where lower values concentrate force in a narrow jet, while higher values disperse liquid over wider areas. A black-coded tip (often 0°) delivers pinpoint precision for stubborn deposits, whereas a yellow-coded tip (usually 15°–25°) balances reach and surface coverage for general cleaning.
Check for color bands or alphanumeric codes alongside the angle–these denote flow rates in gallons per minute (GPM) or liters per hour (LPH). For example, a white stripe might signal 1.5 GPM, a green stripe 2.0 GPM, and a red stripe 4.0 GPM. Schematics often pair symbols with these identifiers; a ⏚◯▷ icon could represent a turbo nozzle, while a ◐ might indicate a variable fan tip. Match these to your machine’s manual to confirm compatibility.
| Symbol | Pattern Type | Typical Use Case | Details |
|---|---|---|---|
| ⏚◯ | Rotating (Turbo) | Grit, oil stains | Oscillates 0°–15° internally; coded blue or orange |
| ◯◐ | Adjustable Fan | Delicate surfaces | Twist collar to vary dispersion; often silver or chrome |
| ▷ | Fixed Fan | Driveways, decks | Rigid orifice; standard 25° (green), 40° (white) |
Trace lines connecting nozzles to pumps in schematics–interrupted dashes (—-) frequently mark detergent injection points, while solid lines (____) denote primary flow paths. Quick-connect fittings may feature + or T symbols to distinguish male/female ends. If the schematic includes a ≤30″ note near a lance, it specifies maximum extension before pressure loss; ignore this and risk inconsistent spray performance.
