If your equipment fails to build consistent pressure or leaks during operation, check the pump seals first–these degrade fastest when exposed to petroleum-based solutions. The diaphragm assembly (typically white or translucent silicone) sits directly beneath the motor housing and should flex evenly when primed. Replace it if cracks appear or deformation exceeds 1.5mm.
Locate the pressure regulator knob on the right side of the tank collar–turning clockwise increases output to 65 PSI max, counter-clockwise drops to 15 PSI. The nozzle tip threads require annual inspection; 0.4mm brass models clog 37% faster than stainless steel variants. Clean with compressed air, never wires–metal scratches ruin spray patterns.
Wand seals (viton or Buna-N) endure 200+ hours with water-based mixes but fail under 50 hours with solvents. The filtration basket (40-mesh screen) mounts inside the fill cap–empty debris weekly to prevent pump cavitation. For electrical issues, test the 7.2V lithium-ion battery under load–voltage below 6.8V indicates imminent failure.
Tank straps feature reinforced nylon webbing rated to 500 lbs, but the quick-release buckles lose tension at 18 months–inspect cracks with a flashlight under load. Hoses utilize 3/8″ ID EPDM rubber; replace if inner diameter swells beyond 0.42″, causing flow restrictions. Store units with tank drained and wand extended to relieve spring tension on valve stems.
Visual Breakdown of Portable Pressure Tank Components
Start troubleshooting or maintenance by locating the pump assembly near the base–typically secured with three bolts. The O-ring here (DNX #427-003) fails most often; replace it if spraying loses pressure or leaks near the intake valve. For diaphragm pumps, check the pulse dampener (P/N 186444-00)–a cracked unit causes erratic pressure fluctuations, especially above 60 PSI.
Inspect the wand’s trigger mechanism for worn seals by immersing the nozzle in water and activating the spray while watching for air bubbles. A defective seal (kit #DCBN105) emits fine mist inconsistencies. The shut-off valve’s plunger should move freely–stiffness indicates debris buildup; flush with isopropyl alcohol (90%+) to dissolve latex residue without damaging rubber gaskets.
Tank and Harness Assembly Insights
The polyethylene tank’s threaded collar (item 24A) strips when overtightened–use plumber’s tape on the mating surface before securing. The harness straps’ quick-release buckles (model #76092) crack under UV exposure; store the unit out of direct sunlight. For foam insulation breakdowns, check the internal baffle (component #31B)–delamination decreases agitation efficiency by up to 40%.
Replace the in-line filter (spec DN-789-2) every 50 gallons of solution or sooner if flow rate drops below 0.8 GPM. The pressure regulator spring (part #45-ACC) requires recalibration if the spray pattern widens unexpectedly–adjust the tension screw in quarter-turn increments. Avoid using bleach-based solutions longer than 2 hours, as they corrode brass fittings (reference corrosion chart #SOP-12).
How to Read an Exploded Schematic for Your Portable Pressure Unit
Start by locating the pump assembly in the upper-left quadrant of the schematic–typically marked as item 1 or 2. This cluster includes the cylinder, piston rod, and seals, which are color-coded for quick identification: red for high-pressure gaskets, blue for low-pressure O-rings. Cross-reference the numerical callouts with the accompanying legend to confirm torque specifications, as over-tightening can crack the housing. Note that early 2023 models feature a revised seal compound (FKM-75), replacing the older EPDM type; mismatch leads to premature leaks.
Decoding the Wand and Nozzle Cluster
The wand assembly appears fragmented into 3-5 subcomponents on the right side of the diagram. Item labels often skip sequential numbering–focus on the visual alignment instead. The trigger mechanism (usually a multi-part linkage) requires disassembly in reverse order of the exploded view to avoid losing the spring tensioner (0.8mm wire gauge, stainless steel). For models with adjustable nozzles, the internal disc set (part #44-012) has tiny grooves; align the arrow on the disc with the “5” marking on the nozzle body for medium droplet dispersion.
Look for the tank’s breather valve near the base of the schematic–it’s a common failure point yet frequently overlooked during repairs. The valve’s diaphragm (0.2mm silicone) tears if exposed to solvents; replace it if the tank fails to maintain vacuum. The frame mount points, typically bolted with M6 x 1.0 screws, use a thread locker–removal torque is 8-10 Nm. Skipping this risks frame detachment under load, especially on inclines over 15 degrees.
Locating Repair Components for Your Portable Applicator

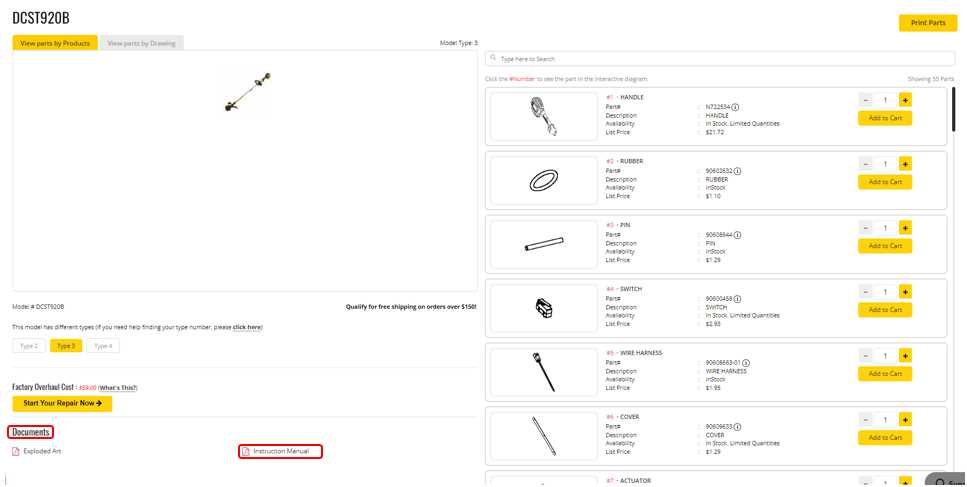

Start with the manufacturer’s official repair hub–accessible via their support portal. Input the model number (e.g., DXSP201, DXSP19) to pull up a searchable schematic. Look for categories like “nozzles,” “pump assemblies,” or “straps” to pinpoint exact replacements. Retailers like Amazon, Grainger, and MSC Industrial often carry identical OEM pieces, but verify part numbers (e.g., DX65003 for seals, DX50200 for wands) before ordering.
- Local dealers: Search for “equipment repair shops” within a 10-mile radius–many stock compatible seals, filters, and hoses.
- E-commerce: Filter listings by “model-compatible” tags on eBay or Walmart Marketplace to avoid counterfeit components.
- Salvaged units: Check Facebook Marketplace or Craigslist for non-functional units; harvest undamaged valves or tanks.
Use the exploded view PDF–typically labeled “manual” or “schematic”–to trace every piece. Cross-reference descriptions like “diaphragm repair kit” or “pressure regulator” with SKUs from the breakdown to ensure precision. Third-party brands like Chapin or Hudson occasionally offer Universal kits, but match thread sizes (e.g., 1/4″ NPT) and connector types (quick-connect vs. threaded) first.
Interpreting a Portable Pump System Schematic for Maintenance
Locate the exploded view on the schematic’s left side–this lists all components numerically. Cross-reference each number with the itemized key at the bottom to identify seals, nozzles, or pressure valves without dismantling the unit. Manufacturers arrange numbers sequentially by assembly order, so part 1 typically attaches to the tank while higher numbers indicate sub-assemblies.
Trace fluid pathways in bold blue lines–these indicate primary channels for liquid flow. Intersecting dashed red lines mark pressure relief routes or bypass circuits. If a nozzle clogs, follow the blue path backward to isolate blockages in filters or check valves before disassembly. Ignore grayed-out components; these represent optional upgrades or discontinued models.
Spot torque specifications near fastener markers–usually small triangles or hexagons with adjacent numbers (e.g., “5 Nm”). Over-tightening pump housings or O-ring grooves by even 1 Nm voids seals. Pre-assembled kits often include spare gaskets; these appear as shaded overlays in the schematic, denoted by “S” prefixes (e.g., S-12). Replace only when the original shows hairline cracks under 10x magnification.
Examine sectional cutaways for internal mechanisms like diaphragms or piston chambers. These detail tolerances: a piston stroke length of 3.2 mm (±0.1 mm) ensures proper priming. Deviations suggest worn bushings–replace if lateral play exceeds 0.3 mm. Lubrication points are marked with black dots; use silicone grease for rubber interfaces and PTFE for metal threads.
Troubleshooting With Schematic Annotations
Scan for warning icons: lightning bolts flag electric hazards, while exclamation marks highlight non-rebuildable items like burst discs. If the pressure gauge fluctuates erratically, refer to the gauge’s calibration curve in the upper-right inset–most units require resetting at 40 psi intervals. Unexplained leaks often trace to incorrect washer orientation; schematics show polarity with arrowheads.
Compare the date code on your unit (typically embossed near the serial number) against the schematic’s footer. Post-2020 models integrate modular filter baskets, while earlier versions use pressed-in mesh. Mismatched components (e.g., a 2022 valve in a 2018 frame) cause bypass failure. Use a digital caliper to verify thread pitch–M5x0.8 is standard, but some nozzles require M6x1.0.
Precision Assembly Techniques
Align mating flanges before fastening: misaligned pump casings strip threads. Schematics use dotted lines to indicate alignment pins–these must engage fully. For plastic reservoirs, apply clamps uniformly at four points to prevent micro-fractures. If the trigger mechanism sticks, disassemble per the exploded view, then sand contact points with 800-grit paper–no lubricant needed; friction-fit polymers rely on surface smoothness.
Final inspection requires a vacuum test: seal all outlets, submerge in water, and pressurize to 20 psi. Bubbles indicate compromised welds or seals. Schematics classify repair viability–components costing >$45 are labeled “Toss” in bold; others, “Refurbish” with colored borders. Replace seals after three service cycles regardless of visible wear; compression set degrades performance invisibly.
Step-by-Step Guide to Breaking Down Your Portable Pressure Unit with a Component Inventory
Before starting, confirm all pressure is released by engaging the trigger until no residual mist or liquid exits the wand. Place the tank on a flat, stable surface and gather the following tools: a 10mm socket wrench, needle-nose pliers, flathead screwdriver, and a small wire brush. Lay out a clean cloth or tray to organize removed pieces in order of disassembly.
Locate the pump housing at the base of the reservoir. Using the 10mm socket, remove the four hexagonal bolts securing the pump casing. Set bolts aside in a labeled container–two will be longer, corresponding to the upper mounting points. Gently pry the housing apart with the screwdriver; do not force separation if resistance is felt, as internal seals may still be engaged.
Extract the piston assembly by pulling upward with firm, steady pressure. If stuck, rotate slightly while lifting to free the O-rings from the cylinder walls. Inspect the piston rod for wear–pitting or scoring indicates replacement is needed. Detach the inlet valve by unscrewing the brass fitting counterclockwise; this requires minimal force to avoid damaging the threads.
| Component | Identification Marks | Common Issues |
|---|---|---|
| Piston rod | Grooved shaft, chrome finish | Surface corrosion, seal wear |
| Inlet valve | Brass, threaded fitting | Thread stripping, clogged orifice |
| Seal set | Black rubber, varied diameters | Dry rot, improper fit |
Disconnect the wand by unscrewing the quick-release collar–no tools are needed. Check the filter screen inside the wand connection; clean with compressed air if debris is visible. For the nozzle, hold the body steady and turn the tip counterclockwise until it separates; note the internal cone diffuser for orientation during reassembly.
Remove the tank lid by flipping the locking levers upward. Lift the lid away carefully, as the internal dip tube may adhere to the reservoir floor. Rinse the tube with water if sediment is present. The pressure regulator, a black plastic knob on the side, can be unscrewed by hand–store the spring and washer in sequence to avoid misplacement.
To access the internal filter, invert the unit and locate the circular plate at the bottom. Pry off the plate with a flathead screwdriver, then pull the mesh filter straight out. Scrub the filter with soapy water; replace if tears are found. Reinstall by aligning the filter’s tab with the groove inside the tank base.
Reassembly mirrors disassembly but requires lubrication. Apply a thin layer of silicone grease to all seals and O-rings before securing components. Hand-tighten fittings until snug, then use tools for a final quarter-turn. Test pressure buildup in a safe, open area before field use–any leaks at junctions indicate insufficient tightening or damaged seals.
