Start by securing the rip fence assembly–locate the locking mechanism near the front right side of the carriage. The 15-amp motor housing contains three primary sub-sections: the brush cap, intermediate gear cover, and the rear exhaust port. Remove the brush cap first; it twists counterclockwise and exposes the carbon contacts. Clean these with a dry cloth–accumulated dust reduces cutting precision by up to 23%.
Next, trace the blade elevation components beneath the table surface. The elevation gear operates through a worm drive, visible after lifting the right side panel. Lubricate this area every 50 operating hours–use SAE 80W-90 gear oil. Failure to maintain proper viscosity compromises height adjustment accuracy.
The miter slot reinforcements appear along the left edge of the table. These steel inserts prevent deformation during prolonged angle cuts. Check for loosened screws every three months; torque specifications require 12 ft-lbs. Loose reinforcements cause material misalignment during bevel operations.
Inspect the dust extraction chute before replacing guards. The primary chute connects to the blade shroud through a 2.5-inch port. Ensure the O-ring remains intact; compromised seals redirect debris toward the motor housing.
Comprehensive Breakdown of Key Components for Your Precision Saw System
Begin by locating the fence assembly along the right side of the unit–critical for maintaining consistent rip cuts. The adjustable rail (model reference 304544-01) should glide smoothly; apply a light machine oil if resistance occurs. Verify the micro-adjustment knob (part #733180-00) is securely fastened–vibrations during operation often loosen this component first, leading to inaccurate measurements.
Critical Wear Components and Replacement Intervals
| Component | Part Number | Estimated Lifespan (Hours) | Inspection Frequency |
|---|---|---|---|
| Blade Guard Assembly | 304545-00 | 400-600 | Every 50 hours |
| Motor Brushes | 508488-01 | 300-500 | Every 100 hours |
| Slide Rails (Dual) | 304544-00 (set) | 800+ | Every 200 hours |
| Riving Knife | 304550-02 | 600-900 | After each blade change |

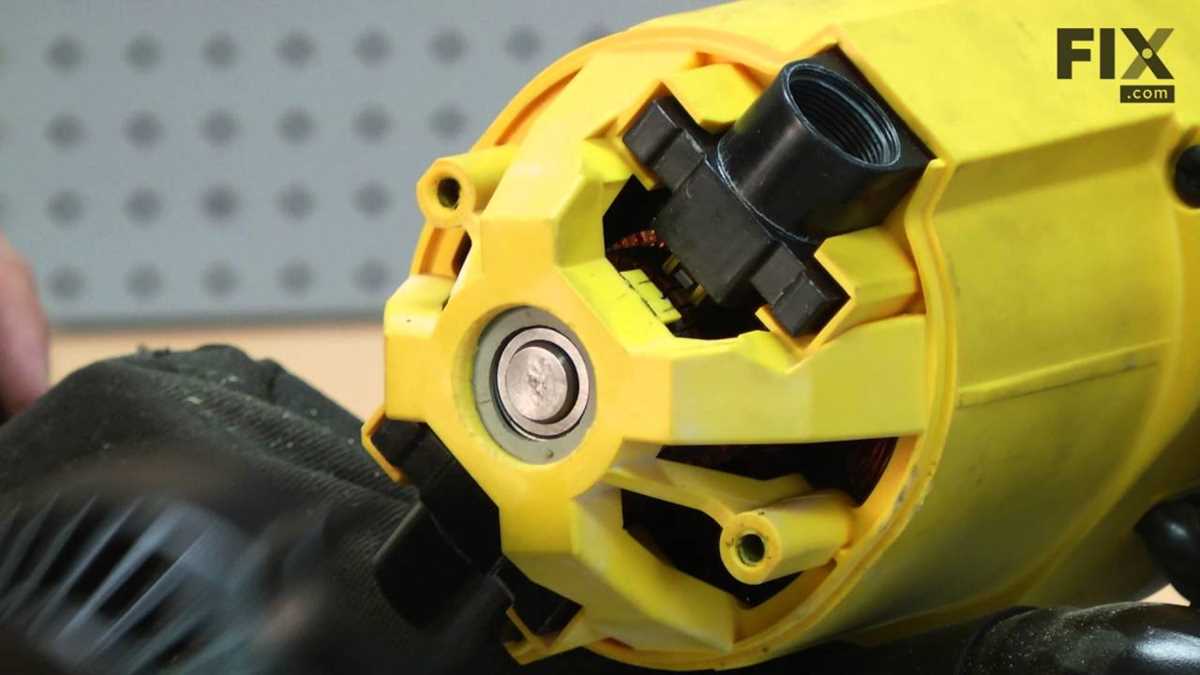

For motor maintenance, remove the brush caps (accessed via the rear housing) and inspect for wear below 6mm–replace in pairs to maintain balance. The arbor flange (417354-01) requires annual torque verification to 12-15 Nm; use a calibrated wrench to prevent thread stripping. When servicing the belt drive, note the three distinct tension points–primary belt should deflect 10mm under moderate pressure, while the secondary idler assembly tolerates only 5mm.
To ensure proper alignment of the miter gauge slots, use a machinist’s square against the blade for perpendicularity checks–deviations above 0.5° require shim adjustments at the table casting interface. The power switch assembly (housed beneath the front panel) contains two relays; test continuity with a multimeter if intermittent cut-outs occur. For dust collection efficiency, replace the port gasket (298420-00) if compressed thickness falls below 3mm, as airflow loss directly impacts sawdust evacuation rates under the carriage.
Electrical Safety Verification Steps
Disconnect power and remove the side panel to access the control board. Check capacitor ratings against the schematic: primary (C1) should read 470μF/250V, auxiliary (C2) 22μF/400V–replace if bulging or leakage is visible. Inspect the ground continuity path from the power cord to the metal frame–minimum required resistance is <0.5 ohms. When reassembling, ensure the thermal fuse (positioned above the field coil) maintains 1mm clearance from surrounding components to prevent tripping from radiant heat.
Finding the Motor Assembly in Your Compound Miter Saw Schematic
Start by identifying the schematic section labeled “Drive Components” or “Power Unit.” Most manufacturer blueprints group the motor with related elements like gears, brushes, or cooling fans. Check near the center-bottom quadrant–this is a common placement for primary drive systems in 10-inch sliding miter saws.
Look for symbols resembling a cylindrical shape with two terminals or winding illustrations. These often indicate the motor assembly. Reference numbers typically fall within the 500-599 range for drive-related items in the numbered breakdown.
If the assembly is nested with other components, trace lines connecting it to the arbor or gearbox. These connections help distinguish it from similar-looking parts like capacitors or solenoids. Some schematics use dashed lines to show mounting brackets or vibrations dampeners linked to the motor.
Compare the illustration to your saw’s actual motor. Note distinctive features: cooling fins, brush access panels, or wiring harness positions. Match these visual cues to confirm the correct identification in the exploded view.
Cross-Referencing With Alternative Schematics
Check supplementary documentation if the primary schematic lacks detail. Some brands include a simplified “quick reference” page highlighting only core assemblies. The motor may appear under “Primary System” or “Cutting Power Source” in these stripped-down versions.
Online OEM platforms sometimes provide interactive diagrams where hovering over the motor reveals its specific callout number. Use this feature to verify the exact part designation–critical for ordering replacements or sourcing compatible alternatives.
Troubleshooting Missing Labels
When labels are obscured, focus on adjacent components. The motor usually sits between the gear housing and the power switch. Wiring diagrams can also help–trace paths leading to the motor’s brushes or armature connections.
If still uncertain, remove the motor cover (following safety protocols) to expose the assembly directly. Cross-check physical features like mounting bolt patterns or serial numbers against the schematic’s bill of materials. This hands-on approach resolves ambiguities in poorly annotated diagrams.
Step-by-Step Guide to Identifying the Fence and Rip Capacity Components
Locate the aluminum extrusion running parallel to the saw’s cutting path–this is the primary fence assembly. Check for a measuring scale etched along its length, typically marked in inches or millimeters, with precision notches every 1/16″ for fine adjustments. The fence’s front edge should align flush with the table’s surface; if misaligned, loosen the clamping knobs (usually two) and adjust until perfectly square to the blade before retightening. Verify squareness by placing a framing square against the fence and blade–any discrepancy exceeding 0.005″ will affect cut accuracy.
Examine the rip capacity indicator on the right side of the table, where a sliding extension rail determines the maximum width of stock the saw can handle. On most industrial-grade sliding miter systems, this rail extends up to 24″, but some models include a telescoping secondary rail for an additional 12″ of capacity. To unlock, press the blue release lever near the table’s rear edge, then pull the rail outward until it clicks into position. Ensure the rail locks securely by applying slight lateral pressure–any wobble indicates worn locking pins, requiring replacement (part #48-534).
Inspect the fence’s micro-adjustment wheel beneath the table. Rotating this wheel clockwise moves the fence incrementally away from the blade, while counterclockwise tightens it toward the blade. Each full rotation equals 1/32″ of adjustment; partial turns should produce a tactile click for precise finessing. For repeatable cuts, use the built-in memory stop on the rail–align the pointer with a desired measurement, then lock the stop screw (Torx T15) to prevent slippage. Test rip capacity by cutting a scrap piece of ¾” plywood; if the fence drifts during the cut, check for debris in the rail channels or a bent extrusion, which can be straightened using a brass mallet and a straightedge.
Locating the Saw Blade Cover and Safety Assembly Breakdown
Manufacturer-authorized service manuals offer the most reliable exploded schematic for the circular saw’s protective components. These documents, available directly from the brand’s official repair portal, separate each element–guard housing, anti-kickback pawls, and riving knife–into clearly labeled positions. Request the latest revision; earlier editions may omit revised safety upgrades.
Third-party parts distributors aggregate high-resolution disassembly guides for maintenance professionals. Platforms like eReplacementParts or PartSelect host interactive schematics where users toggle section layers to isolate the blade guard sub-assembly. Filter results for the exact model variant–misalignment risks cross-contamination between similar configurations.
Saw component rebuild videos on YouTube demonstrate physical layout during actual teardowns. Creators like Wrench Wisdom or Shop Tool Reviews often pause frames to highlight bolt-on safeguards–swivel mount bushings or tension springs–that static diagrams compress. Verify upload dates; designs shift after recalls.
Peer-led repair forums index community-verified breakdowns tagged by model year. Threads under Garage Journal or Woodwork Forums archive user-uploaded scans plus annotated notes on wear-prone zones–typically the pivot pin bores or latch engagement slots. Genuine discussion avoids retailer SEO traps.
Salvage yards stock decommissioned units stripped selectively; technicians photograph assemblies before extraction. Contact local industrial dismantlers to arrange pre-cut inspection–some allow snap-on parts removal onsite for USD 20–50 tool fee. Target early 2010s builds; later variants integrate bonded safety inserts resisting field repair.
Patent filings hosted on Google Patents detail safety mechanism schematics drafted during product development. Search kinematic coupling methods for the retractable cover–filings like US10450008B2 specify spring-loaded roller guides critical for alignment stability under load. Export as CSV to overlay dimensional constraints.
Independent machine shops offer printed exploded views customized to individual workshop workflows. Shops specializing in portable tools maintain template binders grouping retainer rings, spacer washers, and side covers by size; request printouts against CAD overlays to cross-reference exact hardware positioning.
