Selecting high-quality insulating glass units (IGUs) with argon or krypton gas fill between panes reduces thermal transfer by up to 30% compared to standard air-filled assemblies. Opt for low-emissivity (low-E) coatings applied to the inner pane surfaces–these reflect infrared heat while allowing visible light to pass, cutting energy loss by 10–15 watts per square meter.
Frame materials dictate durability and performance. Fiberglass delivers the best thermal resistance (R-value of 5–6), followed by vinyl (R-2 to R-4), wood (R-1.5 to R-2.5), and aluminum (R-0.6)–though aluminum requires thermal breaks to prevent condensation. Specify thermally improved frames with reinforced polyurethane cores in high-wind zones, where structural integrity can be compromised under pressures exceeding 1,500 Pa.
Sash and sill design influence water drainage and air infiltration. Sloped sills with integrated weep holes prevent moisture buildup–ensure holes are spaced at 150–200 mm intervals and protected by baffles to block wind-driven rain. Tilt-and-turn mechanisms require dual gaskets (outer compression seals and inner bulb seals) to achieve air leakage rates below 0.2 m³/m²·h at 75 Pa, meeting EN 12207 standards.
Glazing spacers form the edge seal of IGUs. Warm-edge spacers made from stainless steel, silicone foam, or thermoplastic reduce condensation risk at glass edges by maintaining surface temperatures 5–7°C higher than conventional aluminum spacers. Verify spacer thickness–standard 12 mm configurations optimize acoustic insulation, while 16 mm units improve thermal performance in extreme climates.
Hardware selection directly impacts operational lifespan. Heavy-duty multi-point locking systems distribute force evenly, minimizing stress on hinges and extending cycle life beyond 20,000 operations. Specify corrosion-resistant stainless steel (304 or 316 grade) for coastal installations, where salt spray accelerates degradation by 3–5 times compared to inland environments.

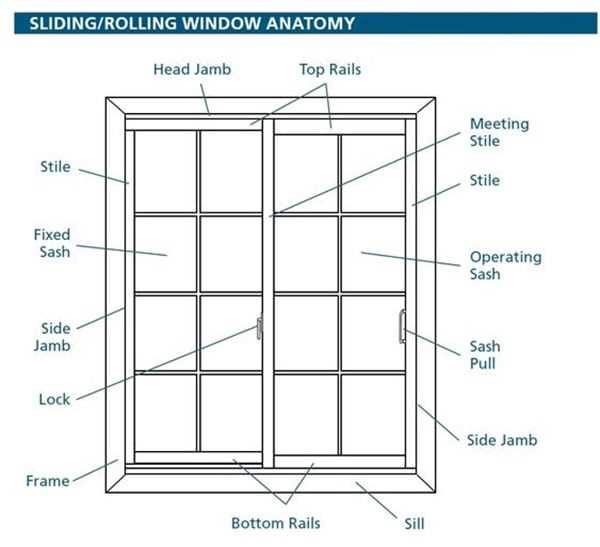

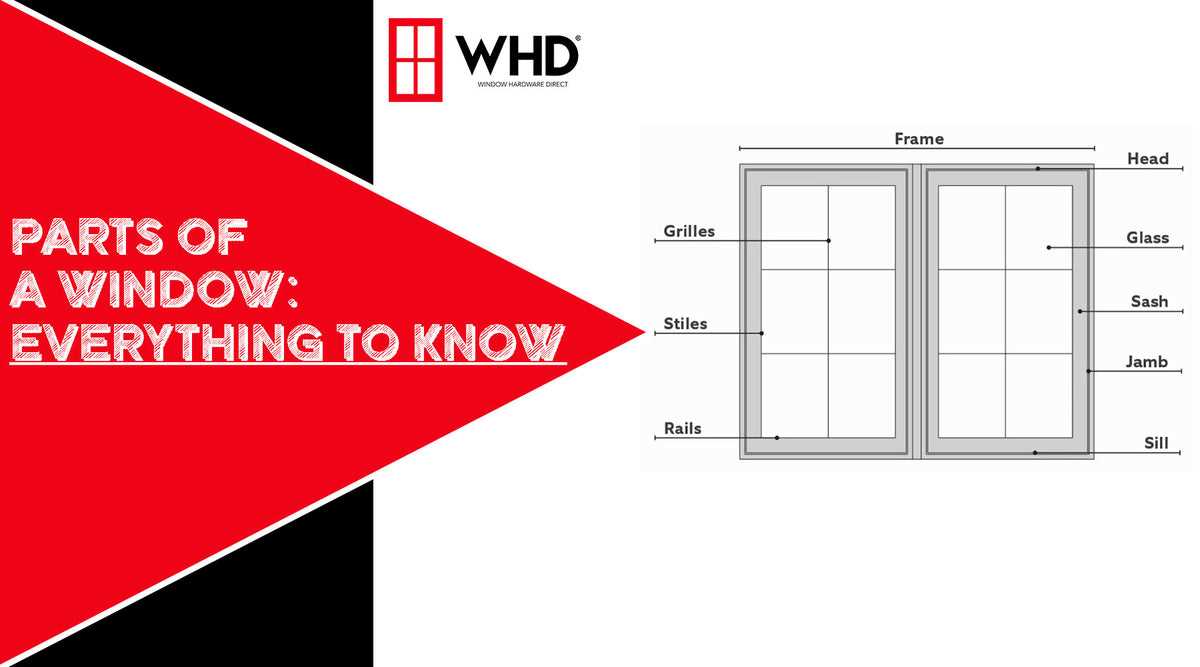

Understanding Structural Components of a Glazed Opening
Begin by labeling the frame–the load-bearing perimeter that anchors the entire assembly. Use aluminum, vinyl, or wood composites for durability; avoid untreated softwoods in humid climates due to warping risks. Specify the sill angle: a 5–15° slope ensures water runoff, while a flat sill collects pools that accelerate deterioration.
Break down the sash into three critical zones:
- Glazing bead: Secures glass with 8–12 mm clearance; silicone gaskets outperform rubber for UV resistance.
- Meeting rail: Dual-contact surfaces on double-hung units demand weatherstripping thickness 0.5 mm above frame gaps to prevent drafts.
- Stiles: Vertical members must resist shear forces; fiberglass resists torsion better than PVC but requires thermal breaks to reduce condensation.
Select glass units based on climate: low-emissivity coatings reduce heat transfer by 30% in cold regions, while tinted layers cut glare but increase summer surface temperatures by 5–8°C. Spacer bars between panes should use foam-filled aluminum for rigidity–avoid hollow spacers that allow moisture ingress.
Hardware Placement for Optimal Function
Install hinges at 1/3 height from the top on casement styles to balance weight distribution; offset pivot arms by 12 mm for smooth operation. Locking mechanisms demand dual engagement points–latch hooks paired with multipoint bolts secure against forced entry, while single-point locks risk frame deformation under pressure.
Choose ventilation controls with precision: friction stays maintain open positions but wear out after 5,000 cycles; cantilevered restrictors limit openings to 100 mm for child safety but require annual lubrication. For sliding configurations, nylon rollers reduce track friction by 40% compared to steel wheels, but degrade faster under UV exposure.
- Verify weatherproof seals post-installation with a 0.03 mm feeler gauge–gaps >0.1 mm indicate compression set failure in EPDM strips.
- Test thermal breaks with infrared scans: temperature differentials >3°C across frames signal inadequate insulation.
- Inspect drainage paths quarterly–clogged weep holes in sills cause hydrostatic pressure buildup, leading to adhesive failure in glazing.
Critical Load-Bearing Elements in a Glazing Unit Section
Inspect the jamb first–its thickness must exceed 68 mm for double-glazed units in high-wind zones or multi-story facades. Solid hardwood or reinforced uPVC minimizes deflection under lateral loads, while aluminum-clad versions require thermal breaks to prevent condensation bridging. The sill should extend past the exterior wall face by at least 25 mm to direct water runoff away from the framing; sloping the surface at a 10° angle ensures self-cleaning during rainfall.
Embed the glazing beads flush with the sash; a 4–6 mm edge clearance prevents stress cracks under thermal expansion. Low-emissivity coatings on the third surface (counting outward from the interior) reduce radiant heat loss by 30–40% compared to standard glass, but require argon-filled cavities with ≤ 0.2% leakage per year. Verify the mullion depth–minimum 100 mm for triple-pane assemblies–with structural silicone adhesive rated for 20.7 MPa shear strength to prevent sealant failure under snow loads.

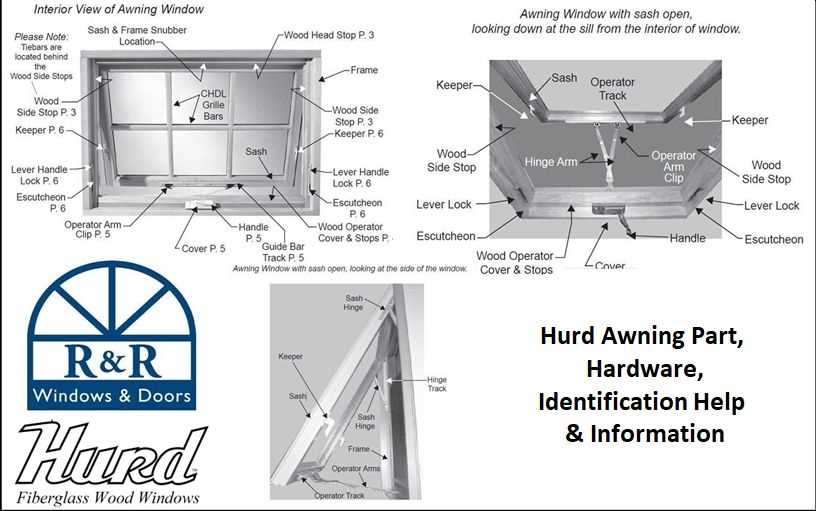

Key Mechanical Components and Their Operational Roles in Openings
Install multi-point locking systems with at least three engagement points–top, bottom, and central–to enhance security under lateral force. Standard espagnolette mechanisms distribute load evenly, reducing warping risk in frames under 30mm depth (opt for steel-reinforced variants for widths exceeding 1200mm). Replace worn spiral balances every 5–7 years; a 23-lb force imbalance can misalign sashes, increasing sealing gaps by up to 40%. For casement units, select friction hinges rated for 80 kg minimum–cold-rolled steel outperforms zinc alloys in coastal climates, resisting corrosion for 15+ years without lubrication.
Adjustable restrictor stays must limit opening angles to 100° (±5°)–exceeding this range strains hinges and voids manufacturer warranties. Use nylon roller catches on sliding panels: they reduce track wear by 60% vs. metal-on-metal contacts and require no maintenance beyond annual silicone spray. For tilt-and-turn configurations, prioritize dual-action handles with integrated childproof locks; models lacking micro-switches fail to engage deadbolts, compromising forced-entry resistance by 3x.
Detailed Breakdown of Glazing Layers and Seal Types
Opt for at least three glazing layers in climates with extreme temperatures–below -15°C or above 40°C–to reduce heat transfer by up to 50% compared to double-pane alternatives. The outer pane should use low-emissivity (Low-E) glass with a metallic oxide coating, reflecting infrared heat while allowing 70% of visible light transmission. For the inner layers, select tempered glass with a thickness of 4-6mm to improve impact resistance and noise reduction (up to 35dB for triple-glazed units). Avoid standard annealed glass in high-traffic or wind-prone areas, as it cracks under stress.
Critical Seal Specifications
- Primary seal (polyisobutylene–PIB): Must be a continuous bead, 3-5mm wide, to prevent moisture ingress. PIB’s water vapor transmission rate (WVTR) of 0.05 g/m²/day ensures long-term performance, but degradation accelerates above 60°C–replace if brittleness is detected.
- Secondary seal (silicone/polysulfide): Silicone withstands temperatures from -60°C to 180°C, ideal for coastal or industrial zones, but costs 30% more than polysulfide. Polysulfide, while cheaper, fails in UV-heavy regions unless protected by an aluminum spacer. Specify a dual-seal system where structural integrity matters (e.g., skylights).
- Spacer material: Warm-edge spacers (stainless steel or thermoplastic) reduce thermal bridging by 25% vs. aluminum. Foam-filled options add insulation but require edge-deletion of Low-E coatings to prevent outgassing.
Inspect seals biannually: bubbles, fogging, or condensation between panes indicate seal failure, necessitating full unit replacement within 6 months to avoid frame warping. For humid or saline environments, add a third sealant layer–nanotech-infused rubber–to extend lifespan by 40%.
How to Determine and Name Various Cladding Types on Glazing Units
Begin by examining the outer edges where the glass meets the building structure. Vinyl casements often feel hollow and lightweight, with visible horizontal or vertical seams indicating extruded sections fused at joints. Measure thickness–standard profiles range from 2.5 to 3.5 mm, while reinforcement (if present) adds rigidity in critical stress points like locks or hinges.
Aluminum surrounds reveal themselves through cool metal surfaces, sharp 90-degree bends, and thin cross-sections typically 1.2–1.8 mm thick. Look for powder-coated finishes or anodized surfaces that resist corrosion; untreated aluminum oxidizes into a chalky gray patina. Thermal breaks appear as dark or lighter non-conductive strips between inner and outer metal layers–these reduce condensation and heat transfer.
Wooden surrounds show natural grain patterns, though premium versions may display engineered layers or laminates. Softwoods like pine dent easily under fingernail pressure, while hardwoods such as oak or mahogany resist scratches. Painted or stained surfaces hide imperfections but check for swelling near moisture-prone areas (sills, bottom rails). Modern composites blend wood fibers with polymers–these feel slightly plastic-like but retain wood appearance.
Fiberglass casements mimic wood visually but lack organic texture. Tap the surface–it produces a dull thud rather than the sharp *clink* of metal. Cross-sections reveal layered fiber construction, often with smooth edges and uniform color throughout. Durability tests show fiberglass expands and contracts at rates closer to glass than other materials, reducing seal failure in thermal cycles.
| Material | Surface Texture | Thermal Conductivity (W/m·K) | Weight per Linear Meter (kg) | Common Finish Treatments |
|---|---|---|---|---|
| Vinyl | Smooth, matte | 0.16 | 0.9–1.3 | UV-stable pigments, foamed cores |
| Aluminum | Cool, metallic | 205 | 1.1–1.8 | Powder coat, anodizing |
| Wood | Grainy, porous | 0.12–0.19 | 1.5–2.5 | Stain, paint, epoxy sealants |
| Fiberglass | Lightly textured | 0.23 | 1.0–1.4 | Gel coat, integral pigments |
Steel casements stand out through extreme durability–expect heavy sections (2.0–3.0 mm thick) and welded joints rather than mechanical fasteners. Surface treatments include galvanizing (zinc coating) or hot-dip processes, evident through spangled crystalline patterns. Rust initiates at scratches; pre-painted versions show slight orange-brown discoloration at compromised spots.
Hybrid systems combine materials, often with aluminum exteriors and wood or fiberglass interiors for aesthetic warmth without sacrificing weather resistance. Check the divide between inner and outer layers–if no thermal break exists, the metal will conduct cold or heat into the interior space. Label these by dominant exterior material (e.g., “Aluminum-Wood Hybrid”).
Scratch a hidden area with a knife to test layered materials. Vinyl yields white shavings, while fiberglass exposes tiny fibers. Wood reveals natural color beneath finishes, and aluminum leaves a gray streak. Avoid testing visible surfaces to prevent permanent damage. Record observations immediately to distinguish subtle differences in grouped installations.
Prioritize foil or UV labels at hinge points, lock locations, and weatherstripping grooves. Use permanent markers for field identification, noting material type, thickness, and any reinforcing inserts. Photograph standardized details (e.g., corner joints, sill angles) to reference later–this ensures consistency when updating building documentation or ordering replacement components.
