To understand how a mechanical wrist instrument operates, begin by isolating its core elements. The mainplate serves as the foundation, housing all internal workings in a single rigid frame. Attached to it are the bridges, which secure the gears and springs in precise alignment–any miscalculation here disrupts accuracy. Examine the barrel next: its coiled spring stores energy and drives the entire system for 40+ hours in high-quality models, though cheaper alternatives may last only 24 hours before needing rewinding.

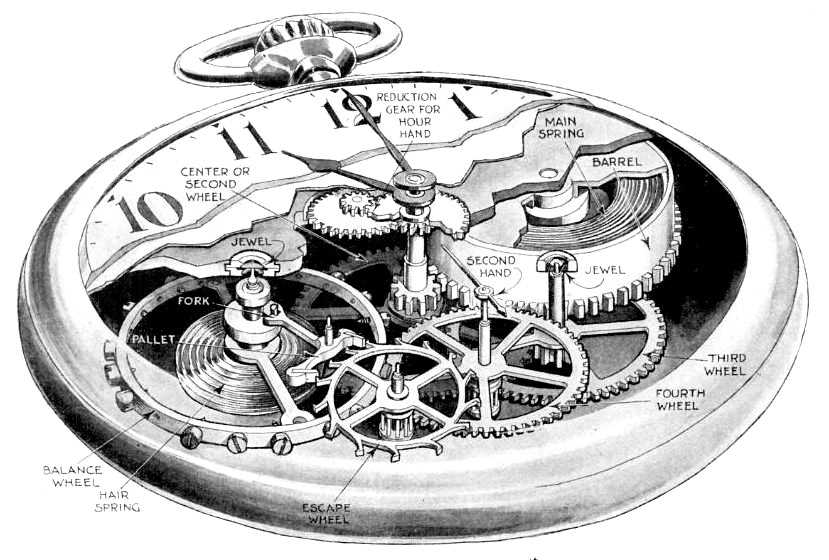

The gear train consists of multiple wheels (typically five: minute, intermediate, third, fourth, and escape) that transmit power from the barrel to the escapement. This component regulates energy release in precise increments–usually 4-6 ticks per second–via the pallets and escape wheel. The balance wheel oscillates at a consistent frequency (e.g., 28,800 beats per hour in modern Swiss movements), acting as the heartbeat of the device. Its hairspring–a coiled wire just 0.03mm thick–determines rate consistency, where even a 1% deviation equals a 14-minute daily error.
External elements demand equal scrutiny. The case (often 316L stainless steel or 18K gold) protects internals from dust and moisture, with water resistance ratings ranging from 30m (splash-proof) to 300m (professional diving). The crystal–sapphire in premium models, mineral glass in budget options–shields the dial while maintaining 9H hardness for scratch resistance. Under the crystal, the dial displays time via indexes, hands, or sub-dials, with luminescent materials like Super-LumiNova ensuring visibility in low light. Replace batteries every 12-24 months for quartz variants, but expect a mechanical movement to outlast generations with proper servicing.
Key Components of a Timepiece and Their Functions
Begin by identifying the movement type–mechanical calibers require more care than quartz. Lubricate pivots every 4-5 years for automatic movements; use only manufacturer-recommended oils (e.g., Moebius 9010 for high-speed gears). Store mechanical pieces in a dry environment between 20-25°C to prevent moisture damage to the mainspring and escapement.
Examine the crystal material before cleaning–sapphire withstands scratches but chips under impact, while mineral glass is prone to superficial marks. Remove dust with a microfiber cloth; for stubborn debris, use isopropyl alcohol (99% concentration) sparingly on non-coated surfaces. Avoid ultrasonic cleaners for vintage cases with aged seals.
| Component | Material Options | Maintenance Interval | Failure Symptoms |
|---|---|---|---|
| Caseback | Stainless steel, titanium, gold | Inspect every 2 years | Loosening, water ingress |
| Strap | Leather, metal, rubber | Replace every 3-5 years | Cracks, pin loss |
| Battery (quartz) | Silver oxide | Replace at 2-3 years | Slowing, erratic behavior |
Check the crown’s sealing gasket biannually–turn it multiple times in both directions while submerged in water to test pressure resistance. Broken crowns often indicate stem tube corrosion; replace immediately to prevent moisture seeping into the dial train. For screw-down crowns, ensure the threading remains free of debris.
The dial’s finish affects readability–sunburst surfaces scatter light while matte reduces glare. Refinish scratched dials only in controlled environments to prevent dust embedding under lacquer. Minute markers made from luminous material (e.g., Super-LumiNova) degrade after 10+ years; avoid exposure to UV light to prolong visibility.
Inspect the rotor noise in mechanical timepieces–unusual grinding suggests worn bearings. Secure the rotor with a torque of 0.1-0.15 Nm during reinstallation; overtightening strips threads. For silent rotors, add a small amount of industrial grease (e.g., Klüber P125) to the ball bearings.
Disassembly Precautions
Always place screws and miniscule components in a container with labeled compartments–magnetized trays help prevent accidental loss. Handle jewels (e.g., pallet stones) with non-metallic tweezers to avoid chipping. Before reassembly, test each gear train segment individually using a timegrapher to detect amplitude drops.
Replace deteriorated seals with O-rings of identical Shore hardness–softer (Shore 50) deforms under pressure, harder (Shore 90) risks cracking. Apply silicone grease sparingly to prevent excess seeping into the movement. Pressure-test to 10% above rated water resistance (e.g., 33m → 36m) to validate integrity.
Core Movement Components in Timekeeping Mechanisms
Begin by locating the mainspring–typically housed in the barrel. This coiled ribbon stores energy when wound and releases it gradually to power the entire system. Its torque must be precisely calibrated; too loose and the escapement falters, too tight and friction increases wear on pivots. Measure the spring’s tension with a torque meter before disassembly–ideal readings fall between 5-7 g-cm for most manual-wound calibers.
The escapement, consisting of the escape wheel and pallet fork, acts as the heartbeat of the mechanism. Inspect the faces of the escapement jewels under 10x magnification–hairline fractures or pitting disrupt impulse transfer, causing inaccuracies. Verify the drop angle (1-2°) with a timing machine; deviations exceeding 0.5° require recutting or replacement. Lubricate the pallet stones with Moebius 9010, applying a single 0.2mm dot per jewel to avoid excess buildup.
- Balance wheel: Check for concentricity using a wobble gauge–tolerances should not exceed 0.02mm. Damaged or unbalanced wheels introduce positional errors, especially in vertical orientations. Heat-blues the balance spring to 290°C for 10 minutes to stabilize elasticity. Use a poising tool to identify heavy spots; remove material in 0.1mg increments.
- Hairspring: Ensure the outer coil aligns with the stud without distortion. Kinks alter beat error by up to 10 seconds per day. Adjust the terminal curve with brass tweezers–never steel–to prevent magnetic interference. A properly shaped Breguet overcoil improves isochronism by 30-40%.
- Jewels and pivots: Examine pivots under 30x magnification–scoring or worn shoulders increase friction coefficient by 200-300%. Polish damaged pivots with diamantine paste (0.5µm) and replace ruby jewels if cracks exceed 0.05mm. Reassemble with Olivetti 9415 grease on the cap jewels to retain lubricant within the pivot’s 0.015mm clearance.
Gear train bridges must be secured with screws torqued to 2.5-3.5 cN·m. Loose screws introduce 5-8µm play, amplifying backlash throughout the train. Verify pinion engagement with the escape wheel–optimal meshing leaves 0.03mm clearance at the deepest point of the tooth profile. Misalignment increases power loss by 12-15% and accelerates wear on lantern pinions.
Regulate chronometric performance using a timing machine. Adjust the regulator index in 0.1° increments; each step alters daily rate by ~4 seconds. For thermal compensation, substitute Nivarox alloys for steel hairsprings–temperature-induced deviations drop from ±0.3s/day/°C to ±0.05s/day/°C. Test in three positions (dial up, crown down, crown left) and average deviations; positional errors should not exceed ±6 seconds after adjustment.
- Wind the mainspring completely and let it unspool while monitoring amplitude on a timegrapher. Amplitude below 270° indicates excessive friction–recheck jewel holes, lubrication, and escapement drops.
- Clean components ultrasonically in L&R cleaner (6 minutes at 40°C), followed by two rinses in isopropyl alcohol (99.9% purity). Air-dry with ionized blowers to prevent static buildup, which attracts dust particles as fine as 1µm.
- Reassemble with tweezers sterilized in acetone. Mask magnetic fields by storing completed movements in Mumetal cases; even a 5 Gauss field can induce ±20 seconds/day error.

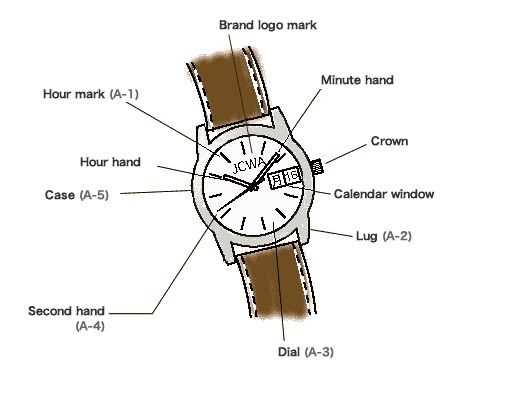

How to Label Externals: Bezel, Case, and Crystal Breakdown
Start by identifying the bezel’s function before marking it. Measure its rotation (unidirectional or bidirectional) and note material–stainless steel, ceramic, or aluminum–since this dictates labeling precision. For dive-scale bezels, annotate the 60-minute markers first, then the luminous pip at 12 o’clock. If it’s a fixed bezel, specify its decorative engravings or tachymeter scale in millimeters from the inner edge. Avoid generic terms like “outer ring”; instead, use “rotating GMT bezel” or “stationary dress flange” to distinguish variants. For assemblies with screws (e.g., Rolex Submariner), indicate their recessed placement relative to the flange’s diameter.
When labeling the case, separate the midsection from the lugs and crown guards if present. Measure the lug-to-lug distance in tenths of a millimeter and note the finish–brushed, polished, or PVD-coated–to avoid misrepresenting wear points. The crystal’s classification (sapphire, mineral, or hesalite) should include thickness in microns and any antireflective coating (single vs. double-sided). For sapphire, specify its hardness rating (Mohs 9) and curvature radius if domed or box-shaped. Annotate the gasket channel width beneath the crystal lip if servicing requires seal replacement.
Understanding Dial Features: Hands, Markers, and Subdials
Choose hands with luminescent coatings for readability in low light–tritium or Super-LumiNova last longer and require no charging, unlike photoluminescent variants that fade after a few hours. Minute hands should be at least 1mm thinner than hour hands to avoid visual overlap, while seconds hands benefit from a contrasting color tip (e.g., red) to improve tracking precision. Avoid overly ornate designs on pilot-style timepieces; thin, tapered hands are optimal for legibility at a glance.
Hour markers must strike a balance between size and spacing. Indexes wider than 1.5mm risk crowding the dial, while those narrower than 0.8mm become difficult to read under stress. Applied markers (metal) hold up better than printed ones, which can fade or chip over time. For chronographs, ensure primary markers align with the 12, 3, 6, and 9 positions–secondary scale divisions (e.g., tachymeter) should use a font 30-40% smaller to prevent clutter.
Subdials demand strict placement rules. A three-counter layout works best with 30-minute registers at 9 o’clock, small seconds at 6, and 12-hour counters at 3–this distributes weight evenly without obscuring critical information. For flyback functions, position the reset pusher within 10mm of the crown to allow single-handed operation. Avoid subdials smaller than 8mm in diameter, as they compromise usability. Monochrome dials benefit from recessed subdials (sunken) to create depth, while high-contrast designs (e.g., white on black) can use flat counters.
When selecting materials, rhodium-plated hands resist corrosion but reflect light, potentially causing glare–matte finishes (e.g., brushed steel) mitigate this. For dive instruments, hands with lume channels should be at least 2mm wide to accommodate sufficient luminescent material. Subdial needles must move in logical directions–an anti-clockwise 30-minute counter at 9 o’clock is counterintuitive; always prioritize clockwise rotation for chronograph functions.
Common Pitfalls in Dial Design
Excessive text (e.g., brand logos, model names) reduces legibility–limit to three elements maximum, each occupying no more than 5% of the dial’s surface area. Avoid mixing fonts; a single sans-serif typeface ensures consistency. Date windows should sit at 3 or 6 o’clock–offset positions disrupt symmetry and require awkward head tilts. For lume, test visibility in complete darkness: hands should remain distinct from markers without glowing too brightly, which can irritate the eyes during prolonged use.
Subdials with overlapping scales (e.g., moonphase + date) confuse users–separate functions into dedicated registers. Minute track divisions should align with the smallest subdial increments; misalignment forces mental recalibration. For ultra-thin timepieces, minimize handing thickness (below 0.3mm risks bending), and ensure markers are raised at least 0.2mm to prevent contact with the crystal under pressure.
