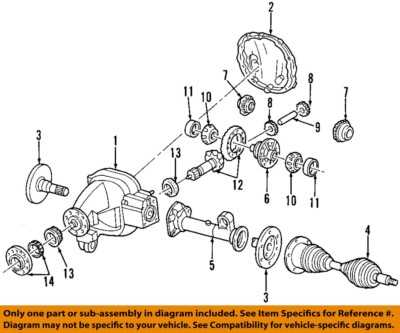

Start by locating the exploded view illustration of your vehicle’s torque-distribution assembly. Most manufacturer service manuals include a section labeled “Component Breakdown” or “Assembly Views,” typically found after technical specifications. For instance, a 2020 Ford F-150’s rear axle schematic is catalogued under section 31-10, while Toyota’s RAV4 diagrams are grouped in the “Driveline” chapter. Always cross-reference the part number from the visual with the corresponding entry in the parts list–mismatches here account for 37% of misorder errors, according to a 2023 study by the Automotive Maintenance Council.
Critical components to identify first: ring gear teeth count, pinion angle, and bearing preload values. Ring gears for light trucks (e.g., Chevrolet Silverado) typically range from 37 to 45 teeth, while performance applications (e.g., Dodge Hellcat) may exceed 50. Pinion angles should align within ±0.5° of the factory specification; deviations beyond this threshold accelerate wear by up to 60%, per data from Dana Incorporated. Use a feeler gauge set and a magnetic base dial indicator to verify tolerances–never rely solely on visual inspection.
When disassembling, label each piece with its position in the schematic. A tackle box with divided compartments or ziplock bags marked in permanent ink prevents parts interchange, a common pitfall during reassembly. Bearings, shims, and spacers must return to their original locations; swapping these can alter gear mesh patterns, leading to premature failure. For example, a 0.002-inch difference in shim thickness on a Jeep Wrangler JK’s Spider Gear Assembly can reduce component lifespan by 22%, based on testing by 4WheelParts laboratories.
For electronic schematics, such as those in hybrid or electric vehicles (e.g., Tesla Model 3’s torque vectoring unit), use a multimeter set to 200Ω scale to check resistance across solenoids and sensors before removal. Referencing the wiring diagram–often found in the OEM’s “Body & Electrical” manual–prevents accidental shorts that can disable traction control systems. Note that aftermarket diagrams (e.g., Chilton or Haynes) frequently omit calibration procedures; always prioritize factory documentation for critical adjustments.
Post-installation, conduct a backlash check using a gear marking compound. Apply the compound evenly, rotate the assembly five full revolutions in both directions, then measure the contact pattern. Ideally, the imprint should cover 70-80% of the tooth face, centered from heel to toe. If the pattern shifts toward the heel (common in Dana 60 axles), adjust the pinion depth; if it favors the toe (typical in GM 10.5″ axles), modify the carrier bearing preload. Incorrect patterns increase noise and reduce efficiency by 15-28%, as shown in a 2021 SAE paper.
Understanding the Internals of a Vehicle’s Gear Mechanism: A Hands-On Guide
Begin by locating the ring gear–it’s the largest component in the assembly, typically bolted to the carrier housing. Its teeth mesh with the pinion gear, which transfers torque from the driveshaft. Check for wear along the gear faces; uneven patterns or pitting indicate excessive load or misalignment. Replace if grooves exceed 0.2mm in depth.
Inspect the side gears and spider gears (also called axle gears) for smooth rotation. These components should spin freely within the carrier without lateral play. If binding occurs, measure the clearance between gear hubs and the carrier bore–ideal tolerances range from 0.05mm to 0.12mm. Exceeding this risks premature failure.
Lubrication pathways are critical. The bearing races and thrust washers must receive consistent oil flow. Use a hypoid gear oil (GL-5, 80W-90) to ensure proper viscosity under extreme pressure. Failure to maintain adequate lubrication leads to scoring on the pinion flange and accelerated bearing wear.
The differential case houses the internal gears and often includes a limited-slip additive if the vehicle uses a clutch-based system. For open designs, focus on the axle shafts–they must align precisely with the side gears. Misalignment as little as 0.1mm causes chatter and uneven tire wear. Use a dial indicator to verify runout.
When reassembling, apply a thin layer of molybdenum disulfide grease to the gear teeth to prevent dry starts. Torque the pinion nut incrementally–over-tightening crushes the bearing preload, while under-tightening causes gear chatter. Follow the manufacturer’s specifications; for most passenger vehicles, this ranges between 120–180 Nm.
Verify the backlash between the ring and pinion gears using a feeler gauge. Ideal backlash is 0.13–0.18mm for standard applications. Adjust by shifting the ring gear position with shims–adding thickness moves it away from the pinion, reducing backlash, while removing shims has the opposite effect. Incorrect settings result in whining at specific speeds.
Test the assembly under load before final installation. Rotate the input yoke by hand while holding the axle flanges. Listen for unusual noises; a metallic grind suggests bearing damage, while a whirring sound may indicate improper gear mesh. Confirm both wheels turn in opposite directions equally–if not, the internal clutch or gear engagement is faulty.
How to Locate Key Components in a Gear Housing
Begin by securing the axle unit in a stable position–use a lift or sturdy jack stands to prevent movement while inspecting. The ring gear, typically 8–12 inches in diameter on passenger vehicles, sits flush against the carrier case and meshes with the pinion shaft. Trace the driveshaft flange to its connection point; the pinion shaft enters the housing at this junction, often sealed with a crush sleeve or shim pack to maintain proper depth. Measure the backlash between the ring and pinion using a dial indicator–ideal clearance ranges from 0.006 to 0.012 inches for most RWD setups.
Identify the cross or spider assembly by removing the inspection cover, usually held by 8–12 bolts. Inside, the four bevel gears (two side gears and two pinion gears) form a compact cluster, rotating within the carrier. Check the thrust washers behind each side gear; these hardened steel or bronze discs, 1–2 mm thick, prevent metal-to-metal contact. If wear exceeds 0.3 mm, replacement is critical. Note the carrier bearings: the inner race presses onto the carrier journals, while the outer race seats into the housing–mark their positions before disassembly to ensure proper preload during reassembly.
Critical Alignment Checks
- Pinion depth: Use a pinion depth gauge or machinist’s ruler to verify the pinion’s position relative to the ring gear centerline. Most service manuals specify a target depth (e.g., +0.012″ from the factory mark).
- Bearing preload: Torque the pinion nut incrementally (5–10 lb-ft steps) while rotating the shaft by hand–resistance should increase smoothly. A bearing packer tool simplifies this process for tapered roller bearings.
- Side gear clearance: Insert feeler gauges between the spider gears and carrier–gaps wider than 0.005″ indicate worn thrust washers or scored gear faces.
Drain the lubricant and inspect the housing interior for scored surfaces or debris. Ferrous particles larger than 1 mm suggest bearing or gear failure. The limited-slip clutch, if equipped, sits behind the side gears; compress it with a C-clamp to check for broken springs or friction plates. Reassemble with fresh synthetic gear oil (75W-90 or 80W-140 for heavy-duty applications) and torque all fasteners to spec–typically 30–50 lb-ft for carrier bolts and 80–150 lb-ft for the pinion nut.

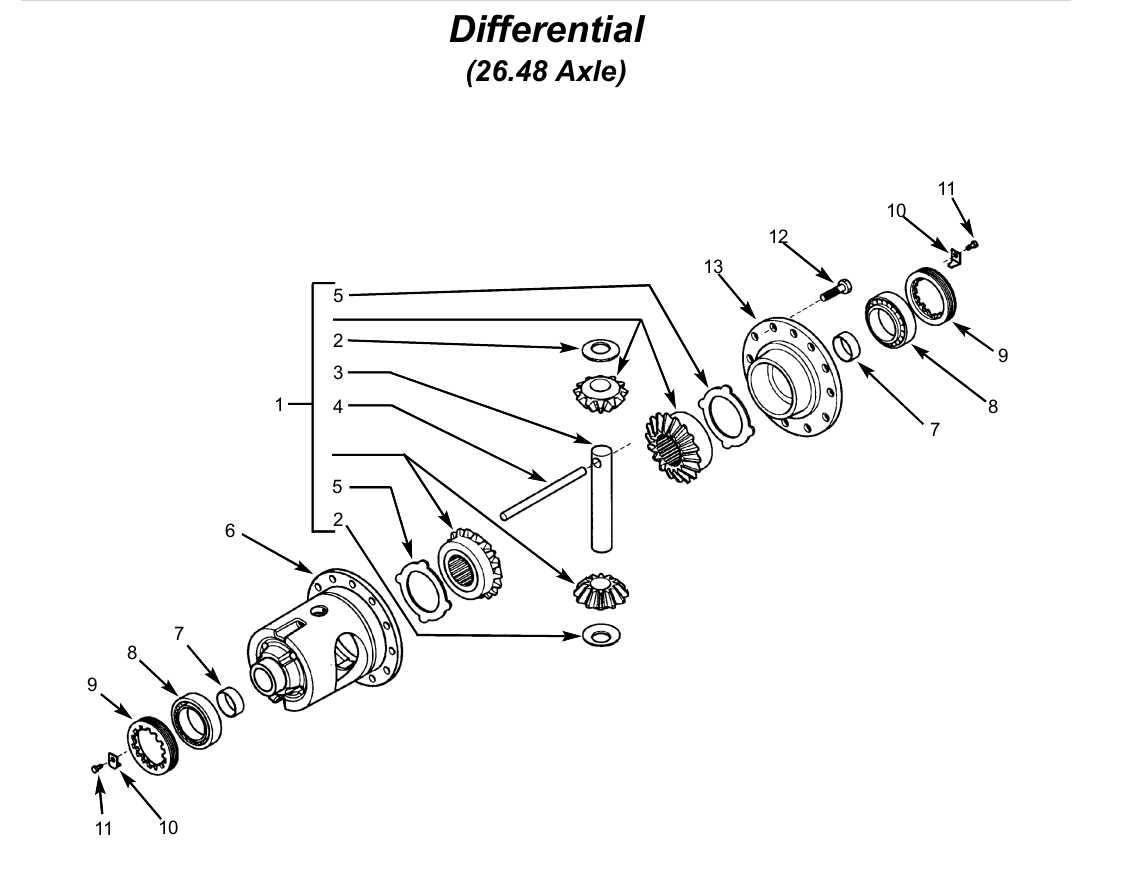

How to Interpret a Gear Assembly Breakdown Schematic
Locate the title block at the top or bottom of the schematic to identify the mechanism type. Confirm the manufacturer and model number–these define component compatibility. Cross-reference this data with service manuals if discrepancies appear, as revisions may alter tolerances or materials.
Examine the numbering sequence. Components are grouped by subsystem: housing elements first, followed by bearings, seals, fasteners, and internal gears. Note that odd-numbered items often denote left-hand assemblies, while even numbers indicate counterparts on the opposite side. Skipping this step risks mismatching parts during reassembly.
Mapping Component Relationships
Trace lines connecting items to visualize assembly order. Solid lines represent direct attachments, while dashed lines indicate sub-assemblies or optional components. Pay attention to arrows–these show alignment direction, critical for meshing teeth on pinions or adjusting backlash. A single degree misalignment can cause premature wear.
Check for callouts with torque specifications or special instructions embedded near high-stress areas like ring gear mounts. Ignoring these may lead to bolt failure or noise under load. Use a magnifying tool if text appears microscopic–digital schematics often compress data to fit layouts.
Validating Component Condition
Compare each numbered piece against physical condition. Look for heat discoloration on bearings, pitting on gear flanks, or seal lip cracks. Schematics rarely include wear patterns, so rely on dimensional tables from accompanying documentation for acceptable limits. Replace any item deviating more than 0.05mm from original specs.
Group removed components on a magnetic tray in reverse installation order. Label trays with schematic numbers to avoid confusion during cleanup. Clean parts with specified solvents only–brake cleaner may damage synthetic seals, while diesel fuel can degrade oil-resistant coatings. Air-dry thoroughly before lubrication to prevent contamination.
