Identify the spindle assembly first–it’s the core mechanism that drives the cutting bit. Look for the quill housing around it, which allows vertical movement while maintaining precision. Without proper alignment here, depth control becomes unreliable, especially in repetitive tasks.
Examine the table adjustment system next. A rack-and-pinion or lever-operated version ensures smooth height changes, but worn gears can introduce play. Check for visible wear on the elevating pinion; if teeth appear rounded, replace it before accuracy degrades further. Some models include a locking collar–verify it clamps securely to prevent slippage during operations.
The motor mounting bracket often hides burrs or misaligned bolt holes. Inspect the contact surfaces between the bracket and column; any gaps can cause vibration at higher speeds. Use a straightedge to confirm flatness–if deviation exceeds 0.003 inches, machine the surface or use shims to correct alignment.
Locate the feed handle and assess its linkage. A direct lever-to-quill connection offers the most responsive control, while belt-driven systems may introduce lag. If the feed lever feels spongy, check the return spring tension–adjust or replace it if deformed. For tools with depth stops, ensure the rod threads freely without cross-threading, as damaged threads prevent accurate depth settings.
Finally, review the chuck assembly. Keyless variants rely on internal gears that wear faster than keyed alternatives. If bit slippage occurs, disassemble the chuck and inspect the jaws for scoring–clean them with degreaser and apply light machine oil. For Morse taper spindles, verify the taper matches the bit’s shank; mismatched tapers risk ejection during heavy cuts.

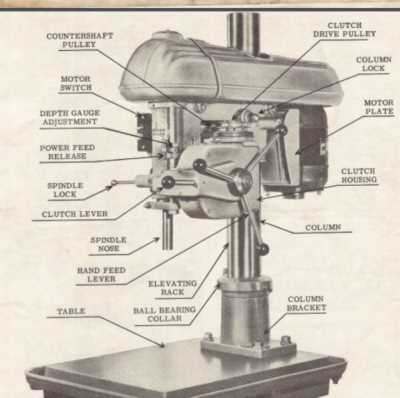

Visual Breakdown of Stationary Boring Machine Components
To accurately identify wear or malfunction in a vertical boring apparatus, start by locating the spindle quill–the cylindrical housing enclosing the rotating shaft. Compare its alignment with the depth stop rod; deviations exceeding 0.5 mm suggest bent components or misadjusted bearings. Replace any cracked quill springs immediately–manufacturers recommend silicon bronze or oil-tempered wire for durability. Clean the Morse taper socket with acetone every 100 operational hours; residual swarf causes premature bit slippage.
- Table locking mechanism: Test clamping force weekly. If the handle requires more than 15 Nm of torque to secure, lubricate the locking shafts with lithium-based grease. Avoid WD-40–it evaporates within 72 hours.
- Motor pulley ratio: Verify RPM consistency across speed settings. A worn belt (indicated by a frayed edge greater than 1.2 mm) alters torque output by up to 18%. Replace with a 6-ply industrial belt rated for 2,000 RPM minimum.
- Column tilt adjustment: Confirm the scale markings align at both 0° and 90°. If slippage occurs under 50 kg load, tighten the trunnion bolts in a star pattern to 45 Nm.

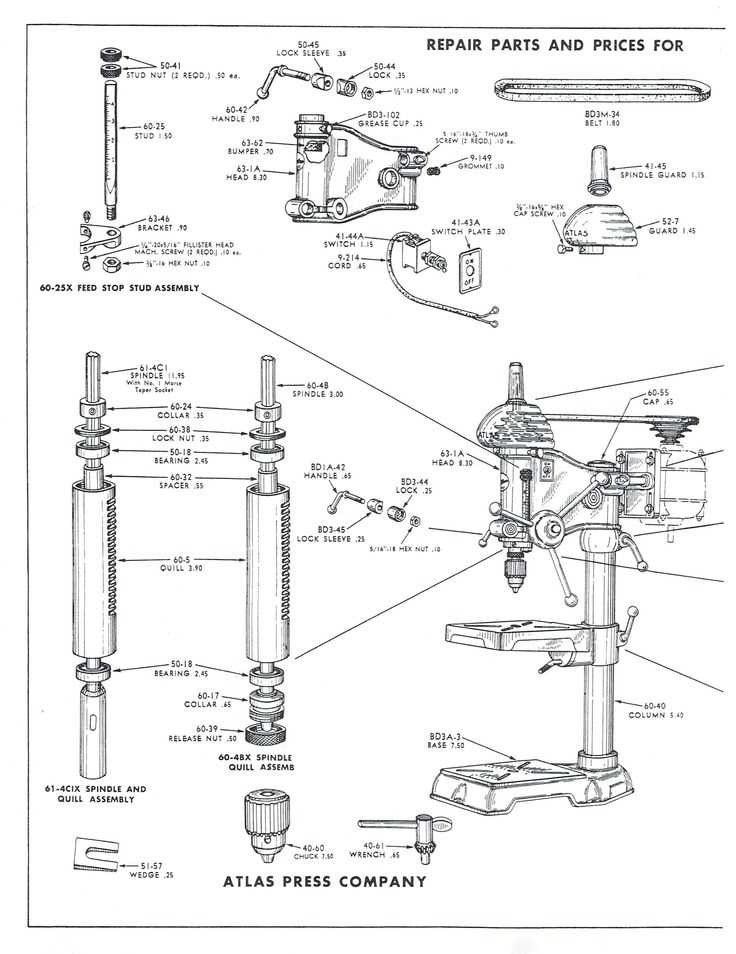

Inspect the on/off switch’s grounding path with a multimeter; resistance should read below 0.1 ohms. Frayed wires near the trigger often cause intermittent power loss–use 16-gauge heat-resistant silicone insulation for repairs. For models with gearboxes, drain lubricant quarterly and refill with ISO 68-grade hydraulic oil; synthetic blends cause seal swelling in aluminum casings. Store the exploded view schematics near the workstation–label each component with its OEM part number and torque specifications to avoid cross-threading during replacements.
Critical Elements in a Vertical Boring Machine Blueprint
First, locate the spindle shaft at the core of the assembly–this precision-engineered rod determines alignment accuracy. Verify its taper match with tool holders (e.g., Morse #2 or #3) to prevent slippage during high-torque operations. Replace worn shafts if radial runout exceeds 0.02mm, measured 50mm from the chuck.
- Headstock column: Machined from cast iron for vibration damping; inspect for cracks annually using dye penetrant testing. The column’s rigid construction counters deflection under loads up to 900 kgf.
- Quill feed mechanism: Rack-and-pinion or ball screw types dictate feed rates–select based on material hardness (e.g., 0.1–0.3 mm/rev for steel, 0.4–0.6 mm/rev for aluminum). Lubricate weekly with ISO 68 EP oil.
- Depth stop: Adjustable micro-stops (±0.01mm precision) prevent over-penetration; calibrate using dial indicators before critical jobs.
Examine the worktable brackets for wear–loose T-slots or warped surfaces cause misalignment. Replace tables if flatness deviates >0.05mm across 300mm. For heavy workpieces, add a secondary support plate bolted to the base.
Power transmission: Belt-driven models (V-belts or cogged belts) require tension checks every 20 hours of operation–deflection should not exceed 13mm at midpoint. Direct-drive motors eliminate slippage but demand higher maintenance on shaft bearings (repack every 1,000 hours).
Locating and Marking Key Components of a Bench Tool Power Unit
Begin by disconnecting the power source and removing the protective housing–typically secured by screws or clips–to expose the internal mechanics. The primary element is the motor itself, identifiable by its cylindrical shape and attached wiring harness. Look for a nameplate near the motor’s base; it contains critical specifications like voltage, amperage, and RPM, which help verify compatibility and functionality. If the label is missing or illegible, measure the housing dimensions and compare them with manufacturer schematics for similar models.
Trace the wiring from the motor to the capacitor, a small cylindrical or rectangular component mounted on the frame or integrated into the housing. Capacitors store and release electrical energy, smoothing power delivery–identify it by its dual terminals and occasionally marked polarity. Next, locate the brush holder assembly, often positioned near the motor’s rear or side, holding graphite or carbon brushes that maintain electrical contact with the rotating armature. Check for wear: brushes should be at least 5mm in length; anything shorter requires replacement.

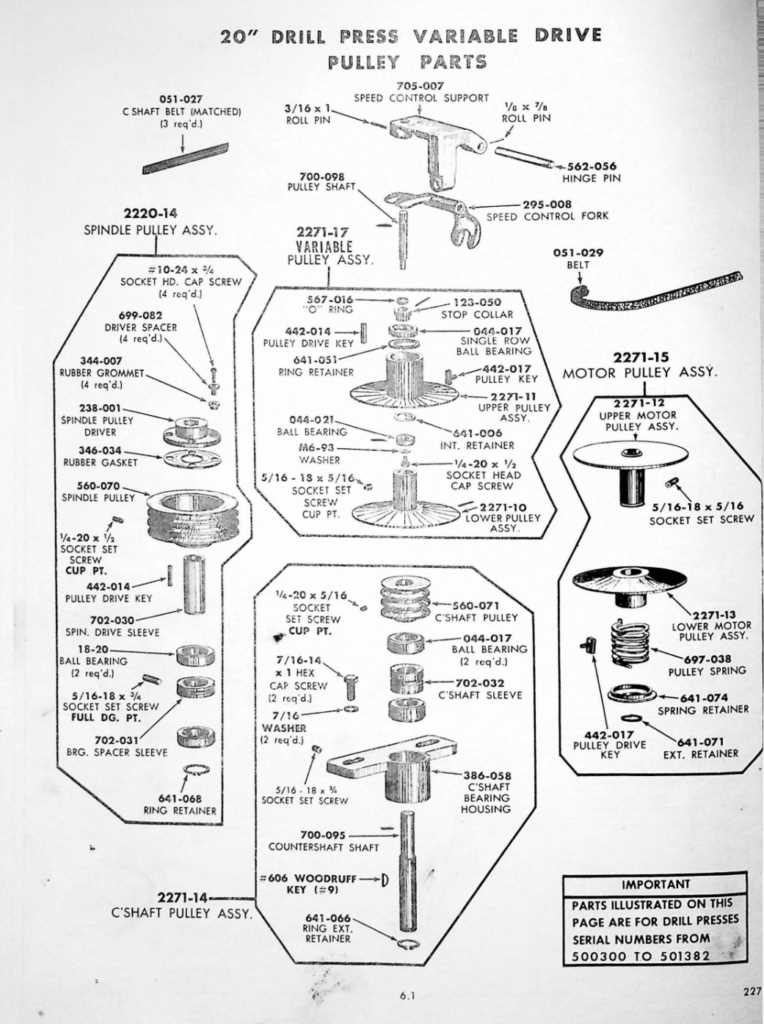

Examine the pulley system attached to the motor’s shaft–this transmits rotational force to the spindle via a belt. The driving pulley (motor-side) varies in diameter; larger sizes reduce speed but increase torque, while smaller ones do the opposite. Verify the belt tension by pressing mid-span: it should deflect about 1cm under moderate pressure. If slack, adjust the motor’s mounting position or replace the belt if cracks or fraying are present.
Inspect the switch mechanism, usually a toggle or push-button type, connected to the motor via thick gauge wires. Test continuity with a multimeter–absence of resistance indicates a faulty switch. Lastly, locate the cooling fan, if equipped, typically at the motor’s rear, designed to dissipate heat. Ensure its blades are free of dust and debris, and that the housing hasn’t sustained damage, as overheating shortens motor lifespan.
Step-by-Step Guide to Reading the Spindle and Quill Section
Locate the quill housing first–it encases the vertical assembly and connects directly to the head mechanism. Check for alignment marks or engraved labels on the quill’s surface, often indicating depth settings or safety limits. These markings may use millimeters or fractional inches.
Identify the spindle: the rotating shaft inside the quill. At its top, a splined or keyed section engages the drive system. Examine the spindle’s lower end where the tool holder attaches–this is typically threaded or uses a Morse taper for secure locking.
| Component | Key Features | Common Materials |
|---|---|---|
| Spindle | Morse taper, threaded end | Hardened steel, chrome-plated |
| Quill | Depth scale, rack-and-pinion | Cast iron, aluminum alloy |
| Feed Lever | Spring-loaded, grip handle | Steel, rubber coating |
Trace the quill’s feed mechanism: a rack attached to the quill meshes with a pinion gear operated by the feed lever. Movement should feel smooth but resist excessive play–tolerance beyond 0.3mm warrants inspection.
Inspect the depth stop. This adjustable collar sits on the quill’s outer sleeve and locks with a setscrew. Ensure the locking thread is free of debris; cross-threading causes inaccurate depth control. Rotate the stop to verify it moves without binding.
Examine the spindle lock. Most designs use a pawl engaging the quill’s rack or a separate locking ring. Engage this lock while adjusting tool holders to prevent accidental rotation–critical for safety when changing bits or chucks.
Verify the quill return mechanism: a coil spring or counterweight lifts the spindle automatically. Compression springs should have consistent tension across their range; uneven resistance indicates wear. Oil the spring lightly if corrosion is present.
Test the Morse taper or threaded connection for wear. Insert a tool or arbor and check for wobble–runout exceeding 0.05mm reduces precision. Clean taper surfaces with a wire brush; applying a thin coat of grease prevents galling in high-speed operation.
Locating Depth Stop Adjustment Controls
Check directly beneath the quill housing–most stationary boring machines integrate depth stop collars with threaded rods or slotted knobs here. Rotate the upper collar clockwise to decrease cutting depth; counterclockwise increases it. Newer models often embed micro-adjustment dials alongside, marked in millimeters or fractions of an inch for precision. Verify alignment by lowering the spindle manually until it contacts the stop–correct positioning locks without wobble. If absent, examine the column rear; some manufacturers relocate controls there for ergonomic access.
Inspect sidebar rails for auxiliary levers or pin locks, particularly on industrial-grade tools–these alternate mechanisms retain position via friction or spring-loaded detents. Confirm compatibility with your model’s vintage; older units sometimes substitute depth controls with interchangeable stop blocks secured by set screws, requiring wrenches for recalibration.
