Start repairs by locating the air filter assembly–a critical piece often overlooked. Positioned beneath the engine housing, this component requires cleaning every 25 operating hours. Neglect leads to reduced airflow and premature wear on the piston rings. Use the OEM part number 4159-076-1413 when sourcing replacements; aftermarket filters may not meet the required 1.2 micron filtration standard.
The crankcase cover gasket (part 4235-120-8840) must be replaced if oil leaks appear near the base. Apply a 0.3mm bead of RTV silicone along the mating surface before installation to prevent seepage. Avoid over-torquing–the recommended 7.5 Nm ensures proper sealing without warping the aluminum housing. Misalignment here causes compression loss and bearing failure.
For the ignition coil, verify resistance between the spark plug terminal and coil output. A reading of 3,000–5,000 ohms confirms functionality. If outside this range, replace with component 4140-120-2210. Ensure the flywheel magnets make uniform contact–gaps wider than 0.2mm will disrupt spark timing, leading to hard starts or misfires.
The fuel primer bulb (OEM 4940-120-5676) should be pressed firmly into its seat; cracks or air leaks prevent proper fuel draw. Test by squeezing–if bubbles appear in the fuel line, replace immediately. Use ethanol-resistant hose (ID 3.5mm) for all fuel connections to prevent degradation from modern fuel blends.
When servicing the muffler assembly, remove carbon buildup with a wire brush every 50 hours. Obstruction reduces airflow, forcing the engine to work harder. The OEM muffler (part 4225-120-3300) includes a spark arrestor; aftermarket versions often omit this, increasing fire risk. Reinstall with fresh crush washers (part 4961-079-6150) to prevent exhaust leaks.
Check the drive shaft coupling for excessive wear–grooves deeper than 0.5mm indicate replacement need (part 4131-120-4500). Lubricate with lithium-based grease during reassembly to prevent binding. A loose coupling causes vibrations at high RPM, damaging the fan impeller. Torque the retaining nut to 12 Nm to prevent slippage.
For fan housing repairs, note that cracks near the outlet weaken airflow efficiency. Use acrylic adhesive (Loctite 480) for small repairs; larger damage requires replacement (component 4112-120-8870). Ensure the impeller blades sit evenly within the housing–clearance exceeding 1mm reduces maximum air velocity by up to 18%.
Understanding Your Backpack Blower’s Component Layout
Begin by locating the engine housing on the upper rear section–this model uses a 75.6cc two-stroke unit requiring a 50:1 fuel-to-oil mix. Drain any residual fuel before disassembly to prevent spills; use a 10mm socket to remove the four bolts securing the housing. The air filter sits directly below the housing, accessible via a single screw; replace it every 25 hours of operation or if visibly clogged with debris.
The impeller assembly is housed in the blower tube’s intake section. To service it, detach the tube by loosening the two thumb screws at the tube’s base. Inspect the impeller blades for cracks–if damaged, order replacement part #99988800134 (3 blades, aluminum alloy). Lubricate the impeller shaft bearings with lithium grease during reassembly to reduce wear.
- Fuel lines: Replace both the supply and return lines if brittle; use 3/16″ ID vinyl tubing (part #99920100123).
- Throttle cable: Adjust tension by turning the barrel adjuster clockwise if the engine hesitates; replace if frayed.
- Harness straps: Check stitching on the back pad–reinforce with nylon thread if torn.
Electrical System Checks
The ignition module is tucked behind the flywheel cover, secured by three Torx T25 screws. Test the coil resistance with a multimeter: primary circuit should read 0.2–0.4 ohms, secondary 6–9 kΩ. If outside these ranges, replace the module (part #99945600112). The kill switch connects to the module via a two-pin connector–ensure it snaps securely to prevent intermittent shutdowns.
For carburetor adjustments, locate the H (high-speed) and L (low-speed) screws on the right side of the engine. Turn both screws clockwise until lightly seated, then back out 1.5 turns (H) and 1 turn (L) for baseline settings. Fine-tune while the engine is warm: H screw clockwise for leaner mix, counterclockwise for richer; L screw affects idle–adjust until the engine runs smoothly without loading.
- Remove the spark plug (NGK BPMR7A) every 10 hours to clean carbon deposits with a wire brush.
- Inspect the muffler’s spark arrestor screen–soak in solvent if clogged, then scrape with a brass brush.
- Store the unit with the fuel tank empty or add stabilizer; stale fuel gums carburetors within 30 days.

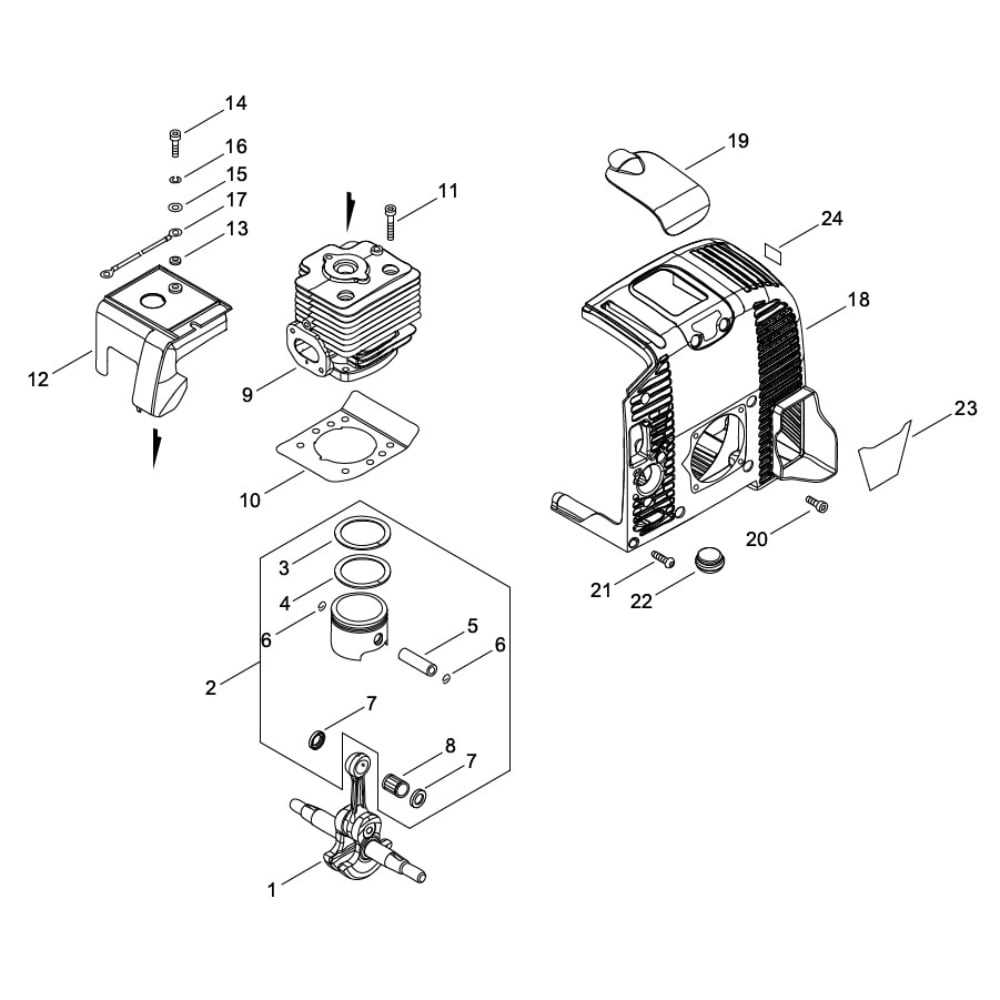

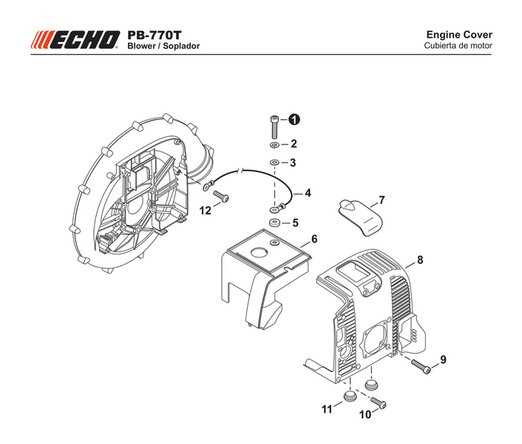

Locating the Manufacturer’s Blower Component Schematic
The most reliable source for the detailed breakdown of this outdoor power equipment is the authorized distributor portal. Visit parts.echo-usa.com and enter the model’s serial code in the search bar–this bypasses third-party inaccuracies. Dealers with active service agreements can access exploded views under the “Technical Documentation” tab, where OEM specifications, torque values, and replacement intervals are listed. If the portal requires authentication, contact a certified service center listed on echo.com/support/dealer-locator–they possess the credentials to pull official schematics.
Alternative Channels for Verified Diagrams
For owners without dealer access, the manufacturer’s printed service manual–often sold through commercial retailers like Amazon Business or eReplacementParts–contains identical illustrations. Verify the manual’s ISBN matches the one in the equipment’s user guide (typically PB-770H Service Manual, Part #99920114032). Online marketplaces frequently host PDF previews; ensure the preview’s watermark aligns with Echo’s corporate branding before purchase. Avoid generic “universal” diagrams–they omit critical venting, impeller clearance, and carburetor adjustments unique to this specific blower variant.
Critical Elements in the Backpack Blower Schematic
Inspect the impeller assembly first–it’s the core of airflow generation. A cracked or misaligned fan blade disrupts performance by reducing pressure differentials; replace damaged components immediately. The assembly typically includes a precision-balanced aluminum impeller secured with a locknut torqued to 18–22 ft-lbs–overtightening warps the shaft.
The fuel system demands exact ratios: a 50:1 mix of high-octane gasoline and two-stroke oil prevents piston seizure. Check the carburetor diaphragm for cracks–degraded rubber alters air-fuel flow, causing hard starts or surging. Clean jets with 0.020” wire; larger tools strip threads. Prime the bulb 5–7 times before cold starts to avoid flooding.
Examine the ignition coil for corrosion on the connectors. A resistance test should read 3–6 kΩ; values outside this range indicate failure. Ensure the spark plug gap is set to 0.025”, and replace plugs showing excessive carbon buildup or electrode erosion. Faulty ignition timing–often triggered by flywheel key damage–leads to backfires or no-start conditions.
Air filtration relies on a dual-stage system: a coarse pre-filter and a fine nylon mesh. Replace both every 25 hours under dusty conditions; clogged filters increase RPM but reduce airflow efficiency by up to 30%. Wash pre-filters in soapy water and dry thoroughly–soaking damages the porous structure. Avoid compressed air, which forces debris deeper into the media.
The throttle linkage connects to the carburetor via a swivel joint–ensure full range of motion. Sticking or binding is often caused by worn bushings; lubricate with silicone spray monthly. The throttle trigger spring should return to idle position immediately; sluggish response indicates fatigue or misalignment. Adjust the idle screw to 2,200–2,500 RPM for consistent operation.
Verify the muffler gasket for leaks–exhaust bluing on the housing signals excessive heat from failed seals. A properly seated gasket prevents power loss and noise escalation. Secure the muffler with bolts torqued to 7–9 ft-lbs; overtightening cracks the casting. Inspect the spark arrestor screen every 10 hours–carbon fouling restricts exhaust flow, overheating the engine.
Check the vibration dampeners between the engine and chassis–cracked rubber mounts transmit excessive force, accelerating wear on bolts and mounts. Replace any dampener showing splits or deformation; original-equipment parts outlast generic substitutes by 40%. Finally, test the harness straps for fraying–load-bearing stitching must support at least 200 lbs to ensure safe operation.
Step-by-Step Guide to Decoding the Trimmer’s Component Breakdown
Locate the numerical identifiers on the schematic first–each corresponds to a specific item in the inventory list. Verify the grouping: engine assemblies (typically prefixed with 3xx or 4xx), cutting attachments (5xx), and support frames (6xx). Cross-reference these with the manufacturer’s exploded view to confirm placement; mismatches often indicate discontinued or superseded units. If the list includes a suffix like “A” or “-R,” note these denote revised iterations–measure existing components against updated tolerances before sourcing replacements.
- Extract the bill of materials from the PDF or printed manual by filtering for bolded text–these highlight wear-prone components (e.g., air filters, drive shafts, throttle linkages).
- Use a caliper to confirm shaft diameters and coupling lengths for powertrain elements–standard tolerances range ±0.2mm; deviations may require OEM-specific adapters.
- Prioritize procurement of high-turnover items: spark plugs (NGK BPMR7A), trimmer heads (polyamide 6/6 variant), and fuel lines (EPDM-rated for ethanol blends).
- For electrical subassemblies (e.g., ignition modules), trace wire colors and pinouts–swapping polarity voids warranties and risks circuit damage.
Compile a discrepancy log if the schematic omits torque specifications or lubrication points–default values for M6 bolts: 8-10 Nm (engine mounts), 3-5 Nm (plastic housings). Stock a minimum two units of consumables like carburetor gaskets (Viton-grade) and anti-vibration mounts (silicone inserts) to mitigate downtime. When sourcing aftermarket equivalents, ensure compliance with ISO 14001 or CE markings to avoid performance gaps.
