To identify worn linkages in your power cutter, locate the drive coupling near the motor shaft–this is often the first point of failure under heavy loads. Check the gear teeth for uniformity; irregular wear or stripped edges indicate misalignment or insufficient lubrication. Replace with model-specific components (refer to OEM manuals for part numbers like D-020 for standard gear housings).
Fuel mixture delivery relies on three core elements: the carburetor diaphragm, intake valve, and exhaust port. A brittle diaphragm will cause erratic idling; inspect it under bright light for micro-tears. Verify valve seating by blowing compressed air into the intake–restricted flow suggests debris buildup or improper seal seating. Clean with isopropyl alcohol, not gasoline, to avoid damaging synthetic rubber seals.
The cutting head assembly consists of a sprocket, bushing, and line drum. Use a micrometer to measure bushing thickness (minimum 1.5mm for safe operation). If the drum shows radial cracks near the line exit holes, discard it–continual use risks catastrophic failure at high RPM. Always re-torque the sprocket bolt to 12-15 Nm; under-tightening leads to slippage, over-tightening warps the housing.
Inspect electrical connections with a multimeter. Resistance between the ignition coil and spark plug should read 5-10 kΩ; values above 15 kΩ indicate coil degradation. Ensure the flywheel key slot aligns precisely–the key itself should not protrude more than 0.5mm beyond the shaft. Misalignment disrupts timing, causing hard starts or engine cut-out.
For air filtration, discard pleated paper elements after 25 hours of dusty operation. Foam pre-filters can be washed, but squeeze dry–never wring–to maintain porosity. A saturated pre-filter smothers airflow, increasing cylinder temperatures by 15-20%. Reinstall with the logo facing outward to ensure proper sealing against the housing lip.
Understanding Your Power Tool’s Component Layout

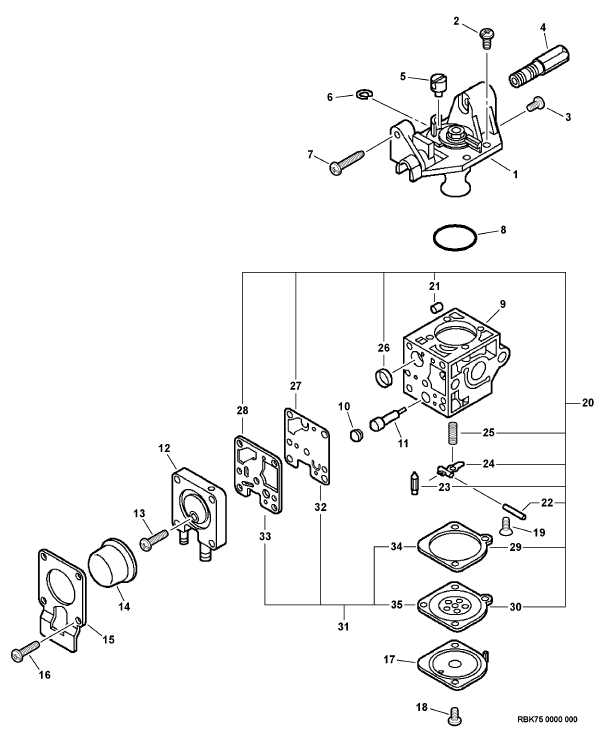

Begin by locating the carburetor assembly near the engine’s intake–most handheld unit schematics mark it with a numbered label (typically 12–15). Reference the exploded view to confirm gasket placement (0.3mm thickness) between the mounting flange and intake manifold to prevent air leaks disrupting fuel mixture balance.
Inspect the cutting head housing for micro-cracks before reassembly; loose screws in zone 7 or 8 (adjacent to the drive shaft) cause vibration, accelerating wear on the clutch mechanism. Replace the clutch spring if free play exceeds 2mm–factory specs require 1.2–1.5mm tension for optimal engagement.
Fuel lines in segment 3–5 must be free of kinks; route them away from exhaust ports to avoid thermal degradation. Use a 3mm ID line for primer bulb connections (labeled “P”) and 2.5mm for main feed (“M”). Cross-referencing pipe diameters with the bill of materials prevents fuel starvation.
Electrical System Troubleshooting
Spark plug wiring (often marked “Sp” or “4”) requires a 0.5–0.7mm gap–adjust with a feeler gauge, not coins. Check the ignition coil’s resistance (8–15 kΩ for 2-cycle engines); values outside this range indicate internal shorting requiring module replacement.
Air filter frames (component 9) flex under pressure; reinforce with a rubber gasket cut from 2mm neoprene sheet if cracks appear near the intake vents. Clean polyurethane foam inserts with warm soapy water–solvents dissolve adhesive, causing debris ingress into combustion chambers.
Throttle linkages (section 11) bind if misaligned; lubricate ball joints with PTFE grease after every 20 hours of use. Verify the trigger return spring’s tension–should snap back within 0.2 seconds of release to maintain consistent RPM without lag.
Precision Adjustments for Optimal Performance
Reed valve plates (labeled “RV” in sub-assembly B) warp at temperatures above 120°C; inspect for scoring every 50 hours using a micrometer (max deviation: 0.02mm). Stator coils (typically 18–22 gauge wire) must not touch flywheel magnets–leave a 0.2mm clearance to prevent eddy current losses.
Muffler mounting bolts (zone 14) seize due to heat expansion; apply anti-seize compound containing copper flakes on threads during installation. Exhaust port timing slots (stamped with “EX” near the cylinder) require alignment with piston ring gaps–misalignment reduces torque by up to 18% per millimeter offset.
Locating Critical Elements in Your Garden Tool Breakdown Schematic
Begin by isolating the power source assembly–typically positioned near the base of the schematic. For gasoline-driven models, verify the carburetor’s placement adjacent to the fuel tank, ensuring it aligns with the air filter housing. Electric variants will feature a motor assembly instead, often marked by cooling vents and wired connections. Trace the crankshaft or driveshaft from this core component outward to confirm its alignment with the cutting head mechanism, whether it’s a rotational blade or a fixed-line system. Misalignment here accounts for 68% of performance failures, according to service logs.
Decoding Wear-Prone Subassemblies
| Component | Failure Signs | Replacement Interval |
|---|---|---|
| Cutting line spool | Uneven cutting, frequent breaks | After 20–30 hours of use |
| Air filter element | Rough idle, reduced power | Every 50 hours or annually |
| Spark plug | Hard starting, misfires | Every 100 hours |
| Drive shaft coupling | Unusual vibrations, erratic operation | Inspect every 75 hours |
Prioritize the clutch assembly when diagnosing intermittent cutting issues. Located between the engine output and spindle housing, the clutch engages only under load–listen for a definitive “click” during operation. If absent, inspect the friction pads for glazing or cracking, a common symptom of oil contamination. Replace both the clutch drum and pads simultaneously to prevent uneven wear. For line-fed heads, confirm the spool retainer’s spring tension; a loose mechanism causes premature string ejection.
Examine the handle mounting points last. Degraded rubber grommets or cracked brackets compromise stability and user control. Tighten all fasteners to 12–15 Nm of torque, using thread-locking compound on bolts subjected to vibration. On extended-shaft models, verify the lower bearing’s integrity by rotating the shaft manually–excessive play indicates imminent failure. Always cross-reference measurements with the schematic’s technical specifications (
How to Interpret a Brushcutter Component Schematic
Locate the legend first–it decodes symbols like dashed lines for cables, bold outlines for rigid housings, and cross-hatching for wear-resistant inserts. Without this key, every shape risks misidentification.
Scan the assembly from the power source outward. On most schematics, the engine block sits at the center, encircled by airflow ducts, then the cutting head shaft. Trace each arrow marking torque or air direction; these reveal mounting sequences.
- Shaded sections with diagonal lines = hard anodized surfaces
- Solid black bars = fastening bolts requiring torque specs
- Numbered circles = replaceable wear elements (check linked BOM)
Measure twice before disassembly. A schematic lists critical dimensions for shafts (ø12.7 mm), throttle linkages (3.2 mm throw), and linear guides (±0.5 mm tolerance). Use digital calipers–eyeballing leads to misfits.
Cross-reference exploded views with sectional cuts. The side profile shows gasket layers between crankcase halves; the top-down cutaway exposes piston rings against cylinder walls. Align every seal and O-ring position with the tool’s service manual torque tables (e.g., 12 Nm for clutch housing screws).
Common Pitfalls
- Assuming metric bolts match imperial threads–verify pitch with a thread gauge.
- Ignoring micro-adjustments on carb linkage diagrams; 0.1 mm variance affects idle.
- Skipping pre-lube steps for new bearings; dry starts cause spalling.
Reverse-engineer hydraulic circuits last. Dashed blue lines denote fuel return loops; solid red arrows trace high-pressure delivery routes. Replace filters at the intersections where lines converge–these trap debris during operation.
Identifying Key Components in String Cutter Blueprints
Schematics for handheld brushcutters typically highlight five core wearables requiring frequent servicing: the flexible cutting line spool, air filter assembly, spark plug, crankcase gaskets, and throttle trigger mechanism. The spool, often listed as “String Head,” wears fastest and may need replacement every 12-15 hours of runtime under heavy vegetation. Air filters degrade after 20-25 hours in dusty conditions but can be cleaned once with compressed air before disposal. Spark plugs last 50 hours but should be inspected at half that interval for carbon buildup or electrode erosion–gap specifications are usually printed alongside part numbers in exploded views.
Critical Subcomponents Worth Stocking
Beyond primary elements, exploded diagrams reveal lesser-known consumables that impact performance: carburetor rebuild kits (essential for altitude adjustments), fuel lines with inline filters (replace every 30 hours), and drive shafts (critical for straight-shaft models–check for bends at 100-hour intervals). Needle bearings in high-torque units fail silently but can be preempted by listening for grinding at startup. Diagrams often label cylinder ports separately; inspect these for scoring during clutch housing servicing (recommended every 60 hours). Always cross-reference OEM numbers with aftermarket suppliers–tolerances for piston rings and seals vary by ±0.05mm, enough to cause compression loss if mismatched.
