Identify the receiver first – it anchors the entire mechanism. Locate the serial number near the trigger guard; this marking confirms the model variant (e.g., pump-action or semi-automatic). Trace the barrel forward; its length dictates choke compatibility. Check the muzzle for threading if attaching compensators or suppressors. Match the chamber’s gauge before attempting disassembly to avoid forcing mismatched components.
The bolt assembly moves along the receiver’s rails. Detach it by rotating the takedown screw counterclockwise; store the firing pin separately to prevent accidental discharge. Examine the extractor claw for wear – replace if cracks appear, as failure risks casing jams. The trigger group connects via two cross-pins; depress them simultaneously with a drift punch to release without damaging the housing.
Inspect the forend next. Slide it forward until it clears the magazine tube; note how the action bars align. Misalignment here causes binding during cycling. The magazine spring sits inside the tube; compress it gently when reloading to avoid sudden snapback. Check the follower’s polymer coating – warping indicates heat stress from rapid firing.
Reassembly follows the reverse order, but verify each step. Align the action bars with the receiver’s grooves. Confirm the safety engages before dry-firing. Test with snap caps first if modifications to firing components were made. Store disassembled pieces in labeled bags to prevent mixing similar-sized pins or springs.
Breakdown of Pump-Action Firearm Components
Start with the receiver assembly–identify the trigger group, including the sear, hammer, and disconnector, which must align precisely to ensure reliable function. Mismatched tolerances here cause misfires; verify parts against OEM specs using micrometers. The magazine tube requires straightness checks–any bend compromises feeding. Replace the follower if degraded, as worn polymer disrupts shell elevation.
Critical Assembly Steps
- Barrel installation: Torque muzzle threads to 25-30 ft-lbs; over-tightening warps the chamber.
- Fore-end alignment: Ensure the action rods slide freely–dry-lube contact points to reduce friction.
- Stock fitment: Check comb height with snap caps–misalignment affects sight picture at 25 yards.
- Safety mechanism: Test in both positions; a stiff detent risks unintended discharge.
Label each subassembly with masking tape notes during disassembly–critical for smooth reassembly. Keep springs separate; prolonged compression weakens tension. Heat-treated pins (e.g., ejector pivot) should not be substituted–mild steel alternatives shear under recoil.
Reading Firearm Blueprints: Critical Elements to Locate
Begin by isolating the receiver assembly on the schematic–this housing typically appears as a central, elongated block with multiple attachment points. Look for labeled sections like the “trigger group” (often marked with a small pivot arc) and “hammer mechanism” (a curved or spring-loaded component). If the print includes numerical callouts, cross-reference them with the legend: identifiers 5–12 frequently denote firing controls, while 18–25 usually map to the action bar and bolt interface.
Action and Barrel Interface Details
Examine the forend-to-barrel connection–search for notches, grooves, or threaded segments that secure the magazine tube. A table below outlines commonly misidentified mating surfaces:
| Schematic Reference | Component Description | Visual Cue |
|---|---|---|
| A3 | Magazine cap threads | Spiral grooves at front |
| B7 | Barrel clamp slot | U-shaped cutout |
| C14 | Forend retaining lug | Protruding tab with screw hole |
Pay particular attention to the gas port or vent rib markings–these appear as tiny circles or ovals adjacent to the chamber area. Mistaking these for pin holes or assembly jigs risks damaging precision-fit subcomponents during disassembly.
Locate ejector rails next–these should sit inside the receiver cavity as two parallel rails with rear-facing ramps. Match their position to stroke length measurements provided in the technical notes section: typically 7–9mm travel clearance for standard 12-gauge loads. If rails exhibit uneven wear patterns on the blueprint (shown by cross-hatching), anticipate tolerance adjustments during reassembly.
Step-by-Step Breakdown of Firearm Tube Subassembly
Before disassembling the firing tube, ensure the chamber is empty and the weapon is pointed in a safe direction. Depress the barrel latch located at the forearm’s rear to release tension. Slide the tube forward until it clears the receiver–this prevents damage to the magazine spring or follower.
Inspect the ribbed sleeve for carbon buildup or deformities, focusing on the forcing cone area and choke constriction. Use a bore brush dipped in solvent to remove fouling; avoid abrasives that degrade bluing. A .729″ diameter brush suits most 12-gauge configurations, while 20-gauge requires a .615″ tool for proper contact.
Component Separation and Maintenance
- Detach the magazine cap by rotating counterclockwise with a 1/2″ wrench. Apply penetrating oil if corrosion resists initial torque. The cap’s O-ring must remain intact to prevent gas leakage–replace if flattened or cracked.
- Withdraw the magazine spring and follower. Measure spring compression: 3.5–4.2 lbs/in² indicates proper tension. Springs weaker than 3 lbs/in² should be discarded to avoid feeding malfunctions.
- Examine the breech end for burrs. Use a fine-cut file to smooth imperfections, then polish with 600-grit wet/dry paper. This prevents hull extraction failures during rapid cycling.
Reassembly demands precision alignment of the barrel extension with the bolt face. Insert the tube until the locking lugs engage the receiver’s recesses–misalignment risks catastrophic failure. Verify proper indexing by dry-firing (empty chamber) three times; the bolt should lock back without hesitation.
Apply a light coat of rifle-grade grease to the magazine spring and follower before reinserting. Avoid over-lubrication–excess attracts debris, compromising reliability. Rotate the magazine cap clockwise until snug (20–25 ft-lbs torque), then back off 1/8 turn to allow smooth fore-end movement.
- Post-reassembly, test feed three dummy rounds. Watch for:
– Consistent chambering without binding
– Proper ejection (cases should clear the port by 6–8″)
– Magazine retention (rounds must not creep forward during cycling)
- If brass fails to extract, inspect:
– Extractor claw for wear
– Ejector spring tension (minimum 12 lbs pressure)
– Chamber throat dimensions (.730″–.735″ for optimal performance)
Store the firearm with the tube unloaded and action open to relieve spring tension. Use a silicone-treated bore snake monthly to prevent moisture accumulation in humid environments. Barrels stored longer than 60 days require a thin coat of preservative oil to inhibit surface oxidation.
Identifying and Swapping the Mechanism Tension Coil in Your Firearm
Disassemble the receiver by first removing the barrel nut using a 19mm socket. Rotate counterclockwise until loose, then thread it off by hand to avoid cross-threading. Set the nut aside with the gas piston to prevent misplacement.
Locate the tension coil beneath the bolt carrier group. It sits compressed between the rear trunnion and the recoil buffer, visible once the carrier slides free. Use needle-nose pliers to grip the coil’s rear loop–do not twist or stretch it, as this alters tension. If the coil appears flattened, discolored, or shows micro-fractures, replacement is necessary.
Removal Steps
Push the coil forward slightly to clear the buffer, then rotate it 90 degrees to align with the trunnion’s guide groove. Slide it out carefully–force risks snapping the coil or damaging the guide rails. Measure the old coil’s free length (should be 2.5 inches) and wire diameter (.047 inches) to match the replacement exactly. Brands like Wolff or ISMI offer direct substitutes.
Clean the trunnion’s coil channel with a nylon brush to remove carbon buildup before installing the new component. Lightly coat the coil with gun grease–avoid excess, which attracts fouling. Align the coil’s rear loop with the buffer’s notch, then press it into place. Ensure it sits flush against the trunnion without kinking.
Reassemble the bolt carrier group by reversing disassembly steps. Cycle the action manually five times to confirm smooth operation. If resistance occurs, check for coil misalignment–improper seating causes binding. Test-fire with low-recoil loads first to verify reliable feeding and ejection.
Store the old coil in a labeled bag for diagnostics if issues persist. Common failure signs include light strikes, erratic cycling, or delayed extraction–all traceable to coil wear. Replace every 5,000 rounds for optimal performance.

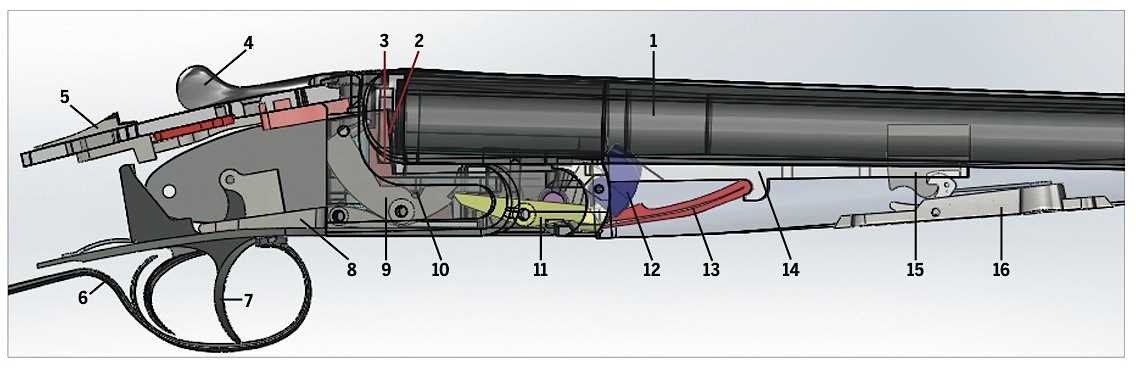

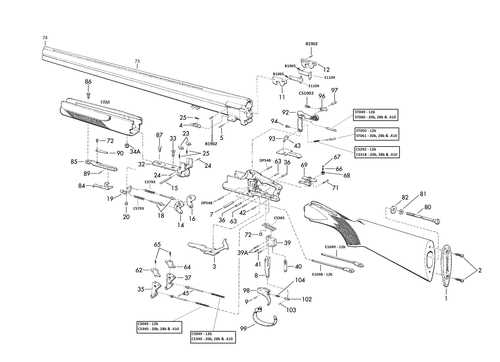

How to Interpret a Firearm’s Trigger Assembly Breakdown Illustration
Begin by isolating the hammer spring in the exploded view–its position determines tension consistency. Most schematics label this component near the rear, often marked with measurements indicating preload. Compare these figures against your model’s manual; deviations require immediate recalibration to prevent light strikes or slam-fire hazards.
Examine the sear engagement surfaces next. Trace the contact points where the hammer hooks onto the sear under spring pressure. Wear patterns on these zones–visible as flattening or pitting–signal the need for polishing or replacement. Use a micrometer to verify tolerances; even 0.002″ variance can cause inconsistent let-off.
Disassembly Sequence for Cleaning
Remove the trigger guard first by drifting out two pins, typically 3/32″ in diameter. Keep track of each pin orientation; reversed installation disrupts smooth operation. Once detached, soak the assembly in carbon-dissolving solvent for 20 minutes, agitating every 5 minutes to dislodge fouling from tight crevices around the disconnector.
Inspect the disconnector’s pivot hole for ovaling–a common issue with prolonged use. Ream ovaled holes using a tapered hand reamer, then test-fit the disconnector. If binding persists, lap the mating surfaces with 400-grit abrasive compound until movement is frictionless but not loose.
Reassembly Checks
Apply a thin layer of molybdenum disulfide grease to the sear’s engagement face before reassembly. This reduces friction without gumming up mechanisms like heavier lubricants. After reattaching the hammer, dry-fire the action ten times, checking for misfires or double-charge indicators. Any deviation from crisp reset necessitates re-evaluating spring rates or replacing fatigued components.
Verify the safety’s function last by engaging it in all positions. The plunger should depress fully without partial engagements; incomplete travel risks unintended discharge. If issues arise, examine the safety detent spring–often overlooked–for proper tension and install orientation.
