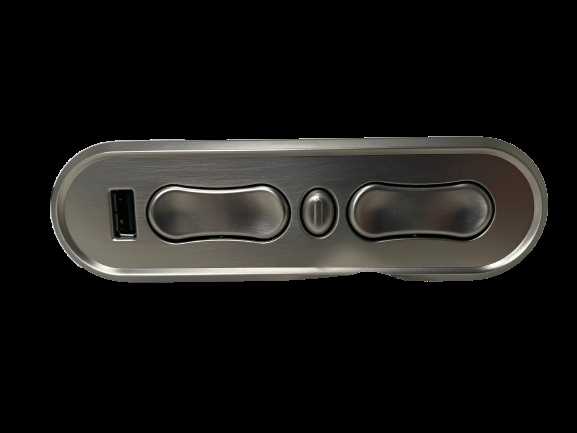

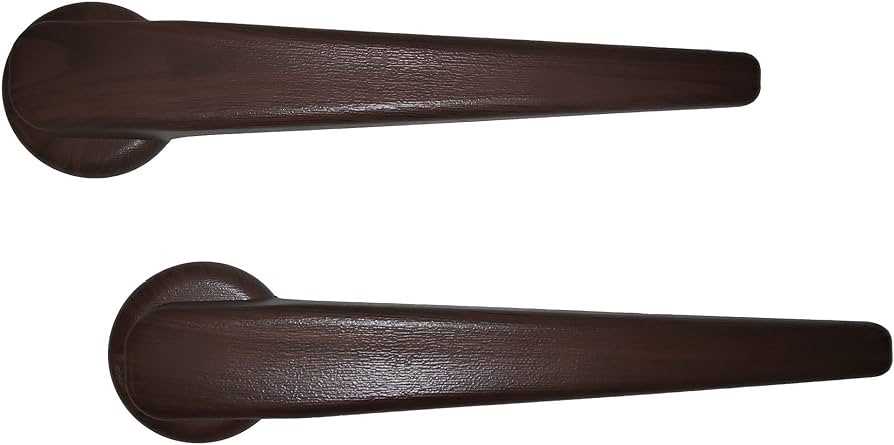

Start by locating the release lever beneath the right armrest–most high-end motion chairs use a hidden latch system here for the reclining mechanism. If the unit fails to engage smoothly, check the tension rods first: these 6mm steel shafts connect the backrest to the base and often bend under prolonged stress. Replace bent rods with grade 5 titanium alloy alternatives to prevent future deformation.
Examine the pivot brackets next. These stamped metal plates secure the footrest linkage and frequently crack at the weld points. Use a digital caliper to verify measurements–standard brackets measure 2.5″ x 1.8″ with a 0.25″ thickness. When ordering replacements, specify heat-treated 1045 carbon steel for added durability.
Disassemble the actuator motor if the chair produces grinding noises. Remove the four Torx T20 screws securing the motor housing, then test the brushless DC motor with a multimeter–it should register 12 ohms resistance. Swap defective units with a 12V, 60 RPM model featuring a 200 lb load capacity, ensuring compatibility with existing wiring harnesses.
Inspect the gas lift cylinder if the seat height adjusts erratically. Depressurized cylinders will fail to hold weight–replace them with a dual-chamber nitrogen-charged model rated for 500 lbs. Always purge air from the new cylinder before installation by cycling the mechanism five times without load.
For sticky motion, focus on the cam slots inside the linkage assembly. Apply a thin layer of PTFE-based dry lubricant to these tracks, avoiding petroleum-based products that attract dust. If wear exceeds 0.5mm depth in the cam grooves, replace the entire linkage bar to maintain smooth operation.
Track down electrical faults by mapping the PCB layout. Common failure points include the 5A fuse (located behind the left side panel) and the micro-switch cluster under the seat. Test switches with a continuity tester–replace any showing infinite resistance. Use silicone-sealed connectors for rewiring to prevent moisture intrusion.
Prevent future failures by checking torque specs: tighten all M8 bolts to 22 Nm and lubricate moving joints every 200 cycles. Store spare components in vacuum-sealed bags with moisture absorbers to avoid corrosion during long-term storage.
Understanding Your Lounge Chair Mechanism Blueprint
Locate the manufacturer’s model number stamped on the underside of the seat frame–typically near the left rear leg or beneath the main lever. This alphanumeric code determines which exploded-view schematic applies, as minor variations exist between series, even within identical-looking designs. Download the official PDF from the brand’s support page by entering this code; third-party scans often omit critical tolerances or substitute generic fasteners.
Identify the activation linkage first–this metal rod, usually 3/8-inch diameter with a slight bend, connects the handle to the tension spring assembly. If grinding occurs when adjusting, lubricate the pivot points with lithium grease applied via a needle-tip applicator; avoid spray lubricants that attract dust. Check for burrs along the rod’s length using fine-grit emery cloth; a single 0.5mm defect can prevent smooth engagement.
Inspect the tension springs–two helical coils, one silver, one black, distinguishable by diameter (6mm vs. 8mm). The silver spring controls recline force; the black one resets the chair upright. Replace immediately if coils touch or stretch beyond 1.2x original length; standard wire gauge is 14 AWG, but confirm with calipers before ordering replacements.
Remove the seatback by unscrewing four Phillips-head bolts located behind removable fabric panels–bolts torque to 22 Nm. Keep washers separate; mixing them causes uneven stress distribution. Note spacer orientation: thin washers face the upholstery, thick ones the frame. During reassembly, align the backrest’s dowel pins with the frame’s grooves; misalignment shears the pins within 50 cycles.
Examine the footrest extender–three pivoting arms connected by rivets or cotter pins. Replace rivets with grade 5 bolts if squeaking develops; cotter pins must divide evenly when bent, or components bind. Measure arm length before sourcing replacements; common lengths range from 180–210mm, but even 5mm variations disrupt alignment.
Store all hardware in labeled bags–include bolt grade (marked on head), thread pitch (typically 1-8 UNC), and exact location on the schematic. Use a magnetic tray during disassembly to prevent fastener loss; a single missing 10-24 x 1/2-inch bolt voids warranty claims if later discovered during inspection.
Locating Key Elements in Motion Furniture Schematics
Start by isolating the seat mechanism in the illustration–typically shown as a series of interlocking metal plates near the base. These plates anchor the tilting function and often include a release lever or pull handle, drawn as a curved or L-shaped outline. Verify the pivot points by tracing thin lines connecting the plates; these joints should align with circular markers or filled dots. If absent, check for labeled reference numbers pointing to identical components elsewhere on the sheet.
Examine the backrest frame next–most schematics depict it as a horseshoe-shaped outline spanning the upper section. Look for parallel crossbars near the lower curve; these reinforce the lumbar support and attach via small bolts or welds. The headrest area frequently includes adjustable knobs or screws represented as concentric circles or hexagonal shapes. Confirm their positions by cross-referencing the sheet’s legend, where symbols like “A1” or “B3” correspond to specific fastening hardware.
| Component | Typical Symbol | Common Issues |
|---|---|---|
| Base pivot | Solid dot + radial lines | Lubrication failure, misalignment |
| Side lever | Curved or zigzag outline | Bent rod, loose cable |
| Footrest arm | Double hinge lines | Spring fatigue, bent linkage |
Trace the footrest linkage–identified by elongated arms extending from the seat front, usually drawn as thick lines converging at a single hinge. Schematics often label the gas cylinder here, shown as a vertical cylinder with a rod extending upward. If the cylinder appears misaligned or segmented, cross-check for adjacent tension springs, which appear as coiled zigzags. Missing springs indicate worn-out resistance; compare the illustration’s spring count to the physical unit.
Inspect the side panels for hidden fasteners; these appear as small rectangles or triangles along the frame’s edges. Many diagrams include a magnified inset near these points, detailing screw types–look for Phillips head or hex key indicators. Overlooking these can result in stripped screws during disassembly; pre-fill matching drill bits based on the inset specifications.
Follow the wiring for powered models–depicted as dashed or dotted lines leading to a centralized motor block near the seat base. Terminal connections are marked by numbered squares or circles; record these numbers before disconnecting to avoid miswiring upon reassembly. If the illustration lacks wire gauges, default to 18-20 AWG for safety. Absent or corroded wires signal degraded insulation; replace segments with matching silicone-coated wiring.
Locate the upholstery staples or clips–these appear as tiny arrows or “T” shapes along the outer frame perimeter. Schematics typically cluster these near the armrests and seat underside; verify staple quantity matches the diagram’s count. Skipping this step risks fabric tears during recline tests. Use ¼-inch industrial staples for reinforced backing where illustrations specify heavy-duty fasteners.
Finally, validate the counterbalance springs–drawn as thin, elongated ovals near the backrest’s lower corners. These control tension during motion; if the physical springs differ in coil count or thickness, adjust torque using the referenced Newton-meter values in the legend. A single missing spring can disrupt the recline angle by up to 15 degrees, so measure free length against the illustrated dimensions before proceeding.
Step-by-Step Guide to Interpreting an Upholstered Seating Mechanism Breakdown

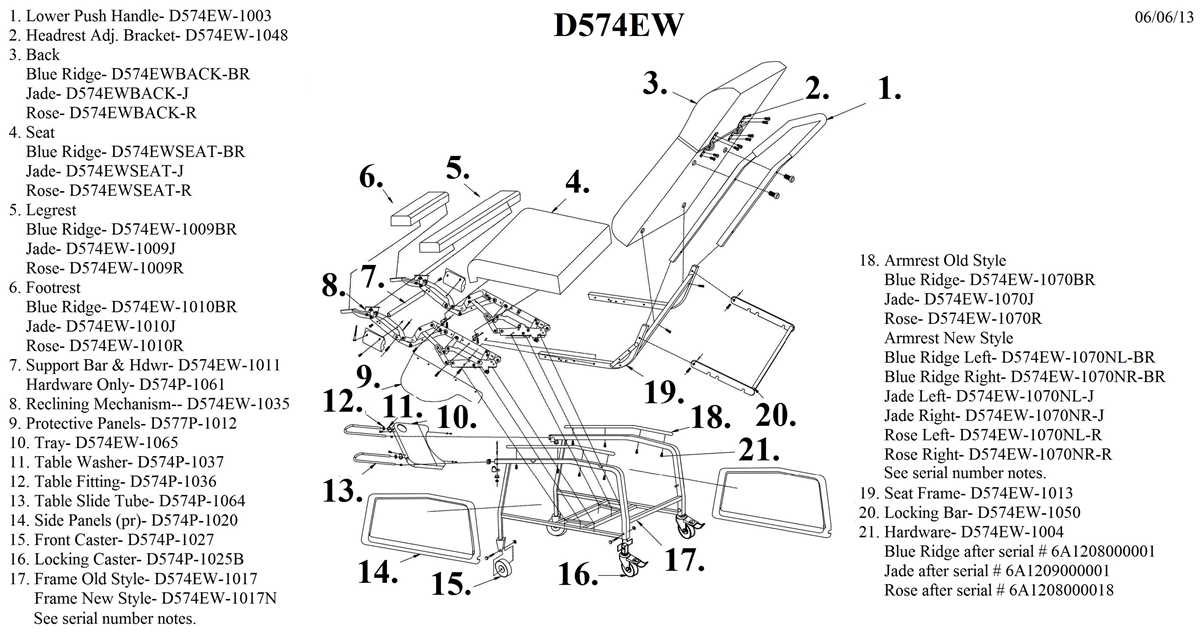

Locate the exploded illustration’s reference key first–typically a numbered or lettered list adjacent to the schematic. Match each identifier to its corresponding component in the assembly by tracing thin leader lines connecting labels to physical pieces. Prioritize verifying units of measurement, as imperial and metric fasteners often appear similar but require different tools for disassembly.
Divide the schematic into functional zones: frame structure, tilt system, motorized actuators, and cushion supports. The lower right quadrant frequently details linkage rods, while spring assemblies occupy the central area. Highlight non-standard hardware–such as tamper-resistant Torx screws or one-way clips–with colored markers to prevent reassembly errors.
Identifying Subassemblies
Group related elements by color-coding the illustration: red for tension mechanisms, blue for pivot joints, green for fabric attachment points. Note serialized components, usually stamped with three-digit identifiers on metallic arms or cast housings. Cross-reference these numerals against the supplier’s manifest to confirm replacement compatibility. Ignore decorative overlays focusing instead on load-bearing segments vulnerable to fatigue.
Examine arrow annotations indicating motion direction or torque application. Arrows pointing inward on a cylindrical bushing denote press-fit installation, while outward arrows signal removal via specialized extractor tools. Rotational symbols near gear teeth reveal clockwise or counterclockwise engagement–misalignment here voids warranty clauses listed in technical bulletins shipped with the unit.
Print the exploded view at 150% scale and overlay tracing paper to annotate installation sequences. Document fastener torque specifications adjacent to each joint–typically 18-22 ft-lbs for structural bolts–using a torque wrench calibrated within the last 90 days. Isolate electrical connectors by following dashed lines to pinout diagrams often appended to supplemental sheets, ensuring static discharge precautions before handling sensitive circuits.
