Begin by labeling the overhead guard–often misidentified as merely protective shielding–this structure bears up to 1,000 kg of dynamic load per ISO 3691 standards, acting as both safety barrier and structural anchor for hydraulic lines and electrical conduits. Use 6mm thick steel plates for models rated above 3.5 tonnes; thinner gauges risk deformation under stacked loads.
Inspect the mast’s inner and outer rails next: every 250-hour cycle demands lubrication with NLGI 2 grease at pivot points to prevent scoring. The free-lift cylinder–mounted between inner rails–must extend fully before outer rails move; verify this sequence before diagnosing reach issues. Replace worn rollers if tolerance exceeds 0.3mm; failure here causes inconsistent lift heights and uneven fork alignment.
Locate the counterweight’s rear cast iron block–typically 1,200 kg for 4-tonne units–ensuring its securing bolts (M24 grade 10.9) are torqued to 600 Nm. Loose bolts shift the center of gravity forward, increasing tip-over risk on inclines steeper than 5 degrees. Use a calibrated torque wrench; visual checks are insufficient.
Examine hydraulic hoses: 4,000 psi-rated lines should show no abrasions or leaks at fittings. Replace any hose with visible wire reinforcement; a single pinhole leak at 200 bar pressure can drop system efficiency by 15%, causing slow lift speeds. Label each hose with its circuit (lift, tilt, auxiliary) during maintenance to avoid cross-connection errors.
Check the load backrest extension: on pallet handlers with extended forks (over 1,200 mm), this component prevents cargo shift during incline operation. Verify weld integrity at base mounts; cracks here compromise structural integrity faster than those on vertical supports due to torsional stress.
Key Components of an Industrial Lift Truck Blueprint
Always begin by inspecting the mast assembly–the vertical framework that dictates lifting height and capacity. Check for worn rollers, misaligned chains, or hydraulic leaks in the cylinder seals, as these can reduce stability by up to 40% under full load. Replace damaged wear pads immediately; even minor scoring increases friction, accelerating chain elongation. For twin-mast configurations, ensure synchronized movement by verifying the lifting chains’ tension with a spring scale (target: 5–7% of rated capacity). Lubricate pivot points every 200 operating hours using ISO 150-grade grease to prevent corrosion in salt-laden environments.
| Component | Failure Signs | Inspection Interval | Critical Replacement Metric |
|---|---|---|---|
| Load backrest | Bent cross-members, paint cracking | 500 hours | Deflection >5mm under 1.2× rated load |
| Overhead guard | Rust at weld joints, missing bolts | 1,000 hours | Bolts torque |
| Drive axle | Oil leaks, uneven tire wear | 1,500 hours | Differential fluid contamination (water >0.5%) |
| Counterweight | Surface cracking, loose mounting plates | 2,000 hours | Mounting bolts torque |
Next, examine the hydraulic system for efficiency losses–every 1% air in the fluid reduces lift speed by 2.5%. Test control valve responsiveness by measuring spool displacement (normal: 0.1–0.3mm) and listen for cavitation at start-up, indicating pump wear. Replace hydraulic filters if differential pressure exceeds 30 psi; clogged filters increase cycle time by 12–18%. Use a pressure gauge to verify relief valve settings (typical range: 2,800–3,200 psi) and check for leaks at hose crimps–replace hoses with hardened sections or visible wire reinforcement immediately. For battery-powered units, monitor fluid levels in the reservoir weekly, topping up with demineralized water to maintain specific gravity between 1.25–1.28.
Locating Critical Elements on Industrial Lift Equipment Using Visual Guides

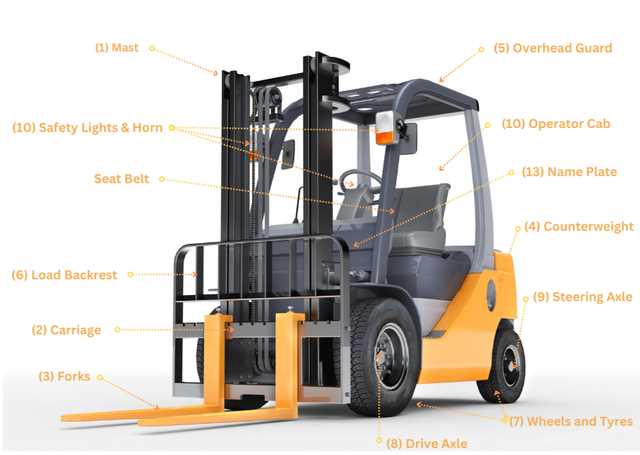

Start by focusing on the mast assembly–its rails, rollers, and hydraulic cylinders determine load stability and vertical reach. A visual breakdown should highlight the inner and outer sections, where wear often occurs first; check for misalignment or damaged rollers during inspections. Label the lift chains and their attachment points to the carriage, as these bear the primary load stress and require regular tension adjustments to prevent slippage or breakage.
Examine the power source’s core units: the battery compartment (in electric models) or the engine block and fuel system (for internal combustion variants). Electric setups need clear annotations for the controller, contactor, and wiring harness connections, as corrosion or loose terminals can disrupt operation. For combustion engines, mark the radiator, oil cooler, and exhaust components–poor cooling or exhaust flow is a common failure point, leading to overheating or reduced efficiency.
Identify the counterweight, which balances the load but also poses safety risks if improperly secured. Include labels for the overhead guard and its mounting points, as structural fatigue here can compromise operator protection. Finally, detail the hydraulic pump, valves, and hoses; leaks or pressure drops in these areas directly impact lifting capacity and require immediate attention.
How to Identify and Interpret Industrial Lift Truck Vertical Frame Components
Start by inspecting the outer channel, the largest structural element of the upright. Measure its height–most reach between 8 to 12 feet for single-stage models, while multi-tiered systems may extend beyond 20 feet. Look for welded identification plates near the base; these mark load capacity (typically 3,000 to 15,000 lbs) and manufacturer specifications. Check for corrosion or deformation at stress points, especially where hydraulic cylinders attach–these areas bear 80% of operational forces.

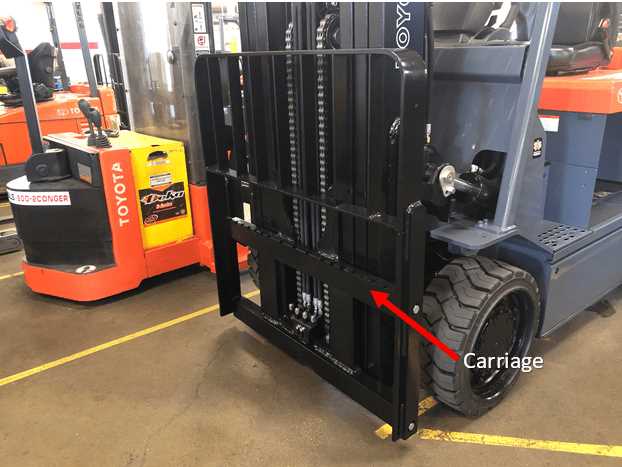

The lift chains connect to carriage hooks, tensioned to 1.5 times the rated load. Locate the chain anchor points: bolts should sit flush with minimal thread exposure (maximum 2mm). Use a torque wrench to verify tightness–ANSI B56.1 standards require 120 ft-lbs for most applications. If threads appear stripped, replace bolts immediately; failed chains account for 37% of mast-related accidents.
Inspecting Hydraulic Components
Trace hydraulic lines from the pump to the tilt cylinders–these should follow a smooth path without sharp bends (radius
Roller assemblies require weekly lubrication. Apply NLGI #2 grease sparingly–excess attracts abrasive contaminants. Listen for grinding noises during operation; smooth rotation should produce
Safety and Maintenance Verification
Examine the load backrest height relative to the carriage–OSHA mandates a minimum 4-inch clearance above the topmost fork position. Check for missing or loose bolts on the mast heel–these secure the entire assembly to the counterweight. Verify interlock mechanisms: modern models require the handbrake to engage before the upright can move. Test limit switches monthly; faulty switches cause uncontrolled drops in 12% of reported incidents.
Record all findings in a logbook with timestamps. Include measurements of chain elongation (replace at 2% stretch), cylinder bore dimensions (tolerances
Key Elements of a Lifting Machine’s Hydraulic Circuit Explained
Begin by identifying the hydraulic pump at the core of the system–typically a gear or piston type–moving fluid from the reservoir under pressure. Ensure the pump’s displacement aligns with your load requirements; mismatch leads to inefficiency or premature wear. Regularly check for leaks around seals and fittings, as even minor fluid loss disrupts pressure consistency.
The control valve, often a spool or directional type, dictates fluid flow to cylinders or motors. Inspect valve spools for scoring or contamination, as debris causes sluggish response or stuck positions. Adjust detents or springs if the valve fails to hold position under load–misalignment here makes precise lifting impossible.
Examine the hydraulic cylinders (lift, tilt, or auxiliary) for rod pitting or barrel distortion. Chrome-plated rods should remain smooth; surface damage accelerates seal failure. Replace worn seals immediately–even small tears allow fluid bypass, reducing lifting force and causing drift. Calculate cylinder bore and rod diameter against maximum load to confirm safe working limits.
Fluid filtration is non-negotiable. A return-line filter removes contaminants before fluid re-enters the reservoir, while a suction strainer protects the pump intake. Upgrade to 10-micron filters if operating in dusty environments. Monitor filter differential pressure; clogged filters starve the system, leading to cavitation and pump damage.
The reservoir must maintain proper fluid levels–overfilling causes foaming, while underfilling exposes the pump to air. Use only manufacturer-recommended hydraulic fluid; synthetic blends resist heat better than petroleum-based options. Inspect the breather cap regularly; a clogged vent creates vacuum pressure, deforming the tank and sucking in contaminants.
Accumulators, if installed, store pressurized fluid for auxiliary functions or emergency lowering. Test accumulator pre-charge pressure annually–low charge reduces responsiveness. Replace bladder accumulators if gas leakage is detected; nitrogen loss compromises performance without obvious visual cues. Ensure isolation valves operate correctly to prevent accidental discharge.
Pressure relief valves act as the system’s safety net. Set cracking pressure 10–15% above normal operating limits to avoid premature release. Test valves quarterly by gradually increasing pressure; a valve sticking open or closed indicates corrosion or debris. Log test results to track valve degradation over time–predictive maintenance here prevents catastrophic failures.
For auxiliary attachments, verify flow dividers or priority valves direct fluid where needed. Misrouted flow causes attachments to operate sluggishly under heavy loads. Check orifice sizes if performing modifications–increasing flow without upsizing components risks overheating or cavitation. Always bleed air from the system after servicing; trapped air causes erratic cylinder movement and noise.
