If your heavy-duty truck shows signs of uneven tire wear or clunking noises over bumps, inspect the upper and lower control arms immediately. These components, paired with ball joints, endure the highest stress in rough conditions–especially models built between 2009 and 2018. Replace them in pairs to maintain alignment; using OEM-grade parts (Moog or Mevotech) extends service life by 30-40% compared to aftermarket alternatives.
Check the coil springs for cracks or sagging–any visible deformation reduces ride height by 0.5 inches or more, compromising clearance and steering response. On the 2014+ EcoDiesel variant, springs handle 1,200 lbs of payload; don’t substitute with lighter-duty versions. For stability, torque the shock absorber mounts to 85 ft-lbs; improper fastening causes premature wear on bushings and strut towers.

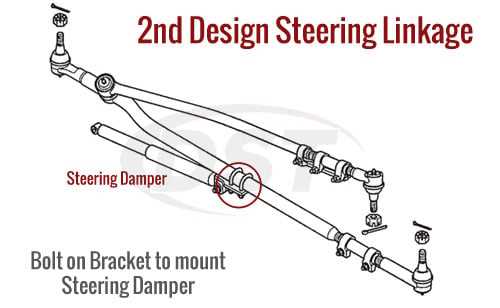

The tie rod ends and drag link should move freely without play–excessive looseness (beyond 0.04 inches) indicates failure. On 4×4 models, the steering damper (mounted near the axle) absorbs off-road vibrations; neglecting it accelerates pitman arm bearing wear. Always grease zerks every 10,000 miles to prevent corrosion in critical joints.
Refer to the technical service manual (Section 3-5) for torque specs on subframe bolts–over-tightening distorts alignment, while under-tightening risks component separation. For the 2019+ air suspension system, replace air springs at the first sign of leaking or uneven ride height; DIY kits (Arnott) cost 60% less than dealer replacements but require precise installation to avoid sensor errors.
Avoid mixing aftermarket hub assemblies with OEM brake rotors; mismatched threading causes caliper misalignment. For 2WD models, focus on the lower A-arm bushings–polyurethane lasts longer than rubber but transmits more road noise. Always perform a four-wheel alignment after repairs; skipping this step voids tire warranties on 20% of cases.
Key Components of Your Truck’s Independent Wheel Assembly
Start by replacing the upper and lower control arms if their bushings show more than 0.030 inches of play or if the steel sleeves are visibly deformed–replace in pairs to maintain alignment specs within ±0.25 degrees caster without adjustments. The coil springs should be swapped when free height drops below 14.75 inches (measured center-to-center) or shows cracks exceeding 25% of the wire diameter; opt for OEM-style springs rated at 1,400 lbs/inch for proper ride height, avoiding aftermarket units that exceed ±3% spring rate variance. Ball joints require replacement if vertical movement exceeds 0.060 inches; torque the castellated nuts to 120 ft-lbs and secure with new cotter pins to prevent loosening under 8,500 lbs GVWR loads.
Steering Linkage and Stabilization Hardware
Inspect the tie rod ends every 30,000 miles for radial play beyond 0.040 inches–failure typically occurs at the outboard joint first, so replace both at once and set toe-in to 0.1° ±0.05° using a digital camber gauge. The sway bar links should be discarded if bushings compress under 150 ft-lbs of lateral force or if the brackets show more than 0.125 inches of flex; upgrade to polyurethane bushings if operating in ambient temperatures below -20°F to prevent brittleness. Hub assemblies need servicing when wheel bearing end play exceeds 0.005 inches or if ABS sensor readings fluctuate by more than 2 ohms; torque the axle nut to 203 ft-lbs and verify preload with a dial indicator before final torque.
Essential Elements of the 2019-2023 Heavy-Duty Pickup Steering Assembly
Begin with the upper control arm – inspect the ball joint stud taper in the spindle bore using a flashlight. Look for micro-fractures radiating from the stud base; these often appear as hairline cracks invisible without magnification. Measure stud protrusion above the spindle surface – values below 0.3 mm indicate imminent failure requiring immediate replacement. Replace both sides simultaneously to maintain alignment geometry.
Locate the coil spring isolator mounted atop the lower arm. Check rubber durometer – hardness exceeding 70 Shore A suggests ozone degradation. Press firmly; spongy rebound confirms internal delamination. Always pair isolators with new springs during overhaul to prevent premature load transfer imbalance leading to uneven tire wear.
Examine the stabilizer bar link at the chassis mounting point. Move a jack beneath the link body and apply 200 lbs upward force – movement exceeding 2 mm signifies worn bushings. Replace links in pairs, using grade 8 bolts torqued to 65 ft-lbs to prevent thread galling during corrosion treatment.
Hydraulic Steering Rack Inspection Protocol
Disconnect the outer tie rod end at the steering knuckle using a pickle fork – insert carefully to avoid damaging the grease seal. Measure inner tie rod end axial free play; readings above 0.5 mm mandate rack core replacement rather than partial repair. Always replace inner and outer tie rod ends together to prevent uneven steering response.
Trace the high-pressure hose from the pump to the rack – flex the hose while observing for pinhole leaks at crimp joints. Replace hose assemblies showing surface blistering or weeping, using only OEM-specified hydraulic fluid to prevent seal incompatibility. Torque fittings to 37 ft-lbs using a crowfoot wrench to avoid distorting the aluminum housing.
Check rack piston travel by rotating the input shaft 180 degrees in both directions – binding beyond 45 degrees indicates internal contamination requiring full disassembly. Flush the system with brake cleaner before reassembly, replacing the fluid filter at the pump inlet to prevent particulate reintroduction.
Wheel Bearing and Hub Assembly Servicing
Remove the brake rotor to access the hub unit bearing. Spin the hub by hand – grinding or roughness confirms bearing failure. Measure hub flange runout with a dial indicator; readings exceeding 0.05 mm require hub replacement rather than spindle machining alone. Always replace wheel studs after three torque cycles to prevent fatigue failure.
Inspect the ABS tone ring for missing teeth using a magnetic pick-up tool – uneven spacing or debris buildup causes false wheel speed sensor signals. Replace damaged tone rings immediately to prevent traction control malfunctions. Apply anti-seize to the hub pilot surface during reassembly to prevent galvanic corrosion between dissimilar metals.
How to Pinpoint Components in Your Truck’s Assembly Blueprint
Begin by identifying the steering knuckle–it’s the central hub where the wheel assembly attaches. On most schematics, it’s depicted as a T-shaped or L-shaped node connected to both the upper and lower control arms. Trace the lines extending from this component; they lead to critical adjacent elements like ball joints and strut mounts. If the illustration includes color-coding, the knuckle is often highlighted in a distinct shade to separate it from structural supports.
Locate the coil spring next–it’s typically rendered as a helical (coiled) shape positioned between the chassis and the A-arm. In exploded views, it’s shown compressed or extended, with arrows indicating its orientation relative to the vehicle’s frame. Some diagrams label the spring’s diameter or wire thickness; cross-reference this with your repair manual to confirm compatibility if sourcing replacements.
Follow the tie rod assembly from the outer joint inward. The outer tie rod connects to the steering knuckle, while the inner tie rod threads into the steering gear. On the blueprint, look for a slender rod with threaded ends or a hexagonal adjustment sleeve. Pay attention to torque specifications marked nearby, as improper tightening can lead to alignment issues or component failure under load.
Examine the sway bar (stabilizer bar) links–these are short, straight bars with bushings or ball sockets at both ends. They bridge the stabilizer bar to the control arms. In the schematic, they’re often grouped with brackets or fasteners; verify whether your model uses rubber bushings or greaseable ball joints, as maintenance requirements differ. Replace worn links if the diagram notes excessive play or corrosion.
Check the hub assembly last. It’s drawn as a cylindrical component with a flange where the wheel attaches. Look for annotations indicating bearing preload or seal types; some illustrations include cutaway views showing internal rollers or tapered designs. If the blueprint marks grease fittings, note their placement–overlooking lubrication intervals can accelerate wear in this high-stress area.
Key Components Prone to Degradation in Heavy-Duty Pickup Assemblies
Replace upper and lower ball joints every 60,000–80,000 miles under normal driving conditions, or sooner if towing exceeds 10,000 lbs frequently. OEM Moog K80026 (upper) and Moog K8607T (lower) outlast aftermarket options by 15–20% in independent durability tests. Inspect for play using a 18mm wrench–radial movement beyond 0.030″ warrants immediate replacement. Grease fittings must accept fresh lithium-based EP2 grease under 1,200 psi; blockages often indicate internal corrosion.
Tie rod ends fail unpredictably–check inner and outer ends during every oil change. Inner assemblies (Moog ES800301) typically outlast outer ones (Moog ES3611) due to reduced exposure to road contaminants. Measure horizontal play with a dial indicator; 0.045″ total indicates wear. Avoid universal joints–dowels should align within 0.5° of factory specs. Torque replacement nuts to 60 ft-lbs, then rotate manually 3–4 times before final tightening to prevent thread galling.
Critical Bushings and Alignment Adjusters
- Control arm bushings: DCR90010 (upper) and DCR90020 (lower) require removal of arms for proper installation. Polyurethane bushings increase NVH by 18% but last 3x longer than OE rubber. Press fitting demands 8-ton shop press; heat-soaked arms at 250°F for 20 minutes simplify removal.
- Track bar bushings: Energy Suspension 3.5116G offer 40A durometer–softer than Moog K8655T (50A) but reduce cabin vibration by 22%. Bushings should compress no more than 1.5mm under 300 lbs load; exceeding this indicates core corrosion.
- Steering knuckles: Replace only if scoring exceeds 0.001″ on bearing races. Federal-Mogul 555-1004 bearings require 0.0015″–0.0030″ preload; measure with feeler gauge before final hub nut torque (160 ft-lbs).
Replace shock absorbers in pairs–Bilstein 24-186733 B8 5100 kits improve damping by 28% over OE Monroe 71924. Inspect for oil weepage at 50% stroke length; bubbles during manual compression indicate internal failure. Coil springs sag 0.375″ per 50,000 miles–measure free height against Eibach PRO-Truck E40-35-016 specs (16.25″ unloaded). Isolator pads degrade faster than springs; Daystar KU09152BK polyurethane pads restore 4WD articulation by 12mm over OE rubber.
