Begin by locating the burner assembly beneath the cylindrical tank–this is where ignition occurs. Most modern units feature a piezoelectric igniter or direct spark mechanism, eliminating the need for a standing pilot. If your system fails to fire, inspect the flame sensor or thermocouple for corrosion or misalignment. A faulty sensor will shut off fuel delivery within seconds of ignition for safety.
The adjustable gas valve (often marked with temperature settings in °F or °C) regulates fuel flow to the burner. Turn clockwise to increase thermal output or counterclockwise to decrease. Avoid setting above 140°F–scalding risks escalate beyond this threshold. For precise calibration, use a clamp-on thermometer on the outlet pipe rather than relying solely on the dial.
At the top of the unit, the draft diverter prevents downdrafts from extinguishing the flame. Ensure the venting system (B-vent or direct vent) is unobstructed–blockages cause carbon monoxide buildup. The anode rod, typically magnesium or aluminum, sacrifices itself to protect the tank lining from corrosion. Replace it every 3–5 years or when more than 50% of its core diameter erodes.
For maintenance, shut off the fuel supply and electrical power before servicing. Drain the tank annually using the drain valve near the base–sediment accumulation reduces efficiency by up to 30%. If leaks occur near the temperature and pressure relief valve, test it monthly by lifting the lever; a functioning valve releases a brief burst of liquid. Persistent dripping indicates a faulty seal and requires immediate replacement.

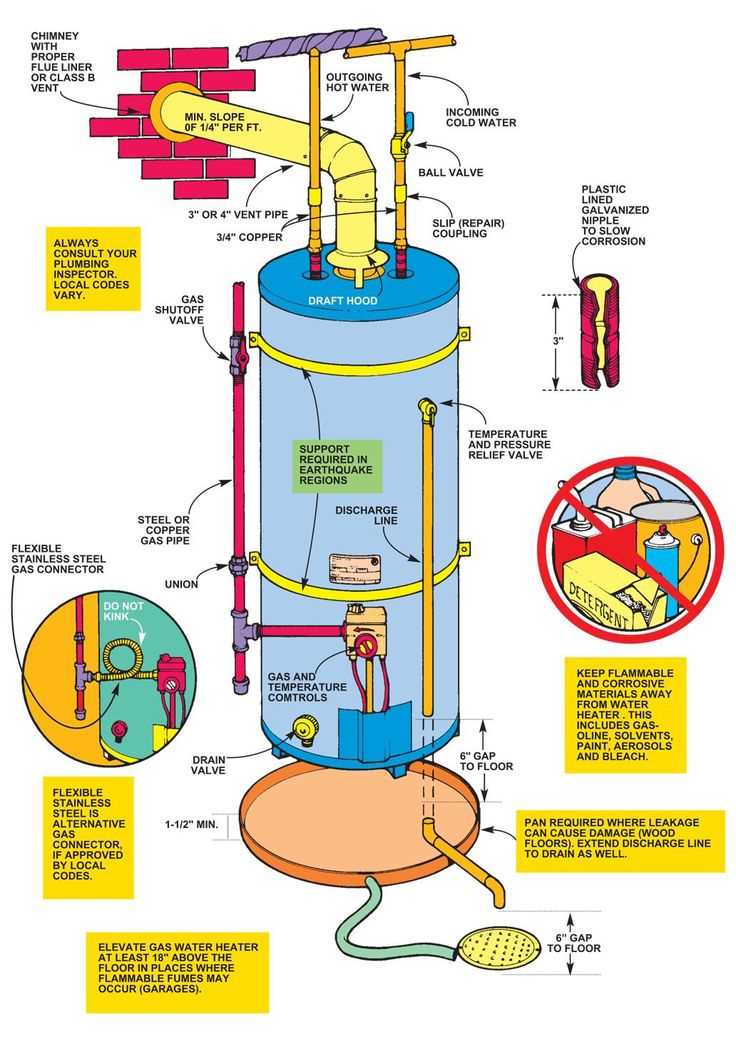

Refer to the manufacturer’s schematic–the model number is usually stamped on a metal plate near the base or inside the control panel door. Cross-reference this with online exploded-view illustrations for exact part numbers. Common replacement components include thermopile (for pilot-based systems), blower motor (if equipped), and control module (for electronic ignition models).
Visual Guide to Combustion-Powered Reservoir Components
Begin by locating the thermocouple–positioned adjacent to the pilot assembly. This safety device, a slender copper rod, detects flame presence and shuts off fuel flow if the ignition fails. Replace it immediately if corrosion is visible or if the unit fails to maintain flame despite proper gas supply. Manufacturer-specific lengths vary: Rheem models typically require a 24-inch variant, while AO Smith uses an 18-inch version. Always cross-reference the serial number with the technical manual before procurement.
Air Intake and Exhaust System Breakdown
Examine the draft hood, a hemispherical component atop the tank’s combustion chamber. Its purpose is twofold: preventing downdrafts from extinguishing the flame and venting toxic fumes. If obstructions like soot or nesting materials are present, clear them using a 1/4-inch flexible brush–never a wire hanger, as it can damage flue linings. For atmospheric units, verify the vent pipe’s slope: a minimum 1/4 inch per linear foot upward tilt is critical to ensure proper exhaust flow.
Inspect the burner orifice, a brass or stainless-steel nozzle beneath the main combustion area. Clogging here causes inefficient ignition, identifiable by a weak, flickering flame or sulfur-like odors. Clean it with compressed air at 40 PSI; solvents dissolve protective coatings. Measure orifice diameter against specifications–a Bosch WR250-5 requires a 0.045-inch opening, while larger commercial models may need 0.070 inches. Deviations as small as 0.005 inches can reduce efficiency by 15%.
Replace the anode rod every 3–5 years, or when its diameter reduces to 1/4 inch. This magnesium or aluminum rod sacrifices itself to prevent tank corrosion, extending lifespan by up to 12 years. Magnesium rods last longer in soft water areas, while aluminum is preferable for hard water. Cut the old rod with a reciprocating saw if frozen–apply penetrating oil overnight before attempting removal. Torque the new rod to 45 ft-lbs to avoid cracking the porcelain lining.

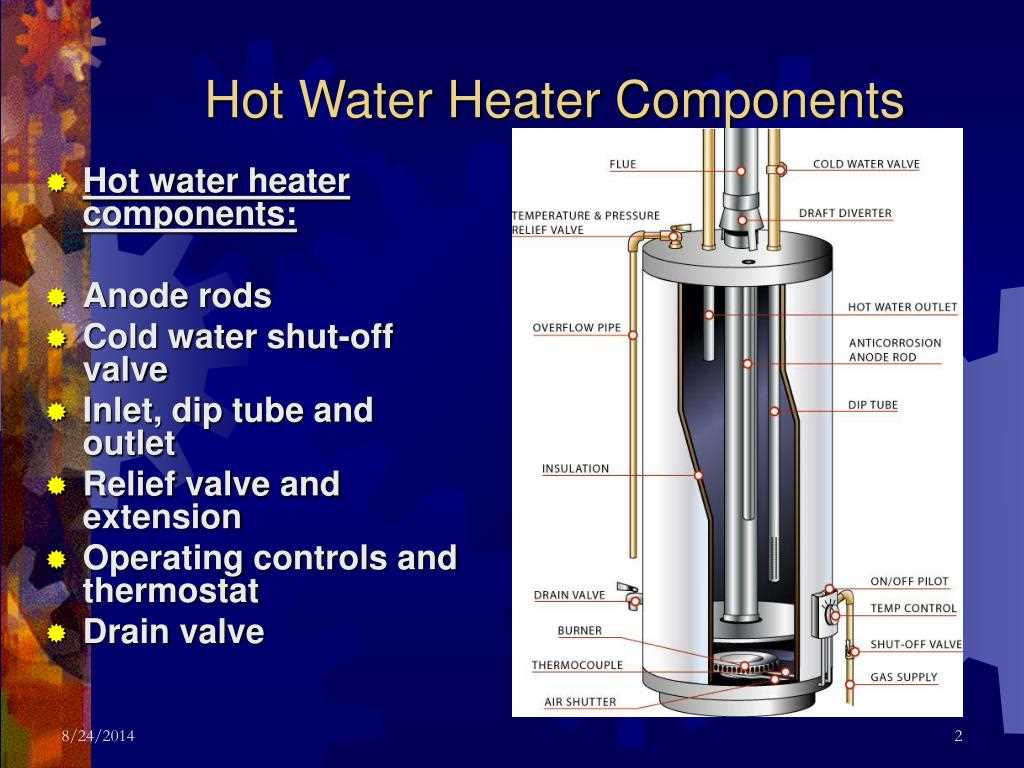

How to Pinpoint Critical Elements in an Appliance Breakdown Illustration
Begin by locating the combustion chamber at the base of the unit–identify the burner assembly, where the primary thermodynamic exchange occurs. This segment typically includes a pilot light or igniter, flame sensor, and gas valve connections. Verify their alignment; misplaced or corroded components disrupt ignition cycles.
Examine the heat exchanger coils wrapped around the tank interior. These stainless steel or aluminized steel conduits must remain free of mineral deposits or soot buildup. Use a flashlight to inspect for pitting, warping, or discoloration, which indicates inefficient heat transfer or potential failure.
Core Control Mechanisms
Trace the thermostat wiring from the control module to the tank. Modern units embed dual regulators–one for upper and lower heating zones. Confirm the wiring harness connections are secure; frayed or oxidized contacts cause erratic temperature fluctuations. Look for an adjustable dial or digital interface near the base; this adjusts target output.
The overpressure relief valve sits atop the reservoir, threaded into a dedicated port. This brass or plastic component activates at 150 psi or 210°F (65-99°C) to prevent catastrophic rupture. Test annually by lifting the lever briefly–water should discharge, then reseal without leaks.
| Component | Material | Failure Indicators | Inspection Frequency |
|---|---|---|---|
| Anode rod | Magnesium/Aluminum | Exposed steel core; sediment buildup | 12-24 months |
| Thermocouple | Copper/Nichrome | Inconsistent flame; pilot outages | 6-12 months |
| Dip tube | CPVC or Polyethylene | Cold water at tap; premature silt entry | 3-5 years |
Maintenance Zones Often Overlooked
Check the flue baffle–an aluminum or galvanized steel insert inside the exhaust vent. Its helical grooves slow exhaust gases, improving thermal efficiency. A missing or collapsed baffle drops performance by 15-20%. Remove using a screwdriver or vacuum if deformed.
Inspect the draft diverter above the combustion chamber. This sheet-metal hood redirects exhaust through the flue. Rust streaks or inward deformation suggest backdrafting. Position a mirror to confirm ¼-inch clearance from the flue collar; adjust if obstructed.
Evaluate vent pipe connections every five feet. Use UL-listed foil tape or three screws per joint for horizontal runs. Discoloration or soot near joints signals improper combustion air supply–verify outdoor intake isn’t blocked by vegetation or debris.
How to Find and Swap the Thermocouple in Your Combustion Appliance
Shut off the fuel supply at the valve and disconnect the unit from power. Locate the thermocouple–it sits adjacent to the pilot assembly, a thin copper or stainless tube terminating in a small bulb. Use a 7/16-inch or 11 mm wrench to loosen the nut securing the thermocouple to the control box; if corrosion is present, apply penetrating oil 15 minutes prior. Slide the old sensor out, then insert the new one so the bulb extends 3/8 to 1/2 inch into the pilot flame. Tighten the nut to 12–15 ft-lbs; overtightening can strip threads. Relight the pilot following the manufacturer’s ignition sequence–allow 45 seconds for the flame to stabilize before turning the main valve back on.
Critical Checks Before Reassembly
- Inspect the pilot orifice for debris; clear with compressed air at 40 psi.
- Verify the flame burns blue with a 2–3 mm inner cone–yellow tips indicate incomplete combustion.
- Test continuity with a multimeter at 200 Ω scale; readings above 30 Ω signify a faulty sensor.
- Ensure the replacement model matches the OEM part number–common variants include universal types 1050T-3, 3150588, and Robertshaw 110815.
Step-by-Step Guide to Testing and Cleaning the Burner Assembly
Shut off the fuel supply valve and disconnect the unit from the electrical source before handling any components. Remove the outer panel by unscrewing the fasteners–keep them in a labeled container to avoid misplacement. Inspect the burner ports for blockages; use a stiff-bristle brush (0.3mm wire) to clear carbon deposits or debris. For stubborn residue, apply a 5% vinegar solution with a soft cloth, allowing it to sit for no longer than 10 minutes to prevent corrosion. Reassemble only after verifying all ports are unobstructed.
Test the ignition sequence by temporarily restoring fuel flow and observing the flame pattern. A healthy burn produces a steady blue flame with minimal yellow tipping; irregularities suggest incomplete combustion. Use a multimeter set to 200 mV DC to check the thermocouple’s voltage–readings below 20 mV indicate failure. Replace the sensor if necessary, ensuring new parts match the model’s specifications. Lubricate O-rings with silicone grease during reinstallation to prevent air leaks.
Reignite the system and monitor for consistent operation over 15 minutes. Adjust the air shutter incrementally (⅛-turn intervals) until the flame stabilizes. Document changes in a log for future reference–note pressure settings, ambient temperature, and any deviations. Store spares (igniter, thermocouple) in a dry, static-free environment to extend shelf life.
Key Functions of the Combustion Control Valve and Ignition Flame Assembly
Replace the combustion control valve if diagnostics show inconsistent pressure readings–values swinging outside the 5–8 psi range during operation signal internal wear or contamination. A malfunctioning valve disrupts fuel flow calibration, forcing the system into lockout mode after repeated ignition failures. Check the inlet screen for debris; even minor blockages distort the 1:1 air-to-fuel ratio, causing incomplete combustion and soot buildup on the thermocouple.
The ignition flame assembly relies on a precise 25–30 mV output from the thermocouple to sustain the solenoid’s hold. If the flame extinguishes within 2–3 seconds of manual lighting, test the thermocouple’s resistance–readings above 15 ohms indicate degradation. Clean the tip with 400-grit sandpaper to remove oxidation, but avoid excessive handling; oils from skin accelerate corrosion. For systems with intermittent spark ignition, inspect the electrode gap; optimal spacing is 0.12–0.16 inches to prevent arcing.
Adjust the safety cutoff lever on the valve–misalignment by as little as 1/8 inch can prevent the pilot from engaging the main burner. Verify the lever’s pivot point isn’t stiff; lubricate with high-temperature synthetic grease if binding occurs. For thermostat-controlled units, ensure the capillary tube isn’t kinked; a single pinch reduces response time by 30%, delaying burner activation. Replace the tube if cracks or brittleness are visible–compromised integrity leads to fluid leaks and inaccurate temperature modulation.
Monitor the flame’s color and shape: a blue, steady cone denotes proper operation, while yellow tips or uneven burning suggest air intake issues. Use a manometer to confirm inlet pressure aligns with the manufacturer’s specifications–typically 7″ WC for natural methane and 11″ WC for propane. Deviations over ±0.5″ WC require regulator adjustments. For systems with millivolt thermostats, bypass the controller temporarily; if the system ignites and stays lit, the thermostat’s internal resistance exceeds tolerances and needs replacement.
Inspect the orifice for signs of erosion or carbon deposits–even microscopic changes alter flow rates, leading to delayed ignition or uncontrolled burner cycles. Use compressed air at 60 psi to clear obstructions, but never employ wire tools; sharps damage calibrated openings. For units in humid environments, silica gel packets near the valve prevent moisture intrusion, which corrodes contacts and shortens solenoid lifespan. Document all adjustments: torque specs for valve connections (25–30 ft-lbs) and thread sealant application (PTFE tape on inlet fittings only) prevent gas leaks and ensure compliance with ANSI Z21.10 standards.
