Locate the refrigerant flow layout before disassembling any unit. Look for arrows indicating suction, discharge, and liquid lines–these markings prevent misplaced seals or valves during reassembly. Verify tonnage ratings printed near the condenser coil; a 3-ton model requires different expansion devices than a 5-ton variant.
Test electrical continuity on capacitors marked with μF values. Replace any unit showing signs of bulging or leakage–even minor deviations from the specified capacitance disrupt compressor start sequences. Trace wiring harness connections against factory reference sheets; color inconsistencies between models (e.g., yellow vs. purple for high-voltage leads) are common causes of misdiagnosis.
Inspect blower motor mounts for alignment indicators. Sheared alignment pins or off-center bolts create uneven wear, reducing airflow efficiency by 12-18% per misconfigured installation cycle. Lubricate bearings only if specified for your unit–some sealed assemblies fail prematurely when over-greased.
Cross-reference serial number plates with internal layouts. Post-2018 units introduce inverted suction line configurations near the accumulator, requiring reversed torque specs on flare nuts (24 ft-lbs instead of 30 ft-lbs) to avoid overtightening leaks. Document all deviations during inspection–the smallest inconsistency often flags larger systemic issues.
Schematic Breakdown for HVAC Components: Step-by-Step Usage

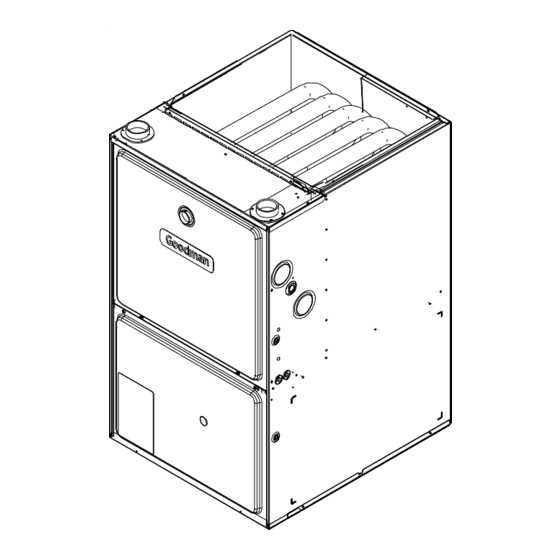

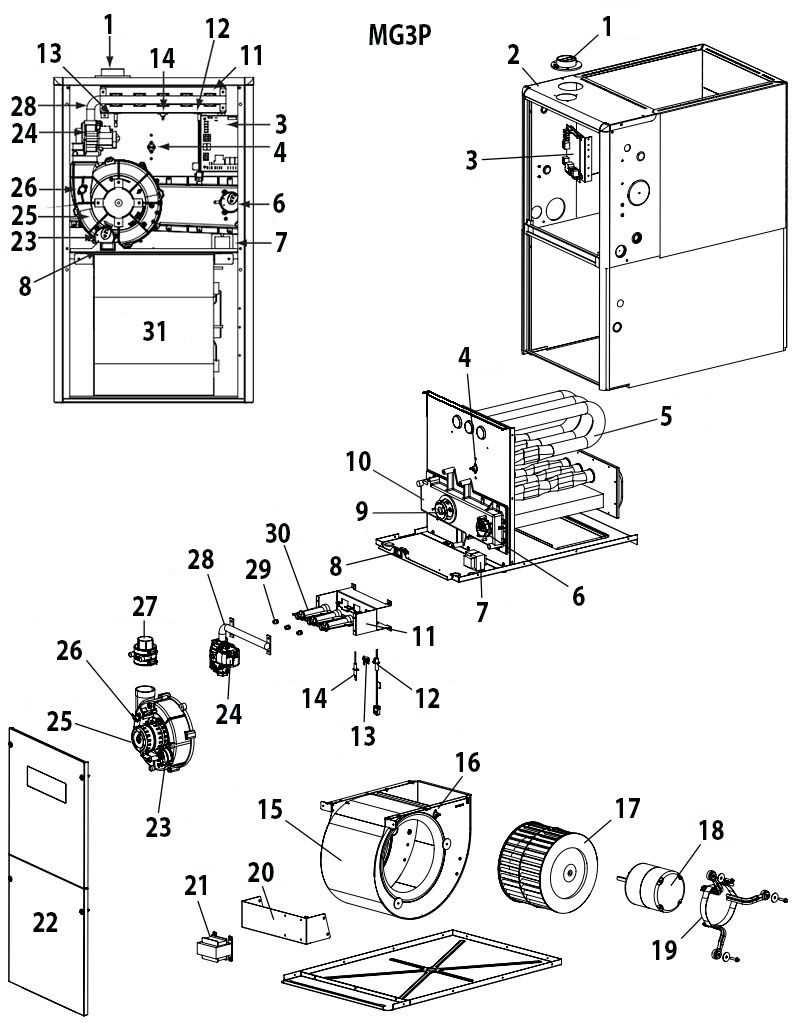

Print the exploded view of your unit’s model–search by serial number on the manufacturer’s portal. Labels like “R01” near the blower motor indicate replacement sequence; ignore generic vendor listings that omit these codes. For condensing units, note the brass service valve orientation before disassembly–reversing it causes refrigerant leaks during reassembly.
Locate the run capacitor’s dual ratings: microfarads (μF) must match ±5%, voltage ±10%. Mismatches trigger premature failure in dual-fan setups. Remove the access panel screws counterclockwise using a T25 star bit–never force standard Phillips heads, which strip threads on older units.
Trace wiring harness clips first–label each connector with painter’s tape before unplugging. Clip color correlates to amperage limits: red handles 30A circuits; blue caps max at 20A. Swap burnt contactors only if the pole plunger moves freely–sticking indicates deeper compressor damage requiring system evacuation.
Use a digital caliper to measure the orifice tube’s inner diameter if replacing the metering device. OEM specs list 0.045″–0.072″ ranges; undersized diameters starve the evaporator coil, oversized flood the compressor. Always install the new tube with the arrow aligned downstream–the backwards flow trips the low-pressure switch.
Inspect the draft inducer wheel for erosion–tiny abrasions propagate into imbalance vibrations within 18 months. Secure the wheel hub with thread-lock medium before tightening to 18 ft-lbs torque using a beam wrench. Hand-spin the wheel post-installation; binding warrants shaft alignment recheck.
Reverse gasket adhesive only on raised flanges–applying sealant to flat surfaces causes panel misalignment. Use high-temperature RTV silicone rated for 400°F continuous exposure. Cure time extends to 24 hours if ambient humidity exceeds 60%.
Charge the system via the liquid line after verifying superheat readings within 8–12°F. Calculate subcooling from the condenser mid-point, not the outlet–sight glass saturation temps skew readings on units older than 5 years. Record pressure drops across the filter-drier–any value above 5 psig signals internal restriction requiring core replacement.
Store removed bolts in magnetic trays sorted by length–thread pitch mismatches on control board mounts cause short circuits. Replace thermal fuse if resistance measures infinity; temporary solder bridges fail under cycling loads. Log all replaced components with install dates to predict cascading failures like dual capacitor degradation within 12–18 months of initial blower motor burnout.
How to Identify Critical Elements in HVAC Schematic Blueprints
Start by locating the indoor unit layout–typically positioned on the left side of the blueprint. Look for a rectangular block labeled with condenser coil markings and fan motor references. These components are often grouped under “evaporator assembly” or similar terminology in residential systems.
Scan for the outdoor compressor section, usually depicted as a larger, distinct module separate from internal elements. Symbols like a circle with diagonal lines or a squiggly coil denote this area. Refrigerant lines–thin, dashed trajectories–connect this module to the indoor unit, confirming its role in the cooling cycle.
Identify electrical controls by searching for dotted lines converging into a small box marked “control board” or “defrost module.” Terminal points labeled with alphanumeric codes (e.g., R, C, Y) indicate connection junctions for thermostats and relays. Cross-reference these with the legend to confirm voltage specifications.
Air handlers and blower motors appear as elongated ovals or cylinders with arrows showing airflow direction. Verify CFM ratings printed adjacent–values like “1200 CFM” confirm blower capacity. Nearby, capacitor symbols (two parallel lines of unequal length) signal start/run components requiring attention during diagnostics.
Decoding Refrigerant Flow Indicators
Trace liquid and suction lines using color-coded distinctions: red for discharge and blue for return. Expansion valves–represented as narrowed passages–regulate pressure drops between these paths. Check for numeric annotations like “TXV-0.5” to match valve types with system requirements.
Heat exchangers manifest as serpentine patterns within the indoor unit frame. Secondary heat strips, if present, appear as zigzag resistors near the blower outlet. Verify amp draw ratings next to these symbols to prevent overloads during operation.
Verifying Safety and Auxiliary Devices
Pressure switches display as small circles intersected by perpendicular lines, often near refrigerant lines. Labels like “HP” or “LP” denote high/low-pressure cutoffs–ensure their placement aligns with manufacturer tolerances. Filter-drier symbols (cylinders with mesh icons) appear on liquid lines to prevent contamination.
Condensate drains route excess moisture away from the indoor coil via thin, wavy trajectories terminating at a collection pan. Check for “P-trap” annotations–these prevent airlocks in drainage. Final verification includes isolating transformer symbols (two overlapping ovals) with input/output voltage markers (e.g., “24V”) to confirm proper power distribution.
Step-by-Step Reference for Locating Blower Motor Units in HVAC Schematics
Begin by isolating the air handler section in the technical layout. Identify labels marked “motor,” “blower,” or “fan assembly”–these denote the target component. Cross-reference with the legend if color-coding exists: motors often appear in red, blue, or black outlines.
Examine the exploded view adjacent to the main wiring overlay. Most schematics group blower assemblies near the evaporator coil, distinguished by cylindrical shapes with attached pulleys or direct-drive mounts. Note part numbers etched in small print–these match OEM replacement kits.
Critical Component List
| Visual Cue | Typical Label | Common Variations |
|---|---|---|
| Housing with vented grille | BLOWER HOUSING | SCROLL HOUSING, FAN CASING |
| Cylindrical body, wires | MOTOR | PS MOTOR, ECM MOTOR |
| Wide circular flange | WHEEL | IMPELLER, BLADE ASSEMBLY |
| Mounting bracket | MOTOR MOUNT | BRACKET KIT, SUPPORT PLATE |
Measure physical dimensions if the schematic lacks scale. Standard blower motors span 8–15 inches in length, with diameters ranging 5–10 inches depending on tonnage (1.5–5 tons). ECM variants feature rectangular control modules attached to the back.
Trace electrical pathways leading from the motor to the control board. Permanent split capacitor (PSC) motors show dual capacitors marked “RUN” and “START” in the wiring overlay. Electronically commutated motors (ECM) include a plug-in harness connected to the system’s low-voltage terminals.
Verify voltage requirements adjacent to motor labels: 120V, 208–230V, or 240V. Single-phase units dominate residential schematics, while three-phase assemblies appear in commercial diagrams. Check amperage ratings–residential blowers typically draw 3–10A.
Compare the schematic’s revision date with equipment manuals. Post-2018 layouts often integrate smart diagnostics, labeling motors as “VARIABLE SPEED” or “MULTI-SPEED” with numbered terminals (e.g., “T1,” “T2”). Older diagrams use simpler “HI/MED/LOW” speed tags.
Troubleshooting Shortcuts
If the motor label directs to a separate detail page, note the reference number (e.g., “See Detail B-3”). Common obstructions include obscured text from fold lines–use a magnifying glass or digital zoom. Blower wheels may be drawn as partial circles; ensure the depicted side matches the system’s installation orientation (clockwise vs. counterclockwise rotation).
Key Components Depicted in Condenser Unit Blueprints
Identify the compressor contactor first–positioned near the electrical panel in schematics. This relay activates the compressor under thermostat demand; failure often manifests as intermittent cooling or total shutdown. Replace with an identical voltage/amperage rating (e.g., 25A/240V for 3-5 ton units) and verify wire gauge compatibility (10 AWG minimum). Check for pitted contacts; clean with fine-grit sandpaper if corrosion is minor, but discard the part if damage exceeds 30% of surface area.
Examine the run capacitor in the wiring overlay–typically a dual round or oval canister rated 35-50 MFD for both fan and compressor circuits. A bulging case or oily residue signals imminent failure; replace immediately with matched specifications (±5% tolerance). Test with a multimeter (capacitance mode) before installation–readings outside 1-10% of label value require swapping. Secure the replacement tightly to the chassis to prevent vibration-induced microfractures.
- Start capacitor (if present): Found only in single-phase models above 3 HP. Replace if the compressor struggles to initiate or hums without engagement. Never substitute with higher capacitance–overloading the start winding risks burnout within 48 hours.
- Condenser fan motor: Locate in the exploded view near the coil assembly. Match RPM (typically 825 or 1075), voltage, and blade pitch (6-8° for most residential models). Misalignment causes airflow restriction; verify blade clearance (
Overload Protection Devices
Reference the compressor overload protector in sectional drawings–the small disc-shaped component clamped to the compressor housing. This bimetallic switch trips at current spikes >25A or temperatures >220°F. Replace if the compressor cycles erratically or fails to restart after cooling. Select OEM-spec parts; universal aftermarket protectors may not align with thermal gradients in fractional horsepower compressors.
Check the high-pressure switch–a normally closed sensor mounted on the liquid line or discharge port. Trips at 400-450 PSI to prevent coil rupture; reset manually after verifying refrigerant charge (subcooling = 10-12°F). If stuck open, the system will not start; replace if internal contacts show pitting under a continuity test. Always purge air from the refrigerant lines before reconnecting.
Coil and Refrigerant Circuit Elements
- Liquid line filter-drier: Shown adjacent to the expansion valve in assembly charts. Replace every time the refrigerant circuit is opened–internal desiccant saturates rapidly (moisture absorption capacity = 3-5 grams). Install with correct flow direction (arrow on housing) to prevent desiccant migration.
- Expansion valve/orifice tube: Depicted as a small bulb or inline restrictor. Blockage causes low suction pressure (25-35 PSIG) and ice buildup on the evaporator. Clean orifice tubes with dry nitrogen; replace thermostatic expansion valves if subcooling drift exceeds ±2°F after calibration.
- Condenser coil fins: Illustrated in exploded views requiring periodic cleaning. Straighten bent fins with a fin comb (12-fin/inch spacing) to maintain laminar airflow. Corroded coils mandate full replacement–repair is uneconomical if fin degradation exceeds 40%.
Validate all replacements against the original unit’s serial number decal–variants for identical tonnage models may differ in compressor displacement or capacitor ratings. Document torque specs (e.g., 18-20 ft-lbs for compressor bolts, 10-12 ft-lbs for electrical terminals) to prevent thread stripping or loose connections. Perform a nitrogen leak test (200 PSIG) before evacuating and recharging the system.
