Start with the official service manual schematic–specifically Section 3, “Mechanical Systems,” for the 1984–2000 air-cooled V-twin lineup. This document isolates each subsystem: crankcase internals, cylinder heads, camshaft assembly, oil pump, and primary drive. Cross-reference component numbers (e.g., 18062-88 for intake valves, 18080-88 for exhaust) with aftermarket suppliers like JIMS or S&S to confirm compatibility.

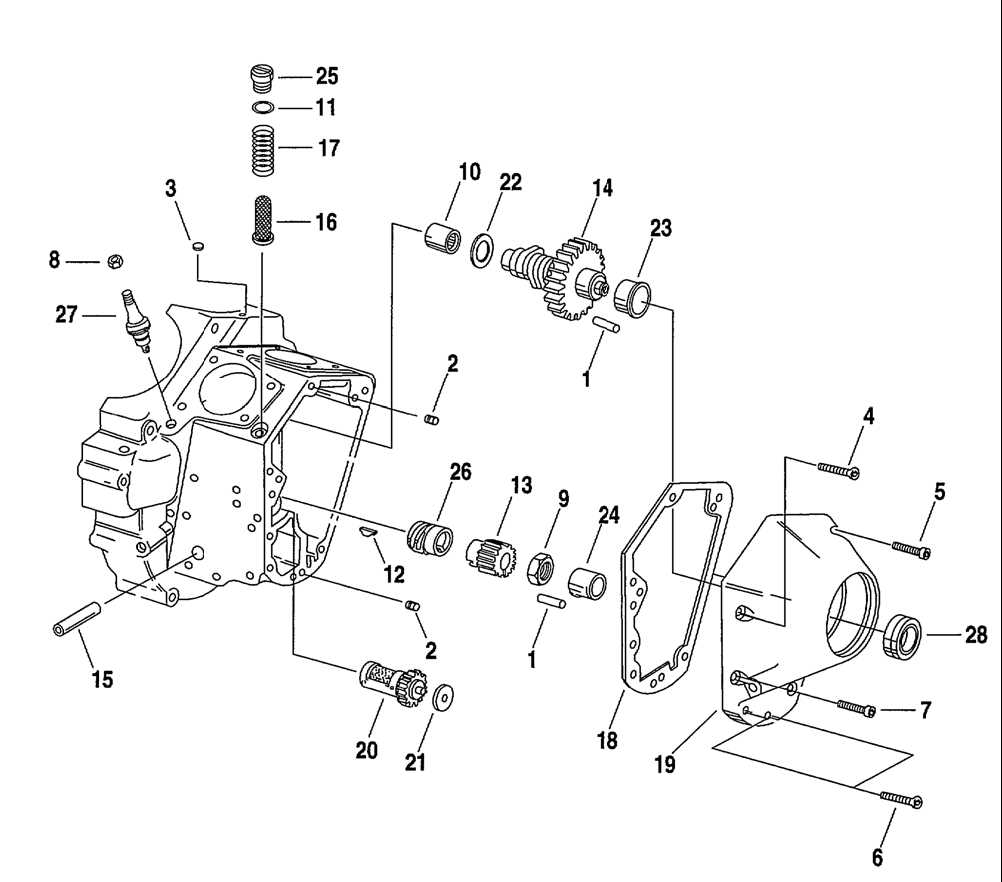

Focus on the timing cover early–removing it exposes the ignition sensor, cam gears, and oil slinger. Label each gear tooth position before disassembly; misalignment by a single notch retards timing by 2°–4°. Use a micrometer to verify crankshaft endplay (0.002″–0.006″ tolerance) and rod bearings (0.001″–0.002″ clearance per service spec). Forget “eyeballing” these–precision tools prevent seizures.
Prioritize the valvetrain next. Hydraulic lifters (PN 18503-80) require oil pressure checks at 2,000 RPM (minimum 10 PSI). If replacing pushrods, opt for adjustable chromoly units (e.g., Andrews or Crane) to fine-tune rocker arm geometry. Cylinder heads with 80cc combustion chambers (PN 16559-84A) demand a torque sequence: 14–16 ft-lbs for intake bolts, 20–22 ft-lbs for exhaust, in a spiral pattern to avoid warping.
For the carburetor or fuel injection system, note the manifold stud lengths (5/16″-24 for Keihin, 3/8″-24 for S&S). Rebuild kits differ between models–CV carburetors (PN 27091-88) use smaller jets than downdraft units (PN 27180-90). Always bench-test fuel pumps (0.5–0.7 PSI at idle) before reinstallation.
Final step: oil flow verification. Remove the oil cooler lines and pressurize the system with compressed air (30–40 PSI). Listen for leaks at cam bearings and inspect the filter adapter plate for stripped threads–common failure points. Replace the spin-on filter (PN 63796-99) with a high-flow unit (e.g., Mobil 1 M1-108) to handle increased heat in forced-induction setups.
Understanding Your Air-Cooled V-Twin Component Layout
If you’re restoring a 1984-1999 Big Twin powerplant, start by locating the cam cover on the right side–the aluminum housing conceals three lobes that drive the pushrods for intake and exhaust valves. Each lobe profile dictates valve timing: stock profiles lift valves 0.053″ (intake) and 0.048″ (exhaust) with a 280° duration. Swapping cams? Match lobe centers–stock timing is 108° intake, 114° exhaust–or risk piston-valve interference at high RPM.
Inspect the cylinder heads next. The 80-cubic-inch heads feature 1.84″ intake valves and 1.50″ exhaust valves, with combustion chambers milled to 8:1 compression (stock) or 9.5:1 (Screamin’ Eagle). Measure valve stem protrusion before reinstalling rocker arms: if protrusion exceeds 0.060″, replace retainers–failure risks valve stem breakage. Replace rocker arm shafts if wear exceeds 0.002″ per side; new bushings should have 0.001-0.0015″ clearance.
| Component | Torque Spec (ft-lb) | Thread Sealant |
|---|---|---|
| Cylinder head bolts | 35-38 (stage 1), 60-65 (final) | Loctite 574 |
| Primary cover screws | 8-10 | Permatex #2 |
| Rocker box bolts | 12-15 (step 1), 20-22 (final) | None (dry) |
| Exhaust studs | 25-30 | Copper anti-seize |

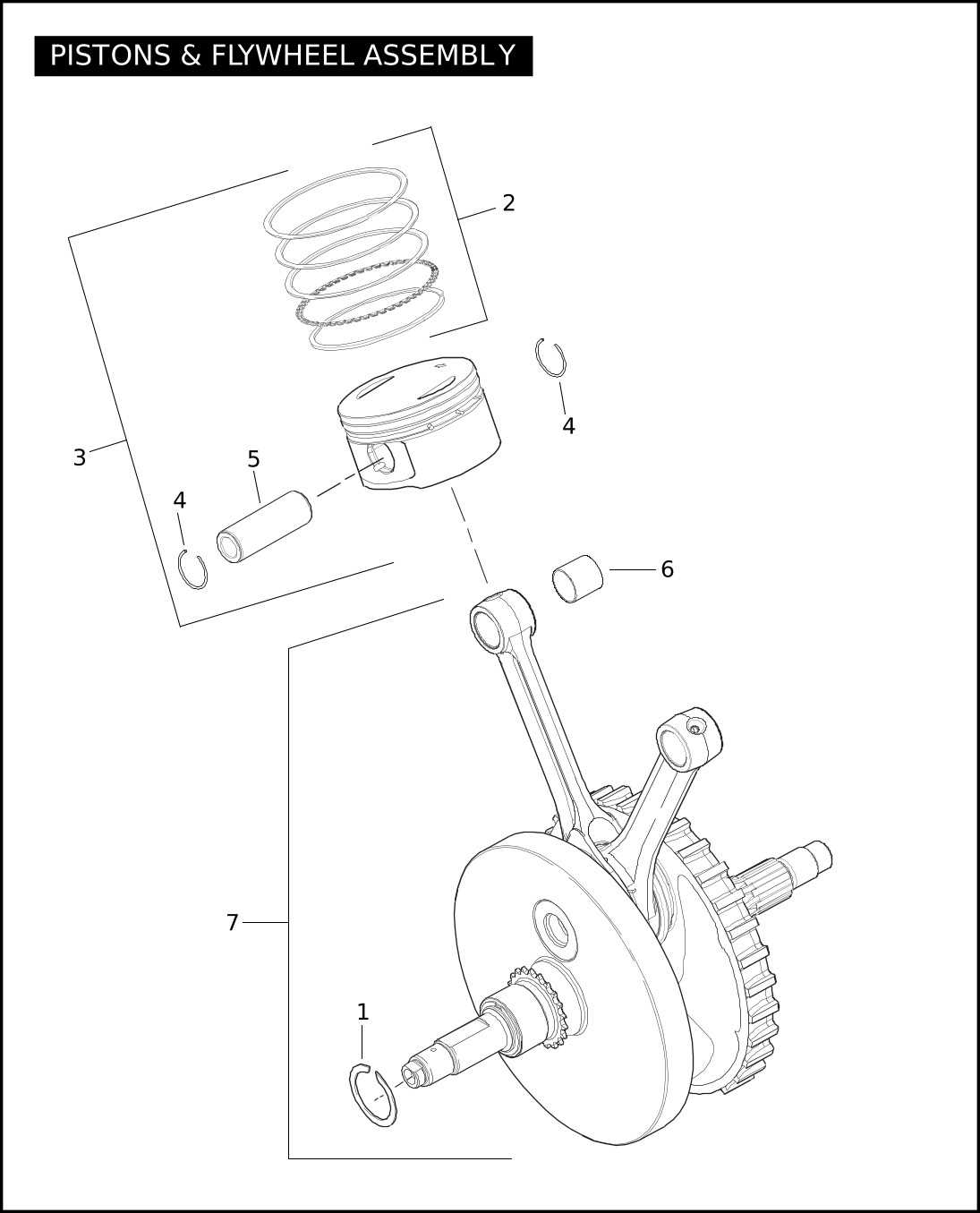

Examine the flywheel assembly through the crankcase window. The stock 3.8125″ stroke Mahle pistons should show 0.0010-0.0015″ expansion clearance; more than 0.003″ requires oversized rings. Check connecting rod side play: 0.006-0.010″ is ideal–anything beyond 0.014″ means worn crankpin bearings. When replacing bearings, use H-D part #9076 (late-style needle rollers); torque rod nuts to 35-40 ft-lb in three passes.

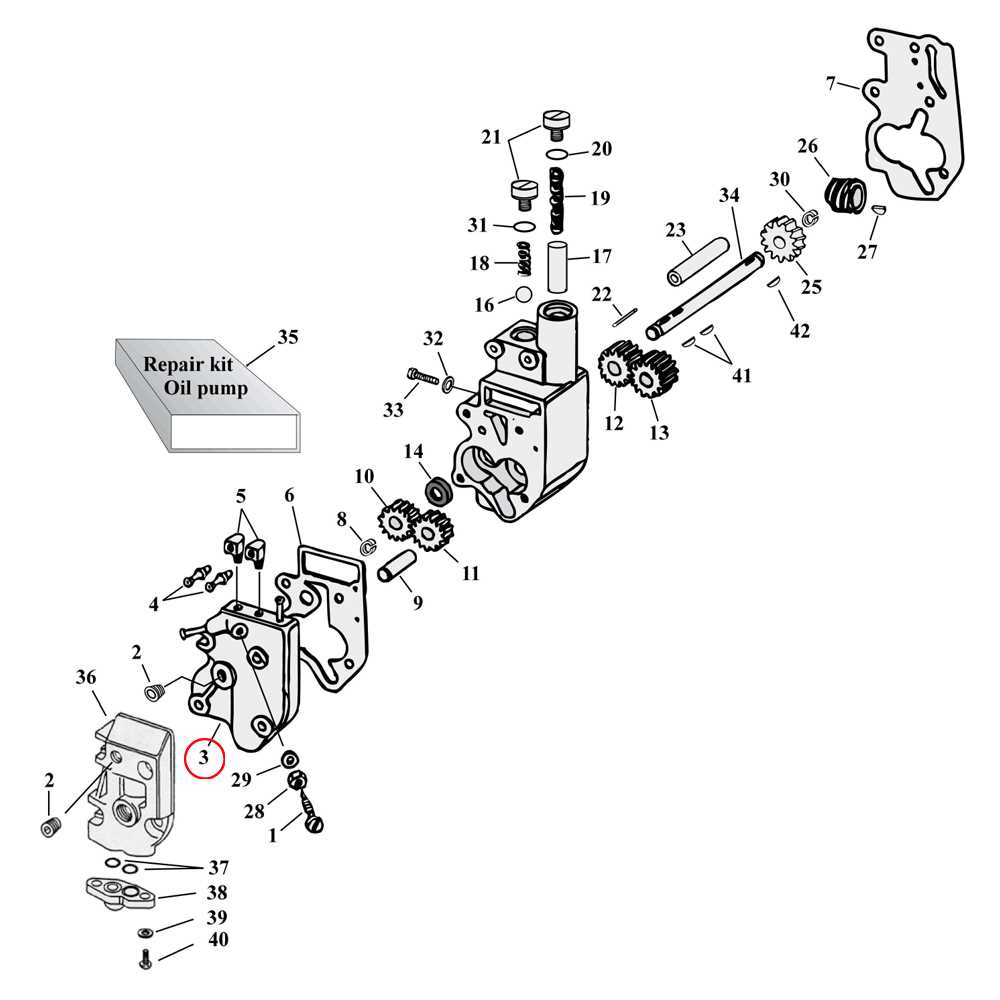

Clean the oil pump before reassembly. The gerotor set should have 0.002-0.005″ radial clearance and 0.002″ axial clearance. If wear exceeds 0.007″, replace the entire pump–internal bypass valves fail silently, causing catastrophic oil starvation. Prime the pump by packing the inlet cavity with assembly lube and spinning the shaft counterclockwise until oil appears at the outlet port.
Replace all paper gaskets with MLS (multi-layer steel) versions–Fel-Pro gasket kits #HS 9256 PT2 include cylinder head gaskets with integrated fire rings rated for 1,200°F. Apply Hylomar blue (non-hardening) to crankcase split lines, avoiding oil passages. Torque crankcase halves to 15-18 ft-lb in a circular pattern, then finalize at 20-22 ft-lb.
Adjust hydraulic lifters with the engine cold. Back off the rocker arm until valve lash exceeds 0.040″, then turn the pushrod until resistance increases–this zeros the adjuster. Tighten the jam nut to 10-12 ft-lb. Verify clearance: intake should be 0.002-0.004″, exhaust 0.004-0.006″. Failed lifters (clicking at idle) often stem from collapsed internals; replace with Hydraulic Rollers (#18536-85) for quieter operation.
Upgrade the ignition system if running high-compression pistons. The stock dual-fire coil fires both spark plugs simultaneously, retarding timing–replace with single-fire coils (Accel #140236) matched to an electronic advancer. Set initial timing at 5° BTDC (static), advancing to 28° at 3,500 RPM. Use Autolite APP2954 plugs gapped to 0.038-0.042″ for optimal flame propagation.
Inspect the clutch pack via the derby cover. The stock spring pressure (180 lb) suits 4-speed transmissions; swap to HD #37940-98 springs (220 lb) for 5-speed models. Measure friction disc thickness: minimum 0.100″–replace if warped beyond 0.003″. Soak new discs in transmission fluid for 24 hours before installation. Torque the pressure plate to 15-18 ft-lb in a star pattern, then recheck after 500 miles.
Key Elements in a Big Twin V2 Powertrain Breakdown
Start with the cylinder heads–locate the intake and exhaust ports first. These cast-aluminum components house valves, springs, and rocker arms; verify their alignment against the gasket surface. Misaligned ports disrupt airflow, causing uneven combustion. The latter 1984–2000 models include reinforced valve seats, identifiable by their deeper machining marks; mismatched replacements lead to premature wear.
Trace the camshaft next. It sits beneath the lifter blocks, driving both intake and exhaust lobes simultaneously. Measure lobe lift–stock specs range from 0.480″ to 0.530″–using a dial indicator. Lobes worn below 0.002″ from nominal require immediate replacement to prevent valvetrain noise and reduced torque. Note the gear-driven design: any play exceeding 0.003″ necessitates a new thrust washer set.
Examine the piston and connecting rod assembly. Forged pistons feature three rings–two compression, one oil control–spaced precisely 0.005″ apart. Rings sticking above the groove indicate carbon buildup; soak in diesel overnight to dissolve deposits. Rod bolts must stretch no more than 0.0025″ beyond original length; replace if elongated. The small-end bushings should show a uniform bronze surface; scoring demands removal and re-boring.
Inspect the flywheel assembly last. The crankpin must exhibit a mirror-like finish with no chatter marks; pitting deeper than 0.001″ warrants machining. Balance shafts carry weights; weights detached from their posts reduce smoothness at idle. Confirm runout with a magnetic base dial indicator–any deflection above 0.005″ mandates truing or replacement. Ignore this, and primary chain tensioners wear unevenly.
Critical Fasteners and Sealing Surfaces
Prioritize the cylinder base gaskets. Composite gaskets (pre-2000) measure 0.020″ thick, while MLS versions post-2000 are 0.045″. Apply sealant only to the perimeter; excess migrates into oil passages, clogging pushrod tubes. Torque sequences follow a cross pattern: start at 10 ft-lbs, increment to 30 ft-lbs in three steps. Over-tightening distorts cylinders, causing piston scuffing.
Check the crankcase split line. Gasket residue thinner than 0.008″ at any point signals improper sealing–clean with a brass brush, never razor blades. Case halves must align within 0.002″; misalignment causes oil leaks at the mating surface. Use a straightedge and feeler gauges; replace dowel pins if worn beyond 0.0005″. Ignore this, and the oil pump pickup screen clogs from debris.
Electrical and Auxiliary Components
Locate the ignition module behind the rear cylinder. Resistance across its terminals should read 500–700 ohms at room temperature; readings outside this range indicate internal corrosion. Replace the module if arcing marks appear on the cover. Adjacent, the voltage regulator mounts externally–ensure its heat sink fins remain free of oil; blocked fins cause failure within 50 miles of operation.
Inspect the oil pump internals. Gerotor sets must exhibit zero radial play; wear grooves deeper than 0.003″ reduce flow by 15%. Pressure relief springs come in two lengths: short (1.2″) for 8 PSI, long (1.5″) for 12 PSI. Swap springs to match vehicle weight; mismatches starve piston cooling jets. Finally, confirm the scavenger pump pickup sits 0.25″ above the sump floor–obstructions here introduce air, causing bearing starvation.
Step-by-Step Breakdown of the Cylinder Head Assembly in Air-Cooled V-Twin Powerplants
Begin by inspecting the valve guides for wear–clearance should not exceed 0.002 inches. Replace any guide showing visible scoring or excessive play, as compromised guides accelerate valve seat erosion and disrupt combustion efficiency. Use precision reamers to resize if necessary, ensuring interference fits of 0.001 to 0.0015 inches for proper heat transfer.
Valve springs require meticulous testing. Compressed height must match manufacturer specifications within 0.01 inches; deviations introduce valvetrain harmonics and premature fatigue. Install spring seat washers with hardened surfaces to prevent galling–soft washers deform under load, altering spring dynamics and reducing powerband stability by up to 12%.
Assembling the rocker arms demands torque sequence precision: start at 15 ft-lbs, incrementally increasing to 35 ft-lbs in a crisscross pattern. Uneven clamping distorts the rocker pedestal, causing misalignment that accelerates cam lobe wear. Verify pushrod length using a dial indicator–ideal preload should be 0.030 to 0.040 inches, compensating for thermal expansion without inducing excessive valvetrain lash.
Cylinder head gaskets must be coated with a graphite-based sealant on both sides to prevent micro-leaks under heat cycling. Avoid copper-based compounds; they react with aluminum alloys, creating galvanic corrosion that weakens sealing surfaces over time. Torque head bolts in stages–begin at 10 ft-lbs, then 25 ft-lbs, finally 45 ft-lbs–using a cross-pattern to ensure uniform compression. Over-tightening warps the deck, leading to coolant seepage or combustion blow-by.
Before final assembly, lubricate all contact surfaces with moly-based grease. Conventional oils thin at operating temperatures, causing dry starts that accelerate wear on cams, lifters, and rocker tips. Replace lifters if they exhibit concave wear patterns; flat-faced lifters must pair with convex cams to maintain proper rolling contact and prevent scuffing.
Post-assembly, pressure-test the head at 10 psi for 10 minutes. Bubbles in coolant or oil indicate casting porosity or gasket failure–address immediately, as even minor leaks reduce compression ratio and thermal efficiency. Verify valve timing with a degree wheel: intake valves should open at 10° BTDC and close at 40° ABDC, while exhaust valves open at 45° BBDC and close at 5° ATDC for optimal scavenging and torque delivery.
