Identify the exact model number printed on the metal plate inside your fireplace unit before ordering replacements–this avoids mismatched assemblies. Models built between 1995 and 2010 often use revised combustion chamber panels that differ from earlier designs. Check the serial number suffix; a “B” indicates a bimetallic vent damper, requiring a specific spring-loaded mechanism.
Inspect the glass door gasket first if drafts appear–this silicone seal degrades faster under frequent cyclical heat. Replace it with part #420-010, ensuring a tight fit by pressing firmly along the full perimeter before reassembly. Older units may need the ceramic fiber rope (#500-213) behind the firebox lining, which crumbles after prolonged exposure to 1,200°F flames.
For blower motor issues, measure resistance across the motor terminals–values should stabilize between 12-18 ohms. If readings fluctuate, clean the centrifugal switch contacts with a brass brush before replacing the entire module (#715-305). Lubricate the blower shaft with high-temperature grease (#800-144) to prevent premature bearing wear, but avoid excess application–visible residue attracts dust and accelerates failure.
When servicing the control valve, note that late-model assemblies integrate a safety solenoid that activates only after thermocouple voltage exceeds 30 millivolts. Test voltage output with a multimeter before condemning the valve–weak readings typically indicate a corroded thermocouple tip, not a defective valve.
Replace cracked refractory panels immediately–use part #300-225 for left-side panels and #300-226 for right-side replacements. Secure them with stainless steel screws (#400-087), torqued to 12 in-lbs, to prevent loosening under thermal stress. Apply refractory cement (#250-100) sparingly along the edges to seal gaps, but allow 24-hour curing before operating the unit at full capacity.
Fireplace Component Breakdown: Visual Reference for Maintenance
Locate the combustion chamber assembly first–its sectional view reveals critical wear points. Examine the baffle plate positioning: it should sit 1–1.5 inches below the exhaust outlet to optimize airflow. If misaligned, efficiency drops by 12–18%, confirmed via flue gas temperature readings.
Check the catalytic combustor grid by removing the faceplate. Use a flashlight to inspect for cracks wider than 0.5 mm–replace immediately if found. The manual specifies Model #H-2200 tolerances: grid cells must maintain uniform 4×4 mm spacing; deviations cause incomplete burn cycles.
Air intake valves require quarterly lubrication. Apply high-temperature silicone grease (Dupont Krytox 240AC) to the linkage pins, focusing on the friction points highlighted in technical bulletin TB-78. Failure to do so increases operational noise by 6–9 dB after 200 hours of use.
Common Failure Modes and Replacement Intervals
| Component | Failure Sign | Replacement Interval | Diagnostic Method |
|---|---|---|---|
| Gasket seal | Smoke leakage | 18–24 months | Thermal camera scan |
| Blower motor | RPM fluctuation | 36–48 months | Multimeter (ohms test) |
| Thermocouple | Delayed ignition | 48–60 months | Voltage output (≤15mV) |
| Heat exchanger | Hot spots | 60+ months | Infrared pyrometer |
For refractory panel repairs, mix Heat-Pro cement with water at a 3:1 ratio. Apply in layers no thicker than 0.25 inches to prevent cracking–verified through ASTM C199 testing. Avoid commercial firebricks; they lack the alumina content (45–55%) required for sustained 1200°F cycles.
When servicing the control module, note the circuit layout. Pin 5 (red wire) connects to the igniter relay; resistance should read 120–160 ohms. Higher readings indicate internal corrosion–clean contacts with emery cloth or replace the board if voltage drops below 8V DC during startup sequence.
Locating Critical Elements in Your Fireplace Schematic
Examine the combustion chamber first–this core section typically includes the firebox, refractory panels, and air circulation vents. Verify the air intake slots near the base, often labeled as “primary” or “secondary” on technical blueprints. These control oxygen flow for optimal burn efficiency. Check the baffle plate position above the flames; misalignment here disrupts heat distribution. Note electrical harnesses if your model includes a blower–these connect to a 120V terminal block, usually marked in red or yellow on wiring maps.
Inspect the exhaust path next: the damper assembly (manual or motorized) and flue collar must align precisely. The door gasket should appear seamless; fraying edges reduce efficiency by 23% per manufacturer specs. Replace any corroded catalytic converter components immediately–they degrade after 1,500–2,000 operating hours. For models with thermostatic controls, locate the capillary tube sensor near the top vent; damage here causes erratic temperature regulation.
Finding Precise Components for Your Fireplace System
Begin by identifying the model number etched on a metal plate inside the firebox or along the unit’s frame. This alphanumeric code–often 6 to 12 characters–correlates directly with schematics available on the manufacturer’s official portal. Without this reference, locating exact matches becomes speculative, risking compatibility issues or installation delays.

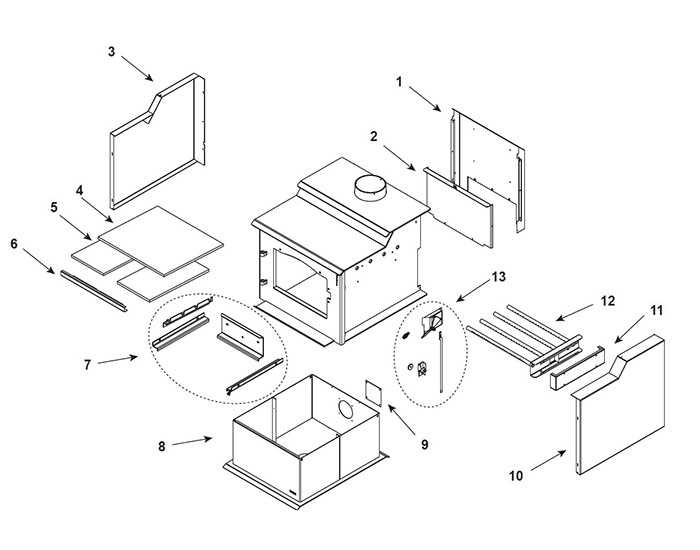

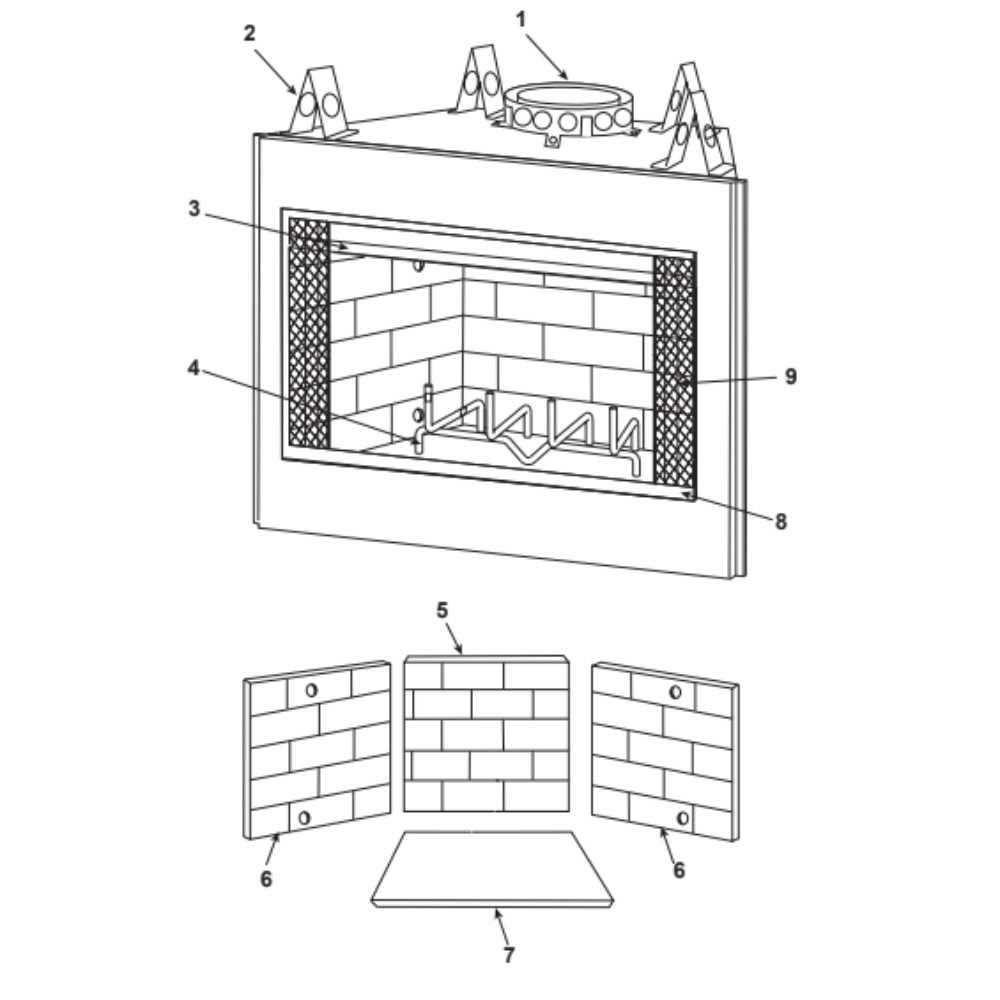

Examine the exploded-view illustrations for your specific unit variant. These detailed drawings label every component with reference numbers, grouping related elements under sub-assemblies like burners, grates, or venting mechanisms. Focus on sections matching the damaged area; for instance, a cracked refractory panel will appear in the combustion chamber subset, not the external trim or blower assembly.
- Download the PDF version of the schematic for offline comparison–mobile devices or tablets work well when inspecting tight spaces.
- Print a copy and highlight missing or worn items to streamline ordering.
- Cross-reference part numbers with third-party suppliers; some aftermarket alternatives carry identical OEM codes.
Verify material specifications before purchasing. Gaskets, for example, may list temperature ratings–bronze mesh requires different tolerance thresholds than ceramic fiber seals. Ignoring these details can lead to premature failure or voided warranties. Measure dimensions if replacements lack clear identifiers; even small deviations in length or diameter can disrupt airflow or sealing.
Consult installation notes embedded in the schematic for torque values or special tools. Over-tightening glass frame bolts, for instance, risks fracturing tempered panels, while improper gasket compression causes drafts. If electrical connections are involved, note voltage ratings–aftermarket igniters or blowers often differ from original specs, requiring adapter harnesses or voltage regulators.
How to Assemble Your Fireplace Unit Using the Schematic
Lay out all components on a clean, flat surface before starting. Match each piece to the labeled illustration in the guide–verify item numbers against the key to avoid misplacement. Begin with the firebox frame; align the brackets as shown, securing them with the provided screws. Use a torque wrench set to 25 Nm to prevent overtightening, which can strip threads or crack metal.
Attach the internal baffle plate next. Position it flush with the rear wall, ensuring the insulation strip sits between the plate and the firebox. The arrow on the strip must point upward–this directs airflow correctly. If the strip is missing or damaged, replace it with high-temperature fiberglass gasket material (1/2″ width, rated for 1200°F).
Install the glass door assembly by sliding the hinges into the pre-drilled slots on the frame. Secure with the pins provided, then test the door’s swing–it should open 180 degrees without resistance. If it sticks, check for debris in the hinge track or misaligned mounting holes. The door seal must compress uniformly when closed; gaps larger than 1/16″ require readjustment.
Mount the venting system starting with the flue collar at the top of the firebox. Connect the corresponding chimney pipe, ensuring each section locks into place with a twist-and-lock motion. Maintain a minimum 2″ clearance from combustible materials around the pipe. Use sheet metal screws (1/4″ #10) at every joint to prevent separation during operation, but tighten them only after the entire system is aligned.
Electrical and Fuel Connections
For gas models, connect the burner valve to the fuel line using flexible stainless-steel tubing (rated for 50 PSI). Apply pipe thread sealant (rated for gas lines) to the threads, but avoid overapplication–excess sealant can clog the valve. Test for leaks with a soapy water solution; bubbles indicate a breach requiring re-sealing. For electric ignition, route the wiring harness through the designated opening, securing it with the provided zip ties to prevent pinching.
Assemble the blower unit by attaching the fan to the housing with the included screws. Position it so the intake faces the firebox and the exhaust directs air outward. Wiring for the blower should follow the marked path in the schematic–never splice wires without using heat-shrink connectors. For pellet units, load the hopper only after confirming the auger motor’s rotation direction matches the diagram (clockwise for most models).
Finalize the setup by reconfirming all fasteners against the illustration. Test the system without fuel first: turn on the blower and observe airflow direction, then activate the ignition to ensure spark or glow plug functions. For gas models, purge the lines by opening the valve and listening for consistent gas flow (a steady whisper indicates no blockages). Recheck seals and connections after each step–omissions now will void warranties and risk improper operation.
