Start with the engine assembly schematic–locate the crankcase gasket reference under section 3B. This area often causes air leaks if misaligned during reassembly. Measure torque specs for M6 bolts at 12-15 Nm to prevent stripping threads common in aluminum housings. Replace the paper gasket with a copper alternative if frequent leaks occur near the magneto cover.
The carburetor breakdown appears in sub-section 5A. Clean jets with compressed air only–wire brushes damage calibration holes. Adjust the float height to 14.5mm (±0.5mm) using calipers for consistent fuel delivery. Aftermarket needle kits rated for 2% richer mixture improve throttle response in cool climates without requiring rejetting.
Front suspension rebuilds demand fresh seals from OEM suppliers–aftermarket versions swell prematurely. Grease fork internals with 5W synthetic oil to reduce stiction. Tighten triple clamp bolts in a cross pattern at 25 Nm to prevent stress cracks on the steering stem tube.

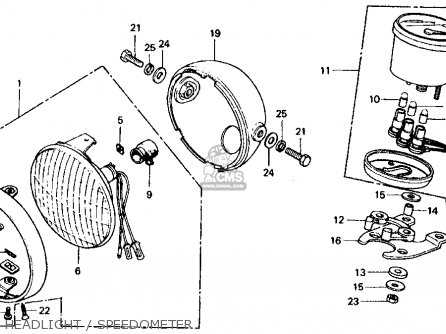

Electrical schematics live in subsection 8C. Solder connections for blinker resistors instead of crimping to prevent voltage drops. Upgrade the rectifier to a MOSFET model if stator burnout occurs during extended idling. Keep headlight bulbs at 35W–higher wattage burns out connector tabs within 50 hours.
Brake components appear in section 11. Machine drum surfaces if grooves exceed 0.3mm depth. Replace shoes in pairs–mixed pad materials cause uneven wear. Lubricate pivot points with graphite pads instead of petroleum grease to avoid attracting dust buildup.
Guide to Mini Bike Component Layouts
Start by locating the engine schematic for the 1970-1983 K-series off-road model–this is critical for identifying smaller elements like gaskets and seals. Factory service manuals (part #07980-KA3-700) include exploded views of the clutch assembly, showing how the pressure plate interacts with the friction discs. Compare these diagrams to aftermarket guides, as some reproductions omit torque specifications for bolts.
Key Sections in Technical Blueprints

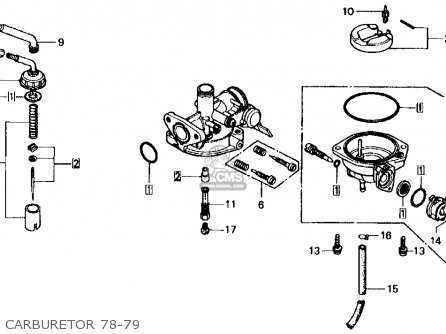

Focus on the carburetor breakdown first. The original Keihin PB14B diagram positions the float needle directly above the bowl, unlike later models where it sits at an angle. This affects fuel flow; incorrect alignment causes flooding or lean conditions. Check the OEM parts list for needle valve dimensions–aftermarket versions sometimes deviate by 0.2mm, enough to disrupt idle.

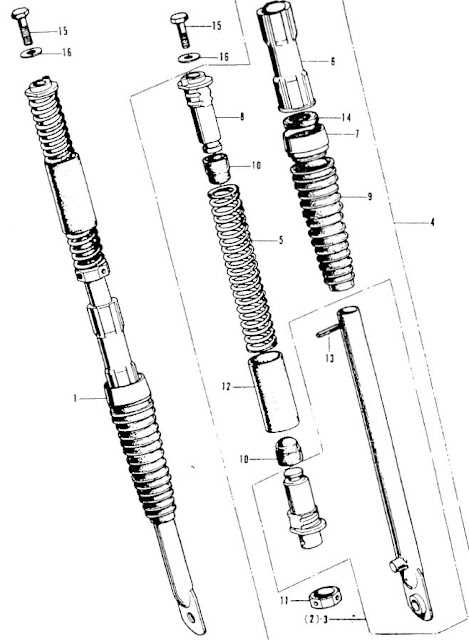

Examine the suspension layout next. The front fork cross-section reveals how the damping rod threads into the stanchion tube. Early editions used a 10mm rod, while 1978+ models switched to 12mm–critical for selecting compatible seals. Look for wear patterns on the fork legs; scoring indicates the need for oversized bushings.
Wheel assembly schematics differ between spoke and mag designs. The hub diagram shows the bearing arrangement–2x 6202RS for the front, 2x 6302RS for the rear–with spacers determining axle play. Measure axle runout before reassembly; specs demand less than 0.1mm tolerance. Replace bearings in pairs, even if only one feels rough during rotation.
Study the electrical system breakdown separately. The charging coil output (5W nominal) must match the voltage regulator’s input range (4.8-5.2V). Test with a multimeter at 3,000 RPM; readings below 4.5V confirm stator failure. Ignore wire colors in third-party schematics–stick to OEM labels (black/yellow for ignition, green for ground).
Sourcing Accurate Visual References
Use microfiche scans from official dealer archives for pre-1980 models. These show subassemblies like the kickstart ratchet and gear cluster relationships that PDF manuals often flatten. For post-1983 units, the frame diagram’s steering head angle measurement (26°) is absent from later publications–critical for fork alignment during rebuilds.
Locating Authentic Schematics for Minibike Components Online
The manufacturer’s authorized portal remains the primary source for verified exploded views. Visit the Honda Owners platform at owners.honda.com and input the model identifier (e.g., “CT70”). Filter by service manuals or illustrated breakdowns–these files are searchable, printable, and often include OEM part numbers critical for ordering replacements.
- Regional Honda dealer websites may host localized versions of schematics. For example, Honda Canada (hondanation.com) and Honda Europe (hondampe.com) archive digital copies tailored to market-specific configurations. Check under technical resources or parts catalogs.
- Third-party repositories like CMSNL (cmsnl.com) and BikeBandit (bikebandit.com) cross-reference factory blueprints with aftermarket equivalents. Use their VIN decoder to ensure compatibility, as later variants (e.g., ’81-’82 models) feature distinct assemblies.
Secondary Sources for Immediate Access
Specialized forums index user-uploaded files–Zooki’s Garage (zookisgarage.com) and Mini Bike Forum (minibikeforum.com) host downloadable archives sorted by model year. Verify file integrity by comparing dimensions in the schematics against a physical component, as unofficial scans occasionally omit measurements. For rare trim levels, search auction listings (eBay, Facebook Marketplace) using keywords like “factory microfiche CT70K2”–sellers occasionally include original paper diagrams as lot bonuses.
Locating Critical Powertrain Elements via Schematic Reference

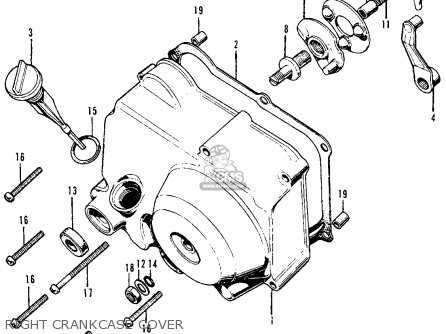

Start by isolating the crankcase on the technical illustration–it’s the foundation housing internal mechanisms. Verify the serial number stamped near the lower rear; this confirms compatibility for replacements. Common markers include circular fins for air cooling and a cylindrical casing for the piston assembly. If the depiction shows dual bolts securing the side cover, those indicate access points for timing adjustments.

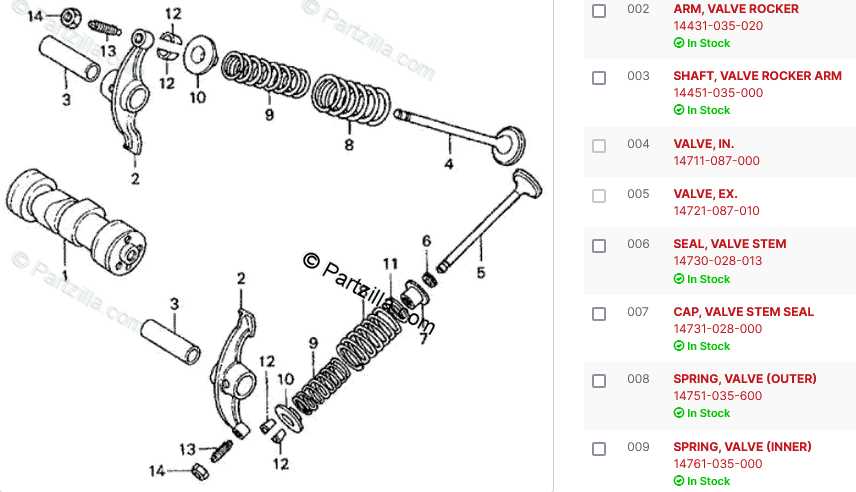

Trace the cylinder head next–it sits atop the block with four hexagonal bolts. Confirm its orientation by locating the exhaust port, typically positioned opposite the intake. The illustration should distinguish the valve seats inside, often labeled with numeric callouts. Mismatched gaskets here cause compression leaks, so cross-reference dimensions with service manual tolerances. A magnifying tool helps read micro-etchings on exploded views.
Pinpoint the carburetor by following the intake tract; it attaches via a short rubber boot. The schematic differentiates between float bowl components–note the needle valve, jet sizes, and throttle slide. Replace jets if wear exceeds 0.1mm ID (inner diameter), measurable with a precision bore gauge. Avoid swapping components between models: a 14mm carb differs from a 16mm variant in venturi shape and idle circuit placement.
- Piston rings: Three varieties appear–compression (top pair), oil scraper (lower groove). The gap should sit between 0.15-0.3mm; excess indicates wear.

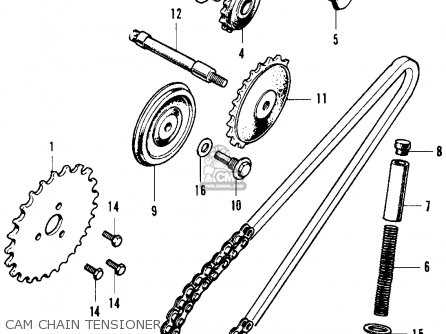

- Camshaft: Found under the valve cover, driven by a chain. Teeth count must match the sprocket–mismatched ratios alter valve timing.
- Flywheel: Harbors magnets for ignition; static alignment marks prevent rotor drag on stator coils.
Inspect the transmission cluster beneath the engine cover–gears snap onto shafts with circlips. The countershaft (larger diameter) pairs with the drive gear via splines. Missing teeth or pitting require exact replacements; aftermarket units often lack hardened steel coatings. Use a torque wrench: over-torqued bolts shear threads, while loose ones vibrate loose at 7,000 RPM.
Exhaust components include the header pipe, mid-section, and silencer–each secured with flange bolts. Rust compromises seals; discard crushed gaskets even if visually intact. The schematic often omits clamp torque specs–use 15-18 Nm for M8 fasteners. Forged replacements outlast stamped steel, particularly in high-sulfur fuel environments.
Electrical elements occupy minimal space: locate the CDI box (rectangular, finned), pulse generator (behind flywheel), and coil pack (bolt-mounted near cylinder). Wire gauge matters–18 AWG handles 10A, but 16 AWG is better for high-draw systems. Diagram labels seldom include splice points; use a multimeter to trace continuity from connector pins to ground. Swap suspect coils even if resistance measures within spec–intermittent failures escape digital checks.
Step-by-Step Guide to Locating Electrical Components in Your Minibike Schematic
Begin by identifying the ignition coil–marked near the flywheel on most wiring schematics as a cylindrical or oval-shaped symbol with labeled terminals. Locate the “+” (battery) and “-” (ground) connections first, then trace the thin wire leading to the spark plug cap. If the diagram uses color codes, note that red typically denotes positive leads, while black or green indicates grounding. For models with AC lighting, follow the alternator’s output wire (often yellow) to the rectifier or voltage regulator before it splits to the headlight or battery.
Decoding Fuse Blocks and Switches
Find the fuse holder adjacent to the battery terminal, usually depicted as a rectangle with a diagonal line or number indicating amperage. On the schematic, switches (kill switch, ignition switch) appear as break points in the circuit–trace the wiring from the battery through each switch to verify continuity. The turn signal relay, if present, is often shown as a small box near the handlebars, connected to orange (left) and light blue (right) wires. Check for dotted lines representing optional circuits or aftermarket additions.
For precise troubleshooting, cross-reference wire gauges: primary ignition wires (14-16 AWG), lighting circuits (18-20 AWG), and grounding straps (bare copper). Terminal connectors are labeled with letters (e.g., “B” for battery, “L” for lights) in older manuals–match these to the physical harness by probing with a multimeter. If the schematic includes exploded views, verify components like the CDI box (small rectangular module near the coil) by counting mounting points–typically two screws for OEM units.
