For swift repairs, keep a spindle assembly kit (OEM #532181020) on hand–common failures include seized bearings or sheared blades. Reference the official exploded view document (typically labeled HU46QCV_DWG_V3.pdf in dealer portals) to pinpoint the exact location of each bolt pattern, ensuring torque values match factory specs (spindle mounting bolts require 35 ft-lbs). Replace all three idler pulleys simultaneously (part #452174238); uneven wear on the tensioner leads to belt slippage within 50 hours if ignored.
The reinforced anti-scalp rollers (#532197126) should be checked for lateral play–exceeding 0.02 inches triggers deck vibration at high RPM. Always disconnect the PTO clutch (#586084501) before servicing the cutting chamber; residual current can cause unintended engagement. Secure the front lift linkage (#532176430) with nylon-insert lock nuts (M10 x 1.5 pitch); standard hardware loosens after 30 mow cycles on uneven terrain.
For blade alignment, use a permanent-marker line on the innermost blade shaft measured against the cutter housing frame–deviation beyond 1/16″ necessitates replacement of the entire spindle housing (#532174349). Replace the discharge chute (#532181023) if grass clippings accumulate in a 2-inch radius; clogged deflection plates degrade airflow efficiency by 40%. Store spare belts in cardboard tubes, away from petroleum vapors–EPDM degrades faster when exposed to hydrocarbon off-gassing.
When reassembling, apply blue thread locker to the four anti-vibration mounts (#532181168); factory torque (22 ft-lbs) will relax over time due to polymer creep. Keep a digital torque wrench calibrated to ±2%–improper preload causes the deck to wander during operation. For lateral adjustment, use a machinist’s square against the frame rails; misalignment beyond 1/8″ accelerates belt wear by 70%.

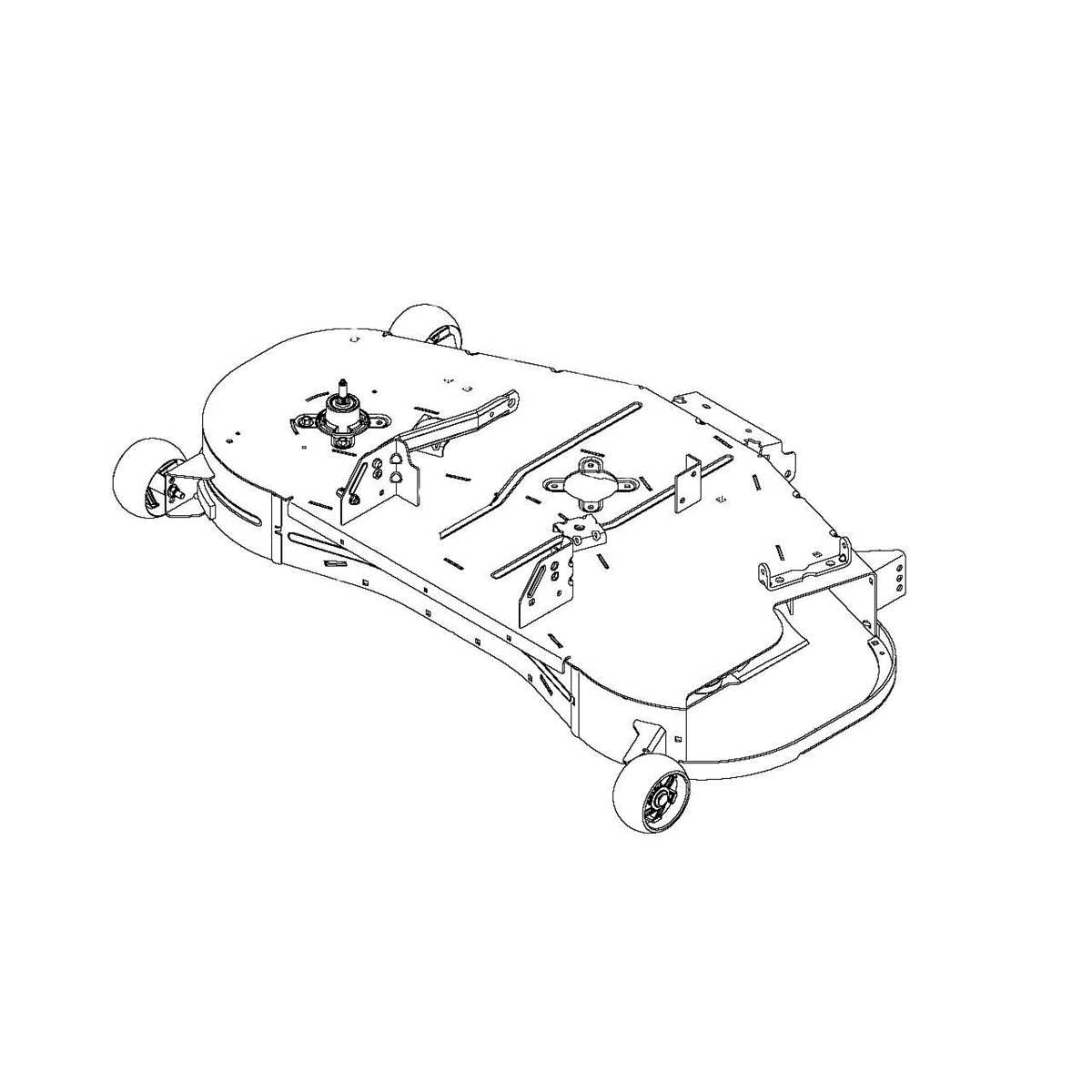

46 Cutting Width Assembly Component Breakdown
Locate the spindle housing bolts beneath the cutting deck plate–typically four per side–securing each blade carrier. Torque specifications for these fasteners range between 45–55 ft-lbs; exceeding this risks thread stripping or premature bearing failure. Replace pulley idlers immediately if grooves show visible wear deeper than 0.03 inches, as compromised tension disrupts belt tracking and accelerates blade vibration.
Inspect the discharge chute assembly quarterly: the deflection flaps should pivot freely without lateral play. Apply molybdenum-based grease sparingly to hinge points–excess attracts grass clippings, jamming movement. For models equipped with mulching kits, verify that the baffle plate sits flush against the underside of the cutting chamber; misalignment reduces particulate distribution efficiency by up to 30%.
Spotting Worn or Broken Elements on a 46 Cutting Assembly
Start by inspecting the cutting blades–blunt edges, deep nicks, or uneven wear along the leading edge signal replacement. Check for lateral flex: blades should resist slight upward pressure; if they bend outward or exhibit cracks near the mounting holes, they’re compromised. Examine the spindle housings for play: grasp the pulley and rock it–excessive movement indicates worn bearings or a failing shaft. Look for rust streaks near the bearings; this often precedes catastrophic failure. Grease fittings should accept lubricant without resistance; blocked or stiff fittings suggest internal corrosion or sealing failure. Belt grooves should retain sharp edges–rounded or polished surfaces reduce traction and accelerate wear, demanding inspection every 25 operating hours.
Critical Components to Verify
Assess the idler arms: cracked pivot points or loose springs prevent consistent belt tension, causing premature belt wear or disengagement. The deck’s underside often hides bent anti-scalp rollers–spin each by hand; grinding or hesitation confirms bearing failure. Inspect the discharge chute for cracks; splits near mounting points can detach mid-operation, creating projectile hazards. Check pulley alignment with a straightedge–misalignment beyond 1/8″ causes uneven belt wear and excessive noise. Replace PTO clutch springs if engagement feels sluggish or jerky; weakened springs irregularly transfer torque, leading to uneven cuts. Stripped gear teeth on drive pulleys demand immediate attention–replacement prevents complete drivetrain failure.
Step-by-Step Disassembly Guide for Cutting Unit Maintenance
Disconnect the spark plug wire immediately to prevent accidental starts. Place the equipment on a flat surface, elevating it with sturdy blocks to access the underside. Remove the discharge chute by loosening the single bolt at its base–label all fasteners with masking tape noting their locations. Detach the side shields by releasing the tabs securing them; work from front to rear to avoid bending the metal. For belt-driven models, roll the drive belt off the idler pulleys first, then slide it over the spindle housings.
- Mark blade orientation with a center punch before removal–balance affects vibration.
- Use a torque wrench to loosen blade bolts (45–50 ft-lbs) with the blade locked in place.
- Inspect housing for rust; sandblast or wire-brush corroded areas before reassembly.
- Replace split pins if they show wear–align new ones with original holes before bending ends.
- Check spindle bearings for play; if grease weeps from seals, replace the entire assembly.
- Apply anti-seize to mounting bolts but avoid threads on belt tensioners–friction is required for grip.
Reinstall belts by routing them over pulleys in reverse order of removal. Tension should allow ½ inch deflection at the midpoint.
Finding Spare Components with Manufacturer Blueprints
Begin by accessing the official manufacturer’s website–enter the precise equipment model number into their search tool. The schematic illustrations are typically housed under support, service, or downloads sections. Look for filenames containing terms like “exploded view,” “assembly breakdown,” or “component layout” to quickly identify the correct document.
Retailers specializing in outdoor machinery often segment their inventory using OEM part numbers from the blueprints. Cross-reference the number stamped on the broken piece with the online catalog filter. Common suppliers include Tractor Supply Co., Jack’s Small Engines, and eReplacementParts; their filters strip away unrelated results, saving search time.
| Supplier | Website | Filter Key |
|---|---|---|
| Tractor Supply Co. | tractorsupply.com | Model # → “Blade components” |
| Jack’s Small Engines | jackssmallengines.com | Diagram # → “Shaft assemblies” |
| eReplacementParts | ereplacementparts.com | Equipment type → “Pulley setup” |
Local dealers maintain digital copies of the schematics tied to their inventory systems. Present the exact item designation from the blueprint–many dealers use barcodes linked to stock levels, enabling same-day pickup for in-demand items like belts, idlers, or spindles.
Scrutinize the schematic for micro-identifiers adjacent to each illustrated piece; small numerals or letters often denote sub-variants. Misidentifying pulley groove count or bearing seal type can result in hours of assembly errors, so verify dimensions against the exploded view’s callouts.
For older units no longer listed on primary vendor sites, salvage yards and auction platforms frequently upload scanned PDFs of vintage manuals. Search using the machine’s serial plate details–keywords like “parts breakdown,” “service sheet,” or “repair plate” combined with the year narrow results effectively.
If physical blueprints are unavailable, disassemble the problematic assembly incrementally while photographing each layer. Compare images against online 3D renderings hosted on forums dedicated to lawn machinery. Enthusiasts often annotate discrepancies between OEM diagrams and aftermarket replicas.
Always acquire a magnetic bolt organizer with labeled compartments before beginning disassembly. Schematic callouts correspond to fastener types; misplacing hardware risks structural integrity upon reassembly. Store extracted components aligned with the blueprint sequence to ensure accurate reinstallation.
Essential Gear for Servicing Cutting Unit Assemblies
Secure a ½-inch drive breaker bar (minimum 18 inches) to break stubborn pulley bolts without rounding heads–torque specs often exceed 70 ft-lbs. Pair it with a socket set that includes thin-wall 10mm–18mm sockets (6-point preferred) to access recessed fasteners within tight chassis clearances. Avoid adjustable wrenches; they slip under load and damage hexagonal profiles.
- Impact-rated torque wrench (30–150 ft-lbs range): Calibrate before use–critical for flange nuts that determine blade alignment. Over-tightening warps housing frames.
- Magnetic pickup tool (flexible neck, extendable to 36 inches): Retrieves washers and retaining clips dropped into frame cavities during disassembly. Standard tweezers fail on steel-on-steel slippage.
- Feeler gauges (.010–.060 inch range): Verify spindle-bearing preload after reassembly. Gap tolerance must match manufacturer figures within ±.003 inches.
- Nylon pry bars (8–12 inches): Separate corrosion-seized bearing races from housings without scoring aluminum bores. Metal pry tools gouge surfaces, compromising seals.
- Thread-locking adhesive (blue formula, medium-strength): Apply to all retaining bolts except idler pulley shafts–vibration loosens them within 10 operating hours. Avoid red (permanent) formulations.
Use a hydraulic jack with 2-ton capacity and a saddle adapter (flat, non-slip surface) to lift the chassis–scissor jacks or bottle jacks destabilize when removing weight-distributed assemblies. Position jack stands at reinforced chassis points (stamped “JS” near rear axle mounts) to prevent frame deformation during prolonged work. Never trust factory paint seams as load-bearing indicators.
