Begin by locating the evaporator assembly–typically positioned at the front or top of the unit, where the primary freezing action occurs. This section includes finned coils and a water distribution system that ensures even layer formation. If output consistency drops, inspect the float valve first; it regulates water flow and prevents overfilling. A faulty valve often causes uneven freezing or incomplete cubes.
Examine the compressor next–a hermetically sealed motor-driven pump housed at the base. This component pressurizes refrigerant gas, raising its temperature before it circulates through condenser tubing. Unusual noises or excessive heat from the back panel usually indicate compressor stress. Replace capacitors every 2–3 years to avoid sudden failures; a 50μF capacitor is standard for most residential models.
Condenser coils wrap around the rear or side walls, dissipating heat into surrounding air. Dust accumulation here reduces efficiency by up to 30%–clean coils quarterly using compressed air or a soft brush. Check for bent fins; straighten them with a fin comb to maintain optimal airflow. Refrigerant leaks often occur near coil joints–use a halogen detector to pinpoint escapes before recharging.
Water pumps and augers sit at the heart of the harvest mechanism. If cubes release slowly or stick, test the auger motor for RPM consistency (typically 30–50 RPM under load). Lubricate bearings annually with food-grade silicone; petroleum-based oils degrade internal seals. Inspect the water inlet screen monthly–mineral deposits clog mesh openings, disrupting cycle timing.
Control boards integrate sensors, thermostats, and relays into a single interface. Faulty readings usually stem from corroded connections–re-tin terminal wires if oxidation appears. Upgrade firmware for older units; newer versions adjust defrost cycles dynamically, cutting energy use by 12–15%. Replace temperature probes if deviations exceed ±2°F; calibration rarely recovers consistent drift.

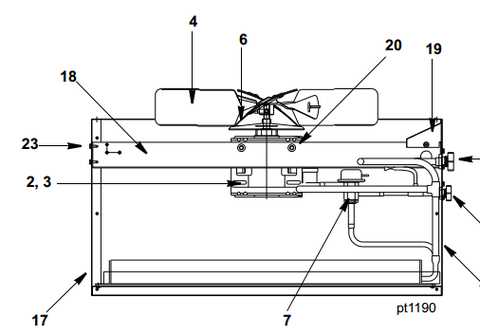

Visual Breakdown of Frozen Block Producer Elements
Locate the evaporator plate within your unit’s core–this coiled aluminum panel is critical for heat exchange efficiency. Verify its alignment: edges must sit flush with refrigerant lines, avoiding kinks that disrupt flow. Cleaning requires a 4:1 water-vinegar mix applied with a soft-bristle brush; acidic solutions corrode cladding over time. Replace if fins show warping or more than 20% of the surface exhibits oxidation spots.
| Component | Material | Failure Signs | Replacement Interval |
|---|---|---|---|
| Condenser coil | Copper/aluminum | Refrigerant leaks, reduced cooling | 5–7 years |
| Auger motor | Stainless steel gears | Unusual noise, slow rotation | 3–5 years |
| Water sensor | Platinum probe | False low-water alerts | 4–6 years |
| Defrost heater | Nickel-chromium filament | Incomplete defrost cycles | 6–8 years |
Inspect the solenoid valve quarterly–debris accumulation causes inconsistent flow. Test pressure with a manifold gauge; readings below 20 psi indicate internal wear. Lubricate the gearbox monthly using food-grade silicone grease; petroleum-based options degrade seals faster. Keep wiring harnesses above 60°C zones–thermal expansion loosens terminal connections over cycles.
Critical Elements of Industrial Freezing Units and Their Placement
Prioritize inspecting the evaporator coils–positioned behind the inner housing near the upper section–every 30 days. These aluminum or copper plates transfer heat from water to refrigerant, and residual mineral deposits reduce efficiency by up to 30% if left unchecked. Use a soft-bristle brush and a 50/50 vinegar-water solution for cleaning; avoid abrasives that degrade protective coatings.
The compressor resides at the base, typically on rubber mounts to minimize vibration. Most models operate within 15-40 psi suction pressure ranges–consult your manual for exact specifications, as deviations indicate refrigerant leaks or valve malfunctions. Attach a refrigerant gauge to the service ports monthly; readings below thresholds require immediate servicing to prevent motor burnout.
- Water pump: Located behind the rear panel, this component circulates liquid to the freezing surfaces. Replace impellers every 6-12 months, as worn blades reduce flow rates causing undersized cubes.
- Condenser: Mounted externally, either air-cooled (finned tubes) or water-cooled (internal coils). Air-cooled versions need biannual cleaning–use compressed air to clear debris from fins, maintaining airflow at 800-1200 CFM.
- Float valve: Adjusts water levels; found near the reservoir. Misalignment causes overflow, wasting up to 2 gallons per cycle. Calibrate by turning the adjustment screw clockwise to lower the level.
Harvest arms–horizontal or vertical blades–require lubrication every 90 days. Apply food-grade silicone spray sparingly to pivot points; excess attracts dust, causing misalignment. Verify blade sharpness–dull edges leave residual fragments, reducing output by 15%. Replace immediately if chips exceed 1mm.
Control boards are installed near the condenser intake, shielded by a plastic cover. Check for corrosion bi-weekly; moisture exposure disrupts signals, leading to erratic freeze cycles. Use dielectric grease on connections to prevent oxidation, extending the board’s lifespan by 25-40%.
Routine Inspection Checklist for Optimal Output
- Measure cube tray thickness (target: 3/8″–1/2″). Variations indicate refrigerant charge issues.
- Test bin thermostat accuracy using an independent probe–set point should hold ±2°F of factory specs.
- Inspect water inlet screens monthly; calcium buildup restricts flow, extending freeze times.
- Examine door seals with a flashlight–gaps larger than 1/16″ increase energy consumption by 8-12%.
Hot gas bypass valves, situated adjacent to the compressor, demand annual replacement. These valves prevent liquid slugging during harvest cycles–failure floods the compressor, leading to costly repairs. Always keep a spare on-site, as replacements take 45-60 minutes with standard tools.
How to Interpret a Refrigeration Unit Electrical Schematic
Locate the power source symbols first–typically a battery or AC inlet marked with “L” (live), “N” (neutral), and “G” (ground). Trace the thickest lines outward to identify the main circuit path before branching into components. Voltage ratings near these lines (e.g., 115V, 230V) indicate required supply parameters; mismatch risks system failure.
Identify relays by their coil (K) and contact (NO/NC) symbols. NO (Normally Open) contacts close when the coil energizes, while NC (Normally Closed) contacts break. Label each relay numerically (e.g., K1, K2) to correlate coil activation with contact state changes in later steps. Cross-reference these with the legend if available.
Follow colored or numbered wires to compressor, condenser fan, and evaporator motor terminals. Compressor contacts often connect through a start capacitor (marked “C” or “SC”) and run capacitor (“RC”). Verify capacitor microfarad (µF) values match schematic specs–undersized capacitors cause hard starts or overheating.
Examine temperature controls (thermostats, defrost timers) marked with adjustable setpoints. Thermostat symbols use zigzag lines or “T” labels; defrost timers may show cam-driven micro-switches. Note temperature ranges (e.g., 38°F–50°F) and time intervals (e.g., 30min defrost cycles) to diagnose erratic operation.
Check safety devices: high-pressure cutouts (HPC), low-pressure cutouts (LPC), and thermal overloads. HPC/LPC symbols resemble pressure gauges with arrows; overloads use bimetallic strip icons. Confirm reset procedures–some require manual intervention after tripping, while others auto-reset once conditions normalize.
Isolate control boards by their rectangular outlines and pin labels (e.g., “1,” “2,” “GND”). Board inputs (sensors) and outputs (to relays/solenoids) connect via thin lines; disrupted connections cause false error codes. Replace boards only after verifying proper voltage at input pins (e.g., 5V DC, 12V DC) with a multimeter.
Double-check wire gauges against ampacity ratings–undersized wiring overheats. Compare terminal block numbers (TB1, TB2) with physical connections; loose terminals cause intermittent failures. For three-phase units, confirm phase sequence (L1/L2/L3) using a phase rotation meter to prevent motor damage from reverse polarity.
Identifying Key Components for Your Freezing Unit
Start by locating the evaporator plate–typically a stainless steel or aluminum panel with serpentine tubing. Visually, it appears as a flat or slightly curved metal sheet, often brushed or coated, mounted at the top or side of the assembly. Unusual frost buildup or uneven cooling indicates wear. Check for corrosion near welds or tube bends; these spots fail first. If tubing shows signs of flattening or cracks, replacement is non-negotiable. Always compare the plate’s dimensions with the manufacturer’s specs; mismatches cause inefficient freezing cycles.
Water Inlet Valves and Pumps
Inspect the solenoid valve–a small cylindrical or rectangular block with inlet/outlet fittings and electrical wires. Hold it to light; brownish mineral deposits inside signal imminent failure. Test by applying 120VAC (with caution): a healthy valve clicks audibly. No sound? Replace immediately. For pumps, look for a black or white plastic impeller housed in a clear plastic casing. Spin it by hand–grinding or resistance means the motor bearings are shot. Verify the impeller isn’t cracked; even hairline fractures disrupt water flow.
Augers (the helical screw inside the bin) often shear at the shaft or lose their cutting edge. Remove the bin lid and roll it counterclockwise–snapping sounds or excessive play confirm damage. Measure the auger’s outer diameter; if under 1mm of the original spec, it will skip nugget formation. Gaskets, usually rubber or silicone strips around door frames, degrade into brittle flakes. Press firmly: if they crumble, swap them out–compromised seals waste energy and contaminate batches.
