For immediate identification of replacement elements in a 48-inch high-lift blade assembly, begin with the official OEM exploded view document. This schematic breaks down the entire cutting module into numbered subassemblies – spindle housings, tension pulleys, and blade carriers – allowing exact part matching without guesswork. Third-party manuals often omit critical torque specifications or mislabel components, leading to improper reassembly. Always reference the TM2324 technical publication (Revision 3 or later) for verified measurements and fastener thread types.
Key wear areas requiring regular inspection include the pivot bushings (Part #M113569) and the idler arm brackets (Part #M101054). These pieces endure constant oscillation and should be replaced at 200-hour intervals under normal operating conditions. The blade drive belt (Part #M130072) demands particular attention; cracks exceeding 2mm in depth or fraying along the inner cord layer signal imminent failure. Off-brand substitutes rarely meet OEM tensile strength requirements, risking catastrophic pulley disengagement.
When sourcing hydraulic lift cylinder seals (Part #M142930), insist on the nitrile rubber formulation – alternatives like polyurethane degrade rapidly in fuel-contaminated environments typical of heavy cutting sessions. The anti-scalp roller bar assembly (Part #M133982) should be adjusted to maintain a 3mm clearance from the turf surface; deviations beyond 1mm drastically reduce cut uniformity. For the rear discharge chute, note that the deflector flap hinge (Part #M155049) requires periodic greasing with NLGI Grade 2 lithium complex to prevent binding.
Electrical components like the PTO clutch solenoid (Part #M79597) require a minimum 12.8V input for reliable engagement. Voltage drops below this threshold often result in incomplete blade rotation startups, placing excessive strain on the belt drive system. Use a digital multimeter to verify circuit continuity before condemning the solenoid – intermittent failures are frequently traced to corroded wire connections at the instrument cluster relay.
Understanding Your 48-Inch Mower Cutting Assembly Breakdown
Locate the pulley system schematic first–it’s typically attached to the right side of the housing near the discharge chute. Reference the manufacturer’s official exploded view (Part No. M158922 for the ACCEL model) to identify key components like belt tensioners (PN AM130931) and spindle assemblies (PN M106321). Replace worn idler pulleys immediately if groove depth exceeds 0.03 inches, as this reduces belt lifespan by up to 40%. Use a torque wrench set to 45 ft-lbs when tightening spindle bolts to prevent premature bearing failure.
Inspect the cutting blades every 25 hours of operation. The ACCEL series uses Gator mulching blades (PN M149033) designed for a 3/8-inch cutting height–swap them if nicks exceed 1/16 inch or if balance tests show deviation beyond ±0.2 oz-in. Clean debris from under the deck monthly; built-up grass increases drag, raising fuel consumption by 8-12%. For the lift linkage, lubricate pivot points with marine-grade grease (PN TY6344) to prevent corrosion in high-moisture conditions.

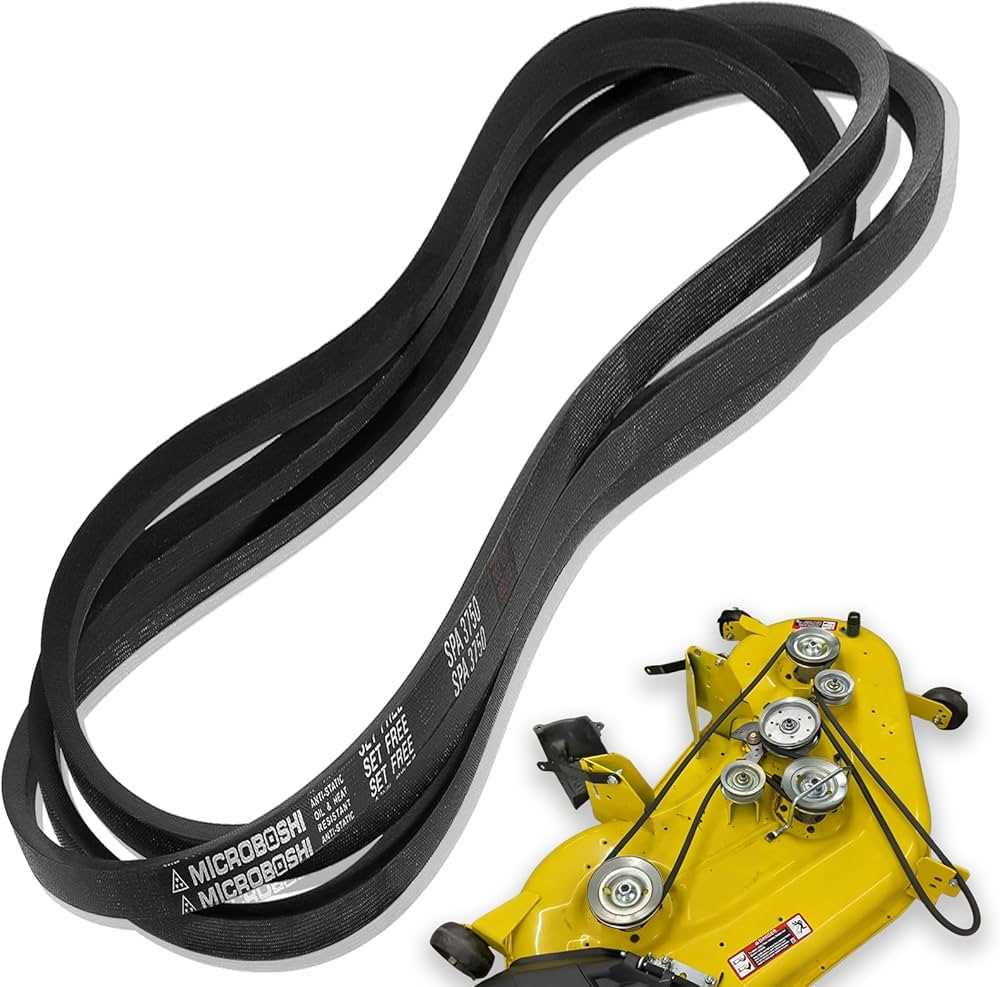

Order genuine replacement belts (PN M154407) instead of aftermarket alternatives–OEM belts last 200+ hours versus 120-150 for generic versions. When reassembling, align the belt path using the raised index marks on the pulleys; misalignment causes squealing within 50 hours. Check the reinforcement ribs on the deck’s underside–cracks longer than 2 inches require welding or replacement to maintain structural integrity.
For electrical components, test the PTO switch (PN M127786) with a multimeter–resistance should read 0 ohms when engaged. If the blade engagement lever feels loose, tighten the set screw on the activation rod (PN M112571) to 12 in-lbs. Always disconnect the spark plug before servicing to prevent accidental starts.
Finding the Authorized 48-Inch High-Speed Mower Component Schematic
Begin with the manufacturer’s direct portal: https://parts.deere.com. Input model “Z930M” in the search bar–this is the correct machine variant. Select the “Blade Housing” category from the dropdown menu, then filter by “Exploded View.” The digital manual displays numbered assemblies grouped by function: cutting chamber, spindle mounts, and discharge chute. Each number corresponds to a line item in the accompanying parts list, linking directly to inventory stock.
| Component Group | Part Numbers | Assembly Note |
|---|---|---|
| Spindle Housing | M129245, M133163 | Torque specs printed on housing arm |
| Anti-Scalp Rollers | M123158, M123159 | Height adjustment slots marked on frame |
| Pivot Brackets | M119572 | Polyurethane bushings included in kit |
For offline reference, download the PDF titled “ZTrak™ Mowers – Blade Enclosure Schematic” from the same portal. Print page 14–it isolates rear discharge components not visible in the online viewer. Label each printed page with the model number and date to reconcile future updates. Retailers offering aftermarket replacements must cross-reference these numbers against the official breakdown; discrepancies often indicate outdated or non-compliant substitutes.
Locating Critical Elements in the 48-Inch High-Velocity Mowing System
Begin inspection at the cutting housing’s underside, where the spindle assembly–comprising the pulley, bearings, and blade shafts–demands immediate attention. Verify the pulley’s secure mounting to the spindle arbor; a loose fit risks belt slippage and uneven cutting. Bearings should rotate freely without grinding or play–excessive resistance signals imminent failure. Replace both spindle assemblies as a unit if one shows wear, as mismatched components cause vibration and premature belt degradation. Check blade shafts for straightness; bends as small as 0.03 inches create imbalance, leading to deck shell cracks near weld seams.
Examine the belt drive system next, starting with the idler arm tension. The spring-loaded arm must pivot smoothly, maintaining consistent belt pressure across all pulleys. A sagging belt that doesn’t snap back when depressed indicates a weak tension spring–replace it before it fails mid-operation. Inspect the drive belt for cracks, fraying, or glazing; a belt with more than 3% stretch reduces torque transfer by 15%, straining the engine. Clean pulley grooves of debris buildup; even 0.5mm of residue increases belt heat by 20°C, shortening lifespan. For blades, sharpen edges to a 45° angle, removing no more than 1/8″ of material–over-sharpening weakens the blade’s ductile core, risking catastrophic failure at high RPM.
- Antispin tabs on spindles prevent blade drag–ensure tabs are unbent and positioned 0.2-0.3mm above the blade surface.
- Lubricate zerk fittings every 25 operating hours; skip this step and bearing life drops from 500 to 150 hours.
- Torque blade bolts to 60 ft-lbs–overtightening warps the spindle housing, causing seal leaks.
Step-by-Step Guide to Interpreting Equipment Component Schematics
Locate the exploded view section of the manual first–it typically appears after the introduction or technical specifications. This visual layout groups assemblies by proximity, with arrows or dotted lines indicating connections. Numbers adjacent to components correspond to the parts list, where names, material grades, and sometimes torque specifications for fasteners are detailed. Ignore generic labels; focus on alphanumeric codes that identify subassemblies unique to this model’s 48-inch cutting apparatus.
Trace hydraulic or belt-driven linkages in sequence. The schematic marks input shafts with wider lines, pulleys with hatched patterns, and tensioners using hexagonal outlines. If troubleshooting drive issues, follow the path from the power source to the cutter blades, noting bearing placements–these often use standardized ISO symbols. Verify spline counts on drive gears; mismatched replacements cause slippage even if diameters match.
Examine the bill of materials for distinctions between OEM and aftermarket variants. Entries labeled “alternative” may lack compatibility despite similar dimensions. Look for footnotes indicating seasonal availability or regional adaptations–some blades have hardened edges for high-rock areas, while others prioritize corrosion resistance near coasts. Cross-reference LIS (Logistics Information System) numbers if ordering; manufacturers update these annually, making older diagrams obsolete for discontinued SKUs.
Decoding Symbols and Annotations
- Dashed lines: denote flexible couplings or springs within adjustable linkages.
- Solid arrows: show fluid or airflow direction in integrated hydraulics.
- Triangular flags: flag safety-critical components (e.g., shear pins).
- Rounded rectangles: encapsulate electronic modules like solenoids.
Print or export the schematic at 200% scale to resolve microscopic details–some schematics include micro-etched QR codes linking to torque videos for specific bolts. Use highlighters to differentiate worn parts (yellow) from new replacements (green), then compare with photographs of the physical unit. Discrepancies in layering order between diagrams and actual assemblies suggest hidden brackets or sealants not shown in early-manual editions.
Critical Precautions Before Disassembly
- Verify the unit’s serial number against diagram variants–revised schematics exist for years 2018–2023.
- Discharge deck lift cylinders to prevent sudden drops when removing anchors.
- Label wiring harnesses with UV-resistant tape; markings fade after 12–18 months of UV exposure.
- Weigh blades individually–balancing tolerances vary ±50g for cutting assemblies versus ±10g for mulching kits.
Store detached components in anti-static trays. Aluminum housings oxidize within hours if exposed to moisture, while nylon bushings absorb solvents–clean with isopropyl alcohol only. Reassembly requires sequencing tools methodically: torque wrenches for fasteners, feeler gauges for blade spacing, and dial indicators to check spindle runout. Schematics omit these tolerances; consult service bullentins issued quarterly for updates.
