Start by locating the blade spindle housing under the central frame–this is where most wear occurs. Model variants after 2018 utilize a tapered bearing system (NSK 6203-2RS or equivalent) paired with a sealed grease fitting, while earlier builds rely on open bearings requiring manual lubrication every 50 hours. Misalignment here reduces cutting precision by up to 30%.
Inspect the idler pulley assemblies next. The primary tensioner should maintain 6–8 lbs of force on the drive belt; deviations cause slippage, measured by belt temperature exceeding 140°F during operation. Replace if grooves show wear deeper than 0.03 inches. For models with electric PTO clutches, check resistance across terminals–readings below 2.5 Ω indicate internal shorts demanding immediate replacement.
The cutting chamber baffles (often overlooked) determine airflow efficiency. The inner deflector must sit 0.125 inches above blade tips; any variance alters dispersal pattern. Remove debris buildup every 10 hours using compressed air–clogged baffles increase engine load by 15%. For side-discharge units, verify chute direction adjustments using a protractor: improper angles reduce throw distance by 40%.
When sourcing replacements, prioritize OEM-specified heat-treated blades (G55Mn-T5 steel grade) for durability. Aftermarket alternatives often lack anti-scuff coatings, shortening lifespan to 120 hours versus 200–250 for genuine components. Keep a torque wrench set at 55 ft-lbs for blade bolts–overtightening risks spindle warping, while loose bolts cause vibration measured at ≥0.02 inches RMS.
For the PTO engagement system, replace the shear pin every 30 hours of runtime. Models with hydrostatic transmission require an additional check: low fluid levels (below the “Min” mark) compromise engagement speed to 4+ seconds. Use Deere Hy-Gard JDM J20C or equivalent ISO 46 hydraulic fluid–incorrect viscosity causes overheating at the engagement solenoid.

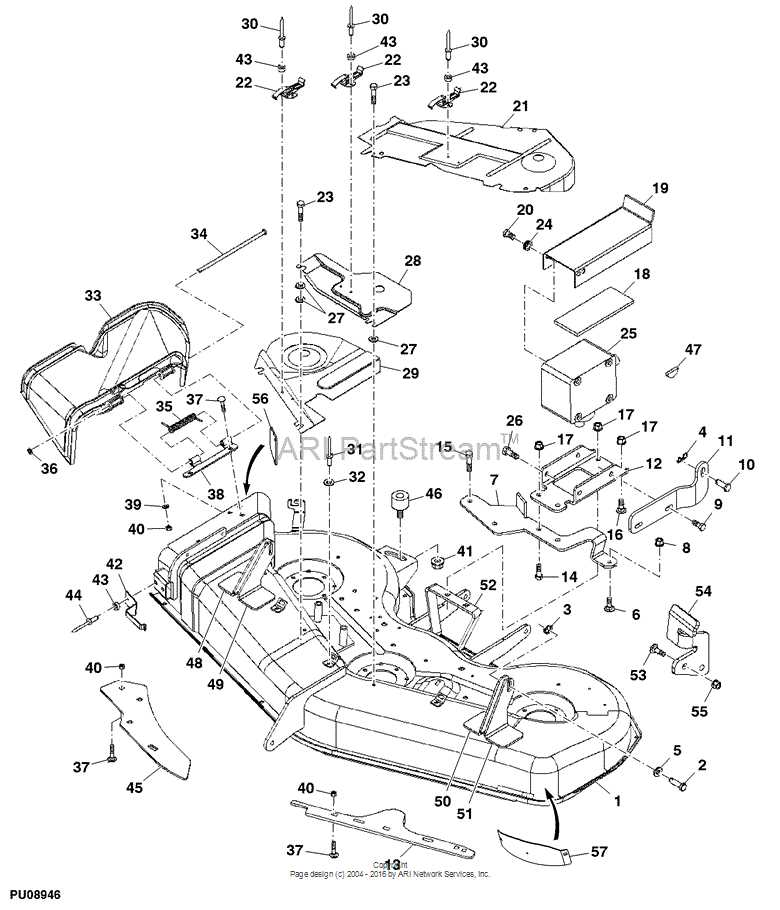

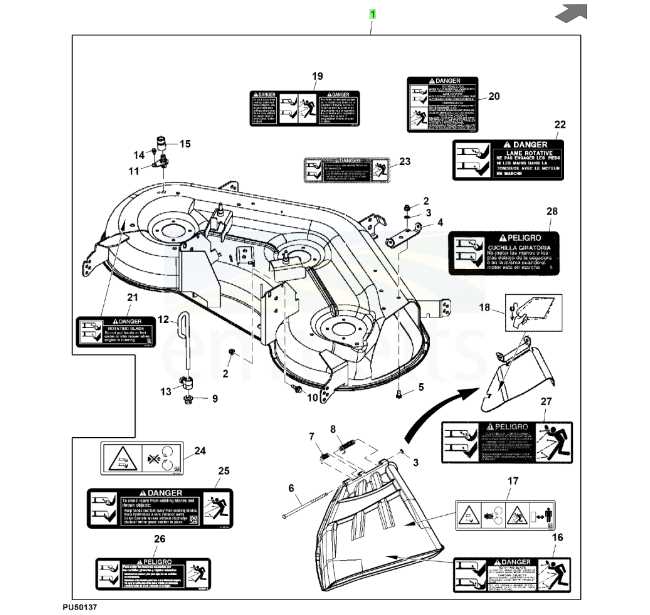

Exploded View of Your 48-Inch Cutting Attachment: A Precision Breakdown
Start by securing the official OEM manual from the manufacturer’s service portal–reference number MIF-P43792 for the 2015-2023 model line. This schematic is divided into seven functional zones: spindle assemblies (Y54713), belt routing (path GX24773), anti-scalp rollers (M118027), baffle components (T141956), lift linkages (GY20885), blade hardware (M101613), and debris shields (M133926). Locate zone one first–verify spindle housing torque specs at 45-50 ft-lbs to prevent bearing failure.
For belt replacements, trace the GX24773 path using a 1:1 scale printout aligned under the unit. Note the idler pulley (M124697) position–misalignment here causes premature wear on the GX25569 drive belt. Replace both belts if fraying exceeds 2mm; simultaneous failure risks blade stoppage mid-operation. Clean tensioner pulleys with brake cleaner–grease attracts abrasives that accelerate degradation.
Critical Wear Points and Early Warning Signs
Inspect anti-scalp rollers (M118027) for axial play–normal clearance is 0.005”. Exceeding this tolerance indicates outer race damage; replace the roller set as a matched pair. Check baffle plates (T141956) for cracks radiating from mounting holes–these propagate silently before catastrophic detachment. The lift linkage pivot (GY20885) requires lithium grease every 50 hours; corrosion here mimics electrical failure.
Blade bolts (M101613) must be tightened to 70-80 ft-lbs in a star pattern–skip this and pattered gouges appear in the deck shell within 20 hours. Remove debris shields (M133926) quarterly; trapped clippings heat the shell, warping the cutting plane by 0.25° per season. Use a feeler gauge at three points along the shell underside to detect warpage–replace if deflection exceeds 0.015”.
Leverage the exploded view’s itemized callouts to cross-reference part numbers before ordering–aftermarket components often mislabel critical dimensions. Retain the P43792 schematic in a waterproof sleeve taped to the tractor frame for immediate access during field repairs. Label each spare part with torque specs and installation sequence using a permanent marker to prevent assembly errors.
Critical Elements of a 48-Inch Cutting Assembly

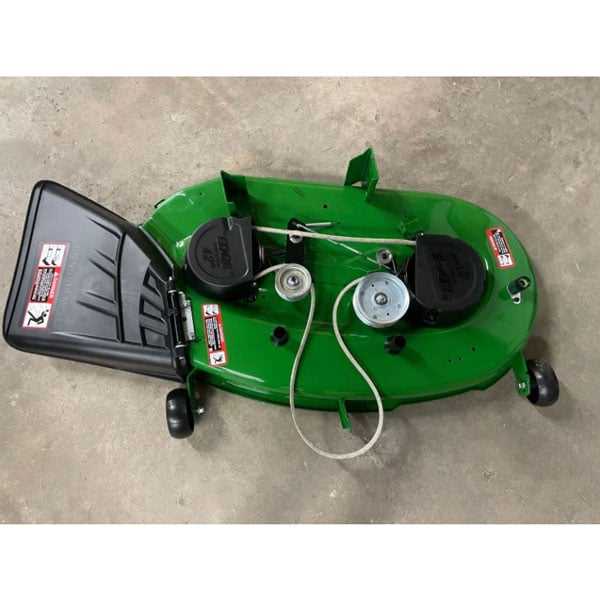

Begin by locating the spindle housings–three heavy-duty units secured beneath the platform, each paired with a pulley and blade bolt. Verify the spindle shafts rotate freely; resistance often signals worn bearings or debris buildup. The belt routing path includes an idler pulley near the front edge, a tensioner assembly adjacent to the left spindle, and a drive pulley connected to the PTO shaft–trace each segment visually before disassembly to avoid misalignment during reassembly. Replace cracked or glazed belts immediately; a compromised belt reduces torque by 15-20%, accelerating wear on adjoining components.
Blade Installation and Safety Checks
Ensure blades are balanced–attach a magnet to each cutting edge and suspend from a string; uneven spinning indicates imbalance. Torque blade bolts to 70-90 ft-lbs using a crisscross pattern to prevent warping. Inspect anti-scalp rollers (two rear, one front) for smooth rotation; seized rollers gouge turf and stress the frame. Clean the underside after each use to prevent grass accumulation, which traps moisture and corrodes metal surfaces at a rate of 0.3mm per season under humid conditions.
Step-by-Step Guide to Identifying Worn or Faulty Components with the Schematic
Start by isolating the cutting assembly’s most stressed zones: blades, spindle housings, belt drives, and pivot points. The schematic’s numbered callouts correspond to critical wear areas–compare these against visible damage like cracks, uneven edges, or excessive play. Hold a flashlight at a shallow angle to expose hairline fractures in steel mounts or drive pulleys that standard inspection might miss.
- Lay the schematic flat and mark suspect components with a dry-erase pen to track findings.
- Rotate each blade manually–grinding noises or resistance indicate bearing failure.
- Check idler arms for lateral wiggle; tolerance beyond 1/8″ means worn bushings.
- Inspect drive belts for glazing or fraying–replace if cords are exposed.
- Examine anti-scalp wheels for flat spots, which signal bent axles.
For hydraulic lift linkages, follow the schematic’s dashed lines to verify cylinder seals and pivot balls. Uneven cutting height often stems from bent ram rods or leaking seals–press upward on the linkage arms to reveal hydraulic weepage. If the schematic lacks labels, cross-reference with the manufacturer’s part numbers stamped on castings; worn stampings mean the component is original and likely fatigued. Prioritize replacements for uncoated fasteners and tension springs, which corrode faster than other elements.
Locating Authentic Manufacturer Schematics for 48-Inch Cutting Attachments Online
For immediate access to verified manufacturer schematics, start with the official equipment brand’s digital support portal. The “MyEquipment” section (available at deere.com/en/my-john-deere/) hosts interactive exploded views for all cutting attachment models, including the 48-inch variant. Users can filter by serial number to ensure compatibility with their specific build.
Key Features of the Official Portal
Technical diagrams on the brand’s site include exact part numbers, tolerances, and torque specifications–critical for precision repairs. Each schematic is downloadable in PDF format, optimized for both desktop and mobile viewing. The portal also embeds 360-degree rotations for complex assemblies, allowing users to isolate individual components like spindles, belts, or blade mounts without third-party interference. Registration is required but grants access to historical revisions and recall notices.
Third-party agricultural parts databases often aggregate manufacturer data, though reliability varies. Sites like Partstree and eReplacementParts cross-reference OEM schematics with aftermarket alternatives. Verify the source: only diagrams linking back to the original equipment maker’s documentation should be trusted. Some vendors overlay ads or outdated manuals, so compare file timestamps with the brand’s latest update logs.
A lesser-known but valuable resource is the brand’s dealer network. Individual service centers maintain offline archives of high-resolution schematics, accessible by calling or visiting in person. Dealers may provide temporary login credentials to proprietary systems like “ServiceADVISOR” or “TechConnect,” which contain factory-authorized diagrams not indexed by search engines. This route bypasses paywalls some aftermarket sites impose on rare or discontinued components.
For users preferring physical documentation, the brand’s printed manuals (orderable via store.deere.com) include fold-out schematics with enamel-coated edges to resist grease and moisture. While slower to deliver, these manuals often include troubleshooting flowcharts absent from digital versions. Check eBay or specialized agricultural book dealers for used copies–some sellers include supplementary handwritten notes from prior owners with field-tested modifications.
Key Components for the 48-Inch Cutting System and OEM Identifiers
The most frequent wear items on a 48-inch cutting platform are blades and spindles–replace all three simultaneously using matching sets to maintain balanced pressure and prevent uneven cutting. The OEM blade set, listed as AM136704 (42-inch measurement, tri-laminate alloy), fits the left and center mounts; the right-side blade is AM135363 (48-inch metric, hardened edge). Always verify spindle housing alignment before installation; misaligned housings accelerate belt wear and throw off the cutting width.
Belt replacement demands the correct length and reinforcement: use part M152906 for the primary drive belt–this 152-inch belt features Kevlar weave to resist debris abrasion. The tensioner pulley (GX20611) should be swapped with every belt service to avoid slippage under wet grass loads. Idler pulleys, specifically M128987 (left) and M131959 (right), require grease replenishment every 50 hours; dry bearings create excessive heat and noise.
| Component | OEM Identifier | Service Interval |
|---|---|---|
| Tri-laminate alloy cutting edge | AM136704 (left/center) | 75–100 cutting hours |
| Hardened single-blade | AM135363 (right) | 75–100 cutting hours |
| Kevlar-woven primary drive belt | M152906 | 150–200 hours |
| Adjustable deck hanger rods | M115448 (kit of 2) | 300 hours or bend damage |
Anti-scalp wheels (M130396, pair) prevent gouging on uneven terrain–check wheel bearings every 25 hours; worn bearings can drag and leave visible striations. The adjustable deck hanger linkage (M115448) should be inspected for straightness annually; bent rods cause inconsistent deck height and scalping. Verify linkage rod alignment using a straightedge–any deviation greater than 1/8 inch requires immediate replacement.
Spindle housing rebuild kits are available as M156514 for each unit–this kit includes bearings, seals, and spindle shaft. Rebuild rather than replace entire housings to cut costs; however, stripped mounting threads necessitate full housing replacement (M149810 for center housing, M155048 for side housings). Apply fresh heavy-duty grease (part M80G) to spindle shafts during every rebuild to prevent corrosion pitting.
Discharge chute components often corrode or crack–replace every 3–4 seasons with either polypropylene M141781 or steel-clad M131458 variants based on debris size. Fasten chute with stainless cap screws (M8x1.25×20, kit M121875) to avoid rust lock. Regularly remove accumulated grass clippings from the underside baffle plate (M146200) to maintain optimal airflow–clogged baffles reduce cutting efficiency and increase deck strain.
