For precise repairs, start with the official service manual–it contains the most accurate exploded views. If unavailable, verify the model year before sourcing substitute visuals. Early models (pre-2020) often feature a centralized air intake, while newer units relocate this to the rear fender, altering adjacent gasket specs. Misalignments here cause persistent vacuum leaks.
Electrical schematics split into three primary zones: dash cluster, engine bay, and rear harness. Trace circuits using a multimeter with a 200-ohm setting–resistors under 10 ohms signal corrosion in connector pins. Replace terminals showing green oxidation; standard crimp tools won’t restore conductivity on these 0.64mm male spades.
Suspect fluid pathways when diagnosing erratic CVT behavior. The primary sheave on these models uses a progressive spring (part #49067-1053) with a 125 Newton-meter preload. Incorrect torque of the retaining bolt (M10 x 1.25 thread pitch) causes slippage at 3,200 RPM. Always secure with Loctite 242–blue thread lock is insufficient.
Frame welds on the cargo bed fatigue at stress concentration points–inspect near the rear wheel wells. Cracks here propagate quickly under dynamic loads. Repair requires a MIG welder with 0.8mm ER70S-6 wire; TIG welding introduces brittleness. Post-weld, treat with zinc chromate primer before topcoat to prevent galvanic corrosion.
Fuel system diagnostics begin at the transfer pump. Pressure should read 3.5-4.2 bar at idle. A weak signal (in-tank strainer–early models clog with ethanol-blend deposits. Replace with Viton-sealed variants (aftermarket part #FF-1063X) for improved fuel compatibility. Avoid paper filters; they swell irreversibly.
Finding Official Schematics for Your Off-Road Utility Vehicle

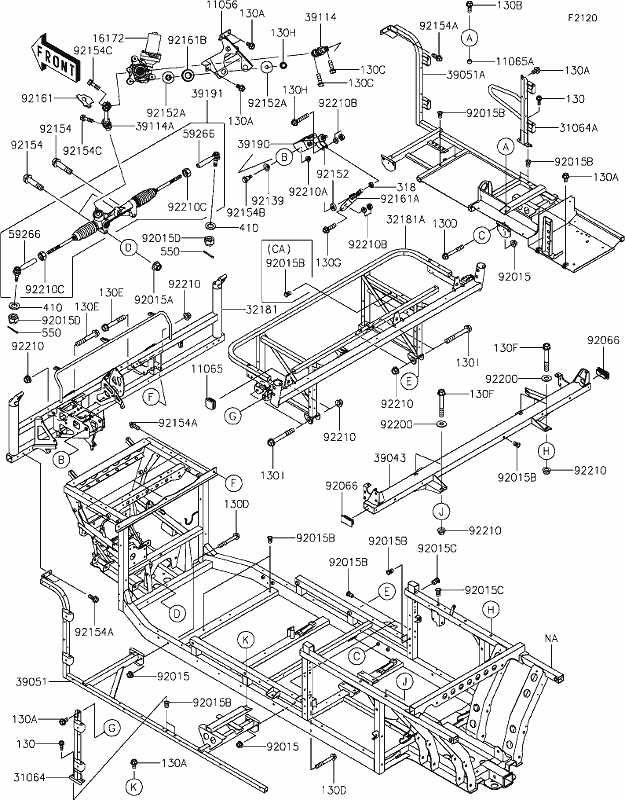

Locate the exact exploded-view blueprints by downloading the OEM service manual (part number 99997-1413) directly from the manufacturer’s authorized distributor portal. This 872-page document covers assembly breakdowns for all model years (2015–2024) with annotated callouts for torque specs, fastener sizes, and interchangeable components. For example, the front differential housing (PN 44030-0257) is diagrammed on page 312 with 17 individual sub-assemblies, including the ring gear (PN 44070-0203) and carrier bearing (PN 92141-1206). Cross-reference these with the parts catalog to verify compatibility before ordering.
| Component Group | Manual Section | Critical PN Examples | Tools Required |
|---|---|---|---|
| Powertrain (CVT) | 4-12 to 4-28 | 11029-0208 (drive belt), 33010-0211 (primary sheave) | Torque wrench (12–15 ft-lbs), snap ring pliers |
| Rear Suspension | 7-4 to 7-11 | 44010-0267 (trailing arm), 56010-0283 (shock absorber) | Spring compressor, 17mm socket |
| Electrical (Dash) | 8-35 | 21007-8802 (speed sensor), 22030-0255 (ECU connector) | Multimeter, terminal pick set |
Third-party diagram aggregators often omit critical details–stick to the OEM manual for accurate part positioning and reuse limits. For instance, the front axle half-shaft (PN 31100-0263) has a wear threshold of 0.3mm before mandatory replacement, a specification excluded from aftermarket schematics. Check the “Tightening Torques” appendix for lesser-known requirements like the transfer case drain plug (PN 92001-0517), which demands 25 Nm–5 Nm higher than similar fasteners.
Locating Critical Elements in the Utility Vehicle Assembly Schematic
Begin by isolating the powertrain group in the technical illustration. The engine block typically occupies the left-rear quadrant, indicated by cooling fins, intake manifolds, and the exhaust header. Verify the crankcase position relative to the CVT housing–misalignment here suggests incorrect reassembly. Note the oil filter mounting point; verify its thread pitch matches OEM specifications (M20x1.5) to prevent leaks.
Examine the drivetrain layout next. The driveshaft runs longitudinally beneath the cargo bed, terminating at rear differential mounting flanges. Check universal joint alignment at both ends–angular deviation exceeding 2° will accelerate bearing wear. The front differential assembly appears in the front subframe; ensure CV axle boots show no tears, as contamination compromises spline engagement.
- Transmission linkages: locate the shift cable anchor points on the gearbox housing
- Brake system: trace hydraulic lines from master cylinder to caliper pistons
- Electrical harness: follow main wiring loom from battery terminal to fuse panel
Suspension components demand precise identification. Coil springs attach to lower A-arms via tapered bolts–ensure torque values (35-45 Nm) are observed. Shock absorbers connect to frame mounts via spherical bearings; replace if play exceeds 0.5mm. Steering rack housing appears in the frontal subframe; verify tie rod ends show no lateral movement when manipulated.
Fuel delivery requires meticulous tracing. The fuel rail mounts atop three injectors–confirm clip retention forces exceed 8N. The fuel pump resides inside the tank; pressurization specifications (3.8-4.2 bar) must match gauge readings. Vapor recovery lines terminate at the charcoal canister near the airbox; kinks here disrupt EVAP system operation.
Cooling circuit analysis starts at the radiator cap–pressure rating must match (1.1 bar). Hoses connect to thermostat housing; verify inner diameter tolerances (±0.3mm) to prevent cavitation. The water pump impeller mounts directly on the crankshaft pulley–inspect for pitting or blade distortion.
- Disconnect battery negative terminal before electrical inspection
- Label all connectors with their corresponding pin counts
- Verify ECU pin assignments against manufacturer technical bulletins
Fastener patterns reveal assembly intentions. Wheel studs require tightening in a star sequence–specific torque (85-95 Nm) varies by rim offset. Body panel attachment points use differing screw types; thread engagement must exceed 1.5 times diameter for plastic substrates. Seat mounting bolts incorporate shear pins–verify these remain intact during disassembly.
Payload-specific components distinguish trim variations. Towing packages include upgraded rear springs–measure uncompressed length (412mm ±3mm). Winch mounts appear on the front bumper reinforcement; verify weld integrity before load application. Cargo bed latches use over-center mechanisms–lubricate pivot points with molybdenum disulfide grease to prevent binding.
Finding the Powertrain Blueprint and Component Swaps
Start by accessing the official service manual for your off-road utility vehicle’s latest model year. The engine assembly schematic is typically found in Section 3, titled “Powerplant Breakdown,” where components are illustrated with numbered callouts. Cross-reference these numbers with the accompanying label chart to identify gaskets, seals, and fasteners. For exact replacements, note the part codes–OEM vendors require these for accurate ordering.
If the manual is unavailable, use the vehicle’s VIN to search proprietary databases like PartsTree or Partzilla. Enter the 17-digit identifier into the platform’s search bar; the system will generate a filtered list of schematics. Focus on the “Long Block” section, which details pistons, crankshaft, and camshaft placement. Avoid third-party diagrams unless verified–errors in alignment can cause severe mechanical failures.
Key Areas to Inspect on the Schematic

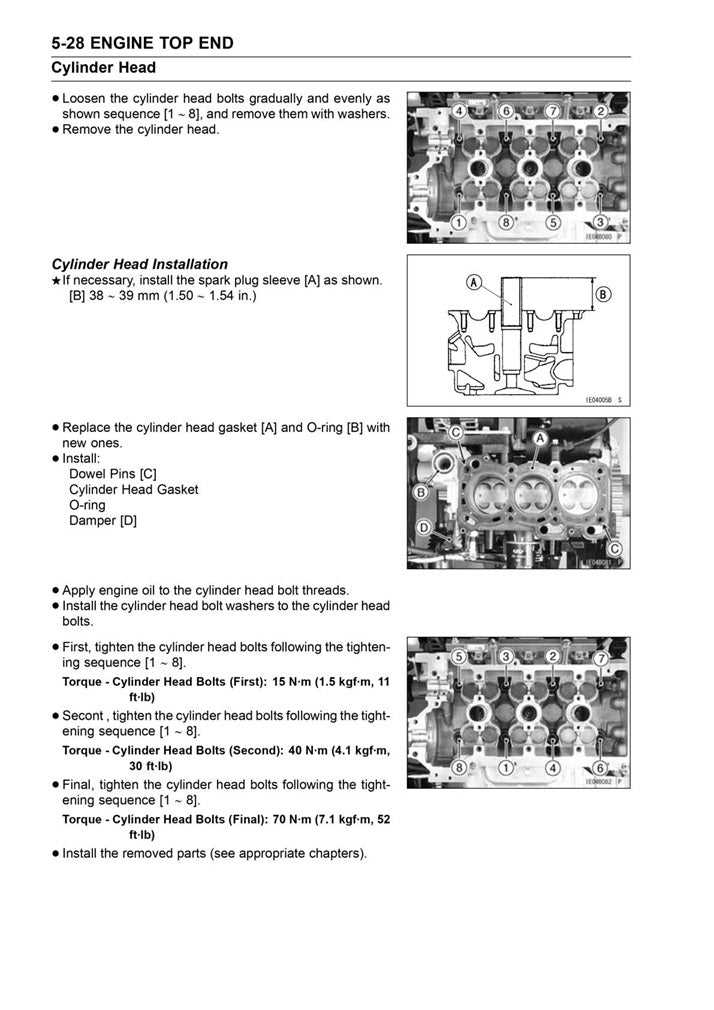

- Cylinder Head: Look for exploded views showing valve train components. Check torque specifications for bolts; overtightening cracks aluminum heads.
- Oil Pump: The schematic often highlights pickup tube location. Replace the screen filter if debris is visible, as clogs starve the engine of lubrication.
- Water Pump: Identify impeller vanes and gasket placement. A worn impeller reduces coolant flow, leading to overheating.
- Exhaust Manifold: Note stud and nut arrangements. Stripped threads are common and require helicoil repairs.
For non-OEM swaps, match aftermarket pieces to the schematic’s dimensions. Brands like Hot Rods or Wiseco provide rebuild kits, but verify bore and stroke compatibility. The crankshaft pulley, for example, must align with the serpentine belt routing diagram–misalignment causes belt slippage and premature wear. Use calipers to measure critical tolerances like piston ring gaps (typically 0.0015–0.0025 inches per inch of bore diameter).
Tools for Precise Replacement
- Torque Wrench: Follow the manual’s foot-pound settings for bolts. Example: cylinder head bolts often require 18–22 ft-lb in stages.
- Feeler Gauges: Adjust valve lash to 0.008–0.012 inches for intake valves, 0.012–0.016 inches for exhaust.
- Plastigage: Measure bearing clearances. Excessive space (over 0.003 inches) indicates worn journals.
- Micrometer: Check piston skirt diameter. Oversized pistons require honing the cylinder walls.
When sourcing components, prioritize suppliers with real-time inventory tracking. Sites like Rocky Mountain ATV/MC offer next-day shipping for in-stock items, while local dealers may have extended backorders. For rare pieces like the flywheel magneto, contact salvage yards–verify condition with multimeter tests (coil resistance should read 0.2–1.0 ohms).
After installation, cross-check the schematic for overlooked elements like coolant temperature sensors or oil pressure switches. A disconnected sensor triggers false error codes, masking genuine mechanical issues. Log all replaced parts in a maintenance journal, noting part codes and installation dates. This record accelerates future diagnostics by ruling out recently serviced areas.
