If you need to service or repair your single-cup coffee maker, start with a clear reference of its assembly. Locate the official exploded view provided in the service manual–this document typically lists every component by number, with precise measurements and material specifications. For most models produced after 2018, the water reservoir assembly sits atop a molded base that integrates the heating element directly into the plastic housing. This design eliminates the need for external tubing in early iterations, reducing failure points.
Begin disassembly at the drip tray–removing this reveals two T10 torx screws securing the bottom panel. Underneath, the pump and PCB are mounted on a stamped steel bracket. The pump inlet connects via a 4 mm silicone hose to the check valve, which threads into the aluminum block beneath the brew head. Replace this valve if water drips continuously after brewing, as calcification here disrupts pressure regulation. Use a thread sealant rated for potable water when reinstalling.

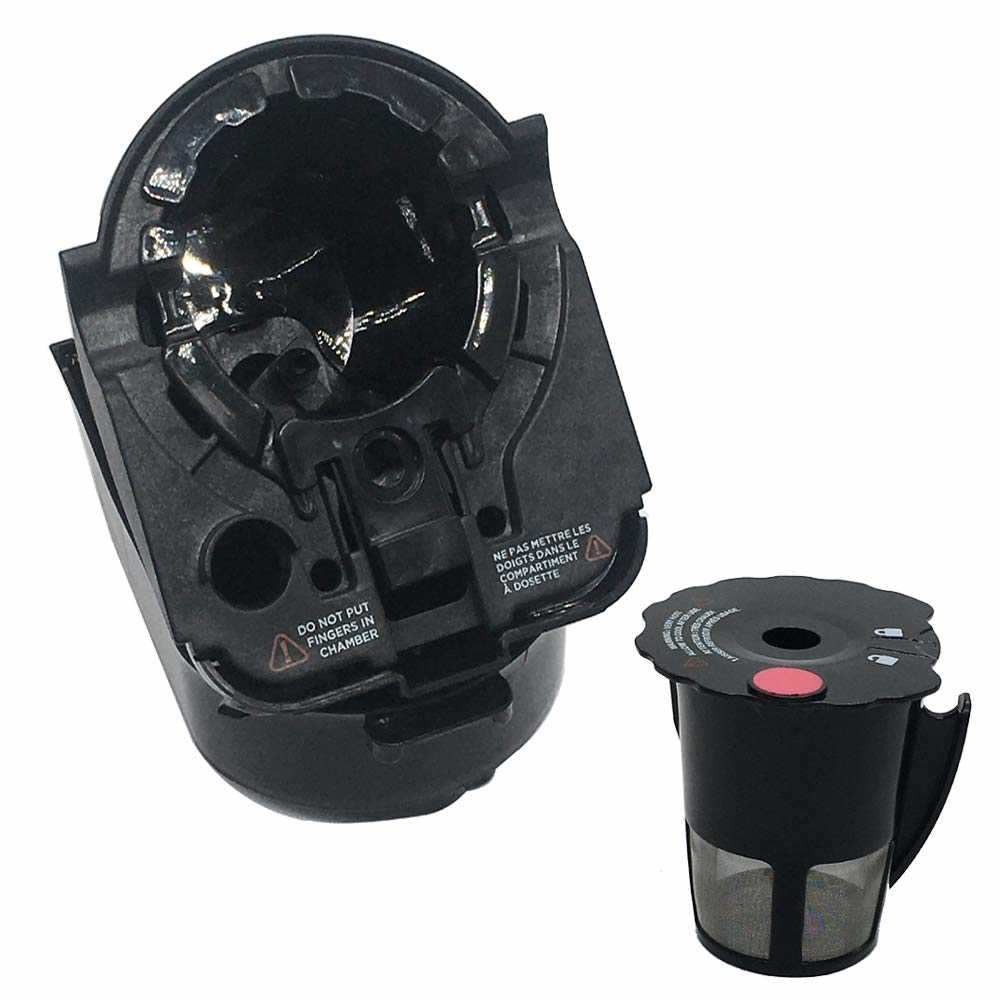

The brew head itself disassembles with three Phillips screws. Inside, the exit needle is press-fit into a nylon carriage that slides along brass rails. Lubricate these rails with food-grade silicone grease during reassembly if movement feels sluggish. Adjacent to the needle, the solenoid valve (usually part #203-5678) opens for 4.2 seconds during a brew cycle. Test this with a multimeter set to 24 VDC–the coil should read 35 Ω; replace if outside ±5 Ω tolerance.
Inspect the heating block next. The element brazed into this block typically draws 1350 W and maintains 195°F (±3°F). Thermal paste between the block and temperature sensor should be reapplied every 24 months–use Arctic Silver 5 for best conductivity. If the machine fails to heat, verify the 8A fuse on the PCB before replacing the element; most failures stem from corroded connectors rather than the element itself.
The PCB sits behind the power switch. Firmware version is silk-screened on the board (e.g., “v4.2.1-B”)–note this before flashing updates. Capacitors C15 and C22 are prone to bulging; replace with 100 µF, 25 V X5R variants. For models with Bluetooth (e.g., K-Supreme), the antenna trace runs along the left edge–ensure solder mask isn’t scratched during servicing.
Understanding Your Brewer’s Internal Blueprint
Locate the water reservoir assembly first–it sits atop most models and connects via a sealed inlet valve. Disconnect power and remove the upper housing to expose the pump, typically a compact 12V DC unit rated at 1.5A. Note the inlet hose’s color-coded markings: red for hot water, blue for cold.
Inspect the heating element, a coiled aluminum tube with a 1300W max output, threaded into the baseplate. Attached thermistors regulate temperature within ±2°C; if brewing cycles erratically, test resistance across the leads (should read 10kΩ at room temp). Replace if readings deviate by more than 5%.
| Component | Voltage/Test Point | Typical Fault Codes |
|---|---|---|
| Pump motor | 12V DC (check ground wire) | E04, E05 (no water flow) |
| Brewer needle | None (visual blockage) | E02 (pre-infusion fail) |
| Control board fuse | 3A (5x20mm glass) | Power-off, no lights |
Trace the high-pressure tubing from the pump outlet to the brewer head. Look for abrasions–any cuts deeper than 0.5mm demand tube replacement. The brewer’s exit chute includes a micro-switch; clean contacts monthly with isopropyl alcohol to prevent false “pod missing” errors.
Remove the drip tray to access the internal drain channel. Use a 2.5mm Allen key to detach the tray’s retaining clip if clogs persist. Behind the channel sits the waste bin sensor, a reflective IR pair; wipe emitter/lens weekly to prevent overflow alerts.
The user interface ribbon cable connects to a 4-layer PCB. Apply dielectric grease to connector pins during reassembly to prevent corrosion. If display pixels flicker, re-seat the cable–pressure should be uniform across all 16 contacts.
Refer to factory build sheets for resistor values; standard models use 1/4W carbon film (e.g., R12: 4.7kΩ, R15: 10kΩ). High-altitude kits modify R15 to 22kΩ–verify with a multimeter if brew volume exceeds 8oz unexpectedly.
Secure the lower housing with torque-limited screws (6 in-lb max). Over-tightening risks cracking the plastic mounts, which house the grounding spring. Check continuity between the spring and metal chassis–should read under 0.5Ω.
Critical Elements Outlined in a Single-Cup Brewer Blueprint
Begin troubleshooting by locating the water reservoir assembly–its dual-layered housing must form an airtight seal to prevent pressure leaks during extraction cycles. Inspect the silicone gasket at the base; deformation or mineral buildup here will disrupt flow rates, leading to inconsistent brew volumes. Replace it annually if daily use exceeds 5 cups.
Heating Mechanism and Flow Path
The thermoblock heater, typically welded to the aluminum water channel, requires direct contact with liquid to avoid overheating. Verify the resistance reading between the terminals–values outside 20-25 ohms indicate coil degradation. Clean the exit needle annually using a 1:1 vinegar-water solution to dissolve scale; avoid metal tools that scratch the PTFE coating.
Needle valves at both entry and exit points demand precise alignment. Misalignment causes grounds migration into the internal tubing, detectable by brownish particles in the brewed output. Check clearance with calipers–optimal gap ranges from 0.3-0.5mm. Replace needles if pitting exceeds 0.1mm depth.
Pressure relief vents redirect excess steam during high-altitude operation. Test functionality by brewing at 6,000+ feet; failure results in prolonged extraction times. Ensure the vent’s one-way membrane remains flexible–rigidity signals calcification. Soak in citric acid for 4 hours if stiffness is observed.
Electronic Control and User Interface
The microcontroller board, often epoxy-encapsulated, regulates pre-infusion timings. If brew cycles shorten unexpectedly, probe the solenoid driver circuits–voltages below 4.8V suggest transistor failure. Upgrade firmware only via official OTA updates; third-party patches risk overwriting PID calibration constants.
Display modules link directly to membrane keypads through ribbon cables. Bundle fraying starts at the connector edges–secure with polyimide tape to prevent intermittent disconnections. Replace the entire keypad if liquid contaminants penetrate beneath the silicone overlay; partial repairs fail within 30 days.
Power supply components, particularly the switched-mode regulator, endure voltage spikes during startup. Replace capacitors rated below 35V immediately; bulging indicates imminent failure. Install a transient voltage suppressor between the transformer secondary and rectifier bridge as preventive maintenance.
Tracing Liquid Circuits in Brewing System Blueprints

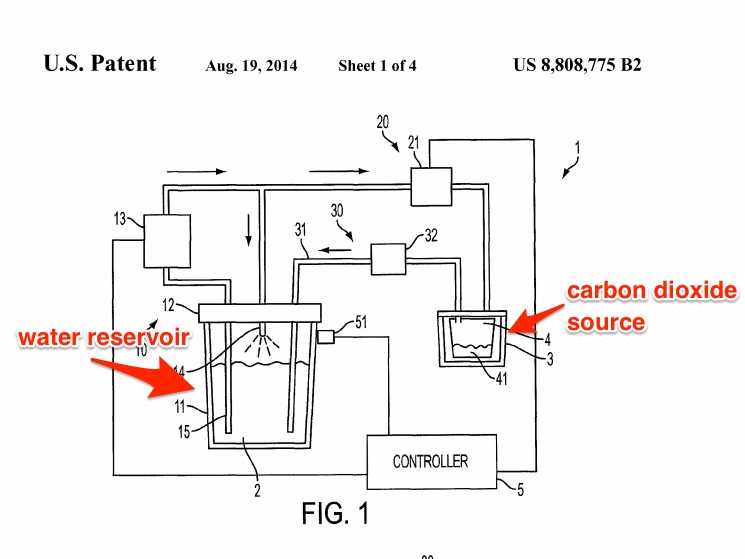

Identify the pump inlet tube first–it’s typically the thinnest transparent or opaque conduit branching from the water reservoir. On most layouts, this line connects to a circular or rectangular motor assembly marked with fluid pressure symbols. Follow its path downstream: the pump forces liquid into a coiled or serpentine heat exchanger, often labeled with temperature icons or color-coded red.
Examine the heater outlet–look for a single thicker hose or rigid conduit leading upward. This channel splits into a Y-shaped junction just before entering the brewing chamber. One side routes to the dispensing needle; the other feeds a small reservoir above the pod holder. Check for one-way valves, usually depicted as arrows or spring-loaded symbols, preventing backflow into the heating circuit.
Locate the air gap on the upper right corner of the illustration–it appears as a tiny vent hole or vertical pipe near where steam exits. This prevents vacuum locks and ensures consistent flow pressure readings. If present, trace the adjacent condensate line: excess vapor drains into a secondary tank or drip tray via a thin corrugated hose.
Find the thermal fuse wired along the heater coil or chamber wall–it’s a thin rectangular strip or bead next to the coiled tubing. Its placement dictates the cutoff point if temperatures exceed safety thresholds; verify continuity in the liquid routing past this device before proceeding into the dispensing zone.
Inspect the brewing chamber inlet valve–often a solenoid-driven gate or pinch mechanism where the thicker hose connects. On visual maps, this node is annotated with mechanical drawings of levers or magnets. Test continuity by simulating activation; liquid should pass through only when the valve icon aligns with an open-port symbol.
Trace the post-brew bypass channel–a secondary transparent line leading to the drip tray. This path clears residual liquid after each cycle; look for a small restrictor orifice measured in millimeters, ensuring slow drainage. If absent, stagnant water may pool inside delivery components, elevating mineral buildup risks.
Compare all conduits against diameter specifications listed in the legend–mismatches indicate potential blockage points. Resistive tubing, usually blue or black, accommodates higher pressure than standard vinyl; failure to distinguish these often causes misdiagnosis during troubleshooting.
Verify terminal connectors at each junction–quick-disconnect fittings should snap securely, especially at the pump and heater ports. Loose attachments introduce air gaps, disrupting flow consistency; tug-test each joint after following the traversal on the schematic.
