Start by identifying the model number of your appliance, usually found on a label near the base or under the casing. Common variants include KSM150, KP26M1X, and Artisan series–each requires specific attachments and internal elements. Use the official manufacturer’s service manual or an exploded view illustration to pinpoint the exact piece you need, whether it’s a gear housing, worm drive, or planetary assembly.
For gearbox repairs, refer to R0630025, R0630026, or W10829337–these are critical for resolving grinding noises or motor strain. If replacing the wire whip, dough hook, or paddle, ensure compatibility with your bowl lift or tilt-head configuration. Third-party suppliers often mislabel batches; cross-check dimensions (e.g., shaft length, attachment diameter) before ordering.
Electrical components like the control board (W11189968) or capacitor (W10738661) demand precise voltage ratings–never substitute without verifying specs. For seals and gaskets, PTFE or food-grade silicone must meet FDA standards. If disassembling the motor housing, note the orientation of brushes (W11189978); incorrect placement causes erratic speed or failure to start.
DIY rebuilds save costs but void warranties if mishandled. Use a torque screwdriver for reassembly–overtightening screws in the rear housing cracks plastic mounts. For rare vintage models, check salvage forums; parts like C-70 or K-45 are discontinued but occasionally surface in lot sales.
Understanding Your Stand Mixer’s Component Layout
Locate the gear housing (typically at the base) first–it’s the most frequent failure point in heavy-duty mixers. If attachments like whisks or dough hooks struggle during operation, remove the back plate (4 screws, Phillips #2) to inspect the worm gear. Brands like Hobart and Whirlpool often use nylon for this part; if shredded, replace it immediately with a steel-reinforced version (model 253042) to prevent repeat damage–nylon lasts ~6 months under daily bread dough loads, while steel lasts 3+ years.
For bowl-lift models, the lifting mechanism hinges on two critical components: the bowl support lever and the spring-loaded pin. If the bowl won’t lock, check the pin’s alignment–it should protrude 5mm when engaged. Lubricate the lever’s pivot point with food-grade grease (NSF H1 certified) every 50 hours of use. Avoid petroleum-based lubricants; they degrade plastic bushings within 12 months. The tilt-head release button (near the rear) is another weak spot–clean it with compressed air monthly, as flour buildup causes misfires.
Electrical Troubleshooting Without Disassembly
Before opening the motor housing, verify power issues with a multimeter. Test the speed control plate (behind the front dial) by setting it to “Stir” (lowest speed) and probing the terminals–expected reading: ~0Ω. If resistance exceeds 2Ω, the carbon brushes (part #W10611978) are worn. Replace both simultaneously, even if only one shows wear–mismatched brushes cause uneven motor strain. For models with a 9-speed dial, the resistor network (under the top cover) often fails at speeds 7–9; bypass it temporarily by setting the dial to “6” for high-torque tasks like kneading.
To replace the drive shaft bearing (common in mixers older than 8 years), remove the planetary hub (left-hand thread, 32mm wrench) and extract the shaft using a bearing puller (Harbor Freight #60653). Pack the new bearing (SKF 6205-2RS) with high-temperature lithium grease (Molykote 55) to prevent seizing–generic bearings fail within 400 hours under heavy loads. Reassemble the hub by torquing the retaining nut to 25 ft-lbs (use a beam-type torque wrench for precision). Misalignment here causes the mixer to “walk” during operation, a safety hazard on marble countertops.
Finding and Recognizing Key Components in Your Stand Mixer Schematic

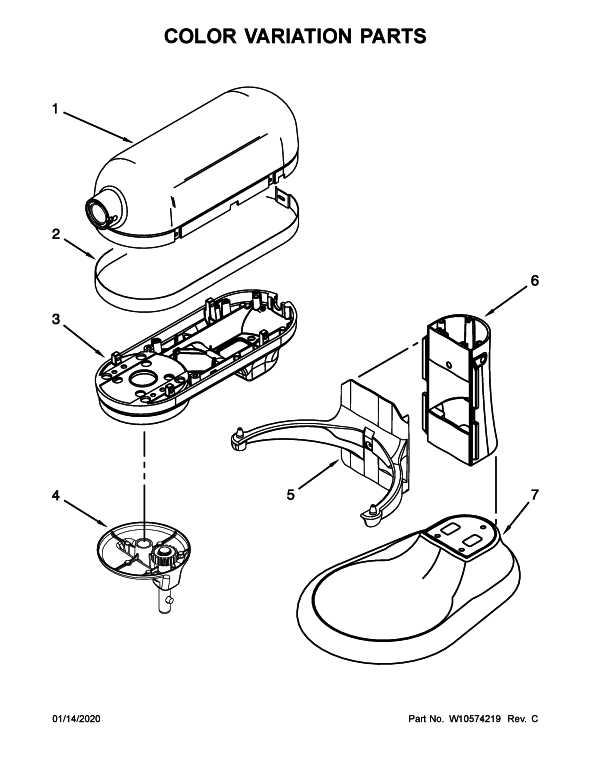

Start with the official service manual for your model–typically found on the manufacturer’s website under support documents. Locate the exploded view page, where components appear disassembled in a numbered sequence. Cross-reference the item numbers beside each piece with the accompanying parts list to confirm names and specifications.
Focus on high-wear elements first: the planetary hub, beater shaft, and worm gear assembly. The hub sits at the center of the mixing bowl platform, secured by a retaining clip visible in the schematic’s lower-left quadrant. The beater shaft extends downward from the hub, meshing with the worm gear housed inside the motor base–look for these aligned vertically in the diagram’s cross-section view.
Interpreting Component Relationships
| Diagram Symbol | Part Name | Function | Common Failure Sign |
|---|---|---|---|
| #12 (near base) | Drive shaft seal | Prevents lubricant leaks | Oil residue beneath mixer |
| #28 (upper bracket) | Speed control plate | Regulates motor RPM | Inconsistent speed shifts |
| #41 (right side) | Tilt-head latch | Secures attachment position | Loose or misaligned head |
Use a flashlight to inspect hidden areas matching the diagram’s callouts–reject gaskets will appear compressed between metal flanges, while plastic bearings reveal wear as smooth, shiny grooves. Replace any component where physical condition deviates from the schematic’s pristine illustration.
For models with electronic controls, trace wiring harnesses from the control panel to the motor assembly–schematics highlight wire colors (red, black, blue) and connector types (spade, blade, bullet). If corrosion appears on terminals, clean with dielectric grease before reinstalling.
Tools to Match Diagram Accuracy
Keep a digital copy of the schematic on a tablet beside your workspace–zoom into sections showing thread patterns (2.5mm pitch) or spline counts (13 teeth) for precise replacements. A caliper measures shaft diameters down to 0.1mm tolerance, ensuring aftermarket gears mesh correctly. Avoid approximations: even identical models differ between years (e.g., 2015 vs. 2022 tilt mechanisms).
How to Decode the Bowl Lift Stand Mixer Assembly Layout
Locate the tilt-head latch at the upper rear of the base–this secures the motor housing during operation. The bowl lift mechanism consists of two vertical rails flanking the mixing bowl; each rail houses a threaded rod connected to a gear-driven lever. Rotate the lever clockwise until resistance halts; this locks the bowl in mixing position. Verify alignment by ensuring the bowl rim sits evenly within the three guideposts (two at the front, one at the back). Misalignment here often causes wobble during high-speed mixing, particularly with dough hooks.
- Motor housing: Contains the drive shaft (vertical) and planetary gear system (horizontal); never disassemble without unplugging–capacitors retain charge.
- Planetary hub: Central rotating component where attachments lock; check for grease depletion every 60 hours of use–replace with food-grade synthetic lubricant.
- Beater shaft seal: Located behind the planetary hub; inspect for cracks if oil leaks appear–replace immediately to prevent motor damage.
- Bowl clamp ring: Threads onto the base; tighten until the rubber gasket compresses uniformly–loose fitting risks bowl lift during heavy loads.
- Speed control selector: Sliding lever on the front panel; test before each use–erratic movement signals worn potentiometer (requires replacement).
- Wire whip, flat beater, dough hook: Attach via quick-release hub; ensure at least 2mm clearance between attachment and bowl bottom–adjust hinge bolt if scraping occurs.
Locating Spare Components with Your Stand Mixer Schematic
Start by downloading the official exploded view from the manufacturer’s support portal–most brands offer a PDF catalog with exact serial-number-matched breakdowns. Enter your model’s prefix (e.g., “KSM” for Classic, “Artisan” for tilt-head) into the search bar to pull the correct schematic. Cross-reference the labeled item numbers with the parts list at the end of the document to confirm measurements and material specs before ordering.
Visit authorized retailers like:
- Factory-certified distributors: Direct OEM stores (e.g., Whirlpool’s parts site) guarantee compatibility and include warranties, though prices may be 10–30% higher than third-party sellers.
- Specialized appliance vendors: Sites like RepairClinic, PartSelect, and eReplacementParts allow filtering by schematic reference codes, reducing guesswork. Their live inventory updates reflect stock within 24 hours.
- Marketplace aggregators: Amazon and eBay offer used or aftermarket alternatives; verify seller ratings exceed 98% and insist on photographed packing slips to avoid counterfeit gear.
Compare rival schematics–some older stand mixers share motor mounts or bowl-lift assemblies across lines. For instance, a 2010 Pro 600 drive shaft (part #W10217912) fits select Commercial models, but thread pitch varies. Measure twice; a 0.5mm discrepancy can void mixing capacity.
Local repair workshops often stock shelved surplus for popular models. Call ahead with your schematic reference–technicians may identify unlisted subcomponents (e.g., worm gears, nylon bushings) not visible in manuals. Expect pricing at 40–60% of retail for common wear items like gaskets or beaters.
Salvage forums (e.g., Facebook Marketplace, Craigslist) yield intact replacements for defunct units; negotiate using the exploded view as leverage. Post exact part codes from the schematic to attract serious sellers–ambiguous requests risk lowball offers. Request close-up photos of shafts, splines, and couplings before meeting.
When ordering overseas, account for import fees and extended lead times (2–6 weeks). European schematic codes differ; a bowl clamp labeled “3432” in US docs may be “ZE-87” in EU variants. Confirm voltage ratings–110V motors won’t pair with 220V aftermarket gearboxes despite matching dimensions.
For rare accessories (e.g., pasta rollers, ice cream bowls), contact independent machinists via Tindie or Etsy. Upload your schematic’s technical drawing–they’ll quote fabrication costs, typically $35–$120 per custom piece. Ensure measurements match the exploded view’s callouts within ±0.1mm to prevent alignment failures during assembly.
